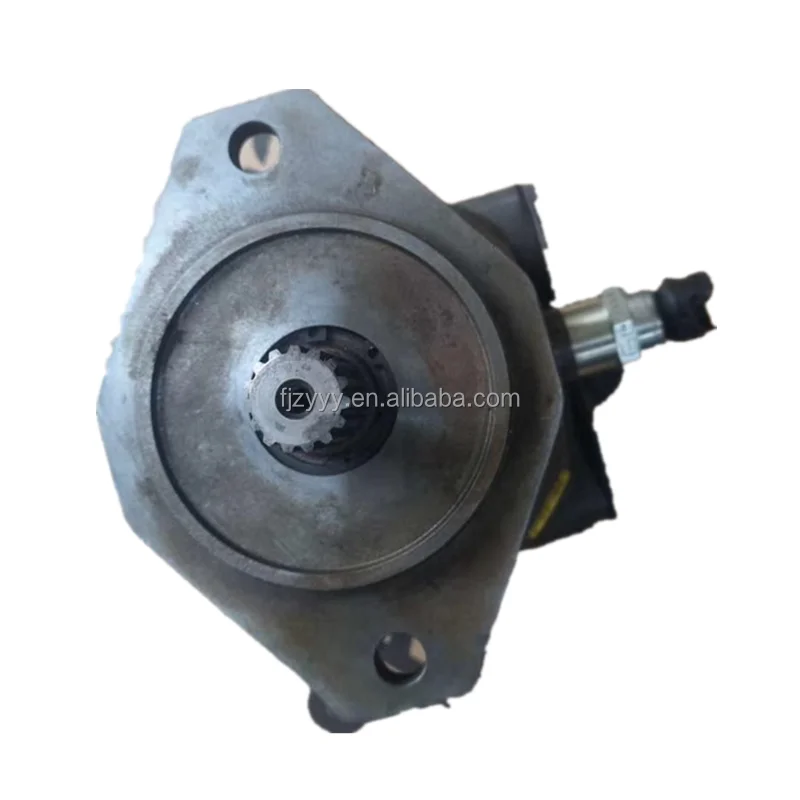

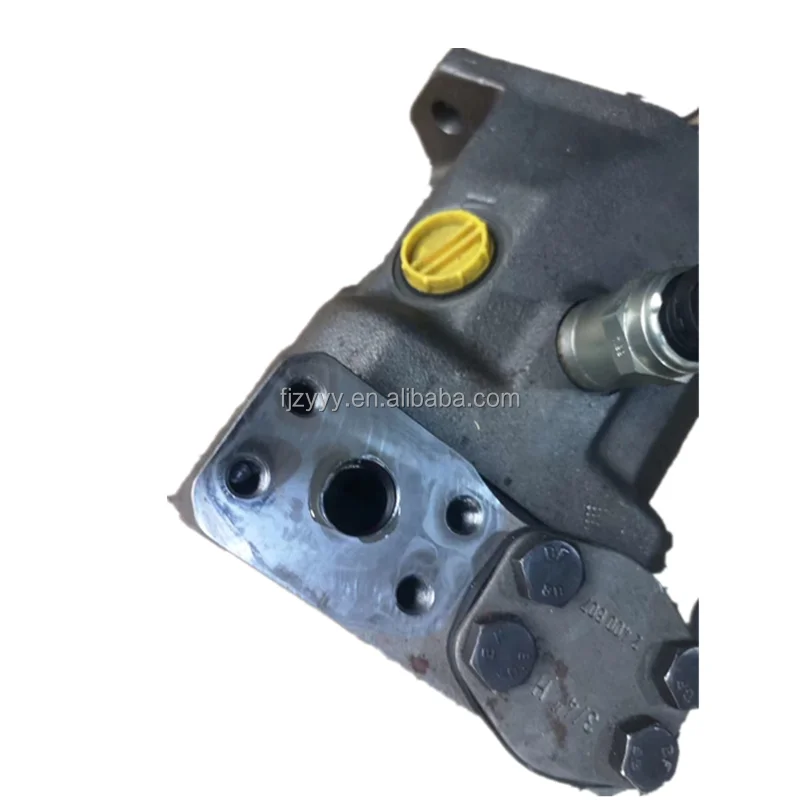

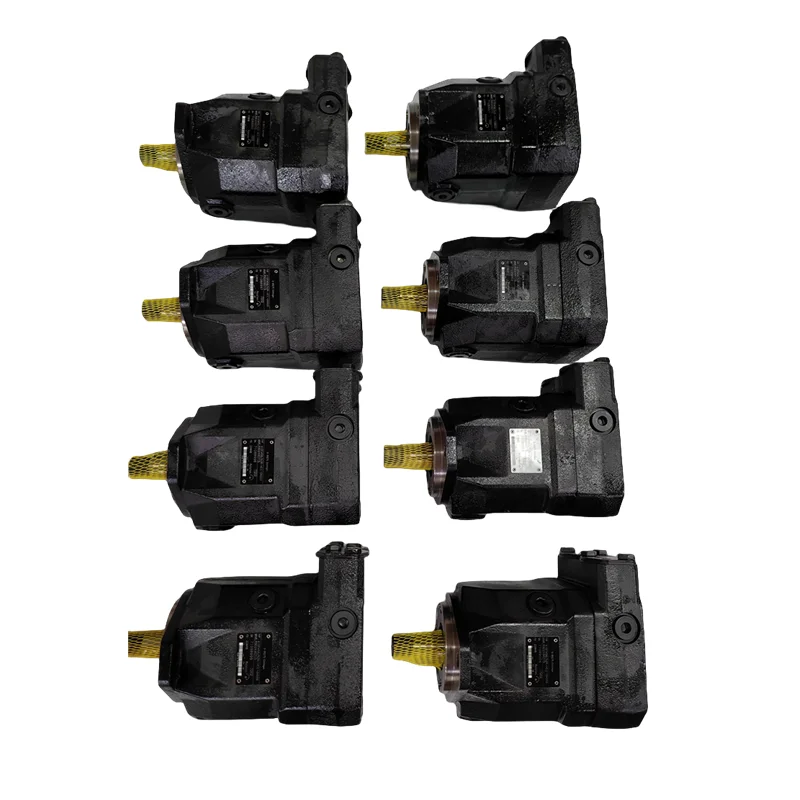

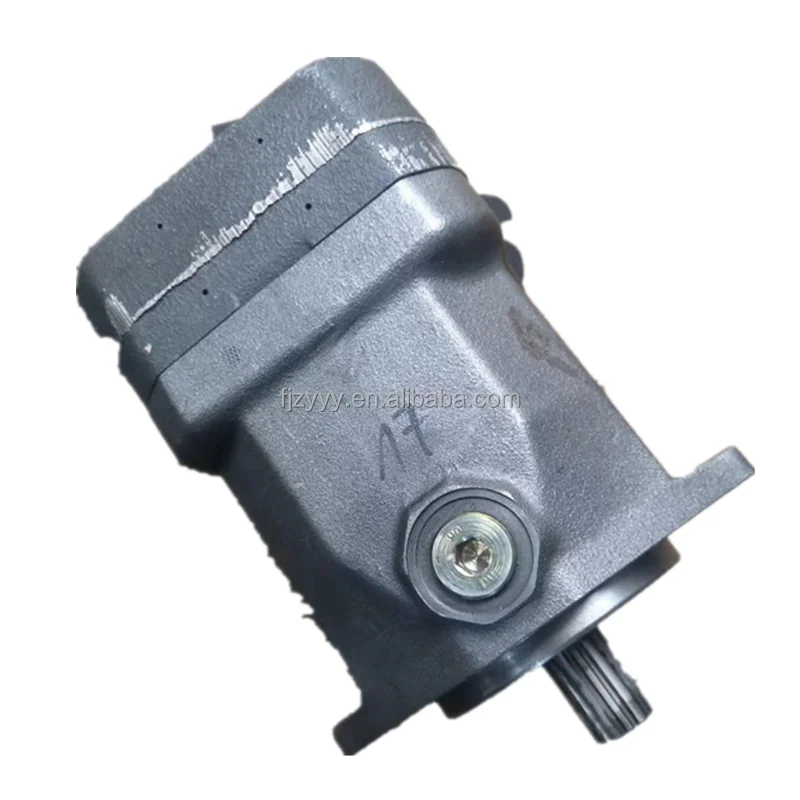

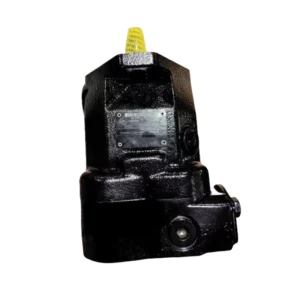

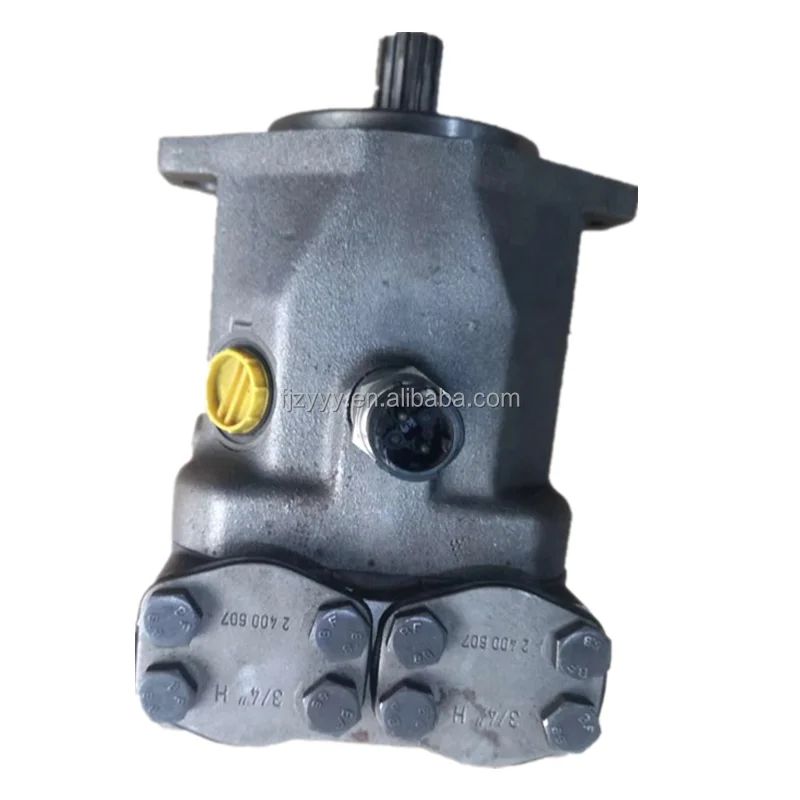

ZHENYUAN A10FM Motor | A10FM37 A10FM45 A10FM58 | Axial Piston Fixed Motor
| Model Number | A10F M 37/52R-VCC10N002, A10FM45/52W-VC66N00, A10FM58/52R-VCC10N002 |
|---|
Product Description
ZHENYUAN A10FM Series Axial Piston Fixed Hydraulic Motors
Product Overview: The ZHENYUAN A10FM Series is a swashplate-design axial piston fixed motor, extensively utilized in both open and closed-circuit hydrostatic transmissions. Known for its exceptional power-to-weight ratio and proven valve plate technology, the A10FM series is the ideal power output unit for medium-pressure applications. This page features core models: A10FM37, A10FM45, and A10FM58. These motors are widely applied in agricultural machinery drives, mini-excavator slewing, street sweeper brush drives, and industrial light conveyor systems.
Key Technical Advantages:
Highly Compact Design: The refined swashplate architecture of the A10 series ensures a minimal footprint, making it easy to integrate into equipment with limited installation space.
High-Speed Performance: Optimized rotating components support high continuous rotational speeds, delivering smooth and efficient power transmission.
Low Noise Operation: Precision-engineered valve plates effectively reduce pressure pulsations and mechanical noise during operation.
Strong Interchangeability: Featuring standardized mounting flanges (e.g., VCC10/VC66 standards) and shaft configurations, these motors serve as cost-effective replacements for international brands.
Target Applications: Mower drives, orchard harvesting machinery, auxiliary swing drives for mini-excavators, and machine tool cooling system drives.
Detailed Models & Parameters:
Core Series: ZHENYUAN A10FM Series 52.
Technical Spec Decoding:
A10FM37/52R-VCC10N002: Size 37, Series 52, Clockwise rotation (R), VCC10 standard interface.
A10FM45/52W-VC66N00: Size 45, Series 52, Bi-directional porting (W), VC66 reinforced connection standard.
A10FM58/52R-VCC10N002: Size 58, offering higher torque output for medium-load drives.
Core Performance Specs:
Displacement Range: 37 cm³ / 45 cm³ / 58 cm³.
Rated Pressure: 250 Bar (3600 PSI).
Peak Pressure: 315 Bar (4500 PSI).
Max Speed: Capable of operating up to 4000+ RPM depending on flow conditions.
Company Profile
We adhere to international quality management standards and provide a 1-year warranty including maintenance and replacement. We have established long-term strategic cooperation with many well-known brands and continuously launch new products to meet market development. Flexible payment terms are supported, including USD settlement, Alipay, Western Union and T/T.
Relying on our standardized production base and professional foreign trade team, we provide competitive factory direct prices, efficient logistics channels and punctual delivery. FJZY Hydraulic is devoted to being your trustworthy long-term partner in hydraulic and agricultural machinery fields.
