Yuken Type RG Series Pilot-operated Pressure Reducing and Relief Valves

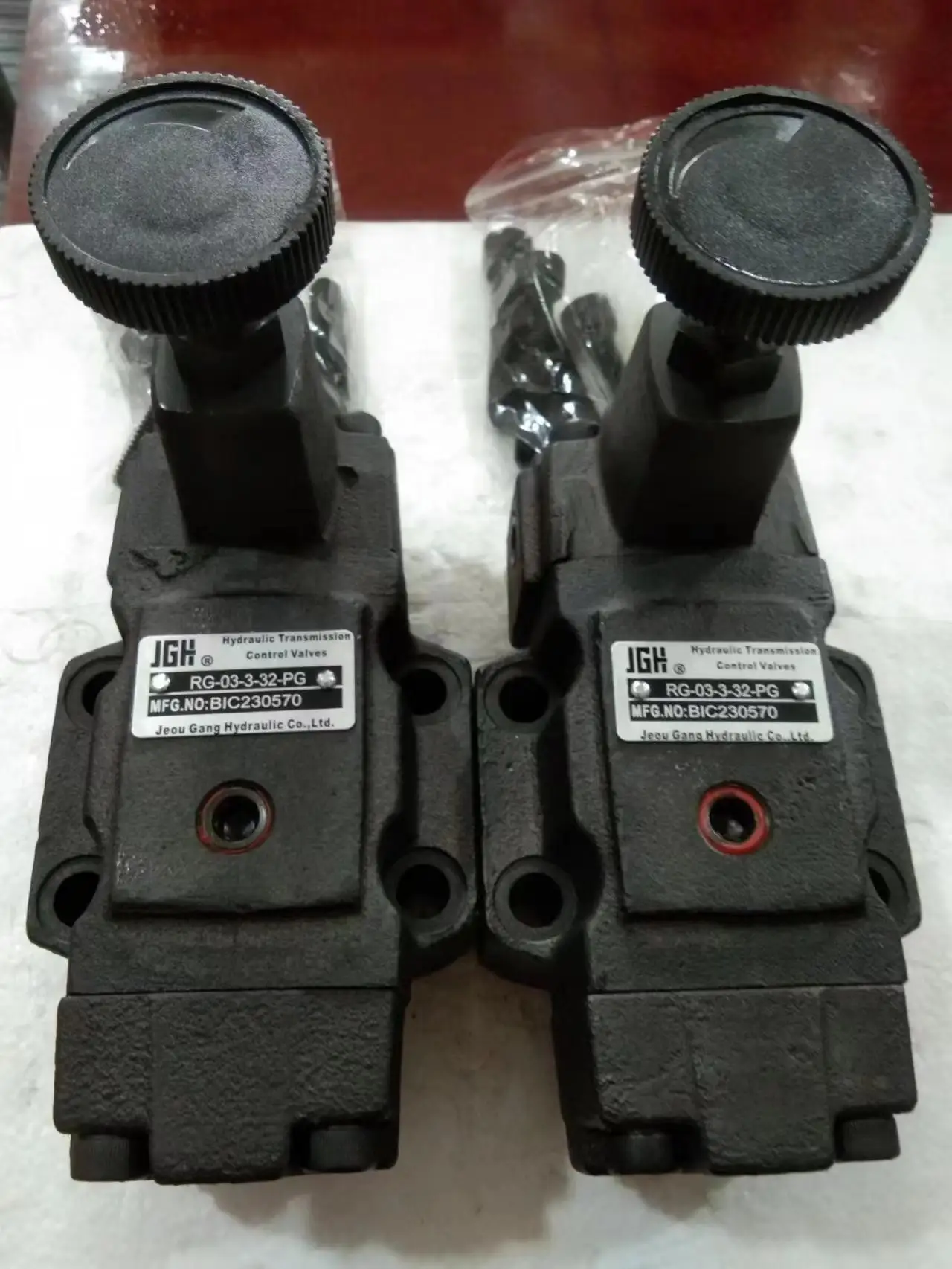

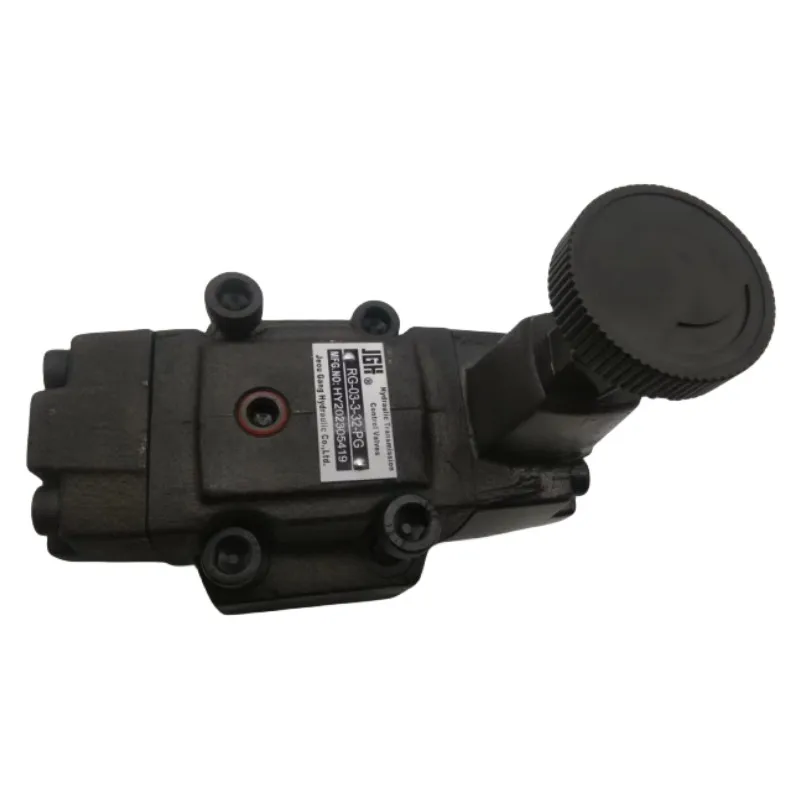

Product Overview: The RG Series Pressure Reducing and Relief Valve is a high-performance composite control valve designed for systems requiring a constant branch circuit pressure despite fluctuations in the primary line. The RG model combines Pressure Reducing (output control) and Relief (overpressure protection) functions in a single unit. This category highlights core models: RG-03-3-32-PG, RG-06, RG-10, and the complete RG-03-1/2/3 configuration range.

These valves are widely used in CNC machine tool clamping circuits, industrial press branch controls, and various automated hydraulic power units. Featuring a PG (Pressure Gauge) port, it allows users to monitor real-time pressure settings, making it an ideal choice for precision pressure management.

Key Technical Advantages:

• Dual Protection (Reducing & Relief): When the branch pressure exceeds the set value, the valve automatically functions as a relief valve, effectively preventing system overload.

• High-Precision Regulation: The pilot-operated design ensures minimal pressure override and maximum stability even under fluctuating flow conditions.

• Inline Threaded Architecture: Classical threaded connections allow for flexible installation and simplified maintenance without complex manifolds.

• Comprehensive Range: Available in sizes 03 (3/8″), 06 (3/4″), and 10 (1-1/4″) to handle everything from precision control to high-flow unloading.

Detailed Specifications & Parameters:

• Core Series: Yuken Type RG Pilot-operated Reducing and Relief Valves.

• Featured Model Matrix: RG-03-3-32-PG, RG-06, RG-10, RG-03-1, RG-03-2, RG-03-3.

• Core Performance Specs:

  • Nominal Sizes: 03 (NG10), 06 (NG20), 10 (NG32).

  • Max Operating Pressure: Rated for heavy-duty operations up to 25 MPa (250 Bar).

  • Pressure Adjustment Ranges:

    • 1: 0.7 – 7 MPa (7-70 Bar)

    • 2: 3.5 – 14 MPa (35-140 Bar)

    • 3: 7 – 21 MPa (70-210 Bar)

  • Max Flow Capacity: 03 (50 L/min), 06 (125 L/min), 10 (250 L/min).

  • Design Sequence: 32 series design.
