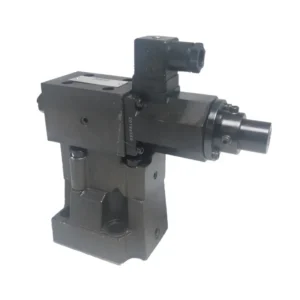

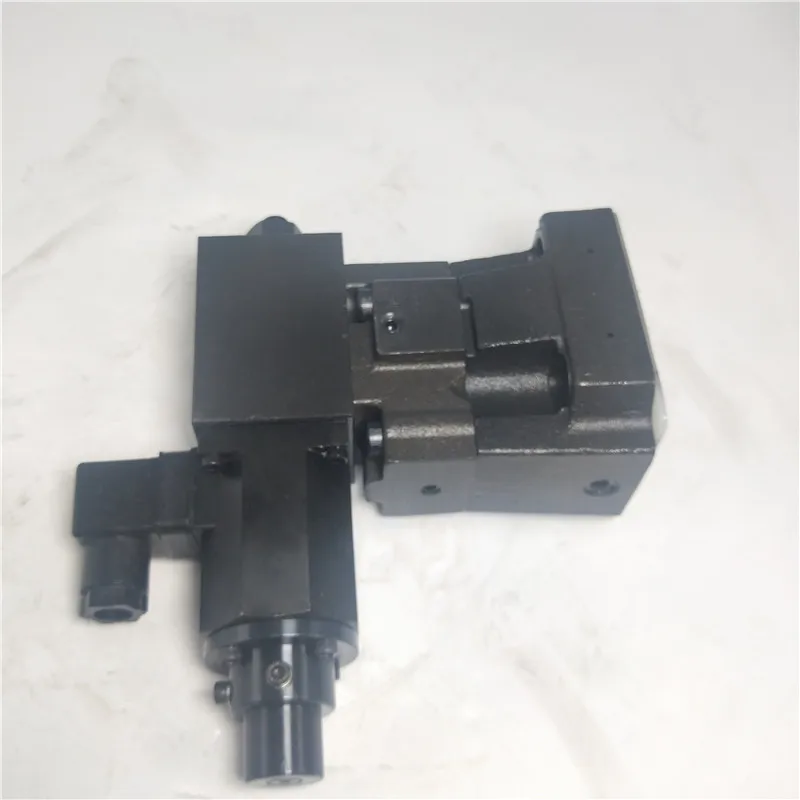

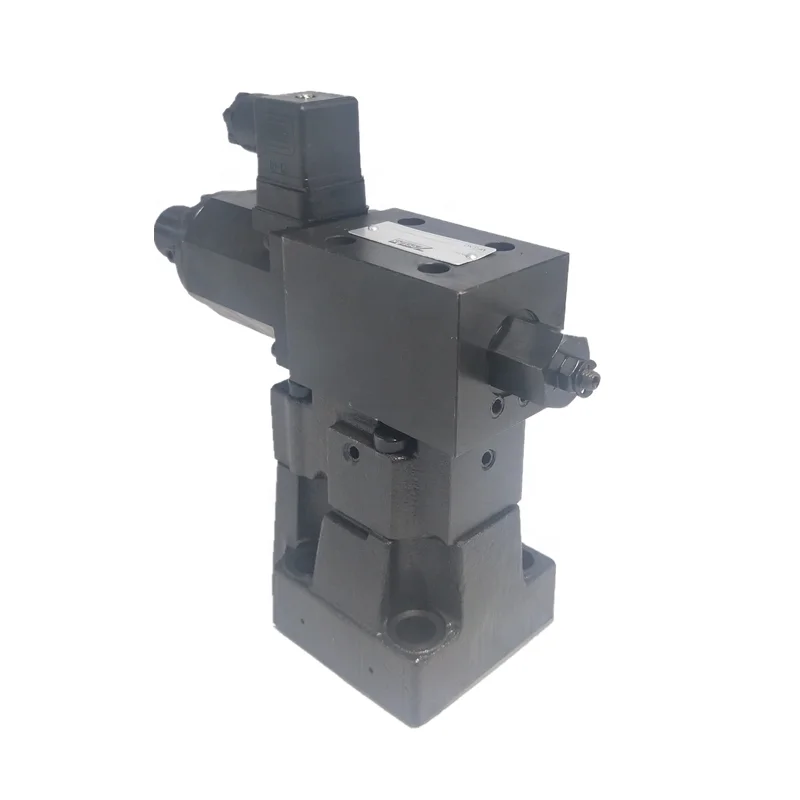

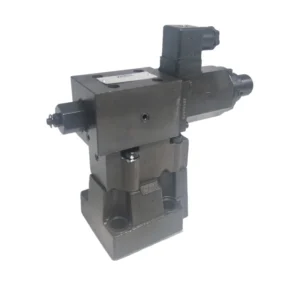

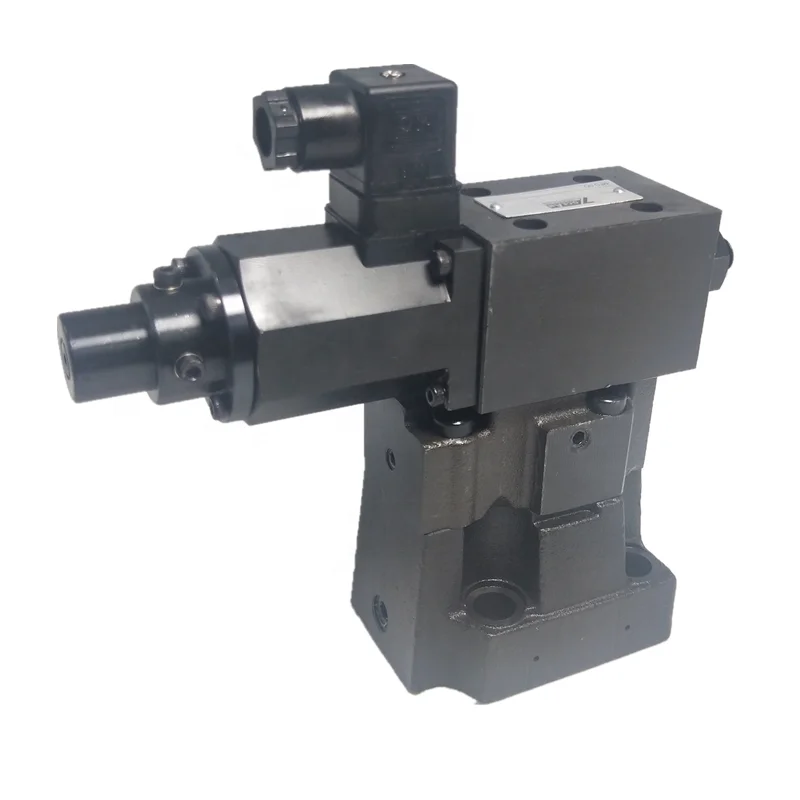

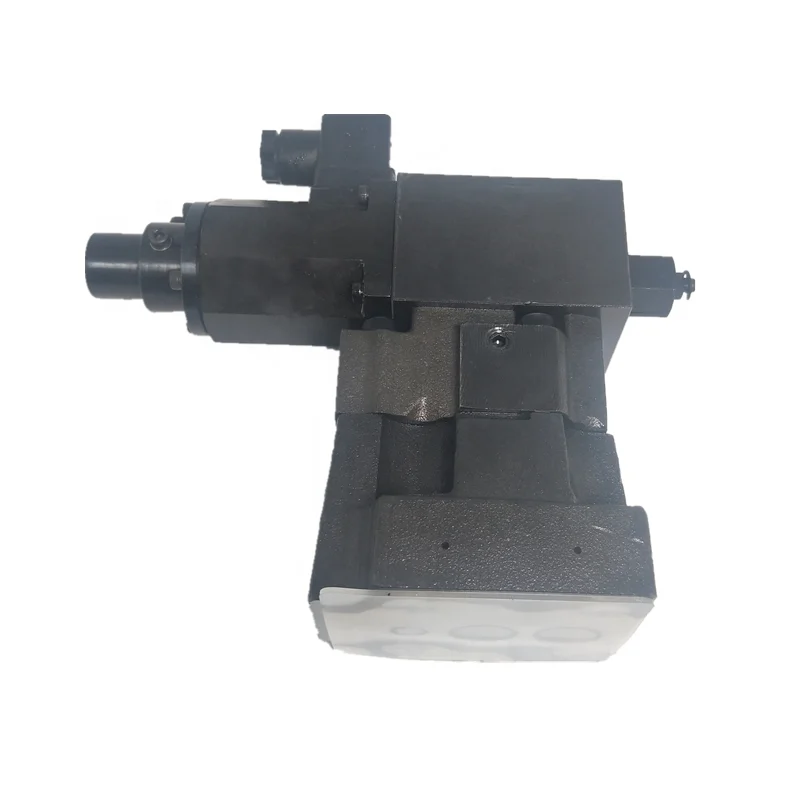

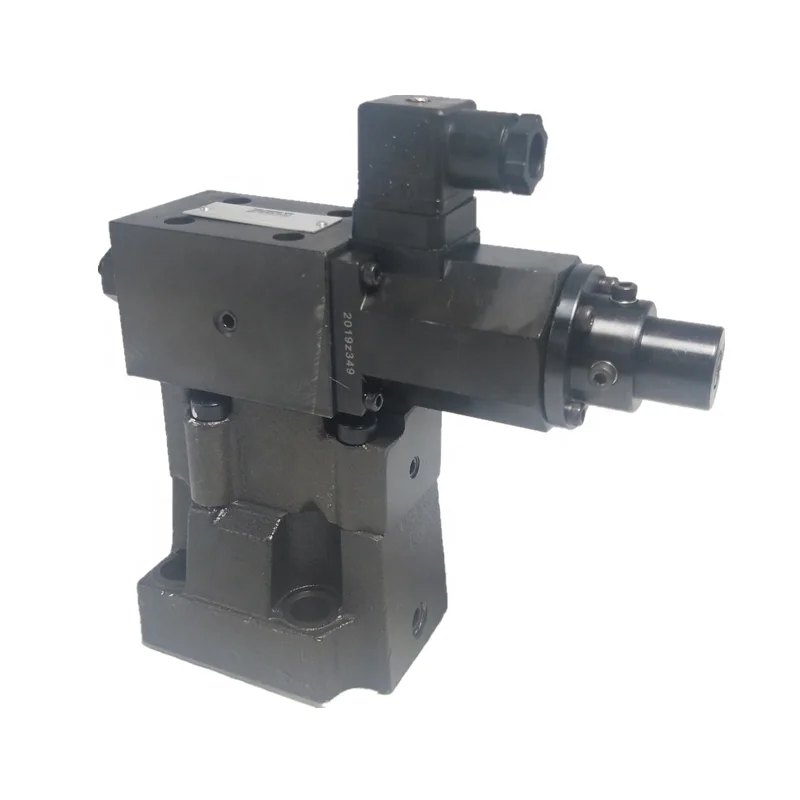

Yuken Type EBG-03 & EDG-01V Proportional Relief Valve | EBG-03-H | EDG-01V-C-PNT15 | 31.5 MPa
| Model Number | EBG, EDG, EBG-03-H-51, EBG-03-C-51, EDG-01V-C-PNT15-51, EDG-01V-H-1-PNT11-60 |
|---|
Product Description
EBG & EDG Series High-Response Proportional Relief Valves
Product Overview: The EBG and EDG series are the benchmarks for remote, high-precision pressure control in modern hydraulic systems. The EBG-03 series serves as a pilot-operated proportional relief valve for high-flow circuit regulation, while the EDG-01V functions as the precision pilot stage, converting electrical command signals into linear hydraulic pressure. Renowned for superior linearity, minimal hysteresis, and a rugged industrial build, these valves are essential for injection molding machines, brick presses, and automated equipment requiring complex pressure profile management.
Featured models: EBG-03-H-51, EBG-03-C-51, EDG-01V-C-PNT15-51, and EDG-01V-H-1-PNT11-60.
Key Technical Advantages:
Precision Proportional Regulation: Pressure output scales linearly with current input, enabling complex pressure stepping and smooth ramping via PLC control.
High Response & Stability: The optimized pilot architecture ensures millisecond-range response to pressure changes and suppresses system surges effectively.
PNT Specialized Interfaces: PNT11 and PNT15 configurations are optimized for specific OEM injection molding brands, ensuring seamless fitment during system upgrades or maintenance.
Wet-Pin Proportional Solenoid: The oil-immersed armature provides superior heat dissipation and natural damping, significantly extending mechanical life under high-frequency duty cycles.
Detailed Specifications & Parameters:
Featured Model Matrix:
EBG-03-H-51: Size 10, High-pressure (H) rating up to 31.5 MPa, Design series 51.
EBG-03-C-51: Size 10, Medium-pressure (C) rating for standard industrial applications.
EDG-01V-C-PNT15-51: Pilot valve with air bleed (V), Medium-pressure, PNT15 interface.
EDG-01V-H-1-PNT11-60: High-pressure pilot variant, with air bleed, PNT11 interface, high-response 60 series.
Core Technical Specs:
Max Operating Pressure: Up to 31.5 MPa (315 bar).
Max Flow Capacity: EBG-03 supports flow rates up to 100 L/min.
Hysteresis: Less than 2%, ensuring maximum control accuracy.
Control Signal: Optimized for 24V DC proportional amplifiers, typically 0-800 mA.
