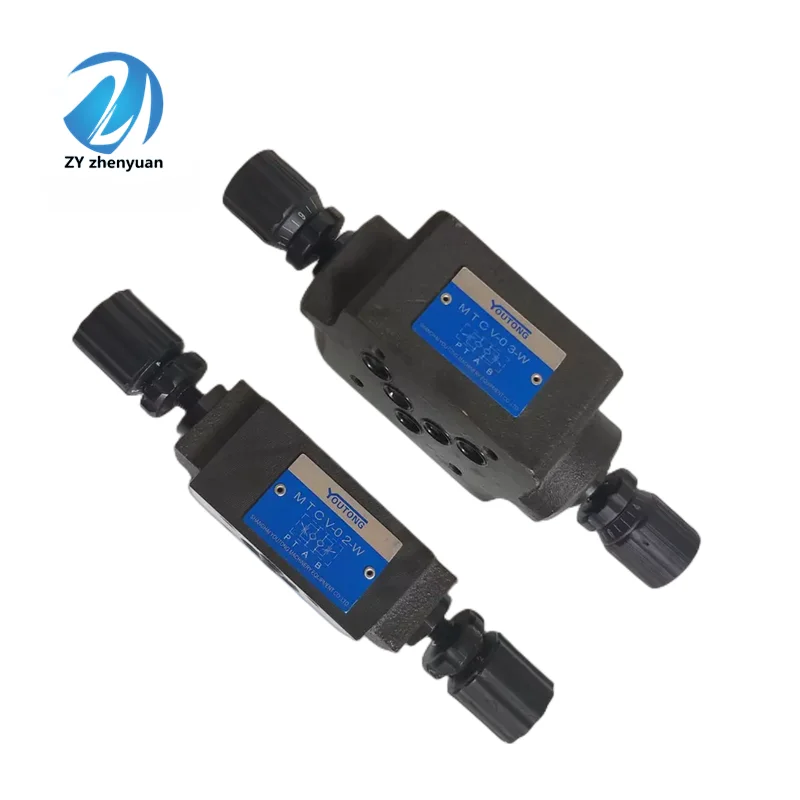

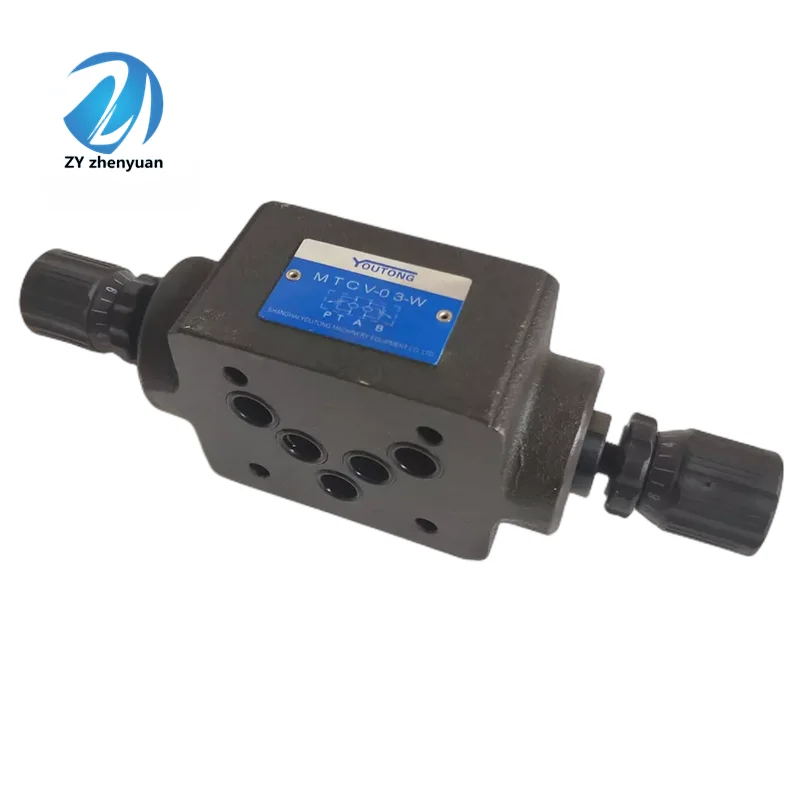

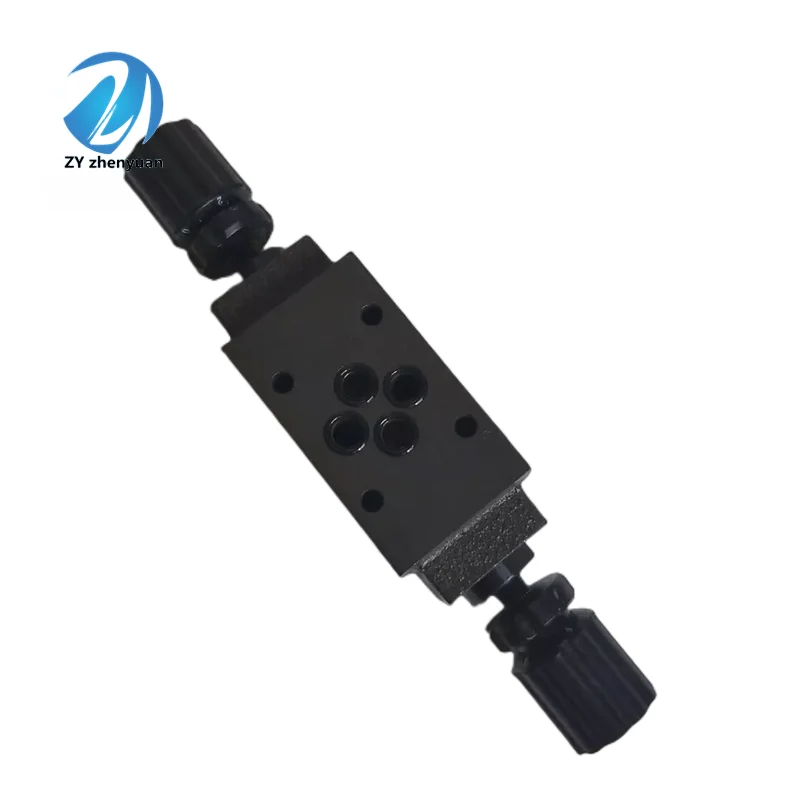

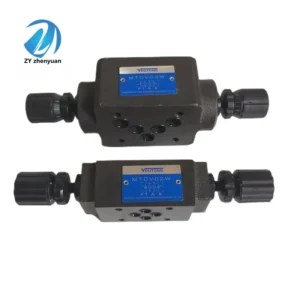

Yuken Type MTCV Valve | MTCV-03A MTCV-03B MTCV-02W | Modular Throttle Check Valve
| Model Number | MTCV-03A, MTCV-03B, MTCV-02W, MTCV-03-WI, MTCV-02-WO, MTCV |
|---|
Product Description
Yuken Type MTCV Series Modular Throttle and Check Valves
Product Overview: The MTCV Series represents a premium range of modular flow control components, engineered to precisely regulate the speed of hydraulic actuators (cylinders or motors) by adjusting the throttle orifice. Fully compliant with ISO 4401 mounting standards, this series covers Size 02 (NG6) and Size 03 (NG10) nominal sizes. Its stackable design allows for speed control integration directly beneath the directional valve, eliminating the need for extra piping and reducing the overall footprint and leakage risks.
This selection integrates versatile configurations: the A-port control MTCV-03A, B-port control MTCV-03B, double-port MTCV-02W, and specific direction-oriented WI/WO specifications.
Key Technical Advantages:
Versatile Port Configurations: Available in A (A-port only), B (B-port only), or W (Both A & B ports) options to handle diverse load movement control requirements.
Meter-in/Meter-out Flexibility (WI/WO): WI denotes Meter-in control, while WO denotes Meter-out control. Choosing the right configuration allows for targeted regulation for gravity-assisted or powered loads.
High-Precision Fine Tuning: Equipped with adjustment knobs and lock nuts, these valves provide smooth regulation at extremely low flow rates and prevent settings from drifting due to mechanical vibration.
Low-Pressure Drop Free Flow: The integrated high-performance check valves ensure fluid passes rapidly in the non-throttled direction with minimal energy loss.
Detailed Specifications & Parameters:
Core Series: Yuken Type MTCV Modular Valves.
Featured Model Matrix:
MTCV-02W / MTCV-02-WO (Size 02, Dual-port control / Meter-out spec)
MTCV-03A / MTCV-03B (Size 03, Single-port adjustment for A or B lines)
MTCV-03-WI (Size 03, Meter-in specification)
Core Performance Specs:
Nominal Sizes: Size 02 (NG6 / CETOP 3) and Size 03 (NG10 / CETOP 5).
Max Operating Pressure: Rated up to 250 Bar (3,625 PSI).
Max Flow Capacity: Size 02 (35-50 L/min); Size 03 (70-100 L/min).
Adjustment Type: Standard adjustment knob or internal hex screw.
Seal Material: High-quality NBR as standard; Viton optional for high temperatures.
1. MTCV-03A (A Port Control
It is applicable to the control of the extension speed of single-acting hydraulic cylinders
Control the forward rotation speed of the hydraulic motor
It is often used in construction machinery where precise control of movement in a single direction is required
2. MTCV-03B (B Port Control)
It is applicable to the retraction speed control of single-acting hydraulic cylinders
Control the reverse speed of the hydraulic motor
When used in conjunction with MTCV-03A, it can achieve bidirectional speed control

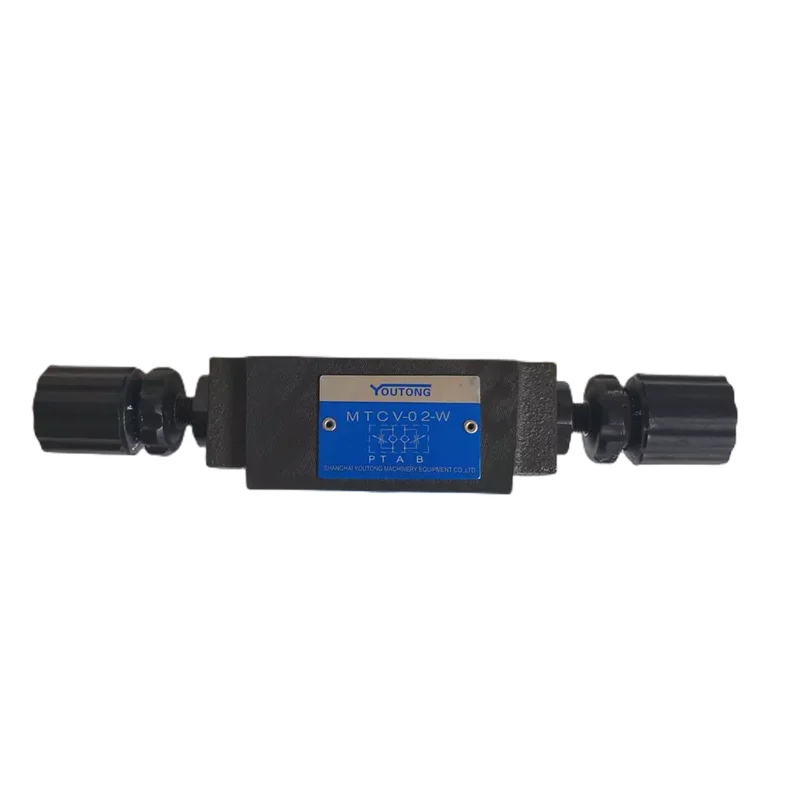

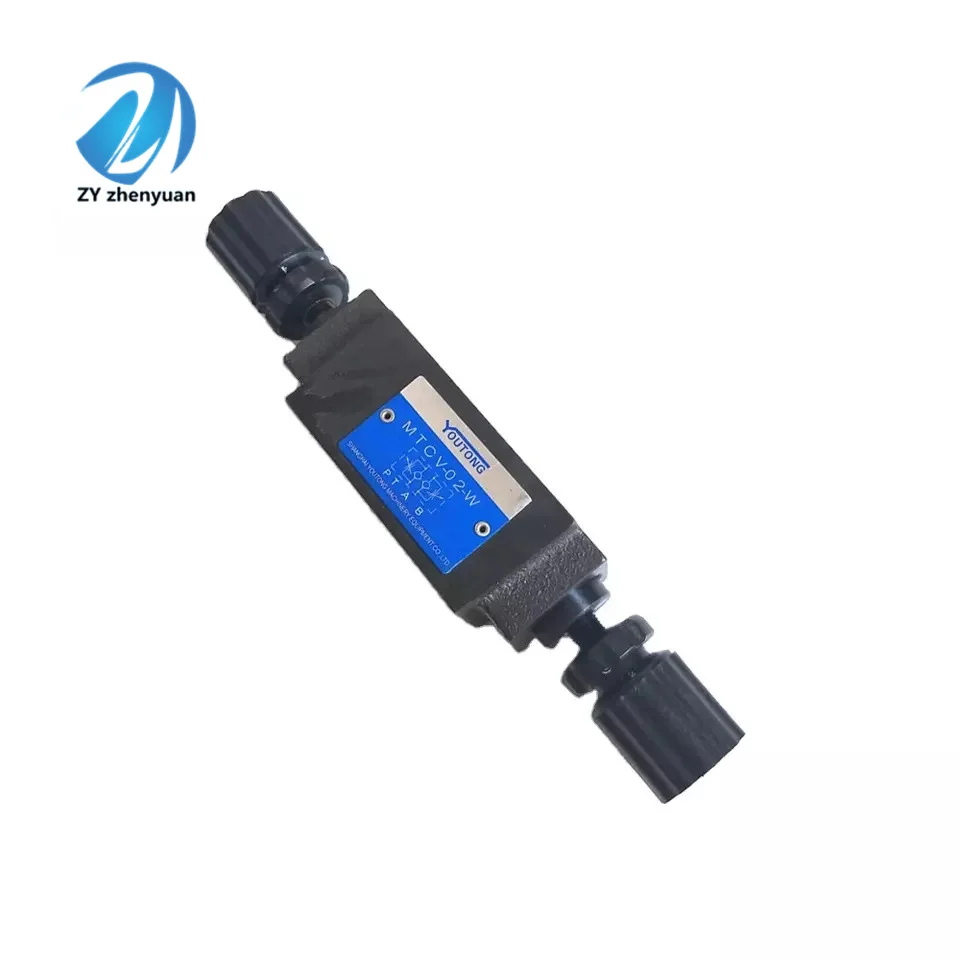

3. MTCV-02W (Bidirectional Control)
Bidirectional speed control suitable for double-acting hydraulic cylinders
Control the forward and reverse rotation speed of the hydraulic motor
It is particularly suitable for small hydraulic systems that require precise control of movement in two directions simultaneously
Control the forward rotation speed of the hydraulic motor
It is often used in construction machinery where precise control of movement in a single direction is required
2. MTCV-03B (B Port Control)
It is applicable to the retraction speed control of single-acting hydraulic cylinders
Control the reverse speed of the hydraulic motor
When used in conjunction with MTCV-03A, it can achieve bidirectional speed control
3. MTCV-02W (Bidirectional Control)
Bidirectional speed control suitable for double-acting hydraulic cylinders
Control the forward and reverse rotation speed of the hydraulic motor
It is particularly suitable for small hydraulic systems that require precise control of movement in two directions simultaneously
