Yuken Type MTCV Valve | MTCV-02-W MTCV-03-W | Modular Throttle Check Valve | Speed Control

Yuken Type MTCV Series Modular Throttle and Check Valves

Product Overview: The MTCV Series is an industrial-grade modular throttle and check valve designed to precisely control the operating speed of hydraulic actuators (cylinders or motors) by adjusting the flow sectional area. Featuring a standardized stackable design, these valves are installed directly between the directional valve and the subplate. This allows for seamless meter-in or meter-out speed control of the A-port, B-port, or both (A&B), completely eliminating the need for extra piping.

This category integrates the core specifications: the compact MTCV-02 (NG6) and the high-flow MTCV-03 (NG10), including standard knob adjustment and W0 (internal hex) adjustment variants.

Key Technical Advantages:

• Integrated Installation: The stackable configuration significantly reduces the footprint of the hydraulic system and eliminates potential leakage risks associated with external piping.

• Dual-Port Flexibility: Supports W (Double-port control) mode, allowing independent flow regulation for both A and B ports, ensuring smooth actuator operation during both extension and retraction.

• Precision Adjustment Knobs: Equipped with high-precision adjustment handles and locking nuts to enable stable micro-flow regulation and prevent parameter drift caused by vibration.

• Built-in Check Valve: Integrated high-performance check valves ensure free reverse flow, minimizing system backpressure and energy loss.

Detailed Specifications & Parameters:

• Core Series: Yuken Type MTCV Modular Valves.

• Featured Model Matrix:

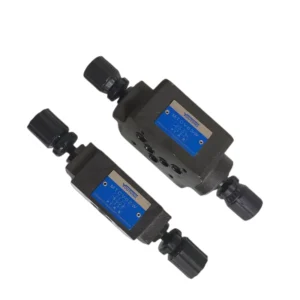

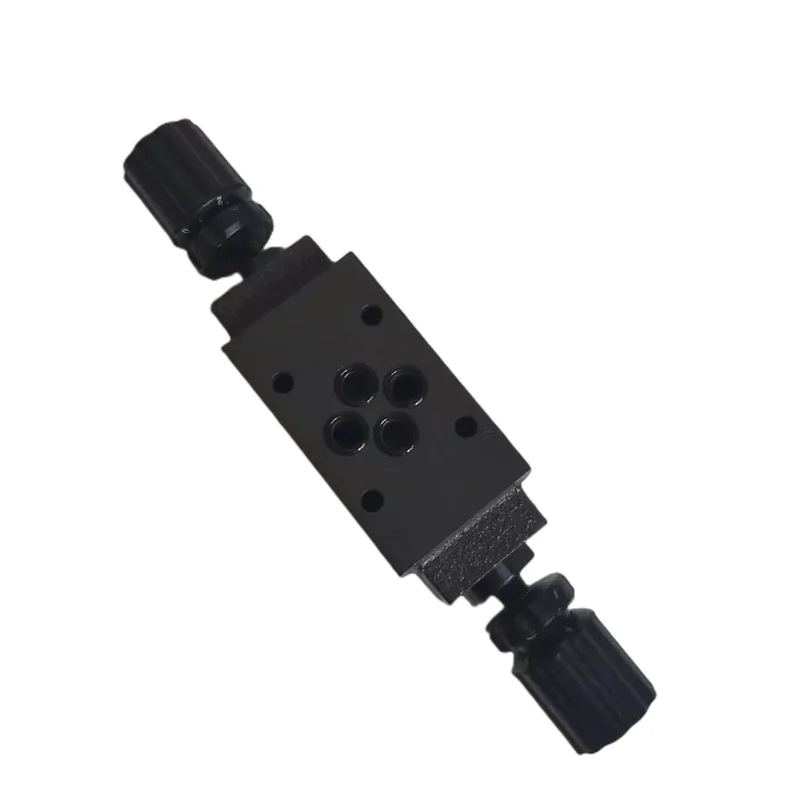

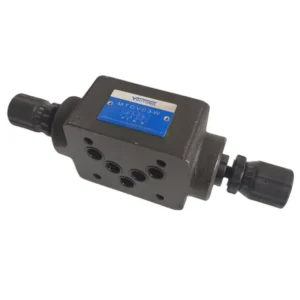

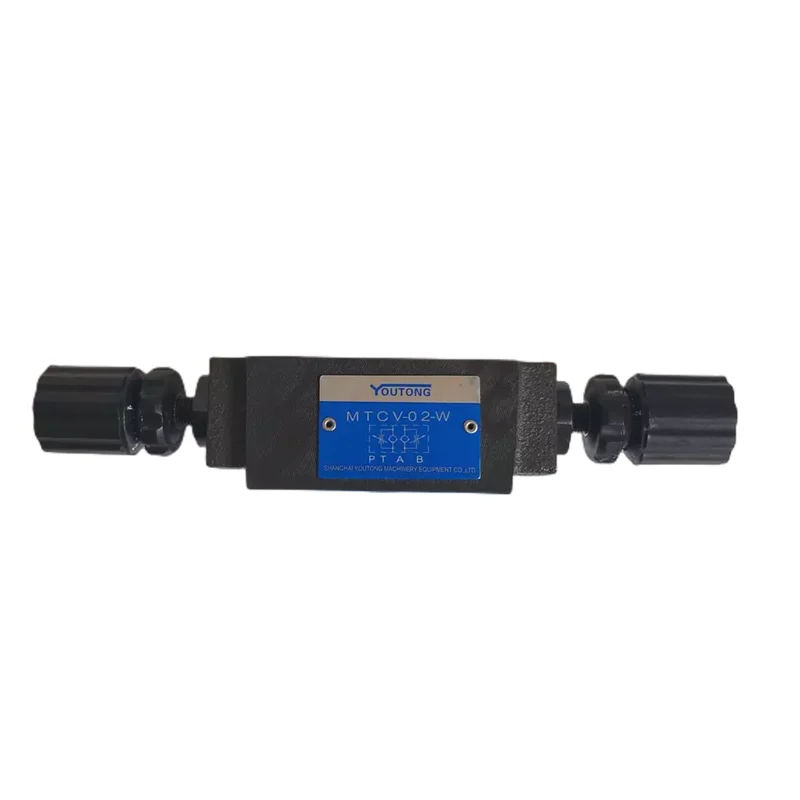

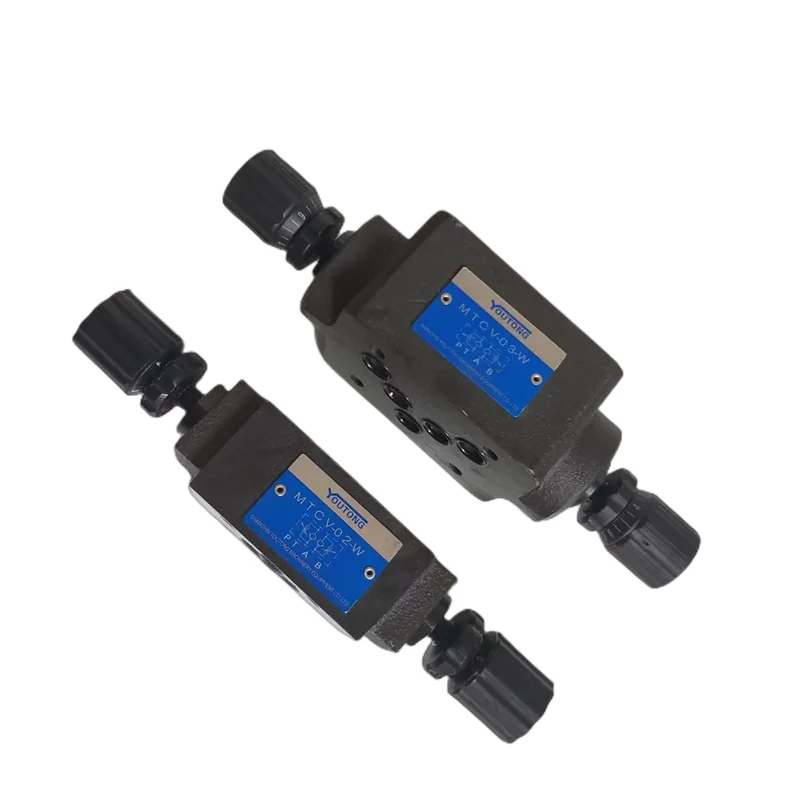

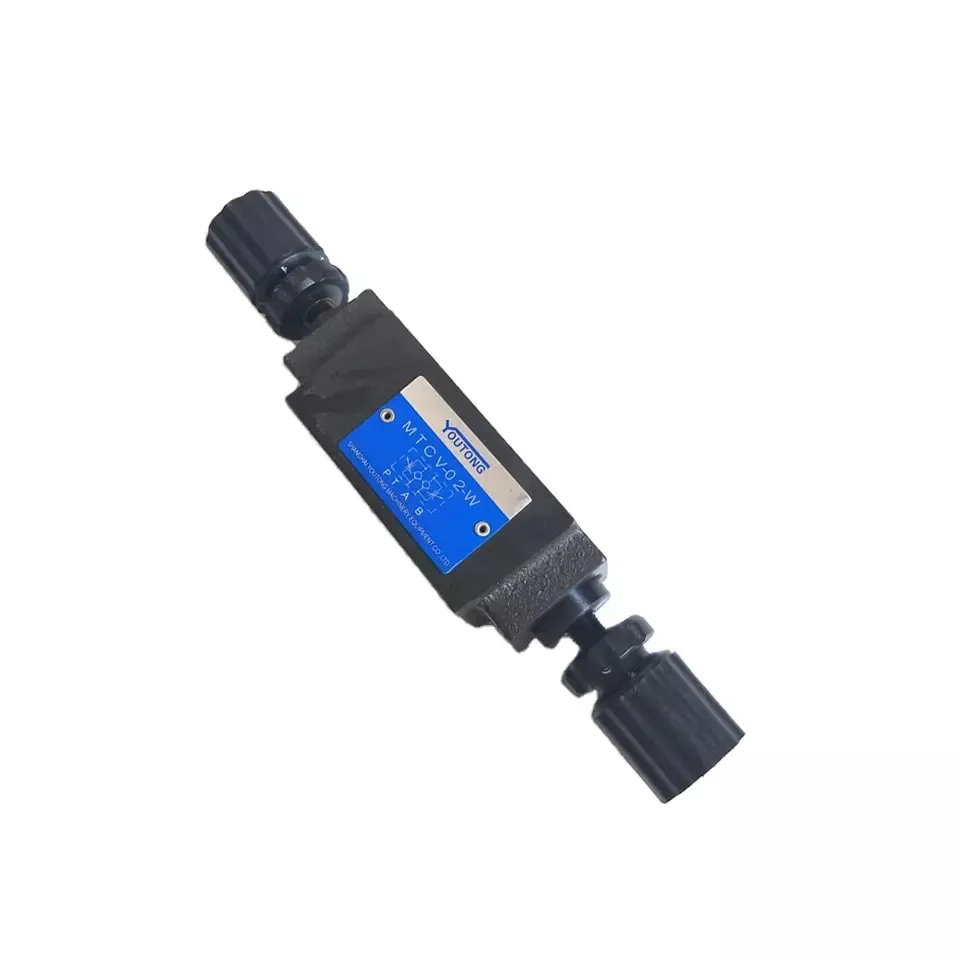

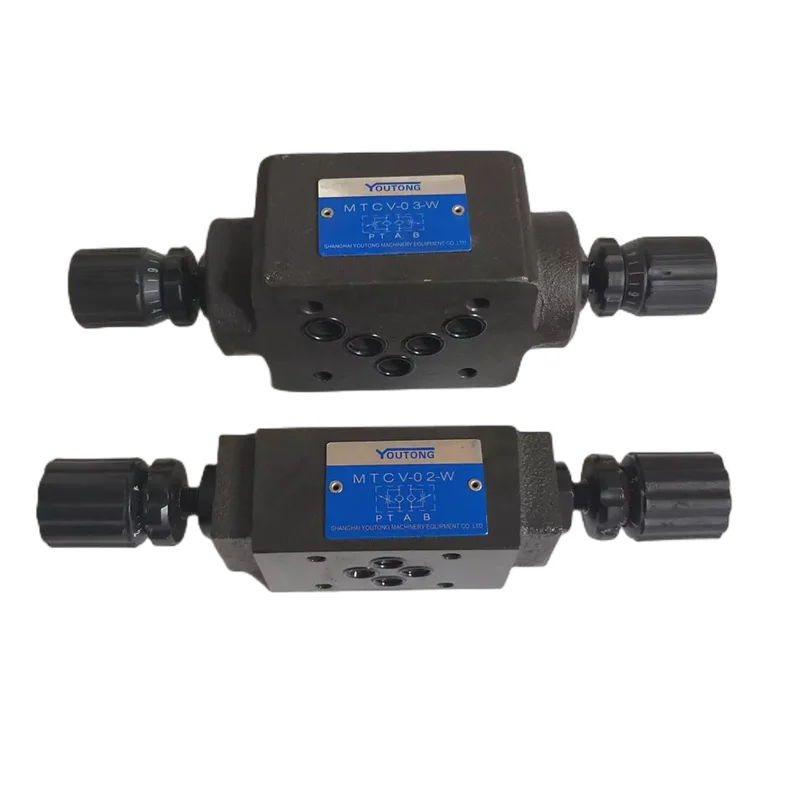

  • MTCV-02-W / MTCV-02-W0 (Size 02, NG6 / CETOP 03; W0 denotes internal hex adjustment)

  • MTCV-03-W (Size 03, NG10 / CETOP 05 for higher flow regulation)

• Core Performance Specs:

  • Nominal Sizes: Size 02 (NG6) and Size 03 (NG10).

  • Max Operating Pressure: Rated up to 250 Bar (3,625 PSI).

  • Flow Capacity: Size 02 (Approx. 35 L/min); Size 03 (Approx. 70 L/min).

  • Control Logic: W (Both ports); A (A-port only); B (B-port only).

  • Design Sequences: 20, 30, 40 Series.
