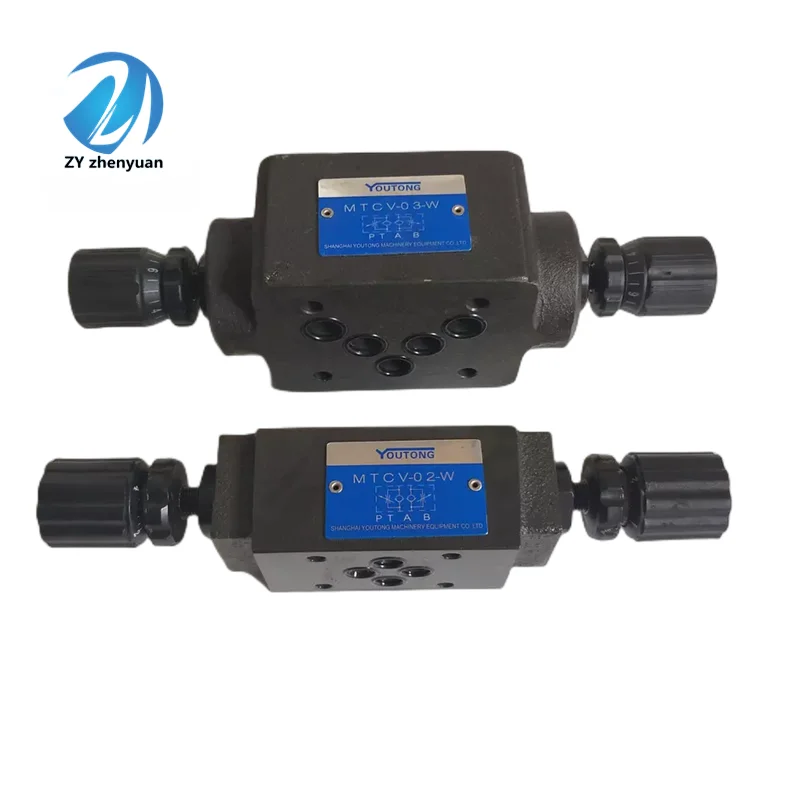

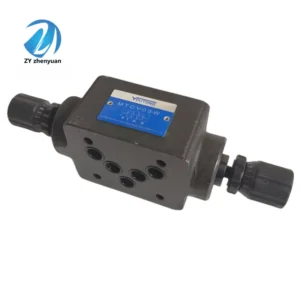

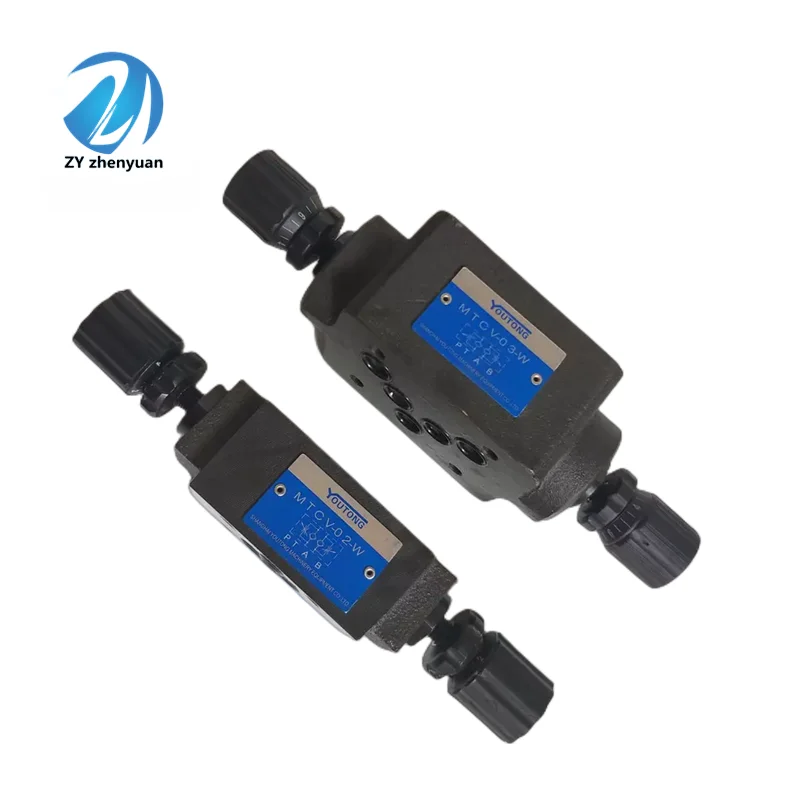

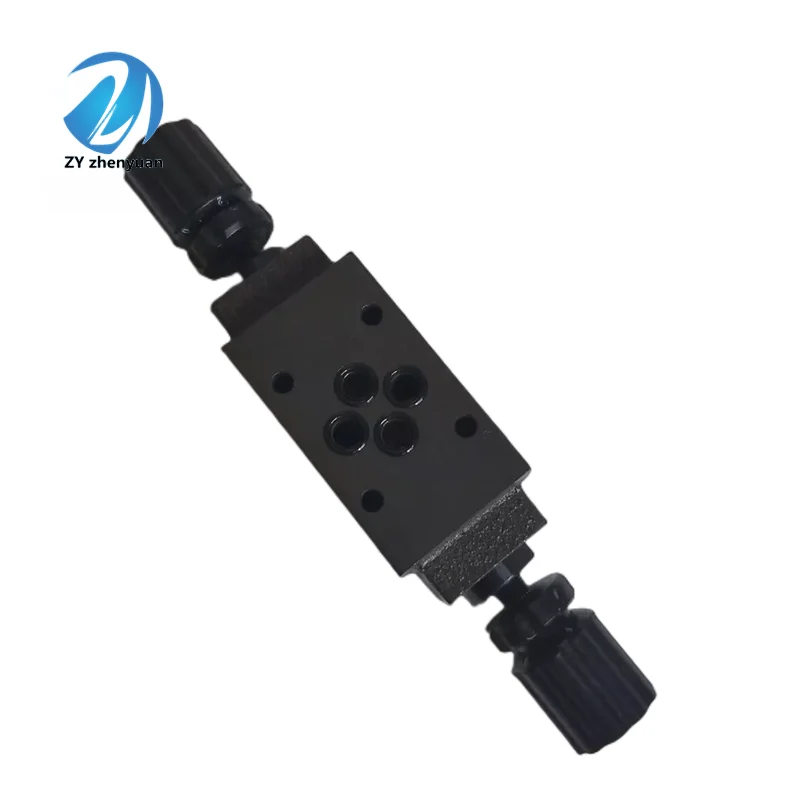

Yuken Type Modular Valve | MTCV-04W MTCV-02W MSW-02-X | Throttle & Check Valve

Yuken Type MTCV & MSW Series Modular Hydraulic Valves

Product Overview: The Yuken Type Modular Valve Series is a range of sophisticated modular components developed to simplify hydraulic manifold design. This collection includes the MTCV Throttle and Check Valves and the MSW Directional/Switching Valves. By stacking these modules vertically underneath a standard directional valve, users can easily implement flow regulation and circuit switching without extra piping. This drastically reduces the physical footprint of the hydraulic power unit and eliminates potential leakage points.

This selection integrates key configurations: the high-flow MTCV-04 series, the versatile MTCV-02W, and the compact MSW-01/02 directional valves.

Key Technical Advantages:

• Flexible Modular Configuration: Available in A (A-port only), B (B-port only), or W (Both A & B ports) options, supporting meter-in or meter-out control for precise actuator speed matching.

• High Pressure & Flow Capacity: The MTCV-04 series, with its Size 04 (NG16) nominal size, maintains stable flow regulation accuracy in high-power hydraulic systems.

• Compact Directional Control: The MSW series offers an extremely compact switching solution, ideal for logic control circuits or as a pilot control valve.

• Precision Regulation: Equipped with high-precision adjustment bolts and locking mechanisms, ensuring settings remain stable under vibration with high repeatability.

Detailed Specifications & Parameters:

• Core Series: Yuken Type MTCV & MSW Modular Series.

• Featured Model Matrix:

  • MTCV-04W / MTCV-04A / MTCV-04B (Size 04, Dual/Single port throttle control)

  • MTCV-02W (Size 02, NG6 standard dual-speed control)

  • MSW-02-X / MSW-01-X-30 (Modular directional control, 30 design sequence)

• Core Performance Specs:

  • Nominal Sizes: Size 01 (NG6), Size 02 (NG6), Size 04 (NG16 / CETOP 07).

  • Max Operating Pressure: Rated up to 250 Bar (3,625 PSI).

  • Max Flow Capacity: Up to 200-300 L/min for Size 04; 35-60 L/min for Size 01/02.

  • Adjustment Type: Standard manual adjustment bolt.

  • Mounting Interface: Fully compliant with ISO 4401 international standards.

1. MTCV-03A (A Port Control
It is applicable to the control of the extension speed of single-acting hydraulic cylinders
Control the forward rotation speed of the hydraulic motor
It is often used in construction machinery where precise control of movement in a single direction is required
2. MTCV-03B (B Port Control)
It is applicable to the retraction speed control of single-acting hydraulic cylinders
Control the reverse speed of the hydraulic motor
When used in conjunction with MTCV-03A, it can achieve bidirectional speed control

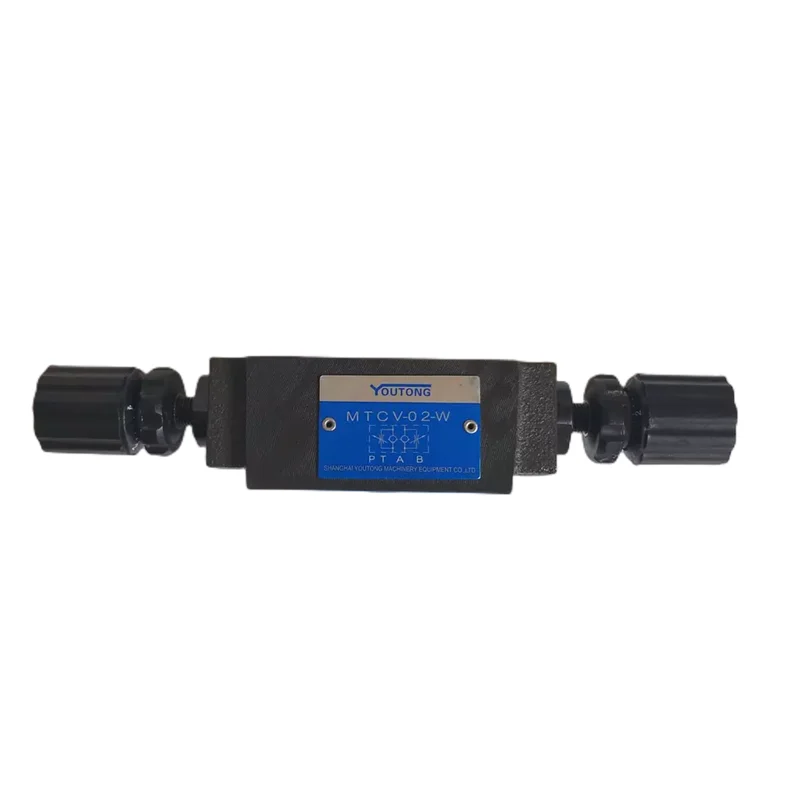

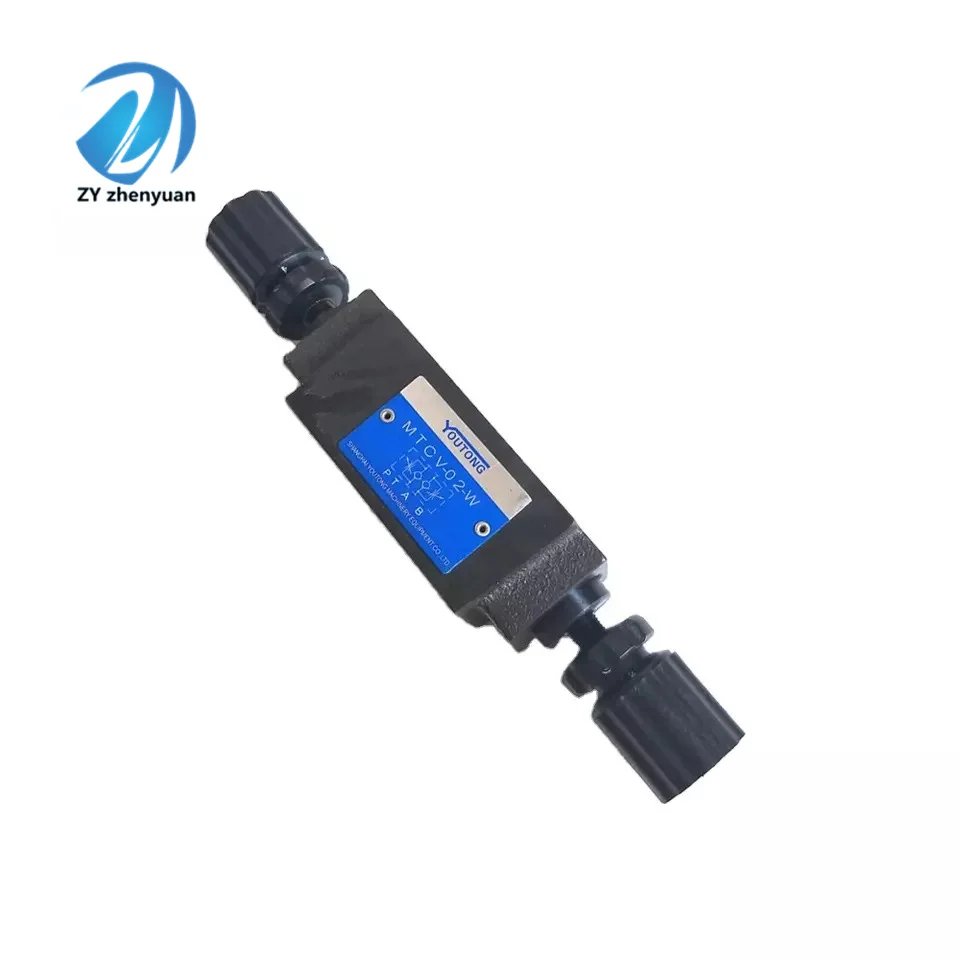

3. MTCV-02W (Bidirectional Control)
Bidirectional speed control suitable for double-acting hydraulic cylinders
Control the forward and reverse rotation speed of the hydraulic motor
It is particularly suitable for small hydraulic systems that require precise control of movement in two directions simultaneously
