Yuken Type EBG & EDG Series Proportional Electro-Hydraulic Relief Valves

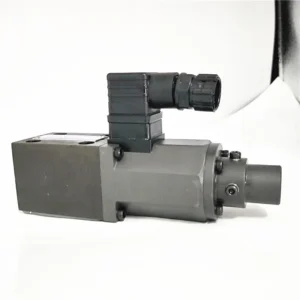

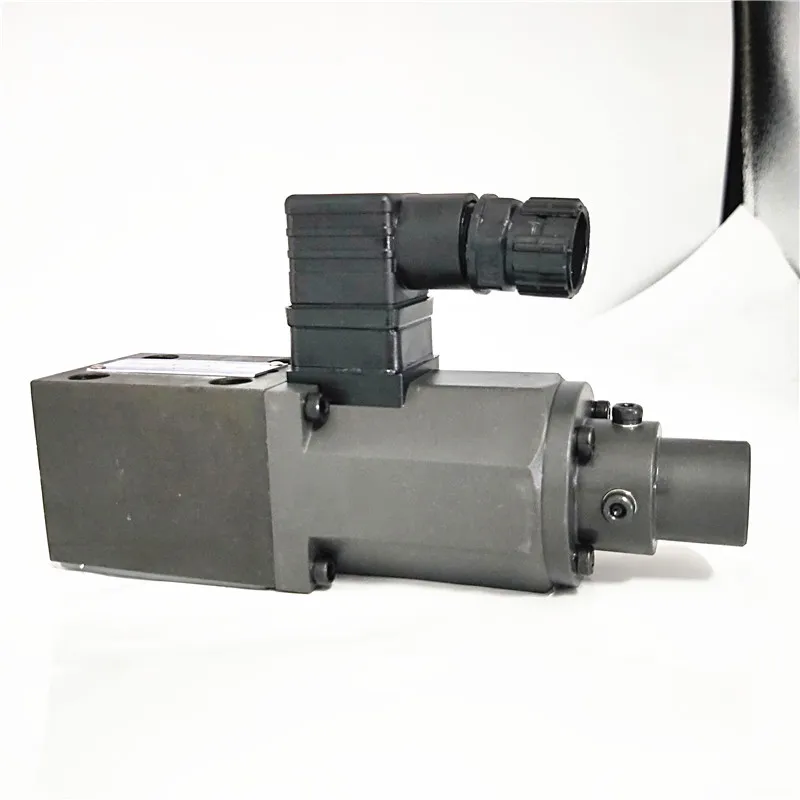

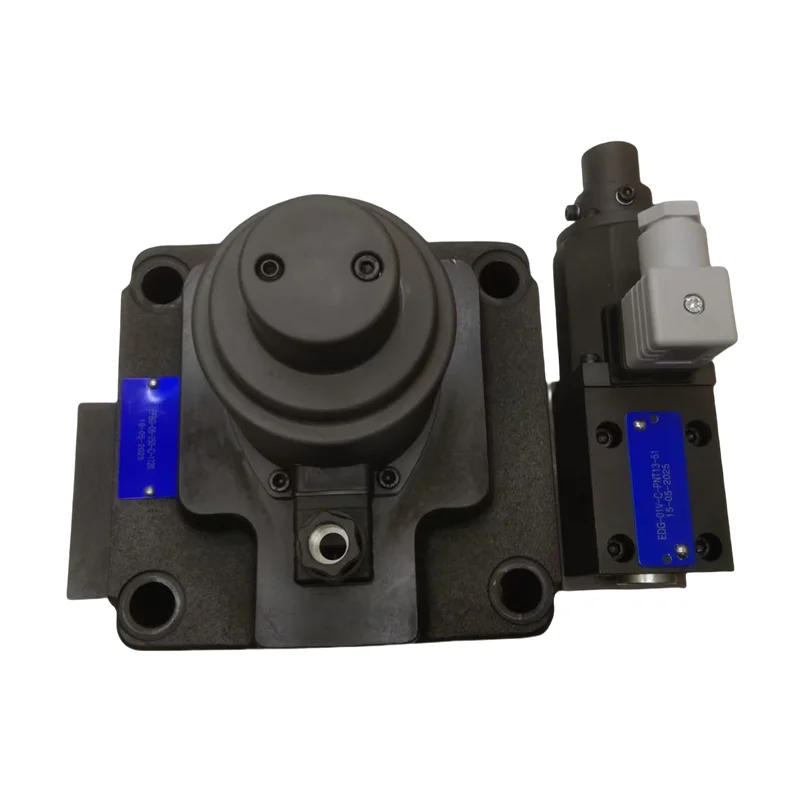

Product Overview: The EBG and EDG Series are premium proportional valve components designed for precision remote pressure regulation in hydraulic systems. By utilizing a proportional solenoid to directly actuate the pilot spool, these valves linearly convert command current into hydraulic pressure output. The EDG Series typically functions as a pilot control valve, while the EBG Series integrates the proportional pilot with a main relief stage to form a high-flow proportional control unit. Designed under the 51 Design Sequence, they offer exceptional stability and response.

This category covers the complete range of specifications: including the subplate-mounted EBG-03, EBG-06, and EBG-10, alongside high-performance configurations like the EBG-03-H-R (with safety relief/remote control). Available in B (Low), C (Medium), and H (High) pressure adjustment ranges, these valves are the premier choice for injection molding machines, die-casting equipment, automated test benches, and metallurgical machinery.

Key Technical Advantages:

• Precision Proportional Regulation: High-performance solenoids ensure an outstanding linear relationship between output pressure and input current with minimal hysteresis.

• Multiple Pressure Tiers: Available in B (0.7-7 MPa), C (1-16 MPa), and H (1.2-25 MPa) spring ratings to match various system pressure limits.

• Rapid Dynamic Response: Optimized internal throttling ensures fast response times during pressure transitions and ramping without significant oscillations.

• High Versatility: Supports external drain (T) configurations, with models like F9 or R offering flexible remote pressure setting capabilities.

Detailed Specifications & Parameters:

• Core Series: Yuken Type EBG/EDG Proportional Relief Valve.

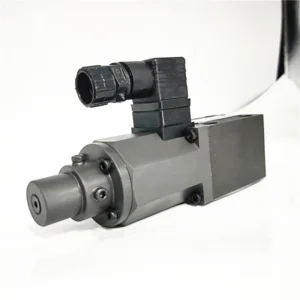

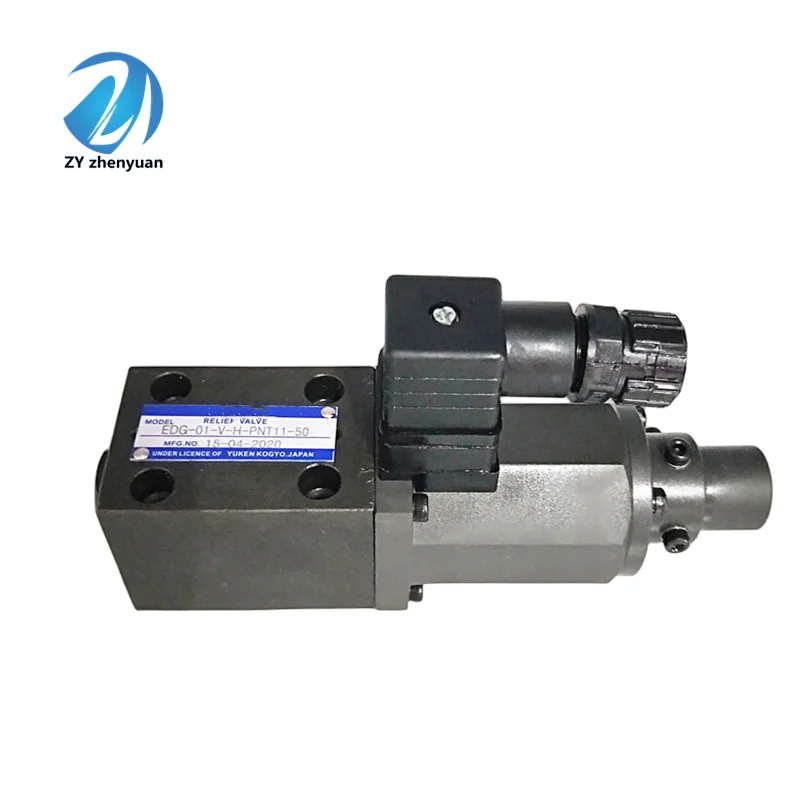

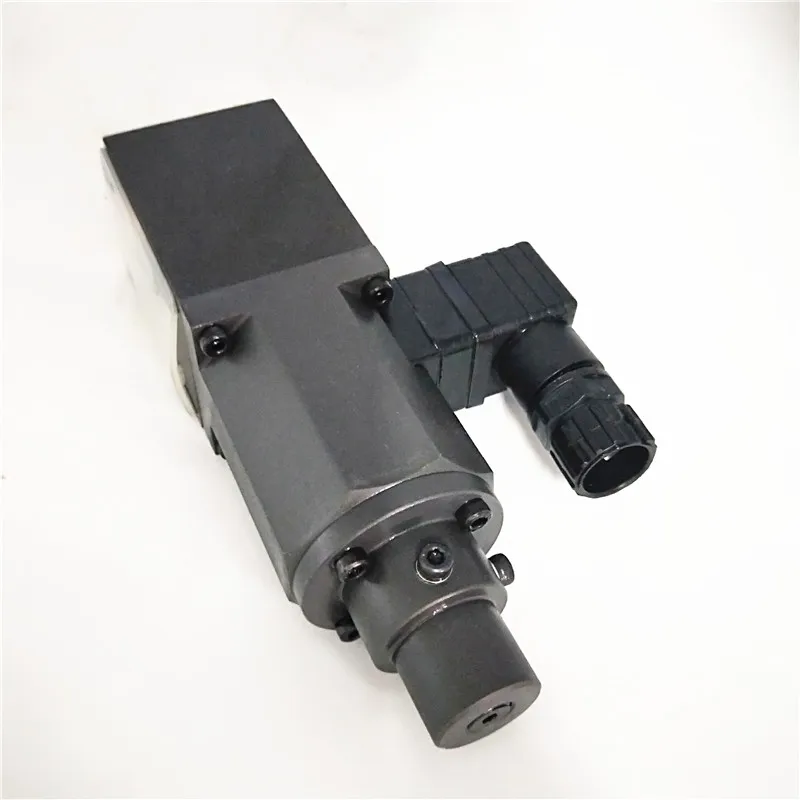

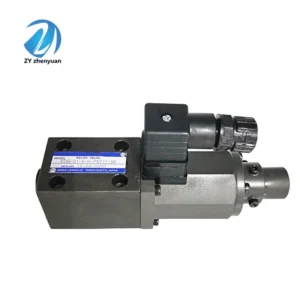

• Featured Model Matrix: EBG-03-H-T-51, EBG-06-C-51, EBG-10-B-51, EDG-01, EBG-03-H-R.

• Core Performance Specs:

  • Nominal Sizes: Size 03 (NG10), Size 06 (NG25), Size 10 (NG32).

  • Max Operating Pressure: H-range up to 24.5-25 MPa (3,625 PSI).

  • Max Flow Capacity: Up to 100 L/min (03), 200 L/min (06), and 400 L/min (10).

  • Control Current: Recommended range typically 0-800mA or 0-900mA.

  • Coil Resistance: Approximately 10Ω (at 20°C).
