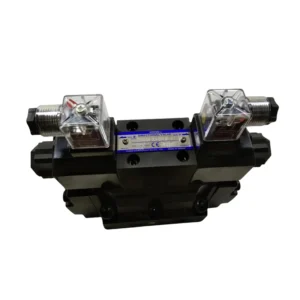

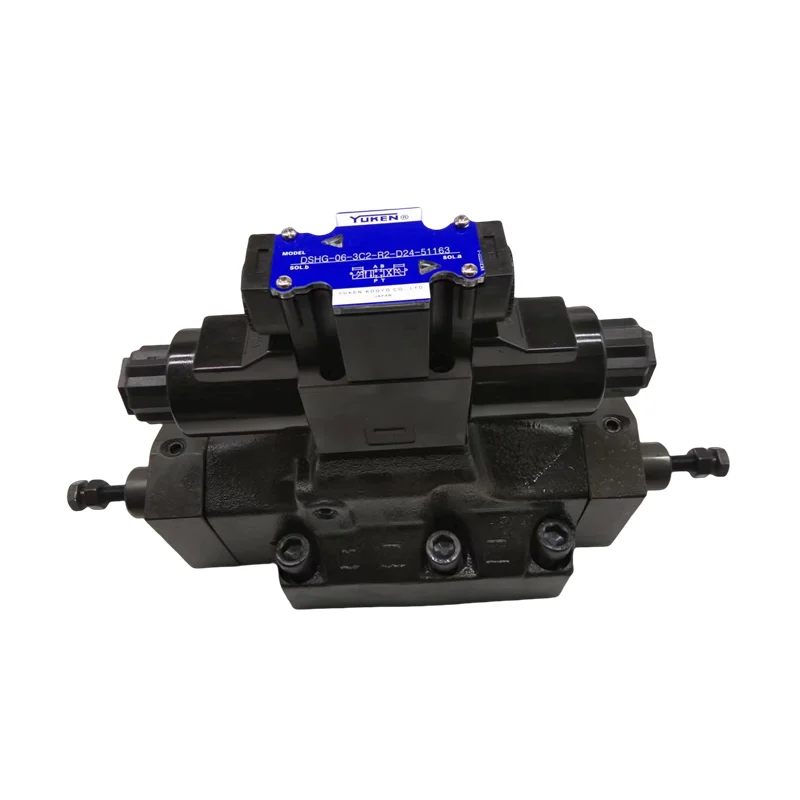

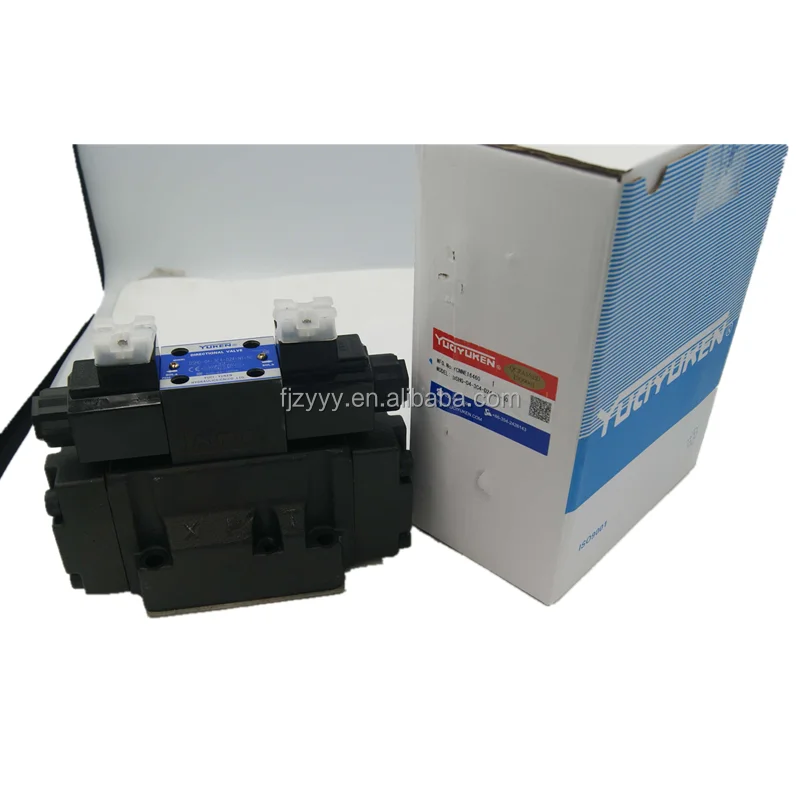

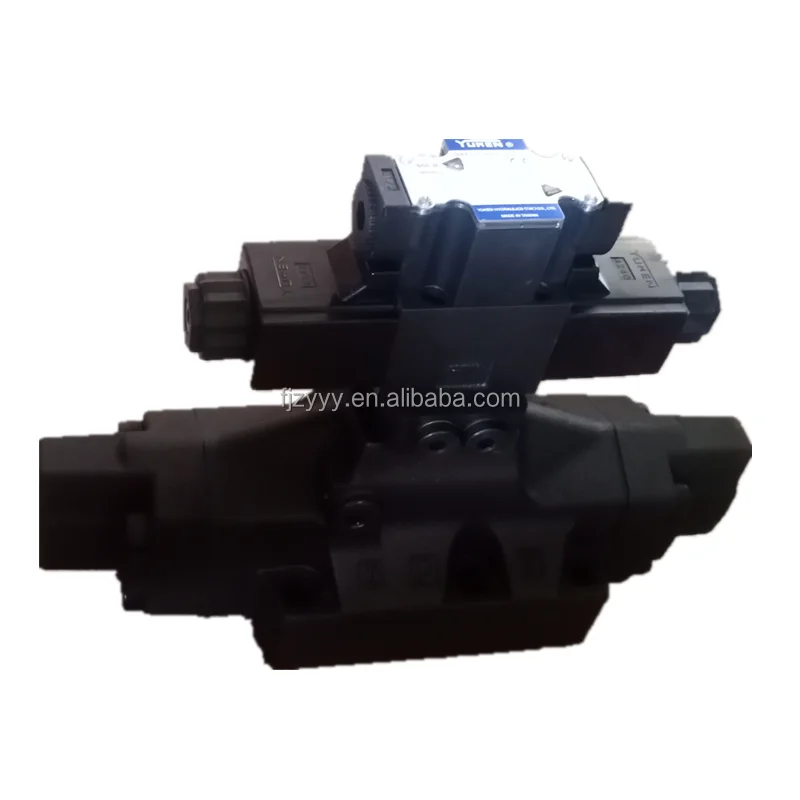

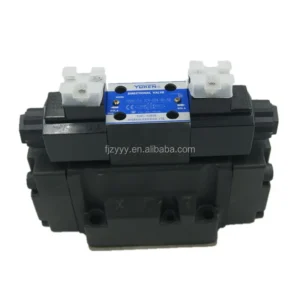

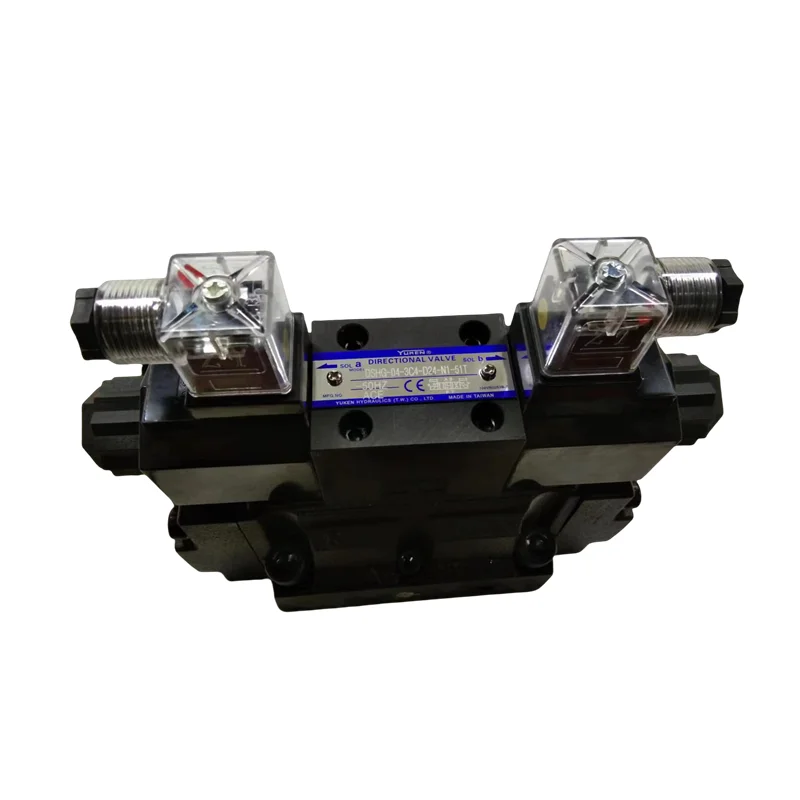

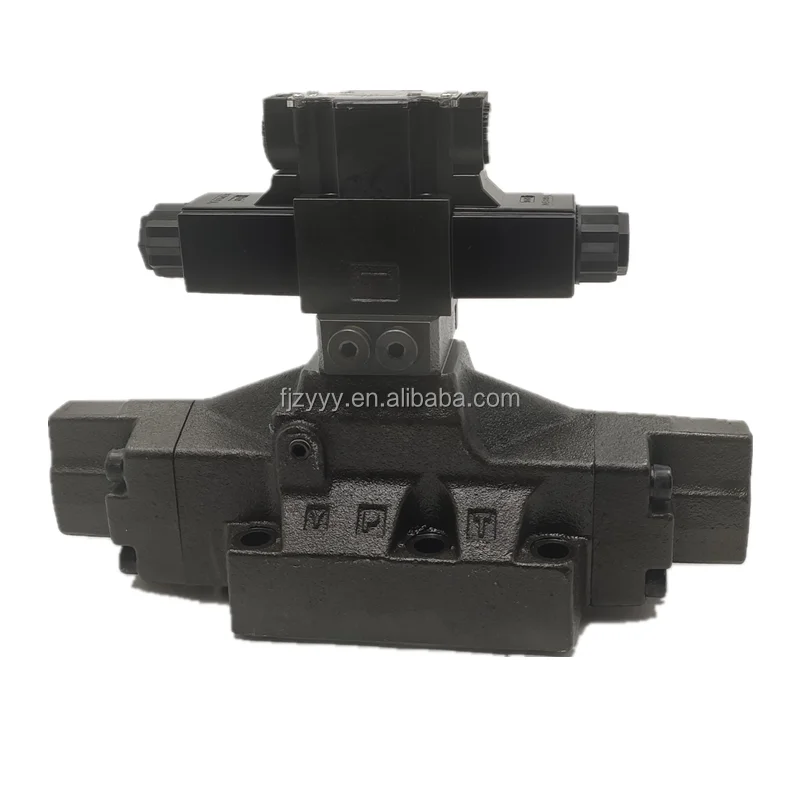

Yuken Type DSHG Pilot Operated Valve | DSHG-04 | DSHG-06 | 3C2 3C60 | 24V DC 240V AC | Hydraulic Valve
| Model Number | DSHG-03-2B3-D24, DSHG-04-3C60-T, DSHG-04-3C60-D24-N1-51 T, DSHG-04-3C2-D24-N1-51T, DSHG-04-3C2- T |
|---|
Product Description
DSHG Series Pilot Operated Solenoid Directional Valves
Product Overview: The DSHG series features pilot-operated solenoid valves designed specifically to manage high flow rates and high-pressure oil circuits in hydraulic systems. By utilizing a small integrated solenoid as a pilot stage to actuate the main spool, it controls massive hydraulic energy with minimal electrical power. Fully compliant with ISO 4401 standards, the DSHG series is world-renowned for its low switching shock, extended service life, and extreme reliability.
Featured models include: DSHG-06-3C2-A240-52T, DSHG-04-3C2-D24-N1-51T, DSHG-04-3C60-D24-N1-51, and DSHG-04-3C60-T.
Key Technical Advantages:
Efficient Pilot Operation: The two-stage architecture ensures robust spool switching force even under high pressure drop conditions, ensuring rapid response.
Smooth Switching with Low Shock: Select models feature adjustable main spool stroke to dampen hydraulic shocks, protecting pipelines and actuators.
Versatile Control Logic: Available in multiple spool functions like 3C2 (Closed center) and 3C60 (A/B to T, P blocked) for complex circuit integration.
Global Voltage Compatibility: Available with A240 (AC 240V) and D24 (DC 24V) coils, including N1 surge suppressor options for electrical protection.
Detailed Specifications & Parameters:
Featured Model Matrix:
DSHG-06-3C2-A240-52T: Size 16 (NG16), 3-pos 3C2 function, 240V AC supply, Design series 52.
DSHG-04-3C2-D24-N1-51T: Size 10 (NG10), 3C2 function, 24V DC, with N1 surge protection.
DSHG-04-3C60-D24-N1-51: Size 10, 3C60 specialized function, 24V DC supply.
DSHG-04-3C60-T: Size 10 standard spec, with internal/external pilot drain options.
Core Technical Specs:
Mounting Interface: ISO 4401-07 (DSHG-04) / ISO 4401-08 (DSHG-06).
Max Operating Pressure: Rated up to 31.5 MPa (315 bar).
Flow Capacity: DSHG-04 up to 300 L/min; DSHG-06 up to 500 L/min.
Pilot Control: Supports Internal or External pilot pressure and drain.
