Yuken Type DSHG Valve | DSHG-04 DSHG-10 | NG15 NG32 Pilot Operated Valve | D24N1
| Model Number | DSHG, DSHG-03, DSGH-10, DSHG-04, DSHG-3C2-04-1P1D, DSHG-10-3C4-D24N1-41 |
|---|
Product Description

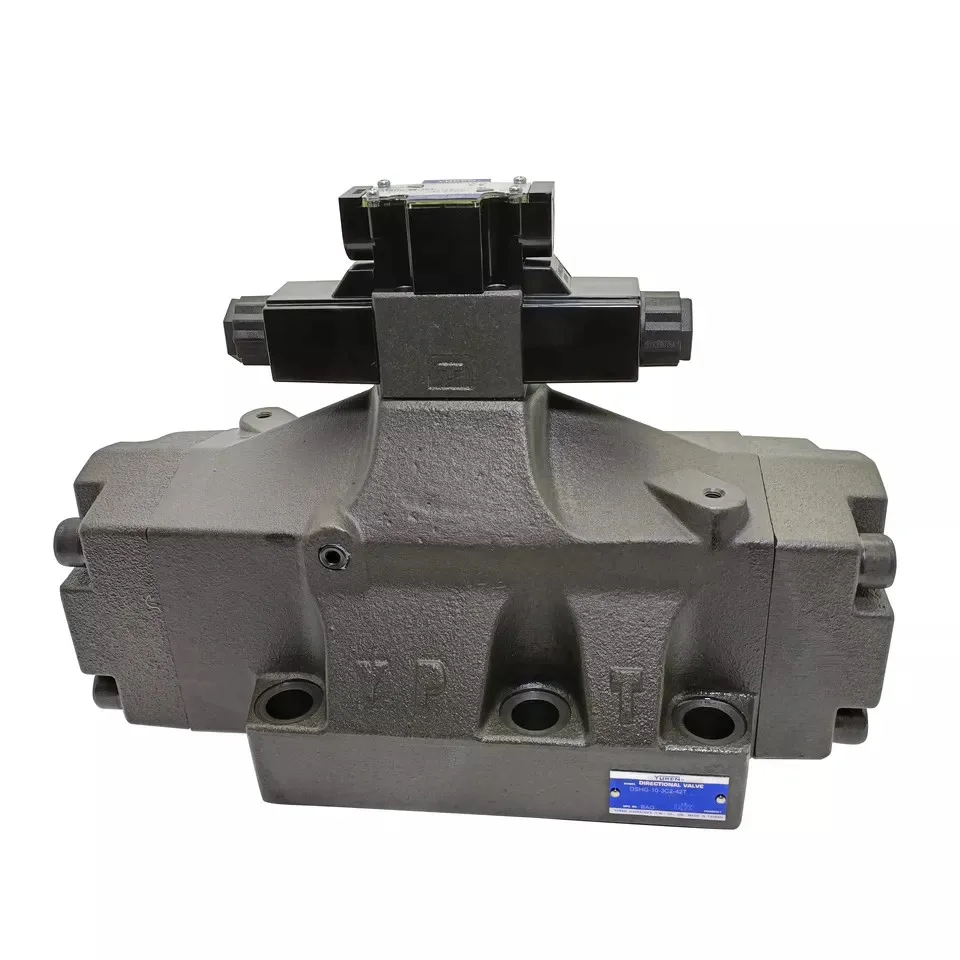

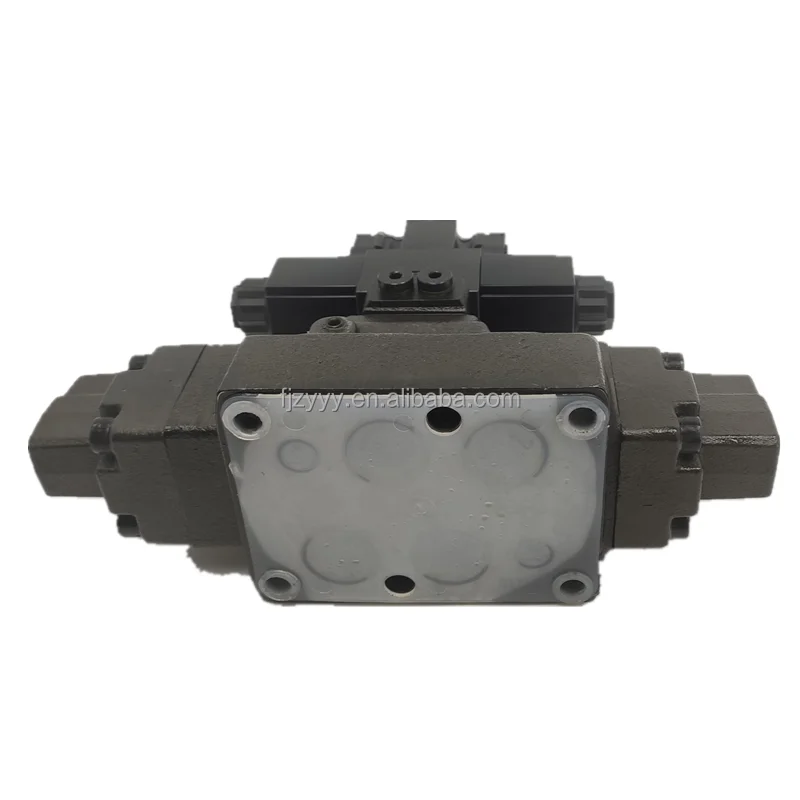

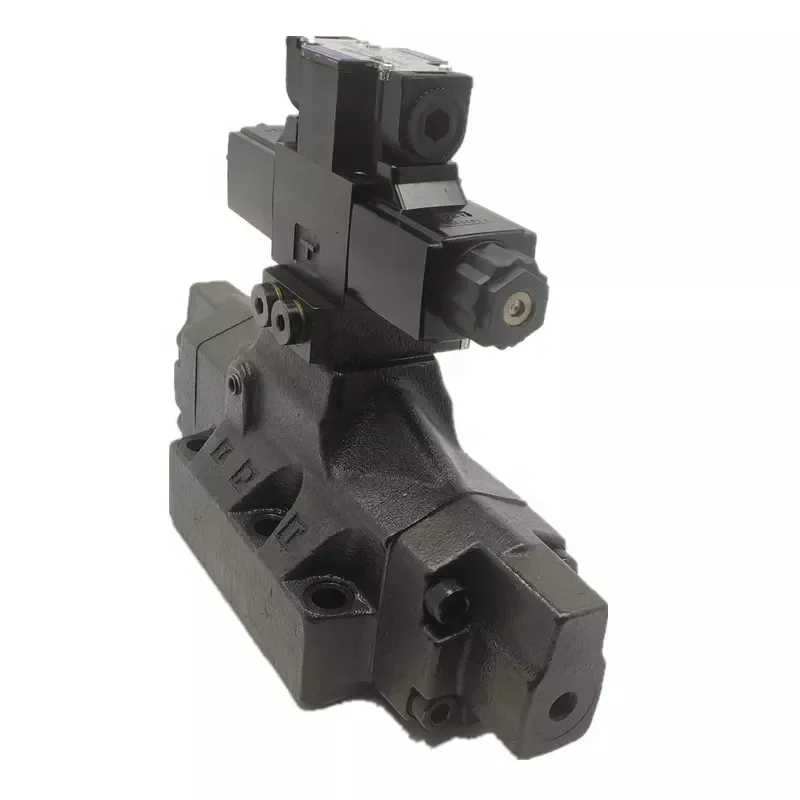

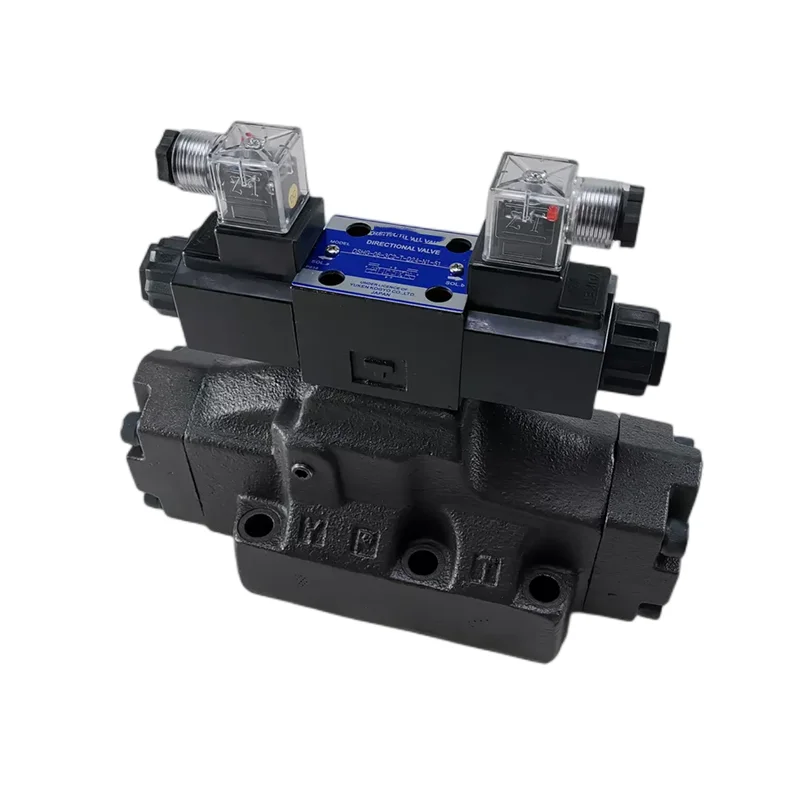

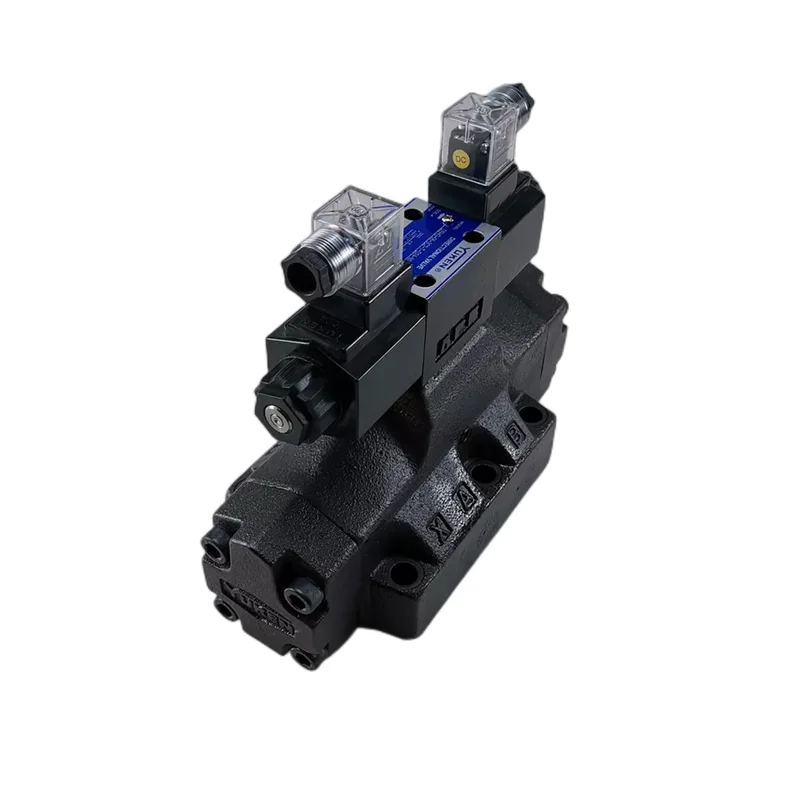

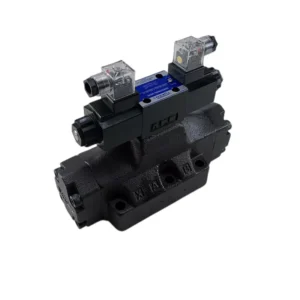

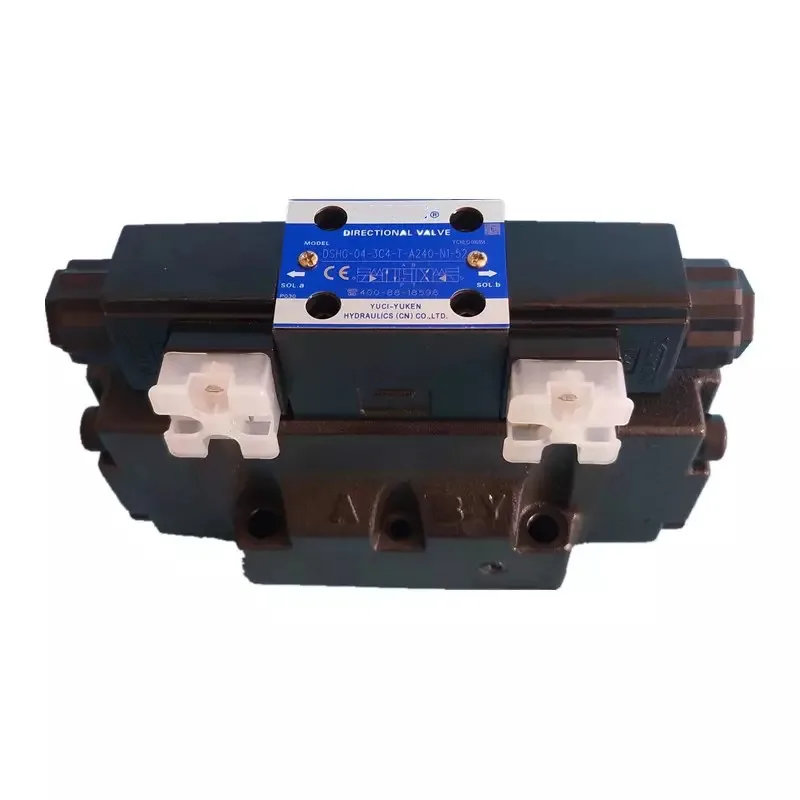

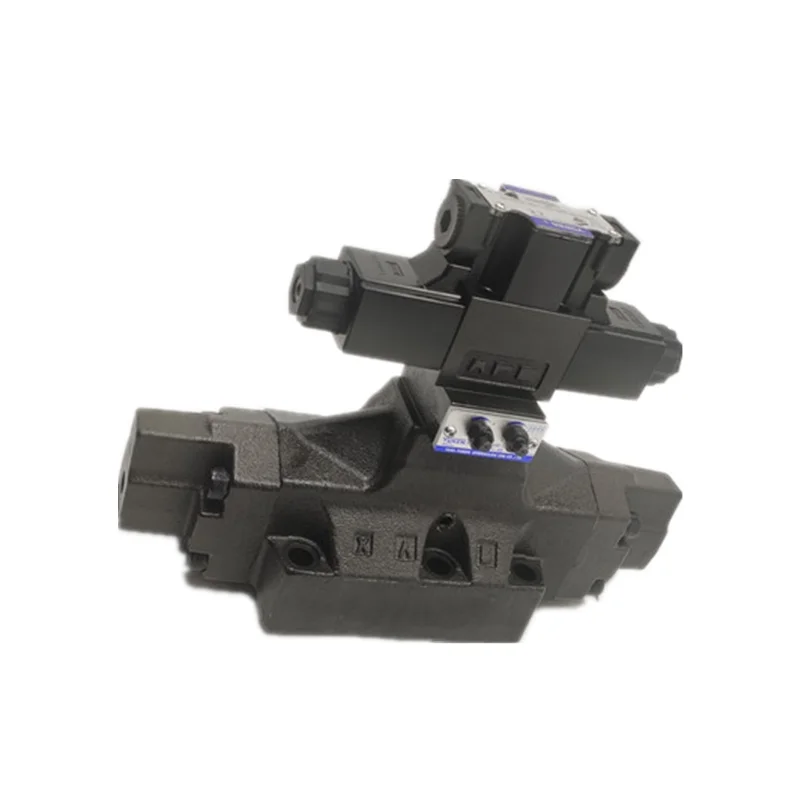

Yuken Type DSHG Series Solenoid Controlled Pilot Operated Directional Valves
Product Overview: The DSHG Series is a solenoid-controlled, pilot-operated directional valve specifically engineered for high-pressure and high-flow industrial applications. Utilizing a pilot-operated structure, the top-mounted solenoid valve directs the movement of the main spool, providing precision control for high-power hydraulic actuators. Fully compliant with ISO 4401 mounting standards, the series spans nominal sizes from Size 04 (NG15) to Size 10 (NG32).
This category features essential heavy-duty configurations, including the 3-position closed-center DSHG-3C2-04 and the ultra-large capacity DSHG-10-3C4. Equipped with D24N1 (DC24V with Junction Box) high-performance coils, these valves are recognized for their minimal pressure drop and exceptional dynamic switching stability, making them the premier choice for heavy forging presses, metallurgical machinery, injection molding equipment, and large industrial HPUs.
Key Technical Advantages:
Extreme Flow Capacity: Engineered for high-power circuits, offering significantly higher flow rates than direct-acting valves of comparable size.
Low-Power Pilot Actuation: Requires minimal electromagnetic force to shift the main spool, ensuring rapid response and reduced switching shock.
Flexible Configurations (1P1D): Supports various pilot and drain combinations (Internal/External), adapting to complex hydraulic circuit logics.
Robust Construction: Built with high-strength iron castings, rated for operating pressures up to 31.5 MPa (4,500 PSI) to withstand harsh industrial duty cycles.
Detailed Specifications & Parameters:
Core Series: Yuken Type DSHG Pilot Operated Valve.
Featured Model Matrix: DSHG-04, DSHG-10, DSHG-3C2-04-1P1D, DSHG-10-3C4-D24N1-41.
Core Performance Specs:
Nominal Sizes: Size 04 (NG15) / Size 06 (NG25) / Size 10 (NG32).
Max Operating Pressure: Rated up to 31.5 MPa (315 Bar).
Max Flow Capacity: Up to 300 L/min for Size 04; up to 1100 L/min for Size 10.
Voltage Specs: D24N1 (DC 24V) / A110 / A220.
Control Type: Solenoid Controlled Pilot Operated.
