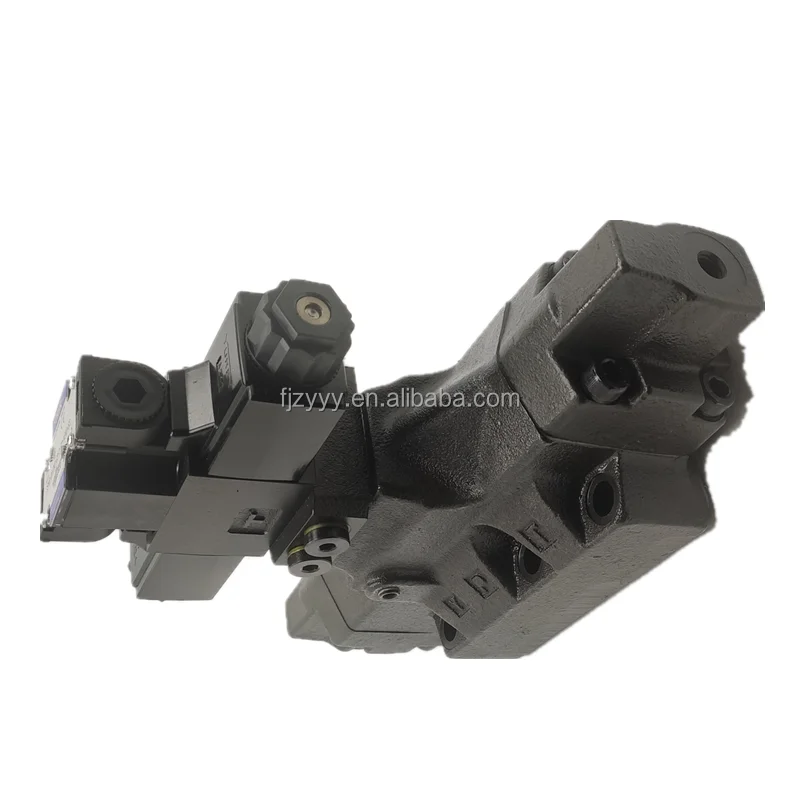

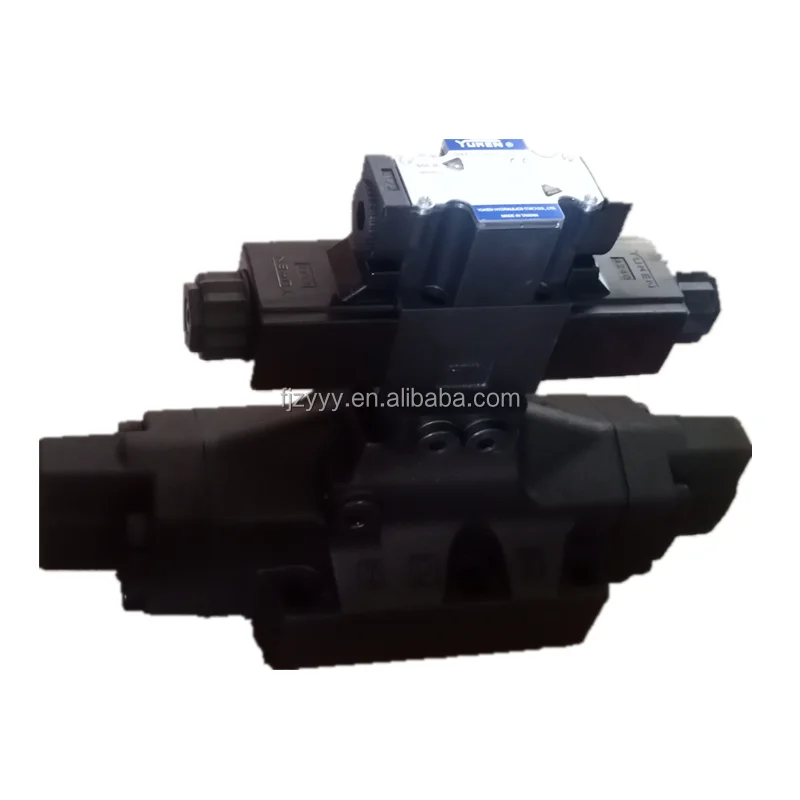

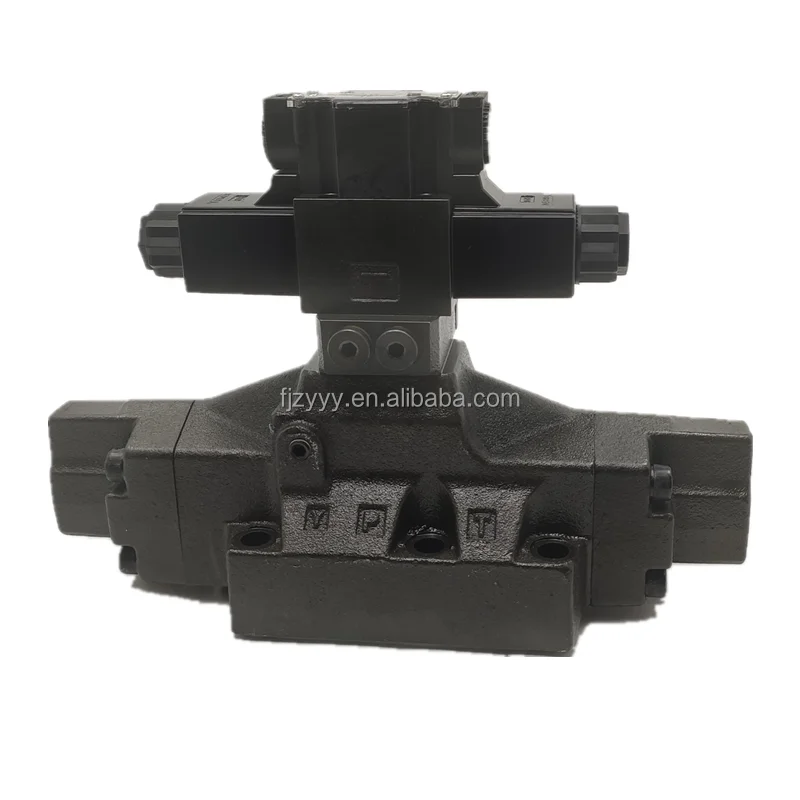

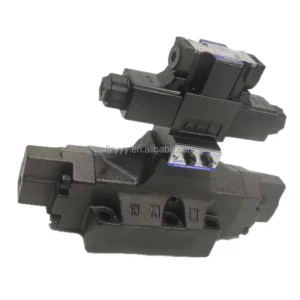

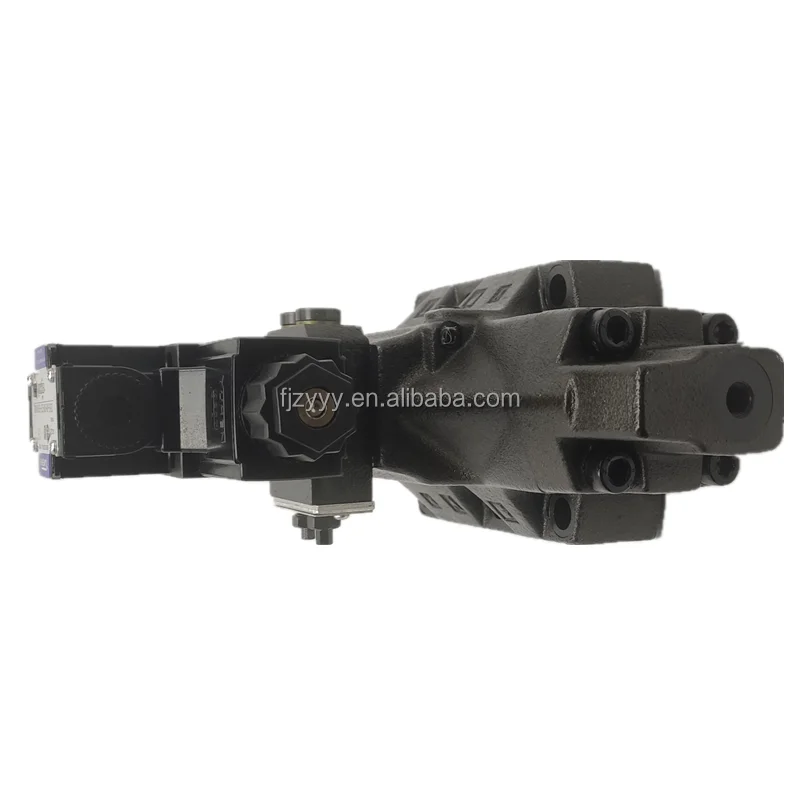

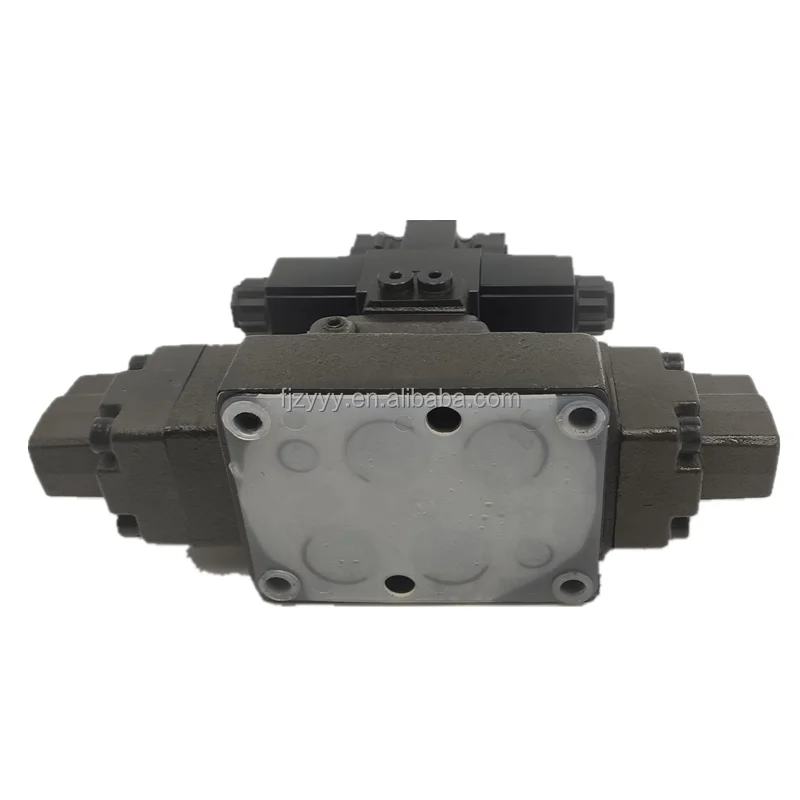

Yuken Type DSHG-04 & DSHG-06 Series Solenoid Controlled Pilot Operated Valves

Product Overview: The DSHG Series represents a premium line of pilot-operated directional control valves engineered for high-pressure, high-flow industrial hydraulic systems. By utilizing a small solenoid pilot valve to actuate the main spool, this series controls massive hydraulic power with minimal electrical input. Fully compliant with ISO 4401 standards, it covers the essential Size 04 (NG15) and Size 06 (NG25) industrial footprints.

This category features versatile, high-performance configurations: the DSHG-04-2B2-C1 with stroke adjustment, the DSHG-06-3C4 equipped with dual stroke limiters (C1C2) and external drain (T), and the DSHG-06-2B3 featuring external pilot pressure (E). Available in D24 (DC24V) and A100 (AC100V) specifications, these valves are the premier choice for large injection molding machines, die-casting equipment, metallurgical machinery, and heavy-duty machine tools.

Key Technical Advantages:

• Spool Stroke Adjustment (C1/C2): Precision bolts at the main valve ends allow for the calibration of spool travel, effectively controlling switching time and reducing hydraulic shock.

• Flexible Pilot & Drain Options: Supports combinations of internal/external pilot (E) and internal/external drain (T), adapting to diverse and complex manifold circuit designs.

• Extreme Flow Capacity: The optimized internal geometry ensures industry-leading flow rates with minimal pressure drop, enhancing overall energy efficiency.

• Robust Industrial Protection (N1): Equipped with high-quality junction boxes for superior dust and moisture resistance, ensuring reliable operation in harsh factory environments.

Detailed Specifications & Parameters:

• Core Series: Yuken Type DSHG Pilot Operated Valve.

• Featured Model Matrix: DSHG-04-2B2-C1-E-A100-50, DSHG-06-3C4-C1C2-T-N1-D24-50, DSHG-06-2B3-E-D24-51.

• Core Performance Specs:

  • Nominal Sizes: Size 04 (NG15 / CETOP 07) and Size 06 (NG25 / CETOP 08).

  • Max Operating Pressure: Rated up to 31.5 MPa (315 Bar).

  • Max Flow Capacity: Up to 300 L/min for Size 04; up to 500 L/min for Size 06.

  • Control Voltage: D24 (DC 24V) / A100 (AC 100V).

  • Special Suffixes: C1 (Single-end adjustment), C1C2 (Double-end adjustment), T (External drain), E (External pilot).
