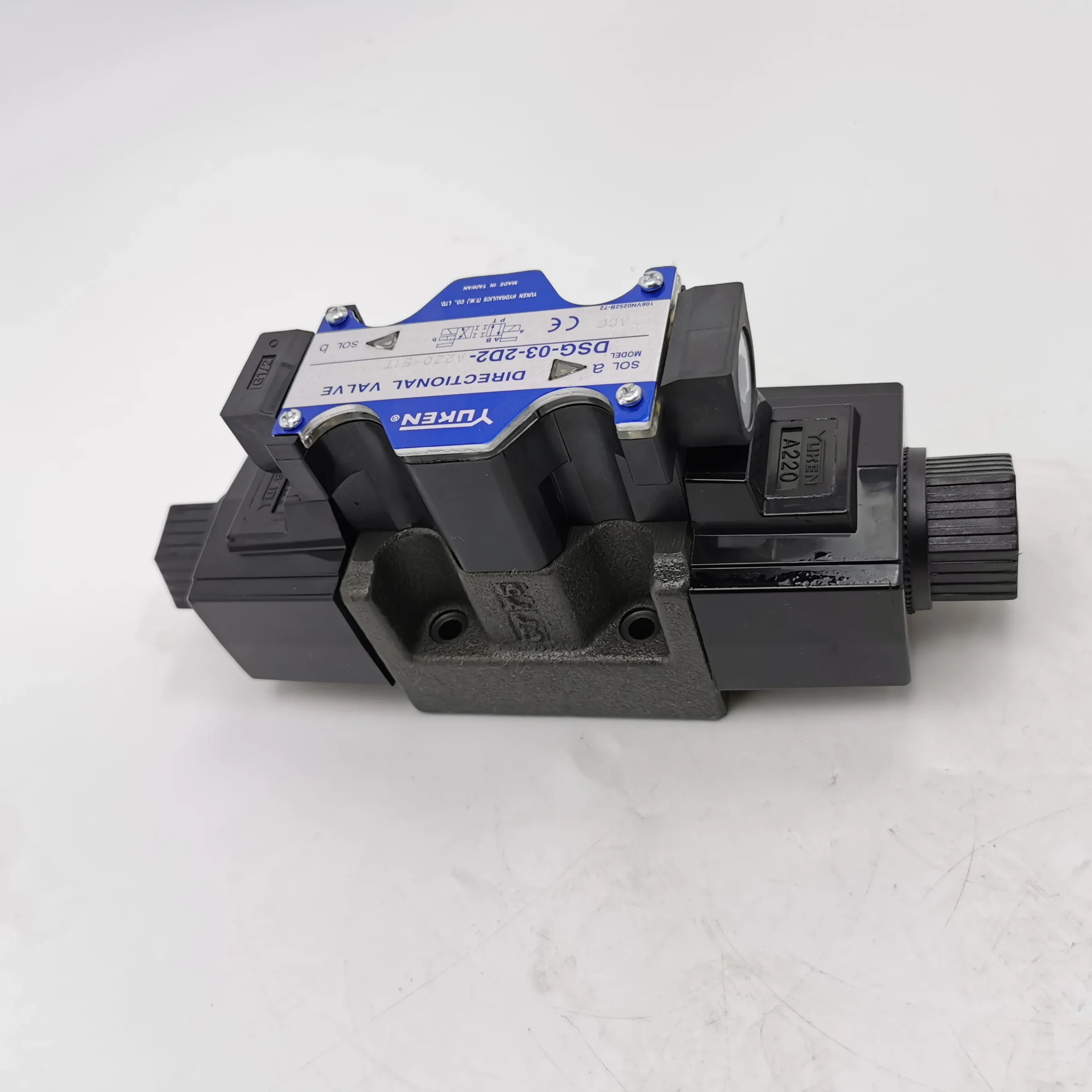

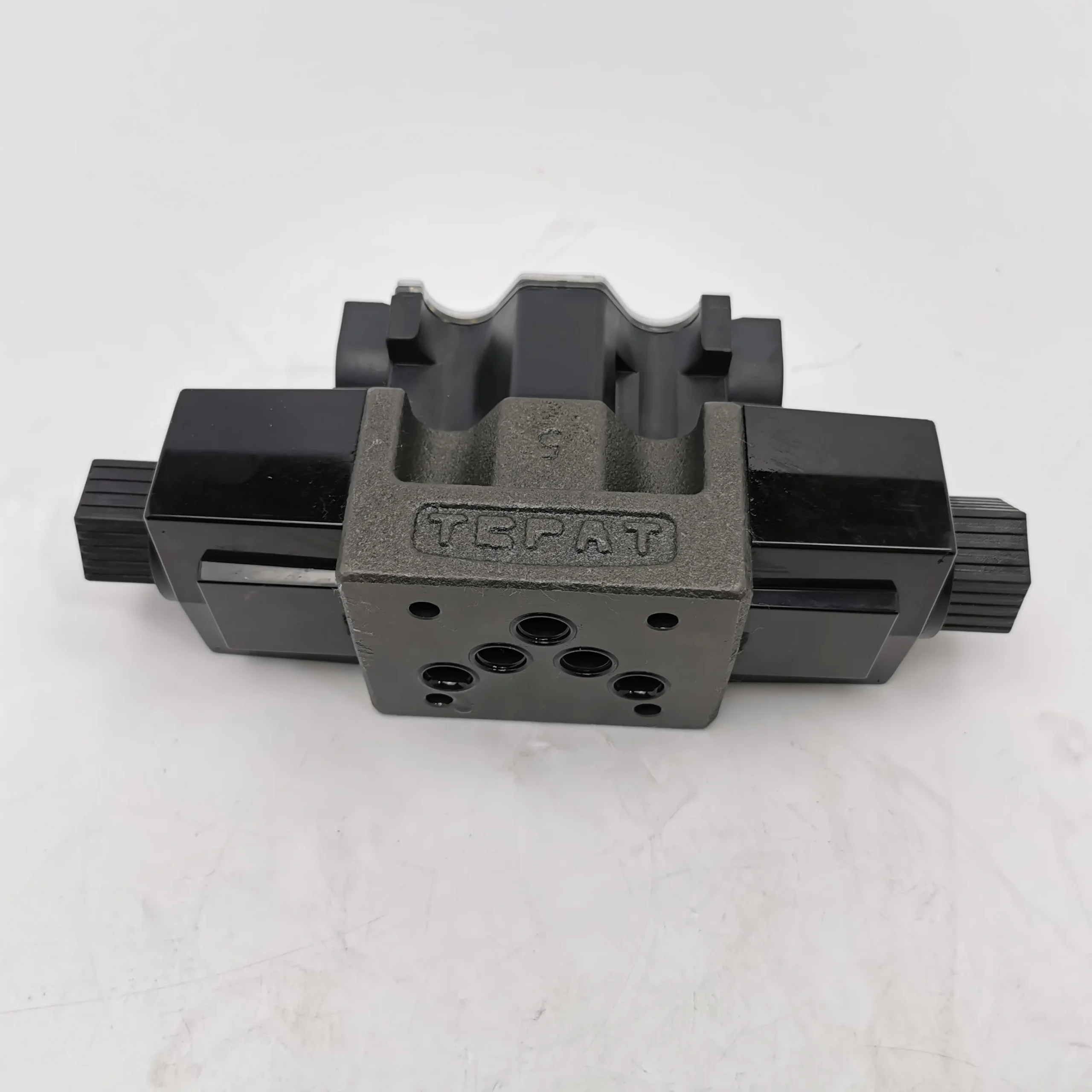

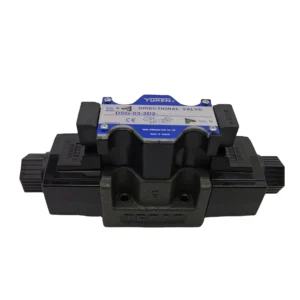

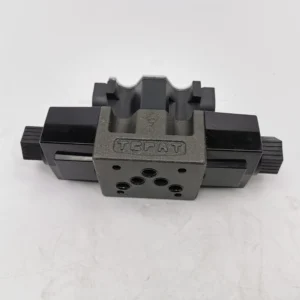

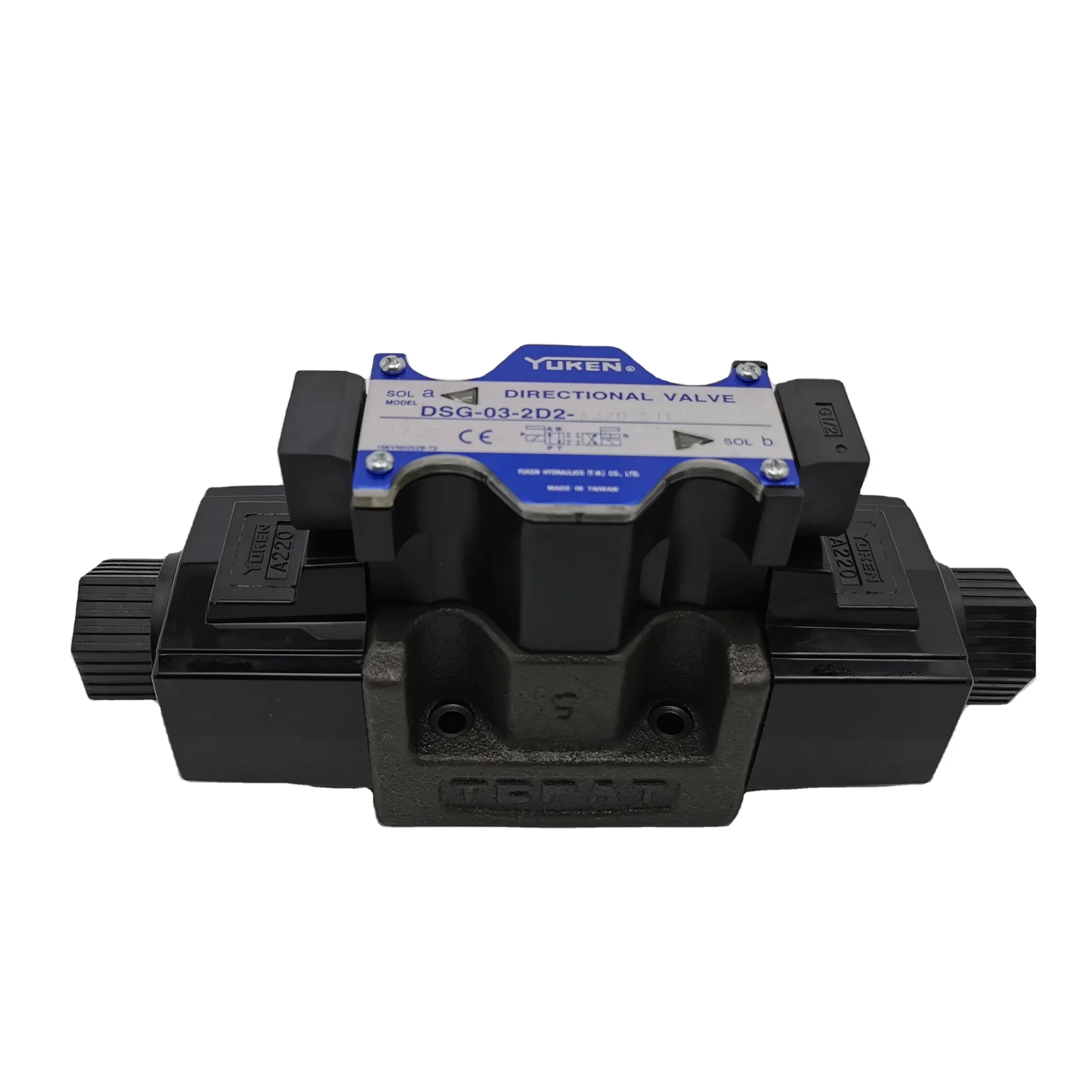

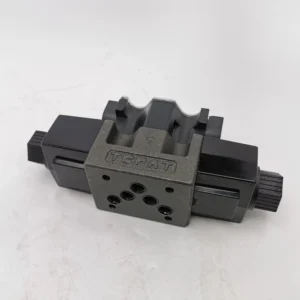

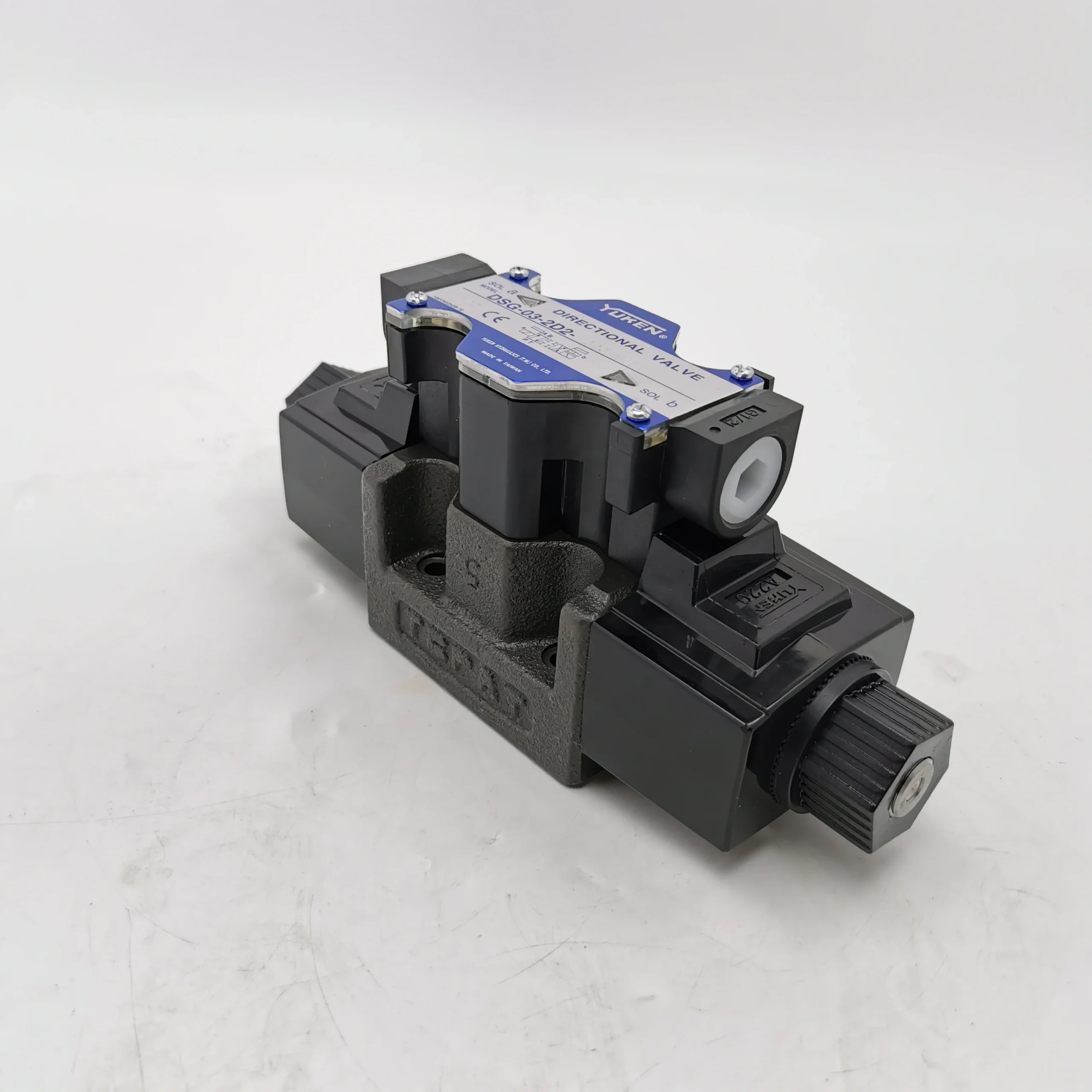

Yuken Type DSG-03 Valve | DSG-03-3C2 3C4 2D2 | NG10 Solenoid Valve | AC220V DC24V
| Model Number | DSG-03-2D2-A220-51T |
|---|
Product Description

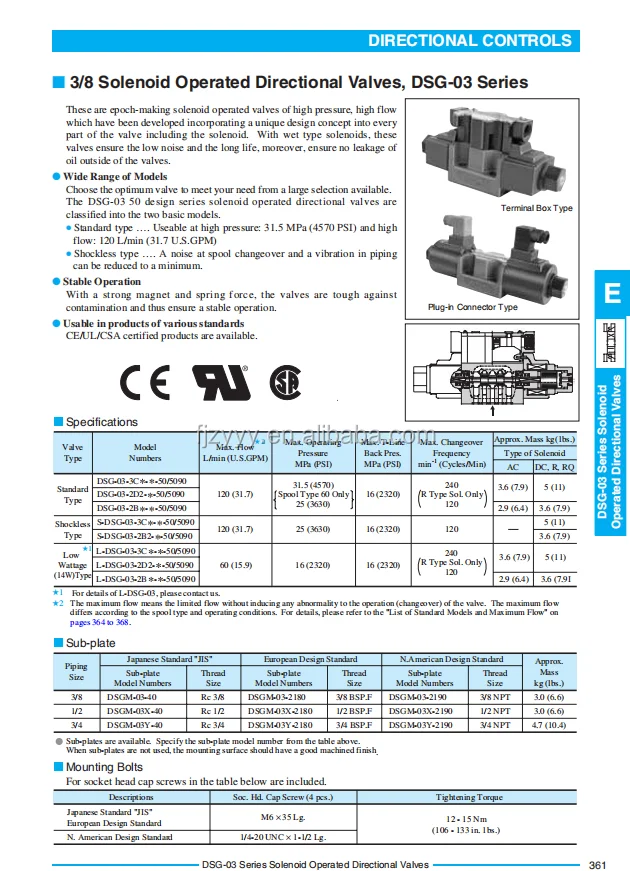

Yuken Type DSG-03 Series High-Pressure Solenoid Directional Valves
Product Overview: The DSG-03 Series is a globally recognized benchmark for high-reliability solenoid directional control valves. As a standard for the Size 03 (NG10 / CETOP 05) footprint, this series is specifically engineered for high-pressure, high-flow, and low-pressure-drop applications. Its streamlined internal casting ensures minimal energy loss even under peak flow conditions, making it the premier choice for injection molding machines, large presses, automated assembly lines, and heavy-duty hydraulic power units (HPUs).
This category highlights the comprehensive DSG-03 matrix: featuring versatile 3-position models such as 3C2, 3C4, and 3C60, alongside efficient 2-position configurations like 2D2, 2B2, and 2B8. Specific models like the DSG-03-2D2-A220-51T are powered by AC 220V (A220) and utilize the robust 51T design sequence for extended operational stability in harsh industrial environments.
Key Technical Advantages:
Superior Flow Capacity: Delivers a rated flow up to 120 L/min within a compact NG10 envelope, significantly enhancing system cycle times.
High-Pressure Performance: Rated for operating pressures up to 31.5 MPa (4,500 PSI), capable of handling complex transient pressure spikes.
Wet-Pin Solenoid Technology: The armature operates fully immersed in hydraulic oil, eliminating dynamic seal friction for quiet, smooth, and wear-free engagement.
Extensive Spool Logic: Offers dozens of spool functions from 3C2 (Closed center) to 3C40 and 2B2, perfectly matching any hydraulic circuit logic.
Detailed Specifications & Parameters:
Core Series: Yuken Type DSG-03 Solenoid Valve.

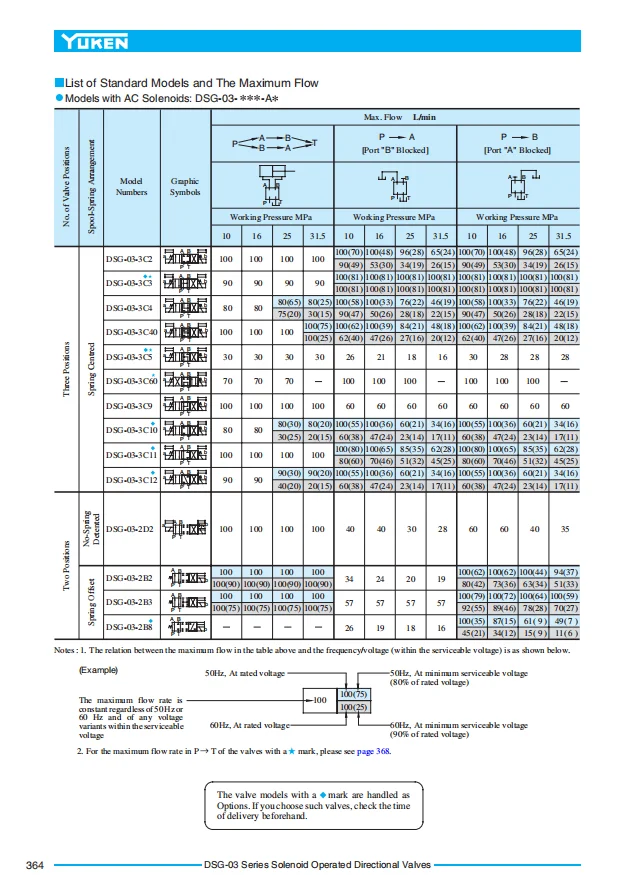

Complete Spool Matrix: 3C2, 3C3, 3C4, 3C40, 3C5, 3C60, 3C9, 3C10, 3C11, 3C12, 2D2, 2B2, 2B8.

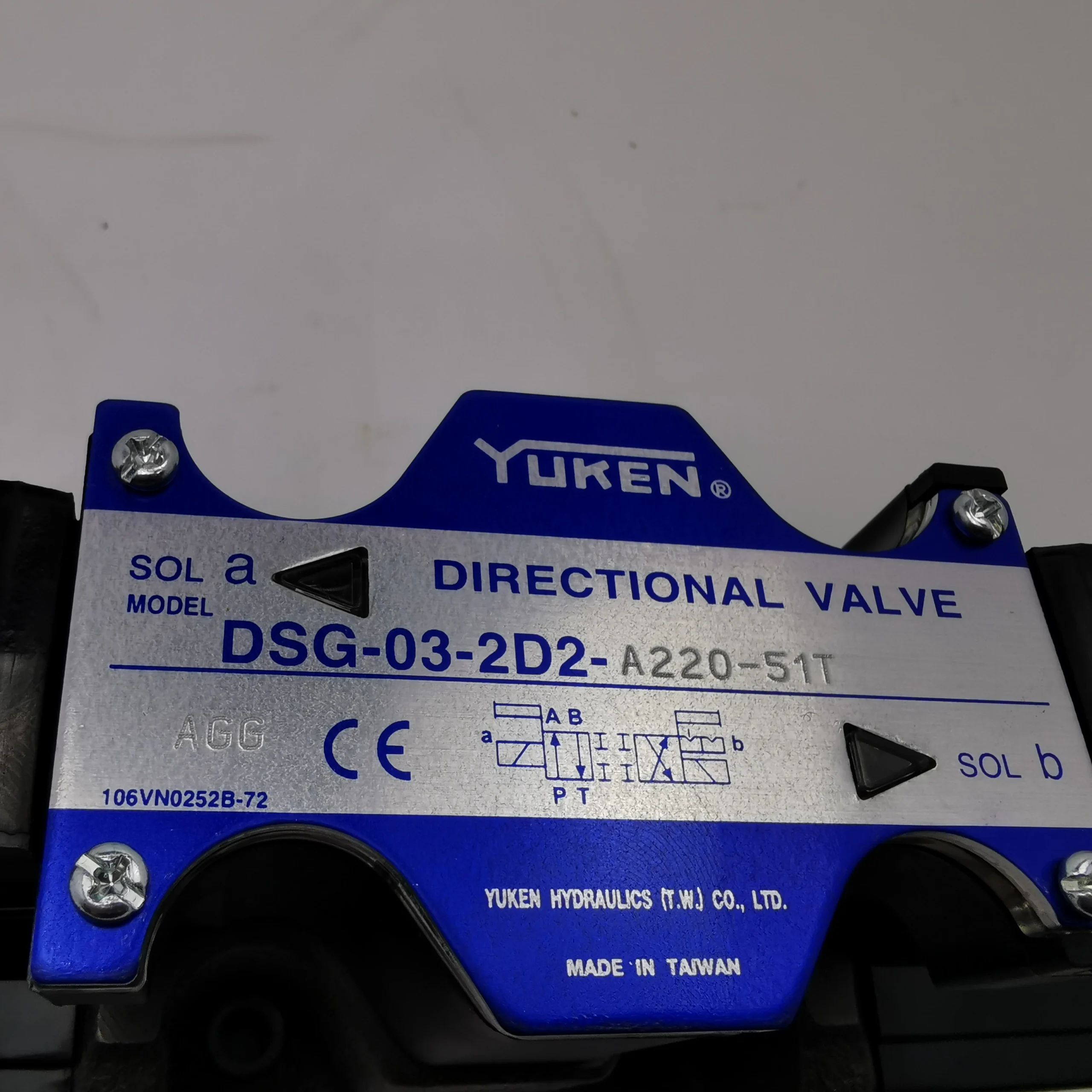

Featured Model: DSG-03-2D2-A220-51T.
Core Performance Specs:
Nominal Size: Size 03 (NG10 / CETOP 05).
Max Operating Pressure: 31.5 MPa (4,500 PSI).
Max Flow Capacity: Up to 120 L/min (32 GPM).
Voltage Specs: A220 (220V AC), D24 (24V DC), A110 (110V AC).
Electrical Interface: 51T (Standard terminal box or plug-in connector).
