Yuken Type DSG-02 Solenoid Valve | DSG-02-3C2 | 3C4 | 3C6 | 2B2 | AC220V DC24V | NG10 CETOP 5
| Model Number | DSG-02-3C6 3C4 2B2 3C2-AC220, DSG-02-3C2-A220-DL, DSG-02-3C6-AC220V-DL, DSG-02-3C6 3C4 2B2 3C2 3C4-DC24 |
|---|
Product Description
DSG-02 Series High-Pressure Solenoid Directional Valves
Product Overview: The DSG-02 series is a range of solenoid-operated directional control valves engineered for high-reliability industrial applications, fully compliant with ISO 4401-05 (NG10 / CETOP 5) standards. Featuring an optimized internal flow path, these valves significantly reduce fluid resistance, enabling a flow capacity of up to 100 L/min within a compact footprint. Utilizing wet-pin solenoid technology, the armature operates within the hydraulic fluid, ensuring smooth switching and significantly extending the service life of the coils.
Featured models include: DSG-02-3C2-A220-DL, DSG-02-3C6-AC220V-DL, DSG-02-2B2-DC24, and the 3C4 spool configuration.
Key Technical Advantages:
Superior Pressure Resistance: Supports a maximum operating pressure of up to 31.5 MPa, making it ideal for high-pressure hydraulic circuits.
DL-Type Large Terminal Box: The “-DL” suffix indicates an oversized junction box, providing ample space for easy wiring and superior sealing protection.
Versatile Spool Logics: Available in 3C2 (Closed center), 3C4 (P blocked, A/B/T connected), 3C6 (P/T connected, A/B blocked), and 2B2 configurations.
Smooth Switching: The wet-pin design dampens shock and noise, perfect for automated machinery requiring stable operation.
Detailed Specifications & Parameters:
Featured Model Matrix:

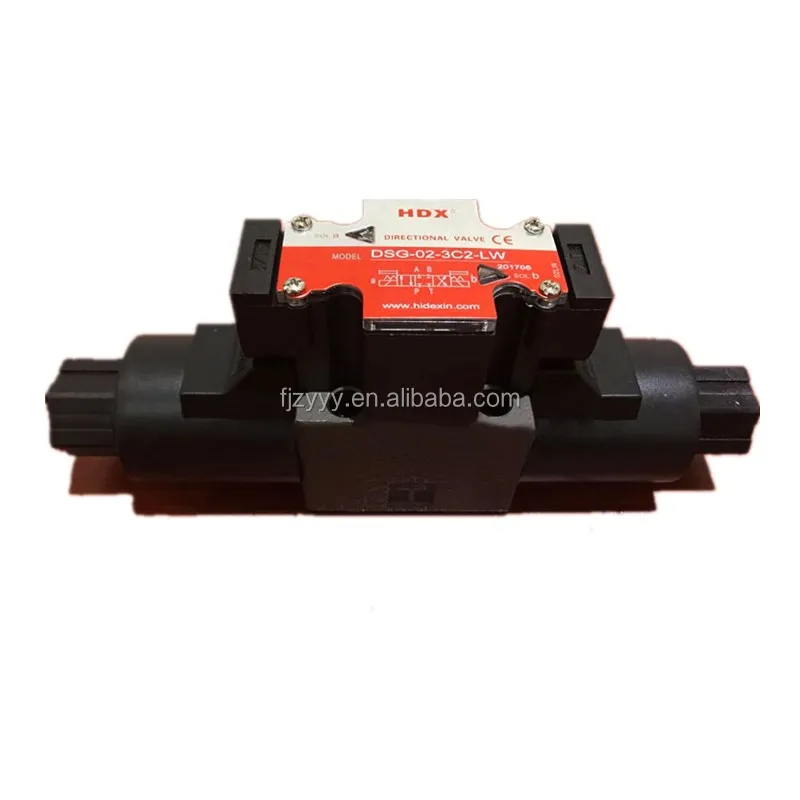

DSG-02-3C2-AC220 / DC24: Size 10, 3-pos 4-way, 3C2 spool, available in 220V AC or 24V DC options.

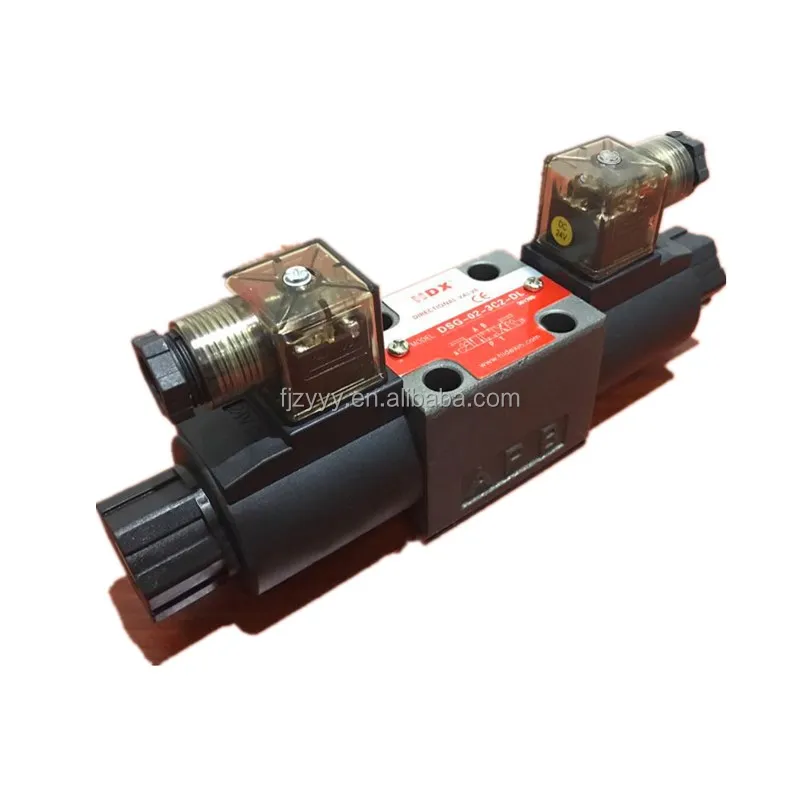

DSG-02-3C6-AC220V-DL: Size 10, 3C6 logic, equipped with the DL-type large electrical junction box.

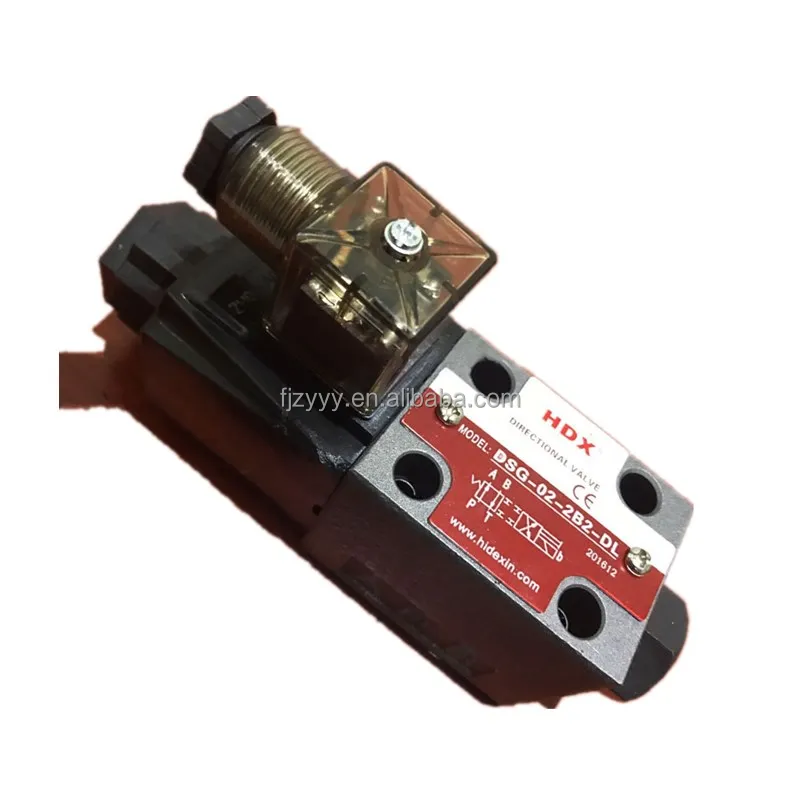

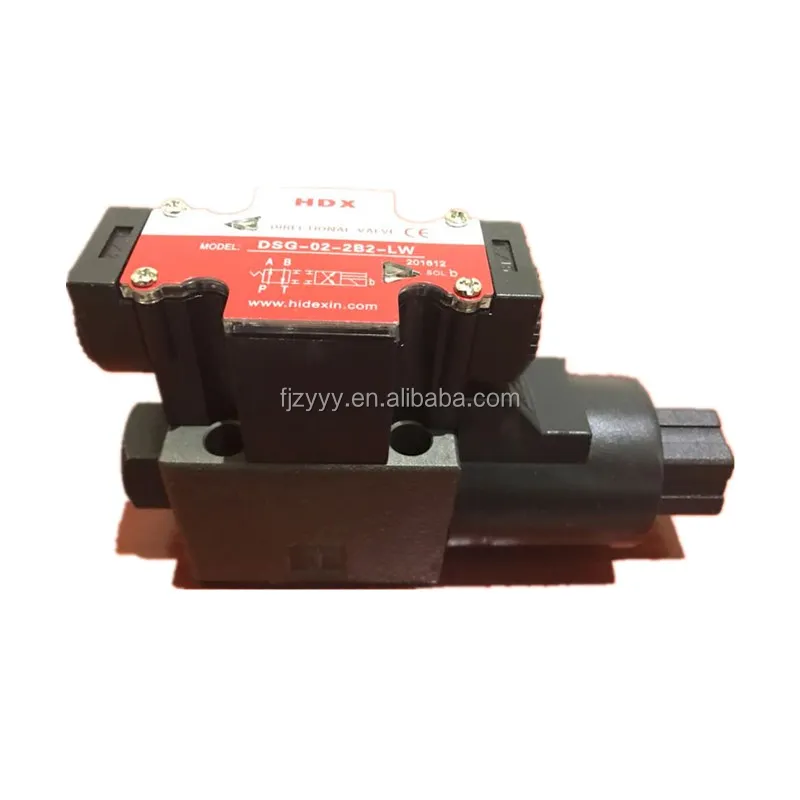

DSG-02-2B2-DC24: Size 10, 2-pos 4-way logic, 24V DC control.

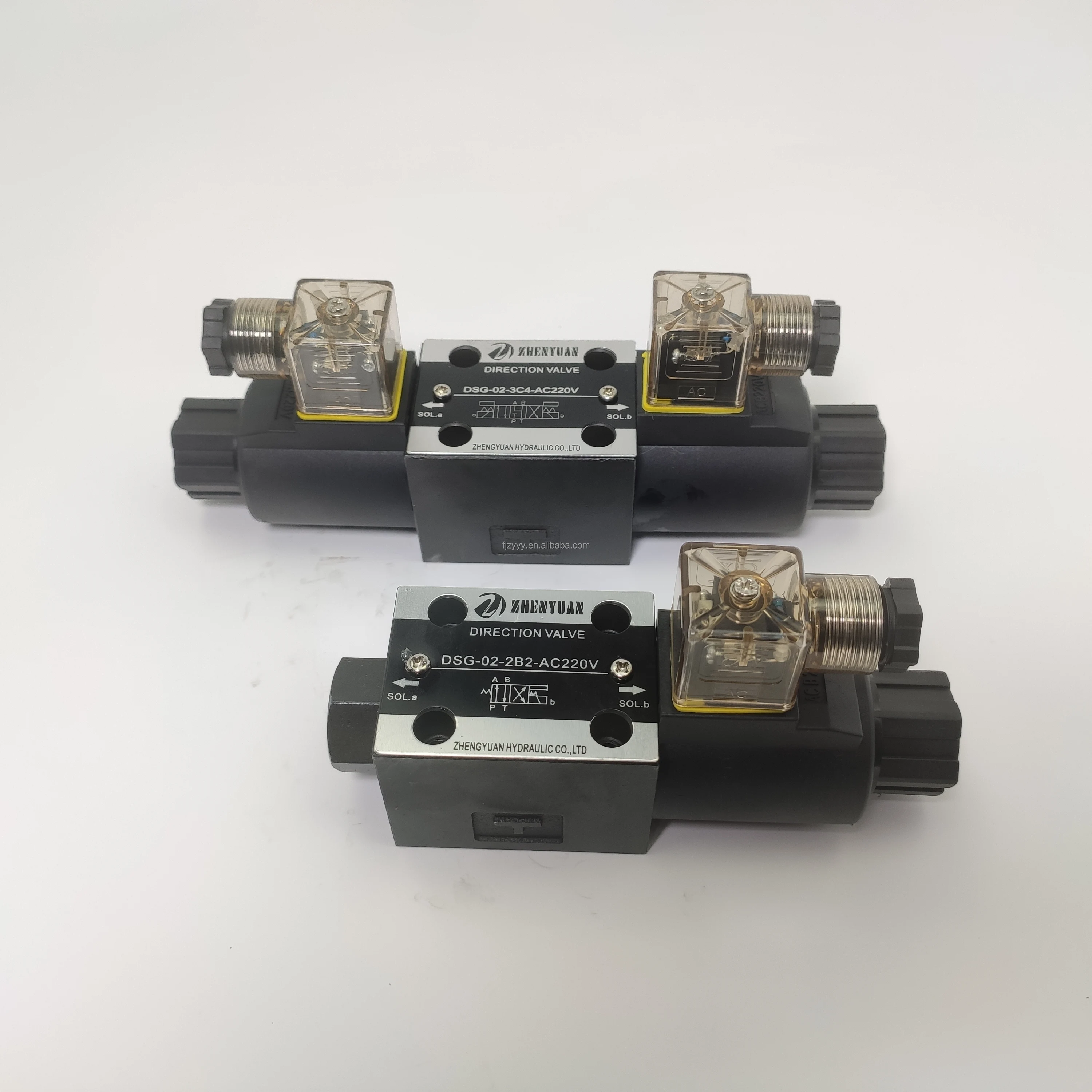

DSG-02-3C4: Specific center unloading function tailored for complex circuit control.
Core Technical Specs:
Mounting Standard: ISO 4401-05 / CETOP 5 / NG10.
Max Operating Pressure: 31.5 MPa (315 bar).
Max Flow Capacity: Up to 100 L/min.
Voltage Specs: AC 220V (50/60Hz) / DC 24V.
