Yuken Type DSG-01 Valve | DSG-01-3C60 3C4 2B3B | NG6 Solenoid Valve | D24 A220
| Model Number | DSG 01 3C4 A220 50 |
|---|
Product Description

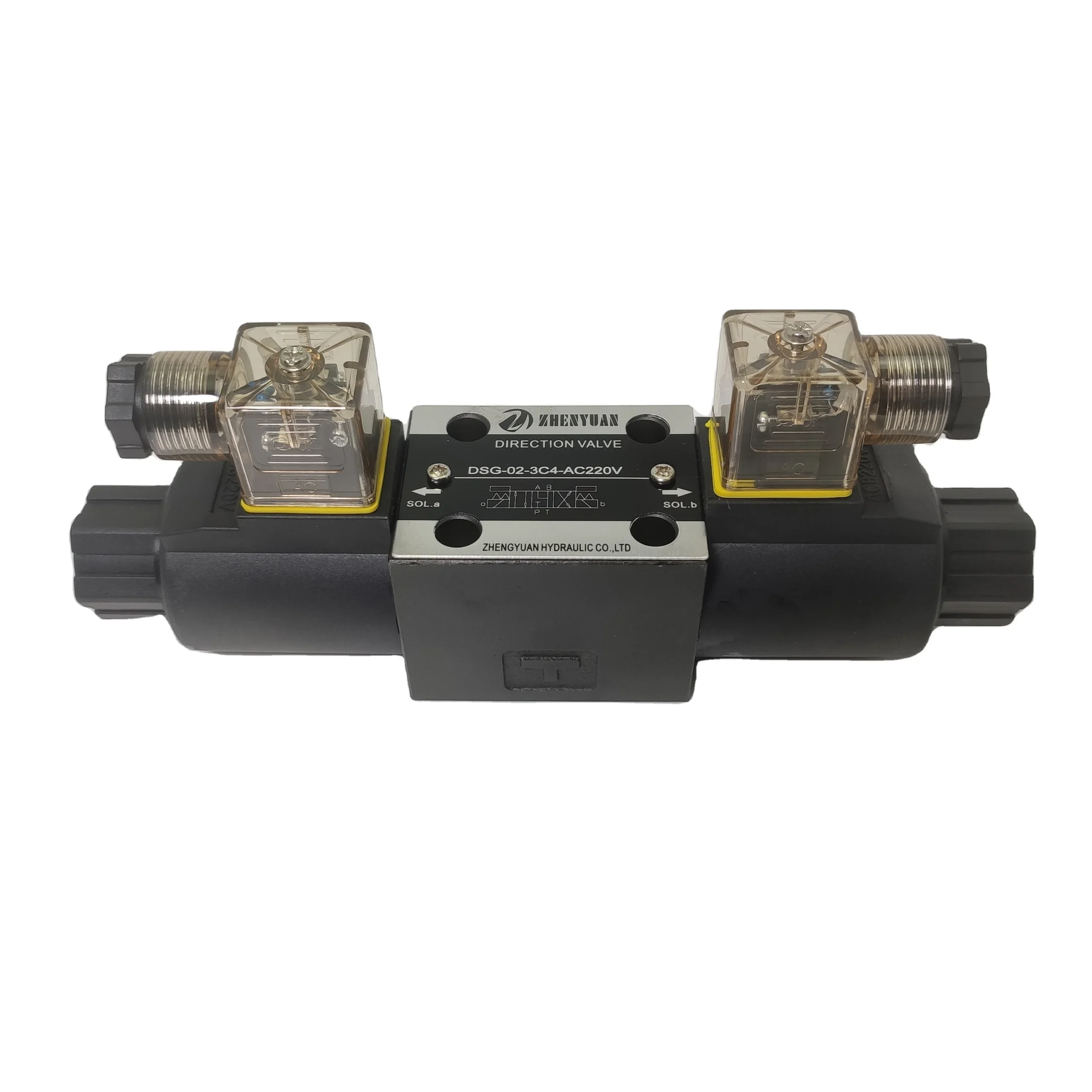

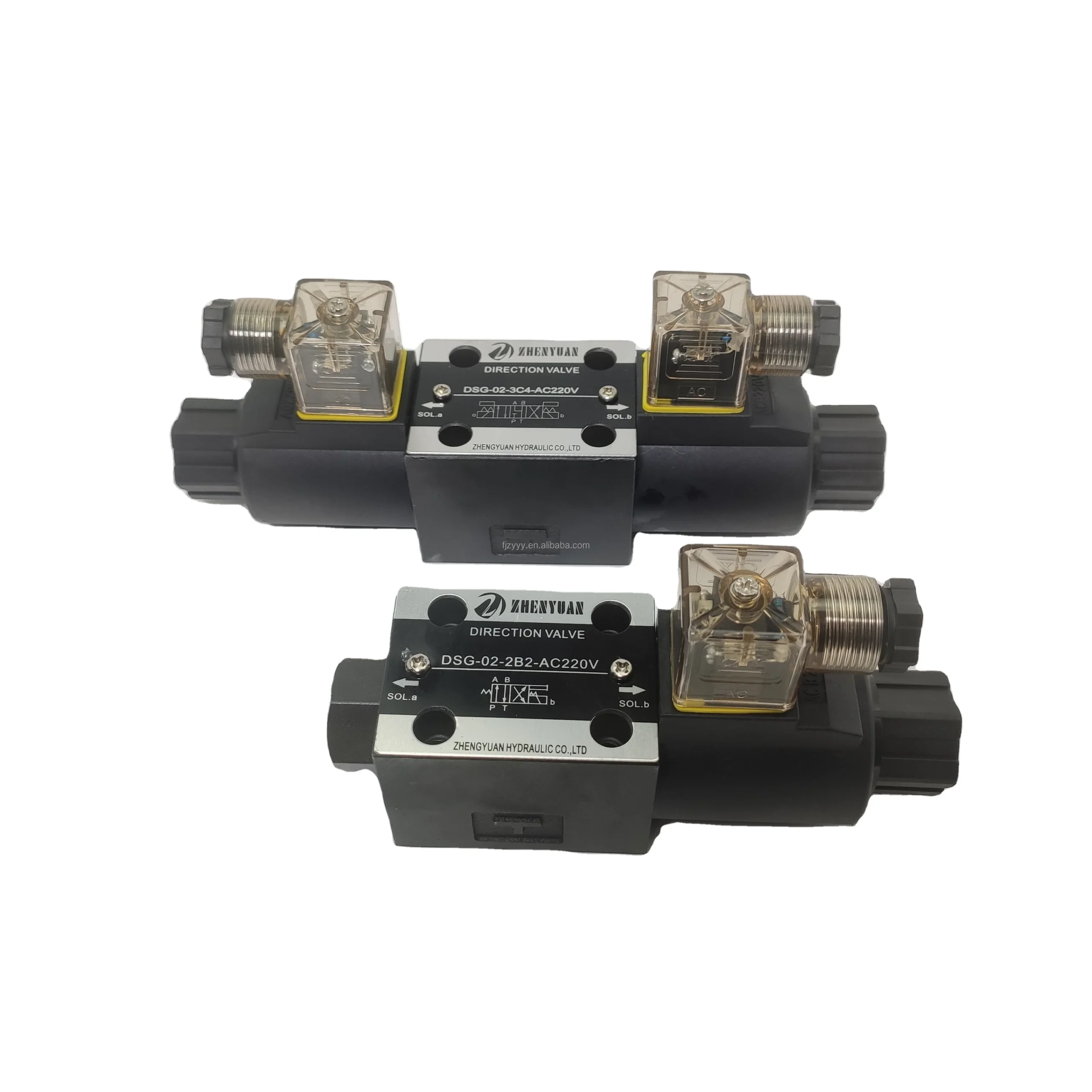

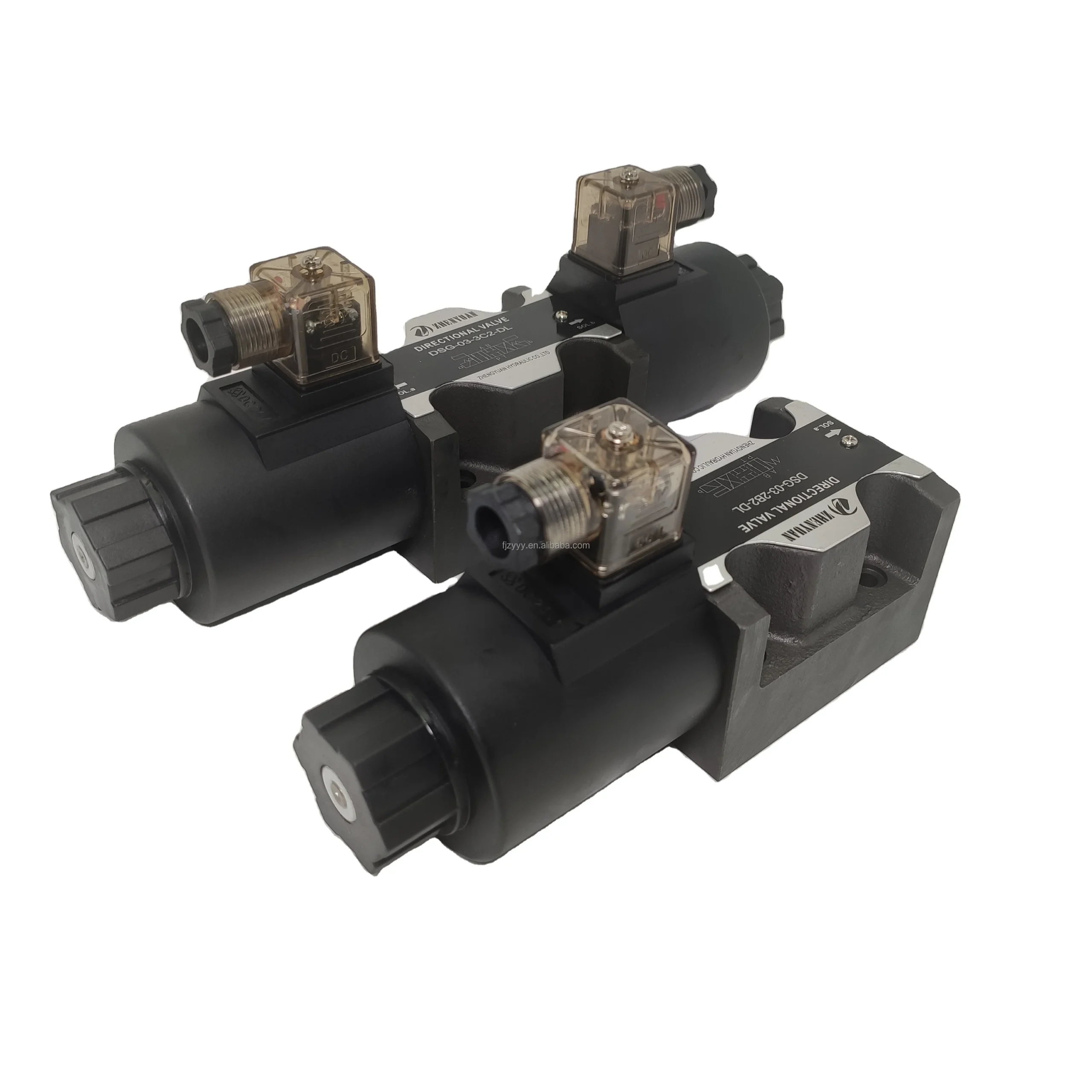

Yuken Type DSG-01 Series High-Performance Solenoid Directional Valves
Product Overview: The Yuken DSG-01 Series is a premier industrial solution for direct-operated solenoid directional spool valves. Featuring the universal Size 01 (NG6 / CETOP 03) footprint, this series is renowned for its superior switching power limits, minimal pressure drop, and quiet operational performance. With robust solenoid thrust, the DSG-01 provides highly reliable shifting even under demanding high-pressure and high-flow conditions.
This category highlights essential configurations: the DC-powered DSG-01-3C60-D24-N1-50, and the 220V AC variants DSG-01-2B3B-A220-50, DSG-01-3C60-A220-50, and DSG-01-3C4-A220-50. These valves are the ideal choice for machine tools, automated assembly lines, injection molding machines, and various industrial hydraulic power units (HPUs).
Key Technical Advantages:
Superior Switching Power: Engineered with high-force solenoids to ensure precise spool shifting even at peak pressure and flow ratings, reducing the risk of sticking.
Low Pressure Drop & Efficiency: Internal flow paths are precision-simulated to minimize fluid resistance, thereby reducing heat generation and maximizing overall system energy efficiency.
Wet-Pin Solenoid Design: The armature operates fully immersed in oil for superior cooling and self-lubrication, resulting in smooth switching, low noise, and an extended mechanical service life.
Global Interchangeability: Mounting patterns comply with ISO 4401-03 standards, ensuring 100% compatibility and interchangeability with leading brands like Rexroth, Vickers, and Parker.
Detailed Specifications & Parameters:
Core Series: Yuken Type DSG-01 Solenoid Valve.
Featured Model Matrix: DSG-01-3C60-D24-N1-50, DSG-01-2B3B-A220-50, DSG-01-3C60-A220-50, DSG-01-3C4-A220-50.
Core Performance Specs:
Nominal Size: Size 01 (NG6 / CETOP 03).
Max Operating Pressure: Rated up to 31.5 MPa (4,500 PSI).
Max Flow Capacity: Up to 100 L/min (26.4 GPM).
Voltage Specs: D24 (24V DC), A220 (220V AC 50/60Hz).
Design Sequence: 50 Series (Design 50).
Spool Functions: 3C60 (A/B to T in center), 3C4 (Open center), 2B3B (2-position end-to-end).
