Yuken Type DSG-01 Solenoid Valve | DSG-01-3C2-D24-70 | DSG-01-2B2-A240-70 | DC24V AC240V
| Model Number | DSG-01-3C2-D24-70 |
|---|
Product Description

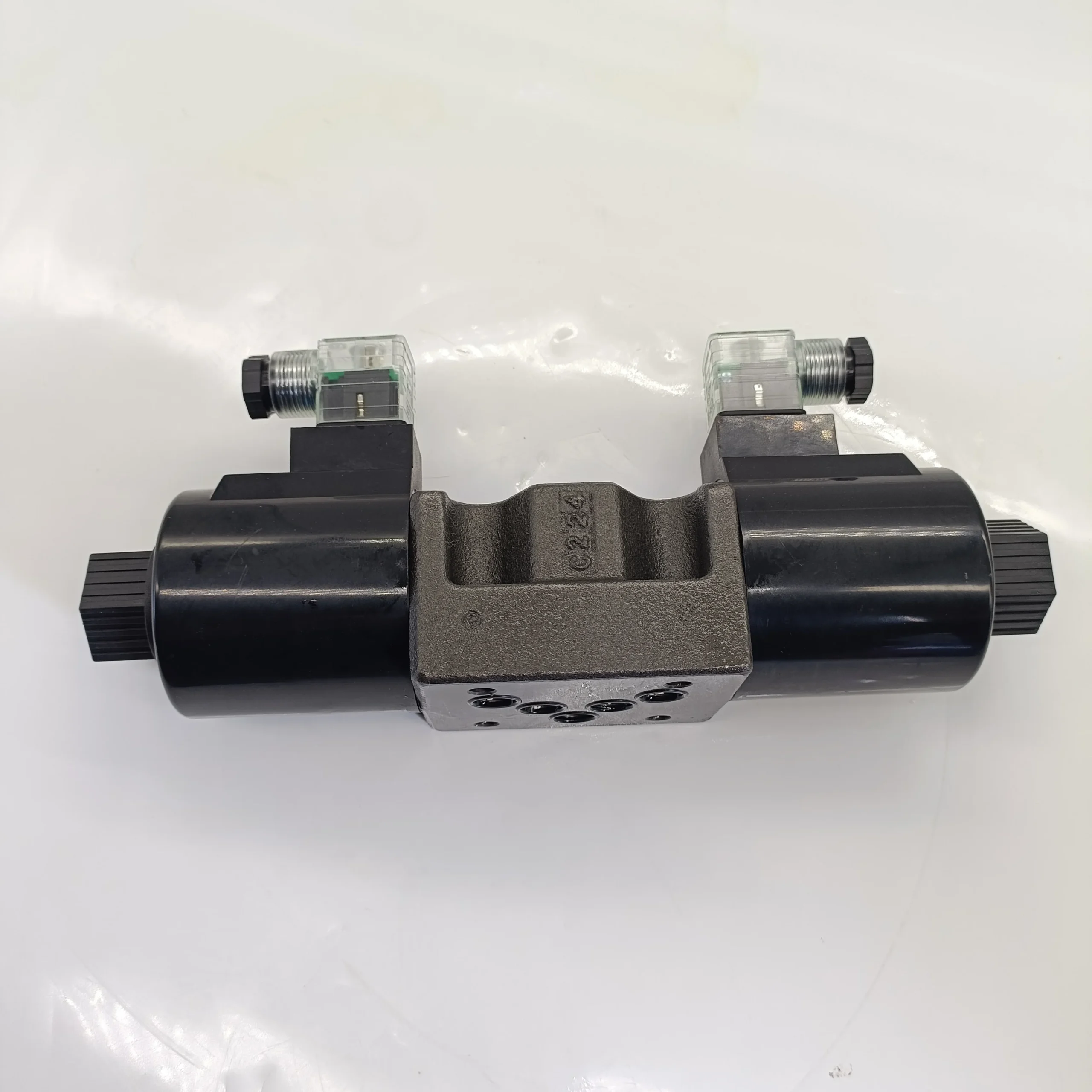

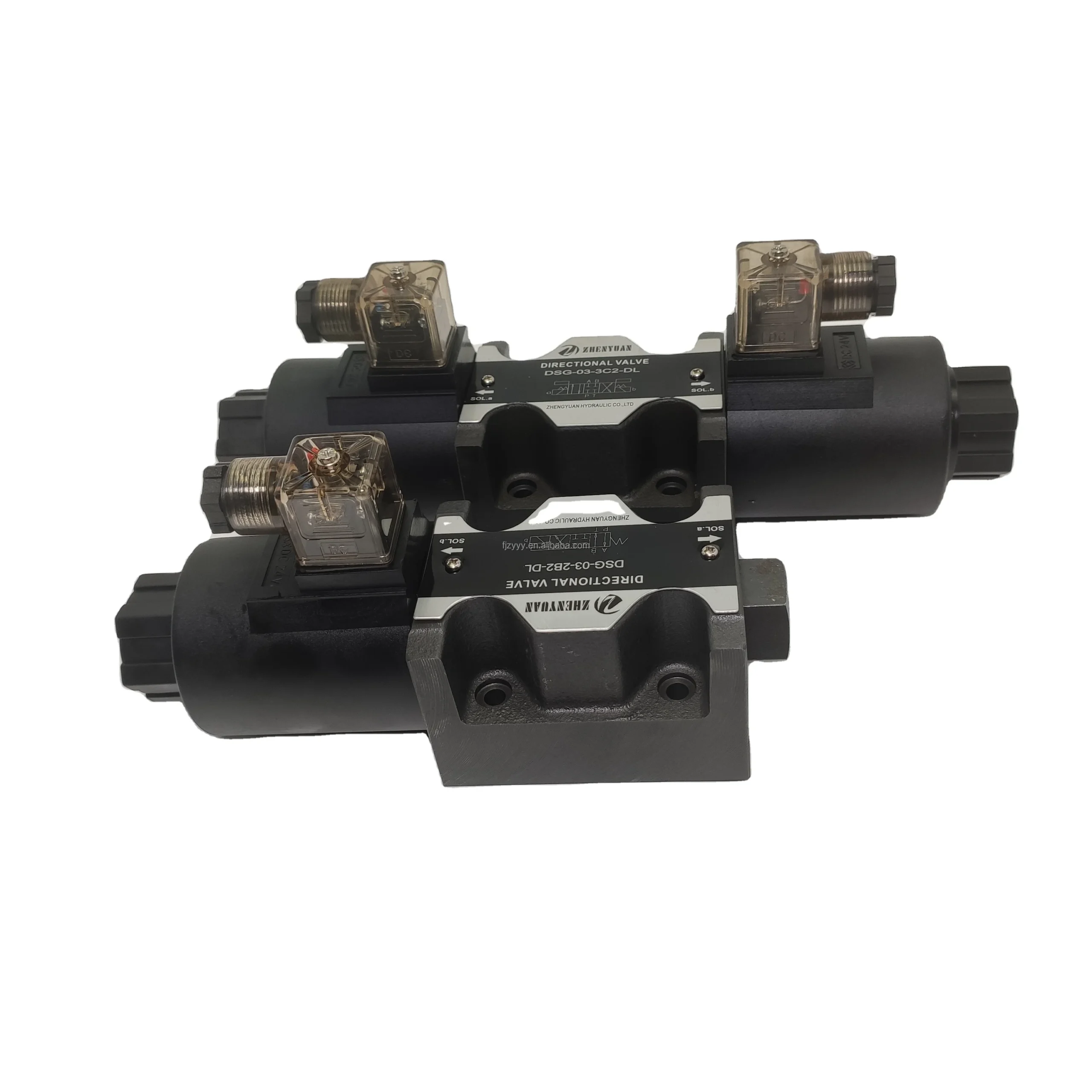

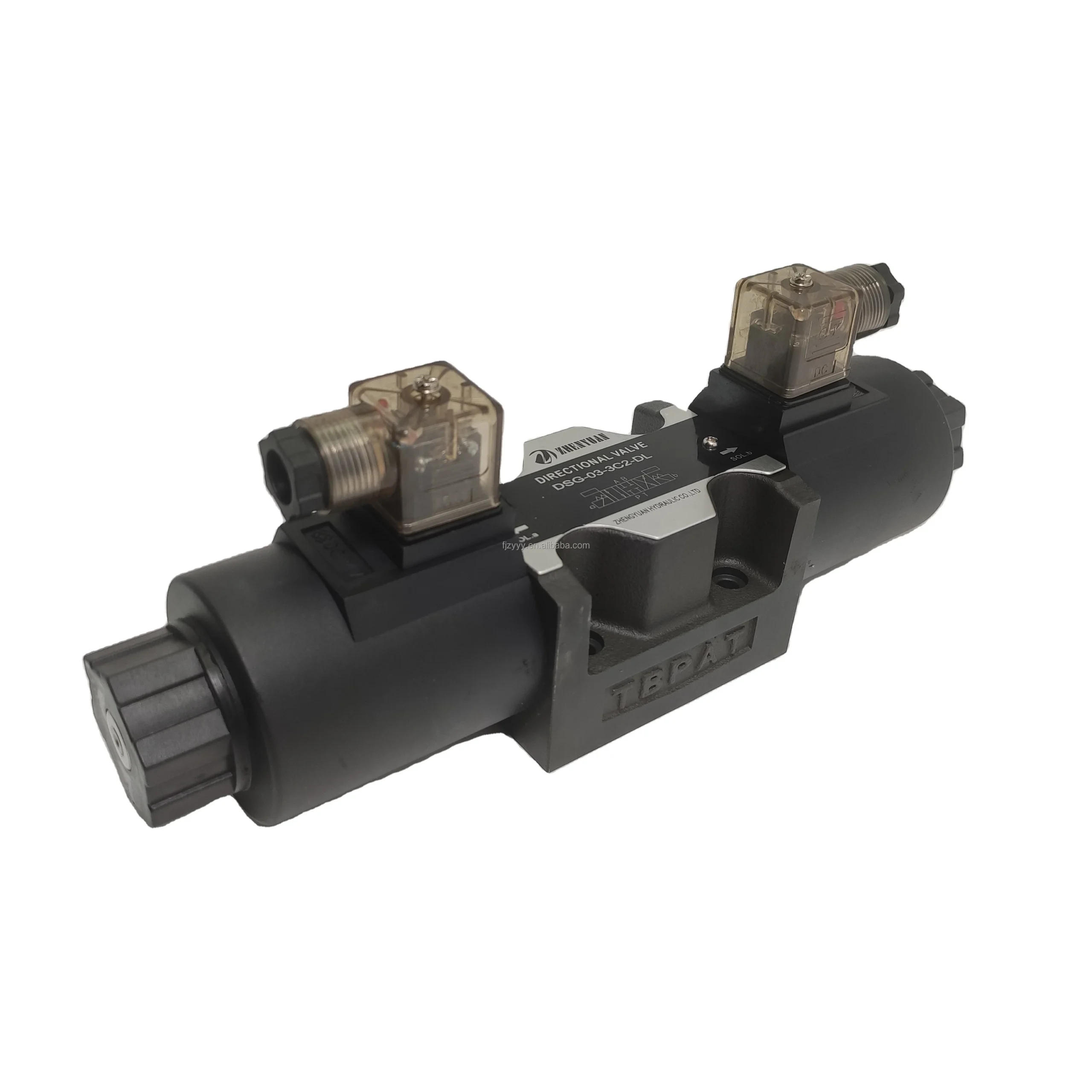

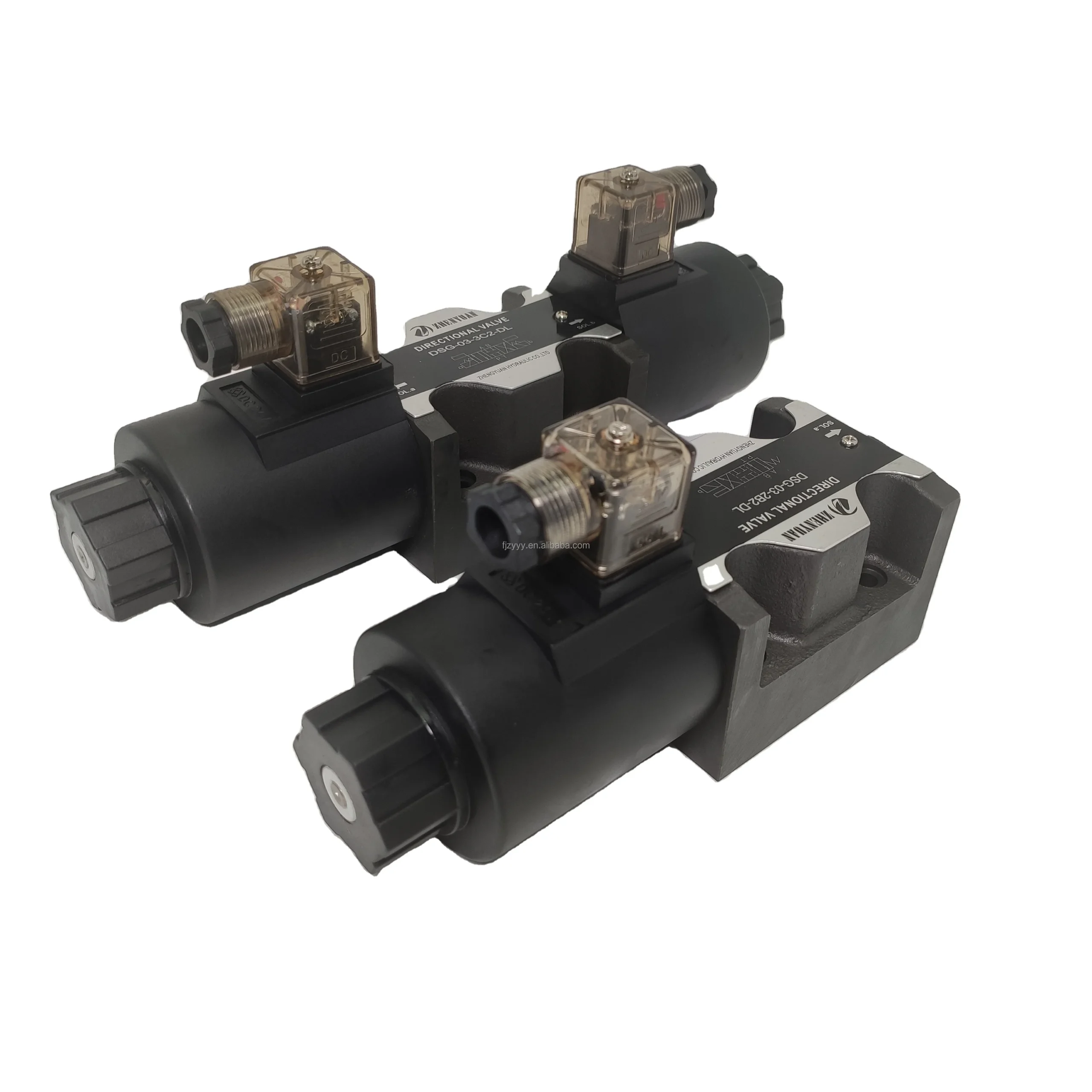

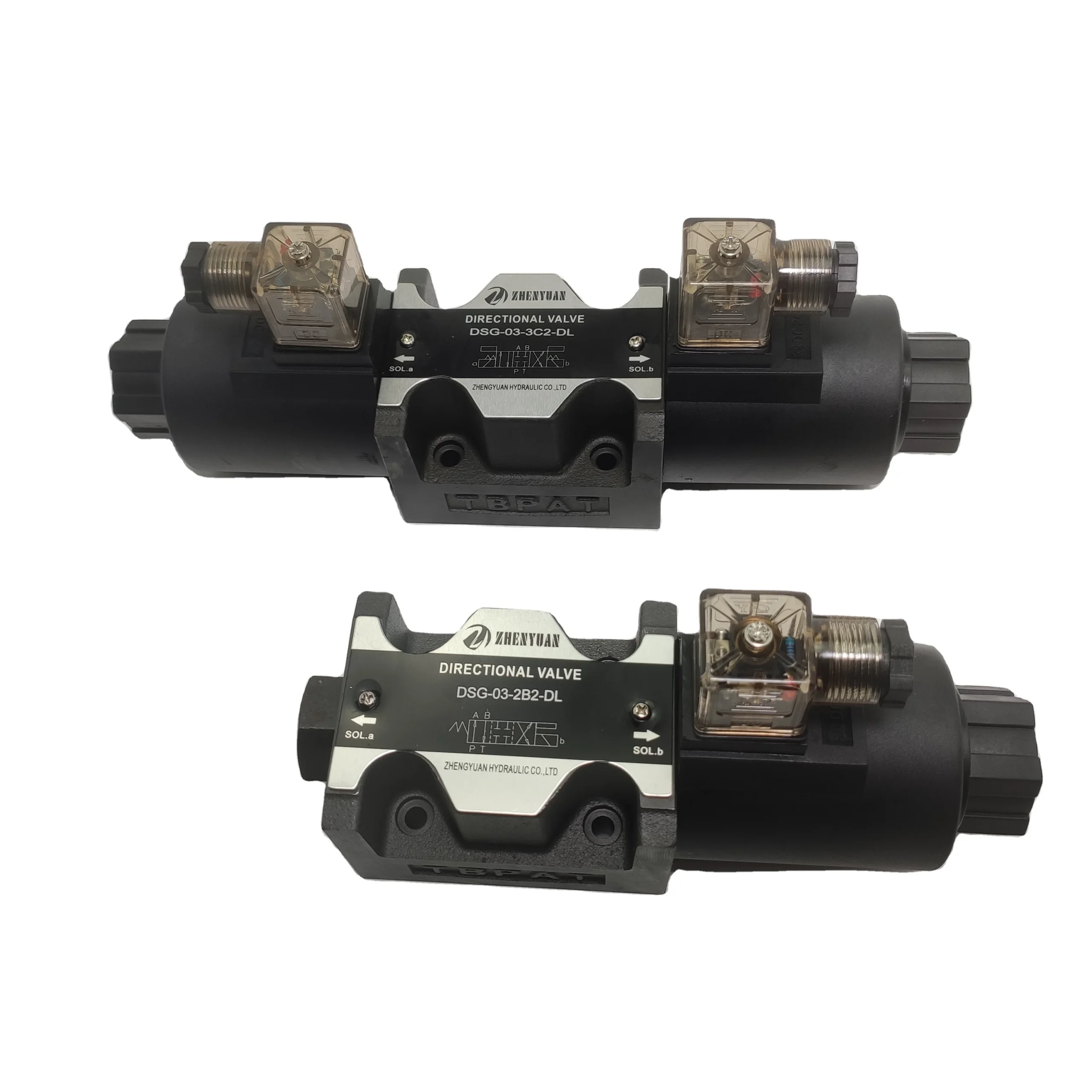

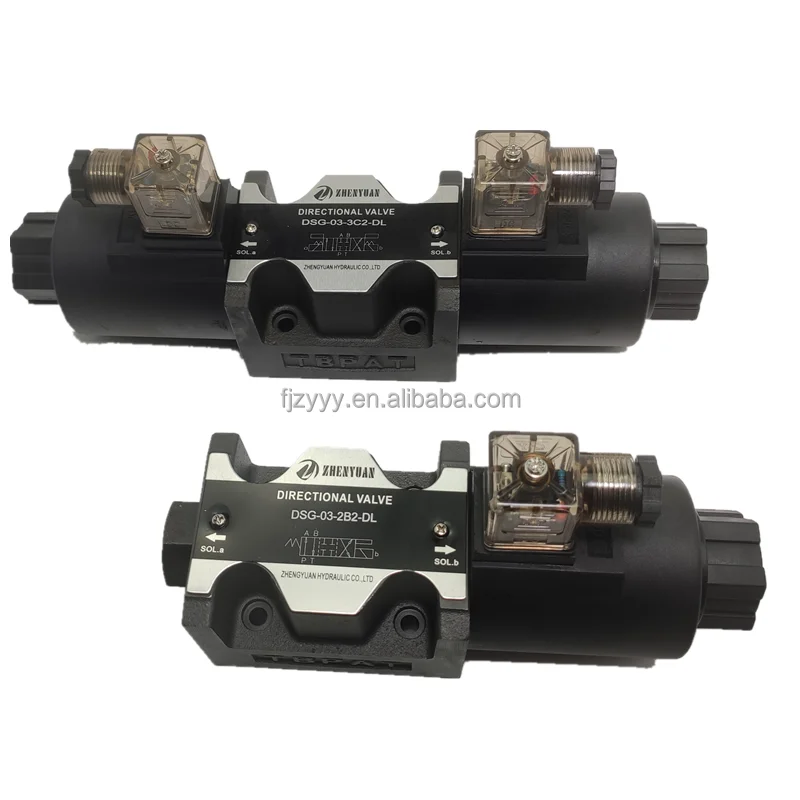

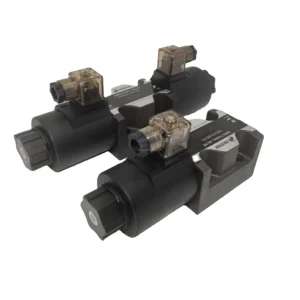

Yuken Type DSG-01 High-Performance Solenoid Directional Valves
Product Overview: The DSG-01 series is a high-pressure, high-flow wet-pin solenoid operated directional control valve designed for demanding industrial applications. Featuring an advanced wet-type solenoid architecture, the armature is fully immersed in system fluid, eliminating friction at the pushrod and leakage risks while providing superior damping and heat dissipation. Whether utilizing the standard DSG-01-3C2-D24 or the high-voltage DSG-01-3C2-A240, this series delivers exceptional switching frequency (up to 300 cycles/min) and an extended service life.
Featured models: DSG-01-3C2-D24-70, DSG-01-2B2-A240-70, and DSG-01-3C2-A240-70.
Key Technical Advantages:
High Pressure & Flow Capability: Despite its compact 6mm nominal size, it handles flow rates up to 63 L/min and maximum operating pressures of 31.5 MPa.
Quiet Operation & Longevity: The wet-pin design effectively dampens mechanical impact noise and drastically reduces wear on moving parts, ensuring a stable and quiet system environment.
Universal Voltage Compatibility: Available in multiple options including D24 (DC 24V) and A240 (AC 240V), catering to diverse global industrial power standards.
Optimized Series 70 Design: Compared to previous iterations, the Series 70 design features refined internal flow paths and enhanced magnetic force, further minimizing pressure drop.
Detailed Specifications & Parameters:
Featured Model Matrix:
DSG-01-3C2-D24-70: 3-pos 4-way, C2 Spool (All ports blocked center), DC 24V supply, terminal box type.
DSG-01-2B2-A240-70: 2-pos 4-way, B2 Spool (Spring offset), AC 240V supply.
DSG-01-3C2-A240-70: 3-pos 4-way, C2 Spool, AC 240V high-voltage AC configuration.
Core Technical Specs:
Nominal Size: NG6 / Size 01 / CETOP 3.
Max Operating Pressure: 31.5 MPa (315 bar).
Rated Flow Rate: Up to 63 L/min.
Max Switching Frequency: 300 cycles/min.
Enclosure Rating: IP65.
