Yuken Type DSG Valve | DSG-03-3C60 DSG-01-2B2 | NG6 NG10 Solenoid Valve | DC24V AC220V
| Model Number | DSG, DSG-01, DSG-03-3C60-R220-N1-50, DSG-01-2B2-D24-N1-50, DSG-01-2B12A-D24-50 |
|---|
Product Description

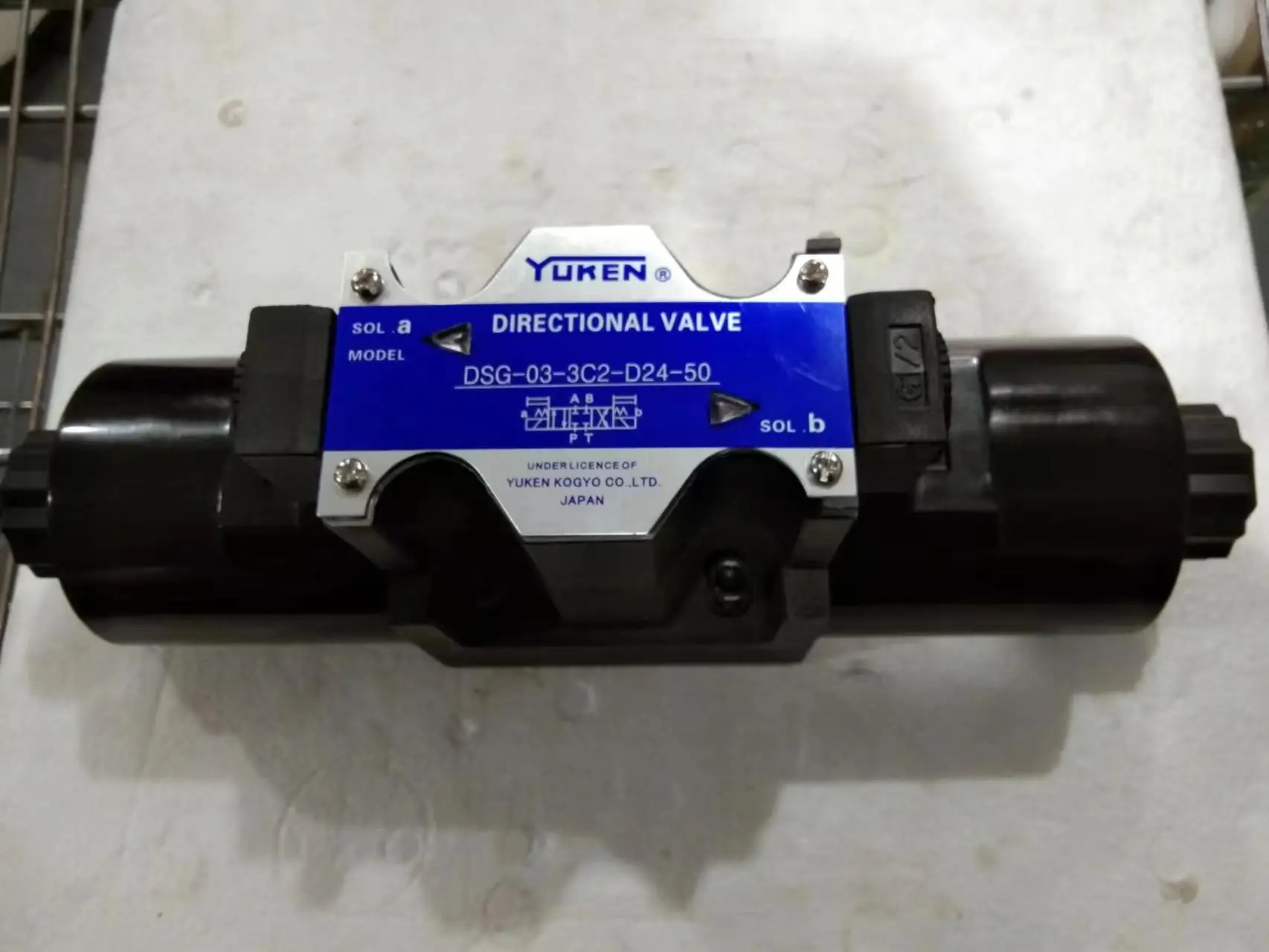

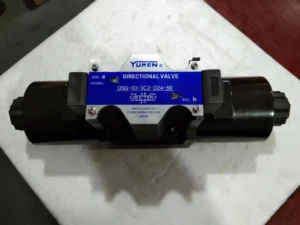

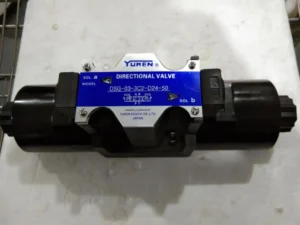

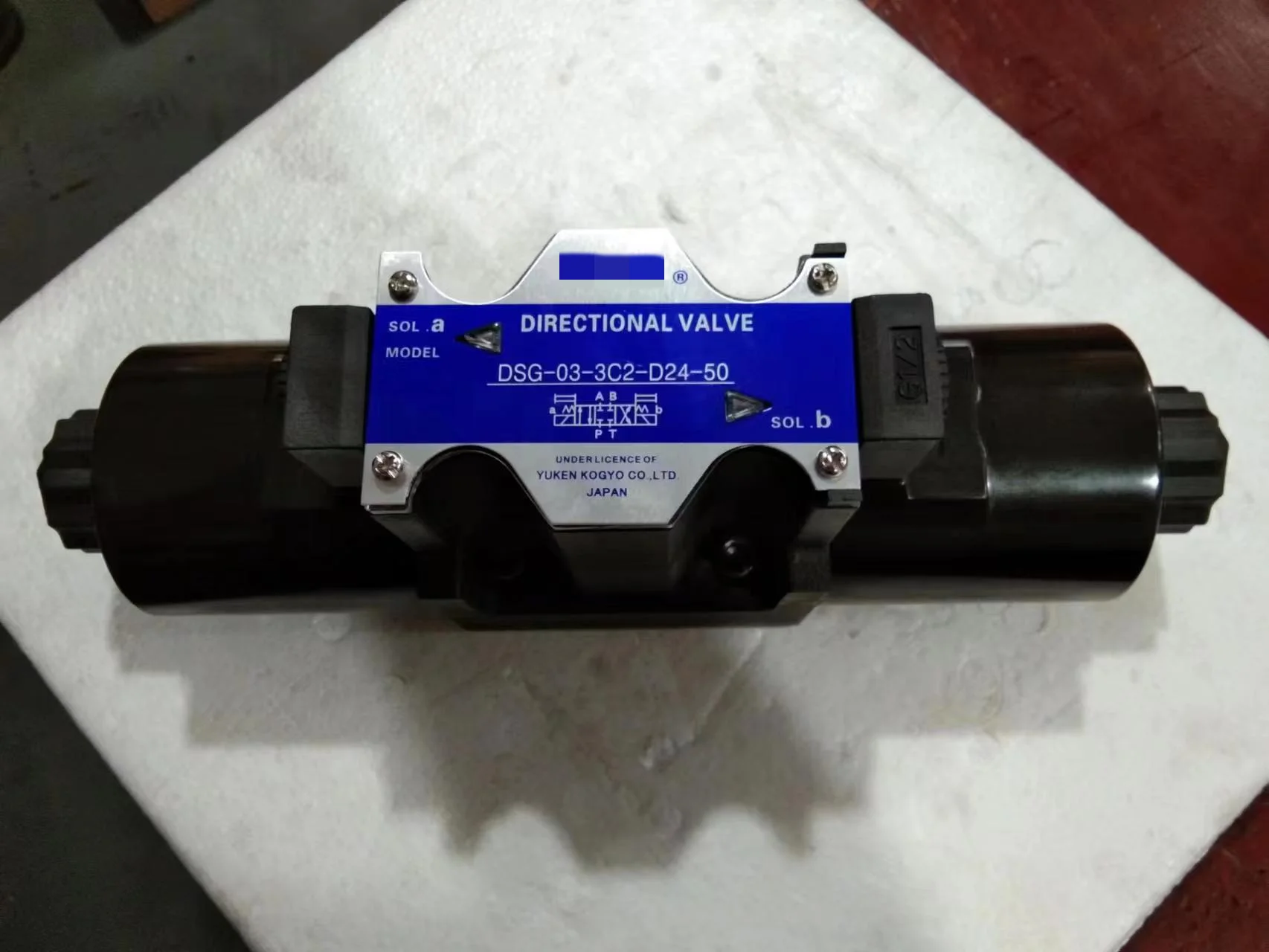

Yuken Type DSG-01 & DSG-03 Series Solenoid Directional Control Valves
Product Overview: The DSG Series is the industry standard for high-pressure, high-flow solenoid directional valves. Fully compliant with ISO 4401 mounting standards, this series covers both Size 01 (NG6) and Size 03 (NG10) footprints. Featuring fluid-dynamically optimized internal flow paths, the DSG series delivers superior flow capacity while maintaining exceptionally low pressure drop.

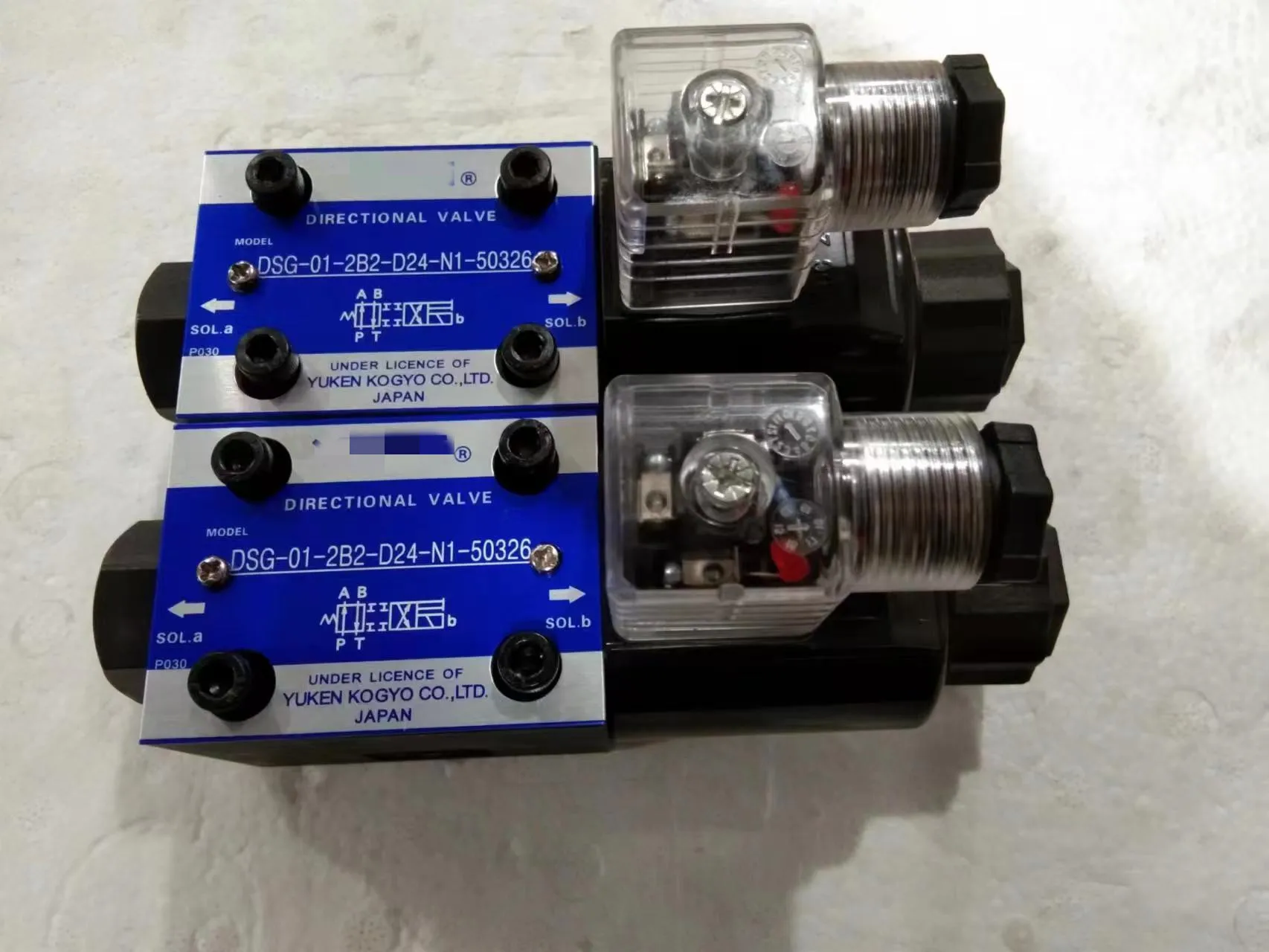

This category features essential industrial configurations: the 3-position all-ports-open DSG-03-3C60, the 2-position spring-offset DSG-01-2B2, and the specialized logic of the DSG-01-2B12A. Equipped with high-performance D24 (DC24V) or rectified R220 (AC220V) wet-pin solenoids, these valves are the premier choice for injection molding machines, automated production lines, hydraulic presses, and industrial power units.
Key Technical Advantages:
Superior High-Pressure Performance: Rated for operating pressures up to 31.5 MPa (4,500 PSI), delivering high power density within a compact frame.
Wet-Pin Solenoid Design: The armature operates fully immersed in oil for excellent heat dissipation and lubrication, resulting in quiet operation and an extended service life.
Energy-Efficient Low Pressure Drop: Optimized flow dynamics minimize internal friction, significantly reducing heat generation in the hydraulic circuit.
Robust Electrical Integration: Features standard N1 junction boxes with high protection ratings, ensuring reliability in humid and dusty industrial environments.
Detailed Specifications & Parameters:
Core Series: Yuken Type DSG Solenoid Directional Valve.
Featured Model Matrix: DSG-03-3C60-R220-N1-50, DSG-01-2B2-D24-N1-50, DSG-01-2B12A-D24-50.
Core Performance Specs:
Nominal Sizes: Size 01 (NG6 / CETOP 3) and Size 03 (NG10 / CETOP 5).
Max Operating Pressure: Rated up to 31.5 MPa (315 Bar).
Max Flow Capacity: Up to 63-100 L/min for Size 01; up to 120 L/min for Size 03.
Voltage Specs: D24 (DC 24V) / R220 (AC 220V 50/60Hz Rectified).
Design Sequence: Version 50 (standard engineering sequence).
