Yuken Type DSG Valve | DSG-01 DSG-03 | 3C2 3C4 2B2 | DC24V AC220V | NG6 NG10 Solenoid Valve
| Model Number | DSG-01-3C4-D24-N1-51T |
|---|
Product Description

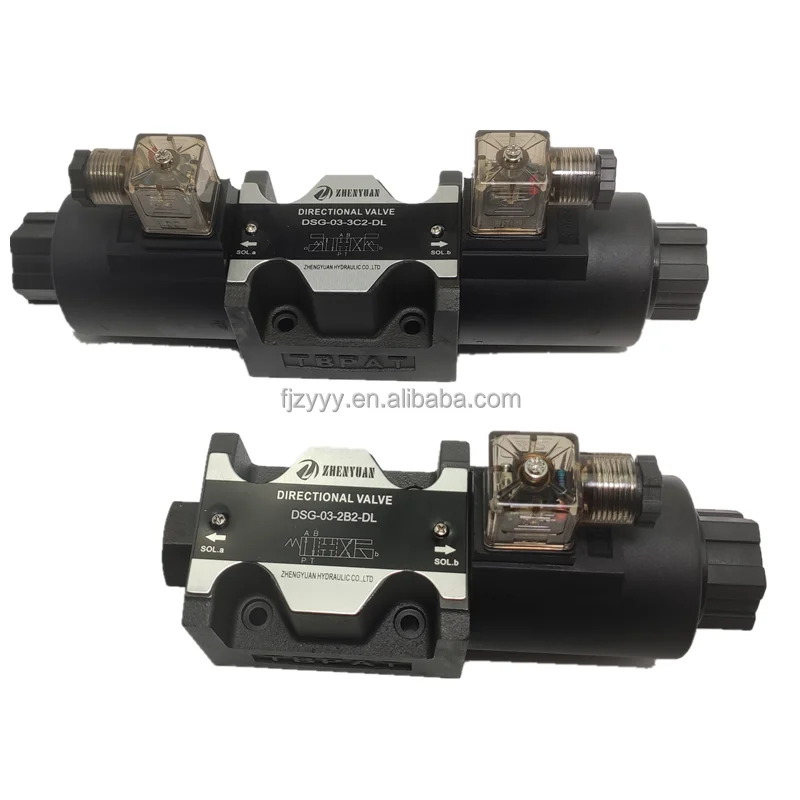

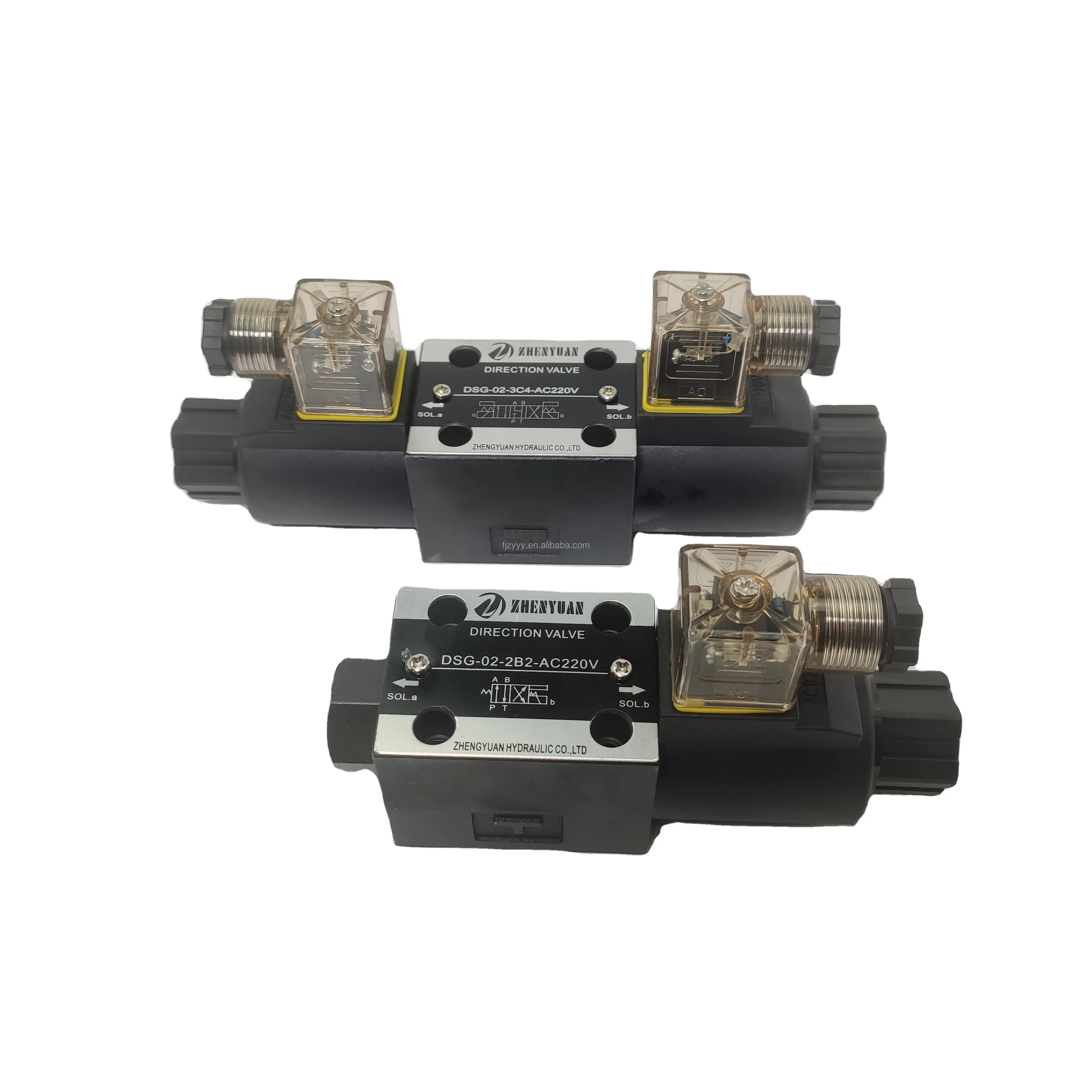

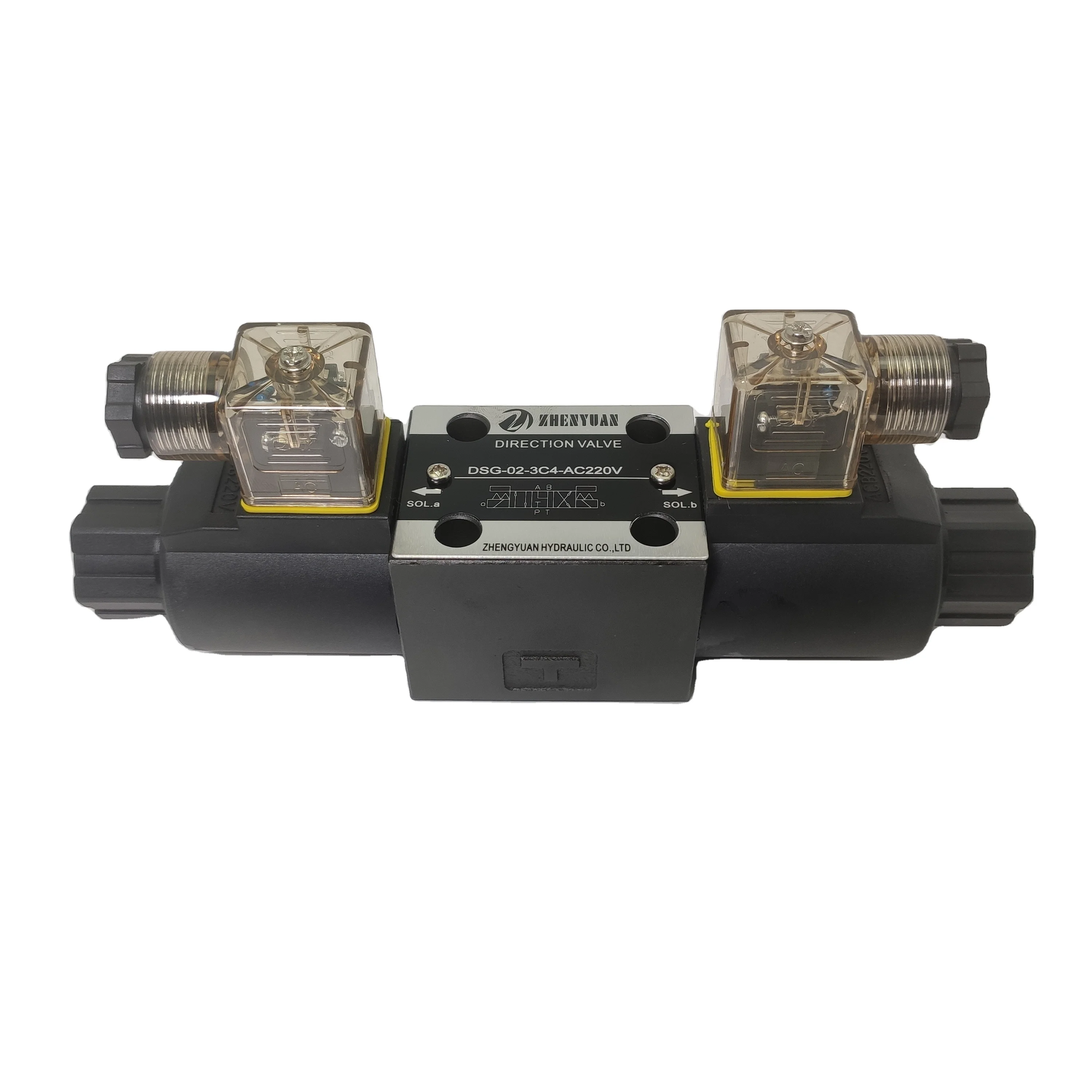

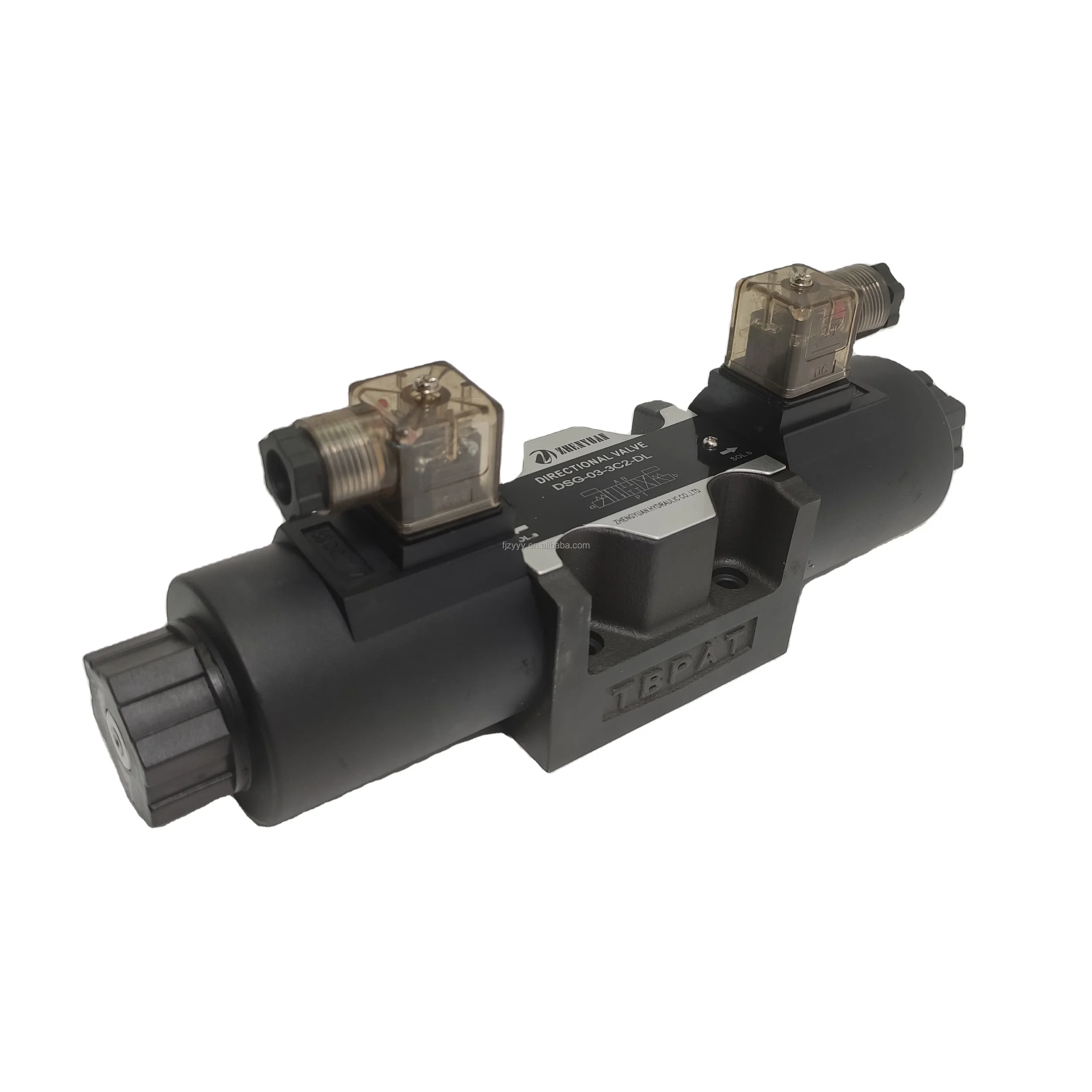

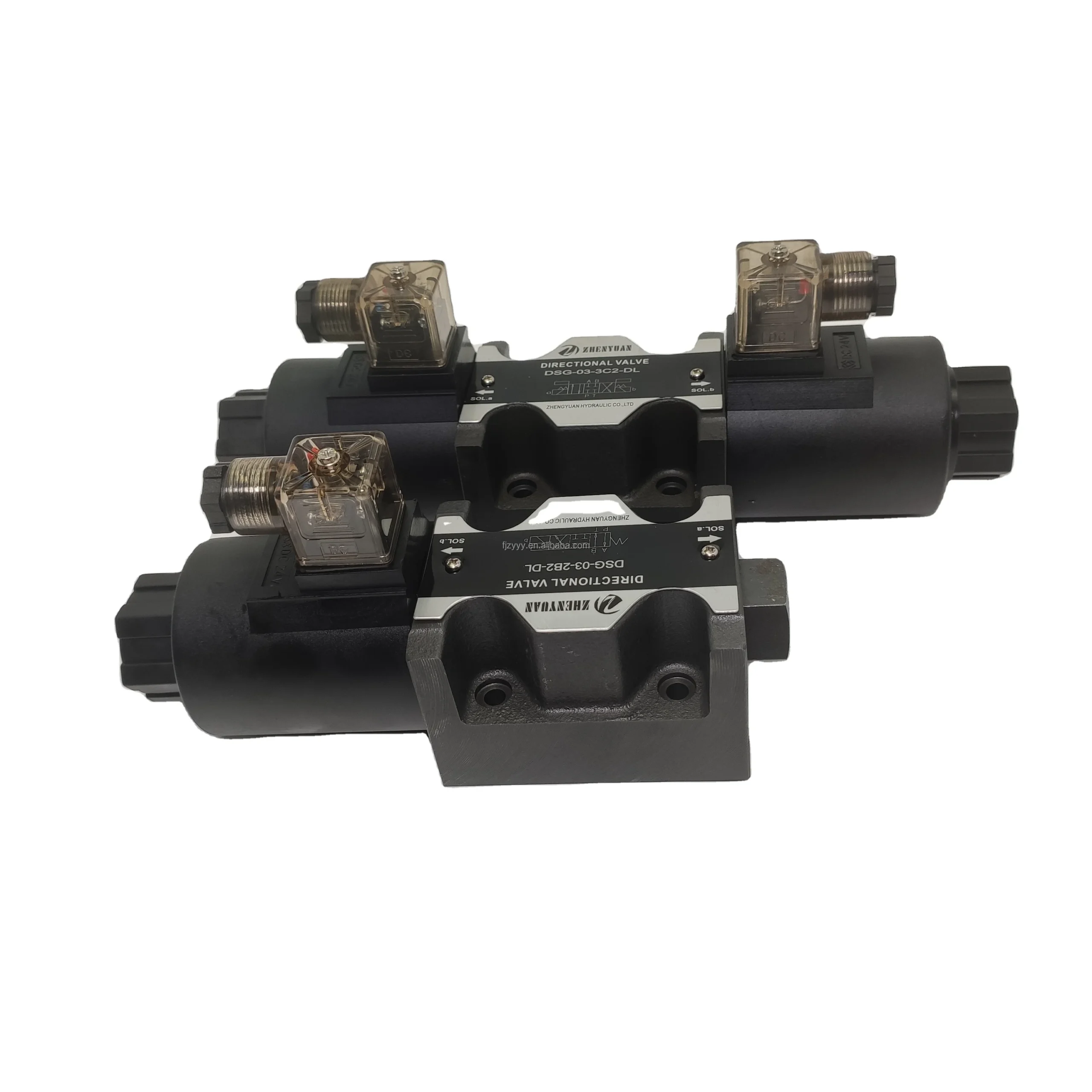

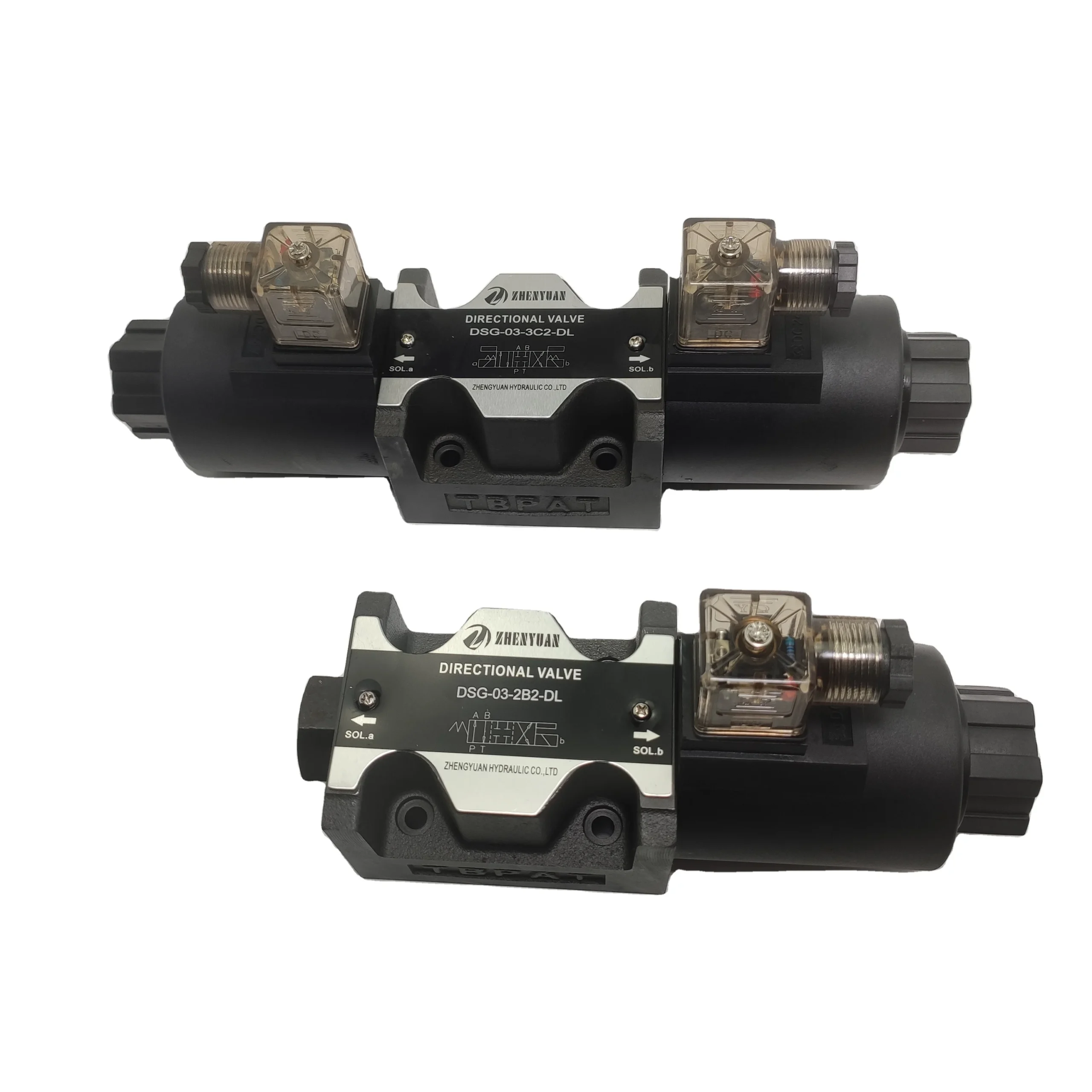

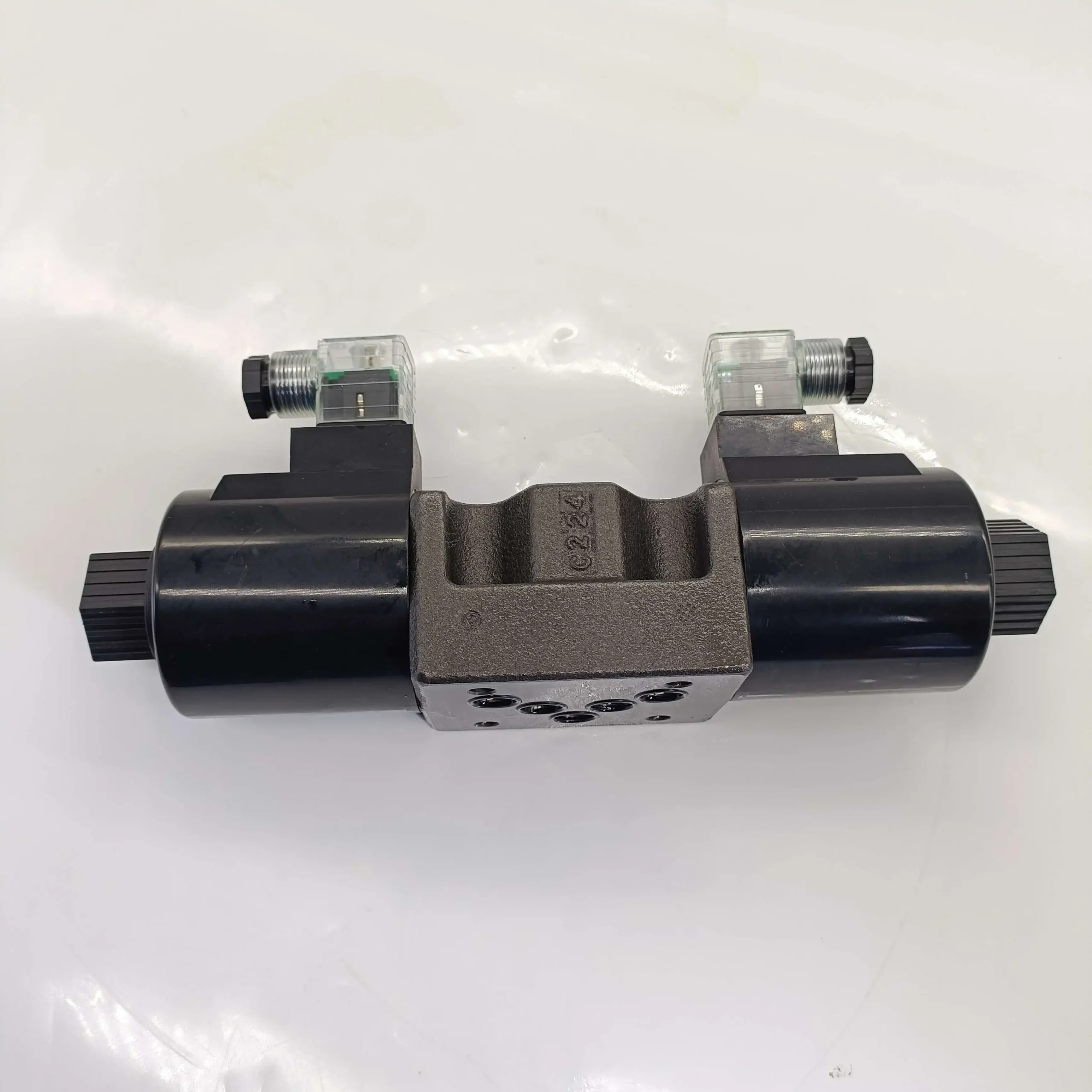

Yuken Type DSG-01 & DSG-03 Series Solenoid Directional Control Valves
Product Overview: The DSG Series is a solenoid-operated directional control valve renowned for its high-pressure, high-flow performance. Fully compliant with ISO 4401 standards, this series covers both Size 01 (NG6) and Size 03 (NG10) footprints. Its precision-engineered internal flow paths are designed to minimize pressure drop even under extreme pressure, significantly enhancing overall system efficiency.
This category features essential industrial models, including the 2-position DSG-01-2B2 and the versatile 3-position DSG-01-3C4/3C2/3C6 spool functions. Equipped with high-performance D24 (DC24V) or A220 (AC220V) wet-pin solenoids and N1-style junction boxes, these valves are the premier choice for injection molding machines, machine tools, hydraulic presses, and industrial automation power units.
Key Technical Advantages:
High Pressure & Large Flow: Rated for operating pressures up to 31.5 MPa (4,500 PSI), offering superior flow capacity within a compact frame.
Energy-Efficient Low Pressure Drop: Optimized flow dynamics reduce internal friction and pressure loss, significantly lowering heat generation in the hydraulic circuit.
Wet-Pin Solenoid Design: The armature operates fully immersed in oil, ensuring excellent lubrication and heat dissipation for quiet operation and smooth switching.
Heavy-Duty Stability (N1/51T): Featuring the 51T design sequence, the junction box provides robust protection, enabling reliable 24/7 continuous operation under high-frequency switching.
Detailed Specifications & Parameters:
Core Series: Yuken Type DSG-01 & DSG-03 Solenoid Directional Valve.
Featured Model Matrix: DSG-01-2B2-D24-N1-51T, DSG-01-3C4-D24-N1-51T, DSG-01-3C2, DSG-01-3C6.
Core Performance Specs:
Nominal Sizes: Size 01 (NG6) and Size 03 (NG10).
Max Operating Pressure: Rated up to 31.5 MPa (315 Bar).
Max Flow Capacity: Up to 63-100 L/min for DSG-01 and 120 L/min for DSG-03.
Voltage Specs: D24 (DC 24V) / A220 (AC 220V 50/60Hz).
Spool Symbols: 3C4 (P-blocked, A/B to T), 3C2 (All ports closed), 2B2 (2-pos spring offset).
