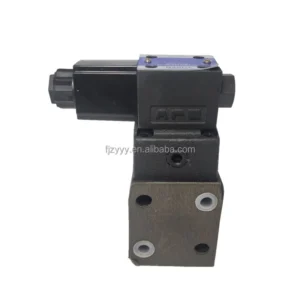

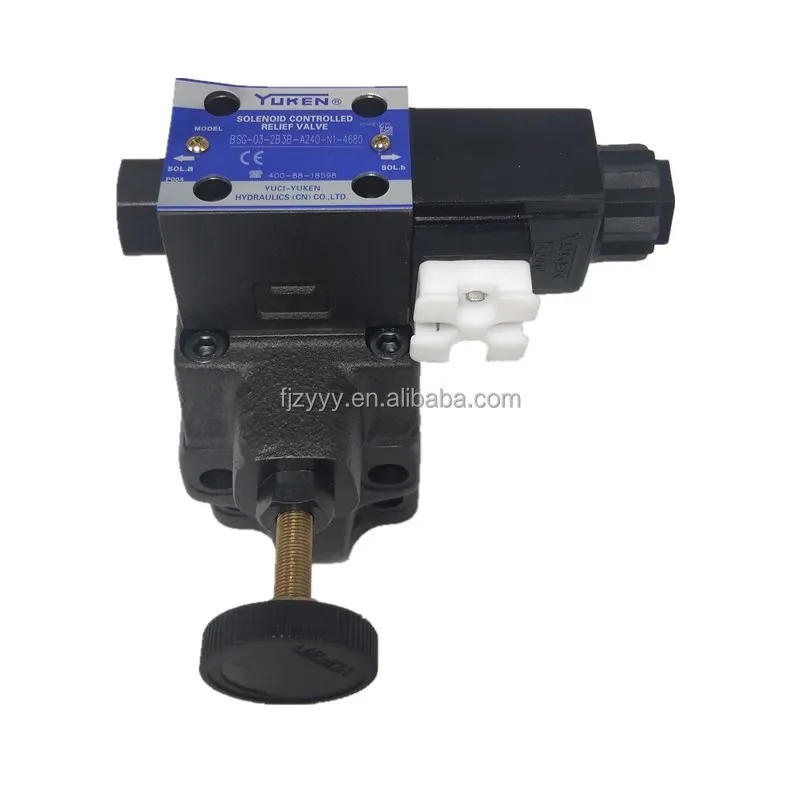

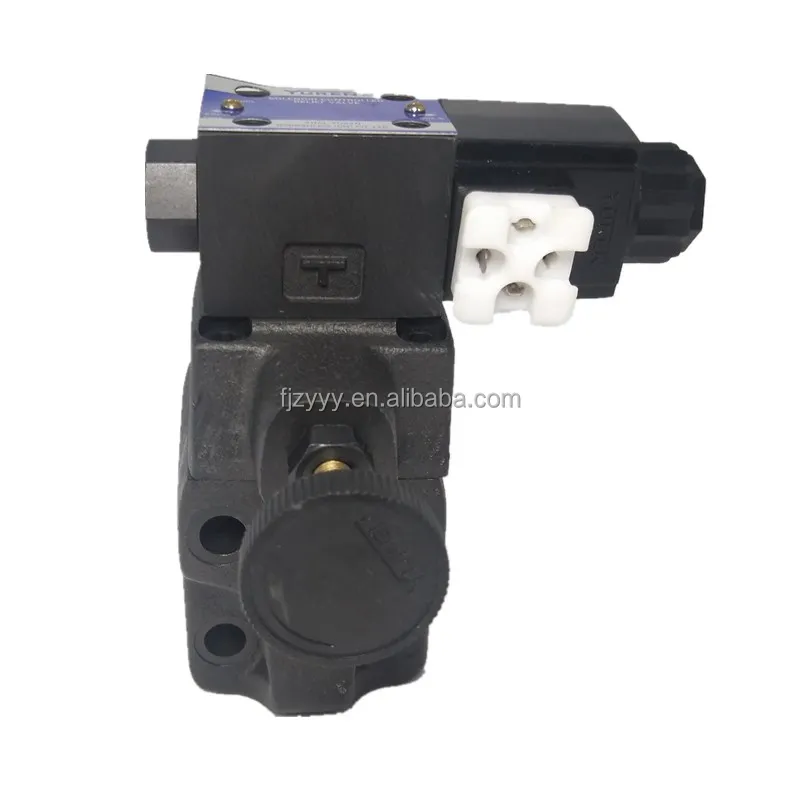

Yuken Type BSG-03 & BSG-06 Solenoid Controlled Relief Valves

Product Overview: The BSG series is a premium pilot-operated relief valve integrated with a solenoid directional valve, designed specifically for hydraulic pressure control and remote unloading. This series is renowned for its low noise characteristics, high-pressure stability, and long-life switching. By actuating the top solenoid, the system can switch seamlessly between the preset pressure limit and a no-pressure unloading state. Whether utilizing the compact BSG-03 or the high-flow BSG-06, these valves ensure smooth pressure regulation under heavy-duty cycles, making them indispensable for industrial hydraulic power units.

Featured models include: BSG-03-2B3B-A100-60, BSG-06-2B3B-A220-47T, BSG-06-02-D2-30, and the enhanced S-BSG-06-2B3B-D24-N1-L51.

Key Technical Advantages:

• Low Noise Pilot Structure: Optimized damping orifice design significantly reduces fluid noise and mechanical vibration during high-pressure relief.

• High-Response Solenoid Unloading: Equipped with high-performance wet-pin solenoids for rapid electrical response, enabling instant system unloading to protect motors and save energy.

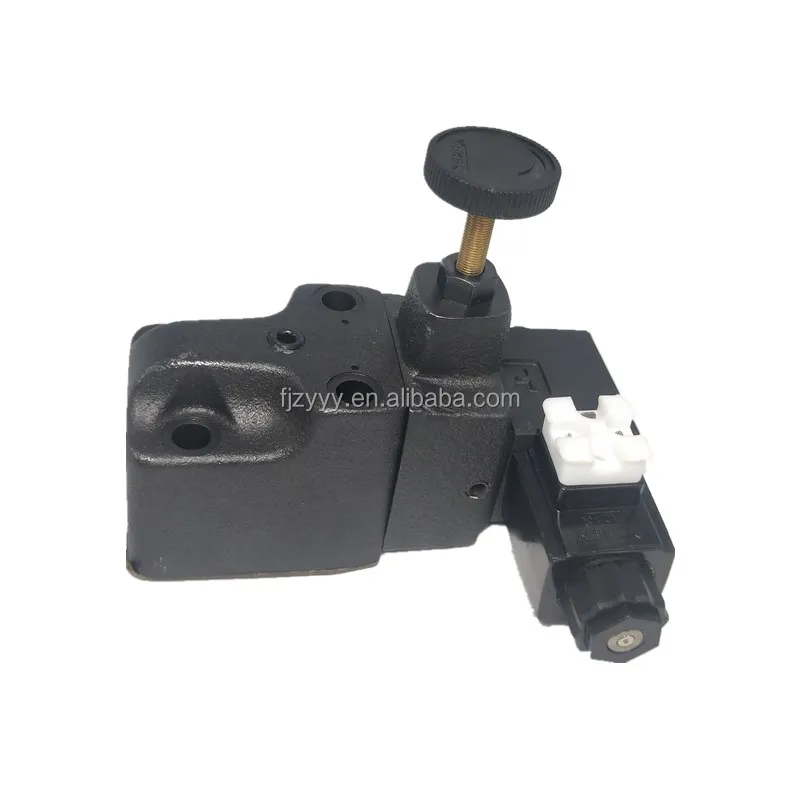

• Wide Range Pressure Adjustment: Smooth knob-style adjustment with secure locking ensures long-term pressure consistency.

• Versatile Electrical Options: Supports A100 (AC 100V), A220 (AC 220V), and D24 (DC 24V) ratings, with various interfaces like standard terminal boxes (N1).

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • BSG-03-2B3B-A100-60: Size 10 (NG10), 2-pos unloading function, AC 100V supply, Design 60.

  • BSG-06-2B3B-A220-47T: Size 20 (NG25), high-flow capacity, AC 220V supply.

  • BSG-06-02-D2-30: Specific design series optimized for industrial pressure ranges.

  • S-BSG-06-2B3B-D24-N1-L51: Low-noise enhanced (S-type), DC 24V supply, with Terminal Box N1.

• Core Technical Specs:

  • Nominal Size: 03 (Size 10) / 06 (Size 20/25).

  • Max Operating Pressure: 25 MPa (250 bar).

  • Max Flow Rate: BSG-03 (up to 100 L/min) / BSG-06 (up to 200-400 L/min).

  • Enclosure Rating: IP65.
