Yuken AR Series Pump | AR16-FR01C, AR22-FR01C, AR16-FR07C | 16MPa Variable Piston Pump

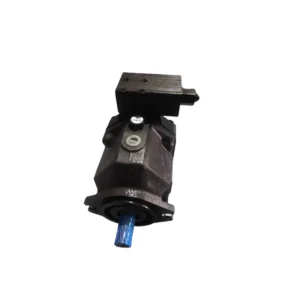

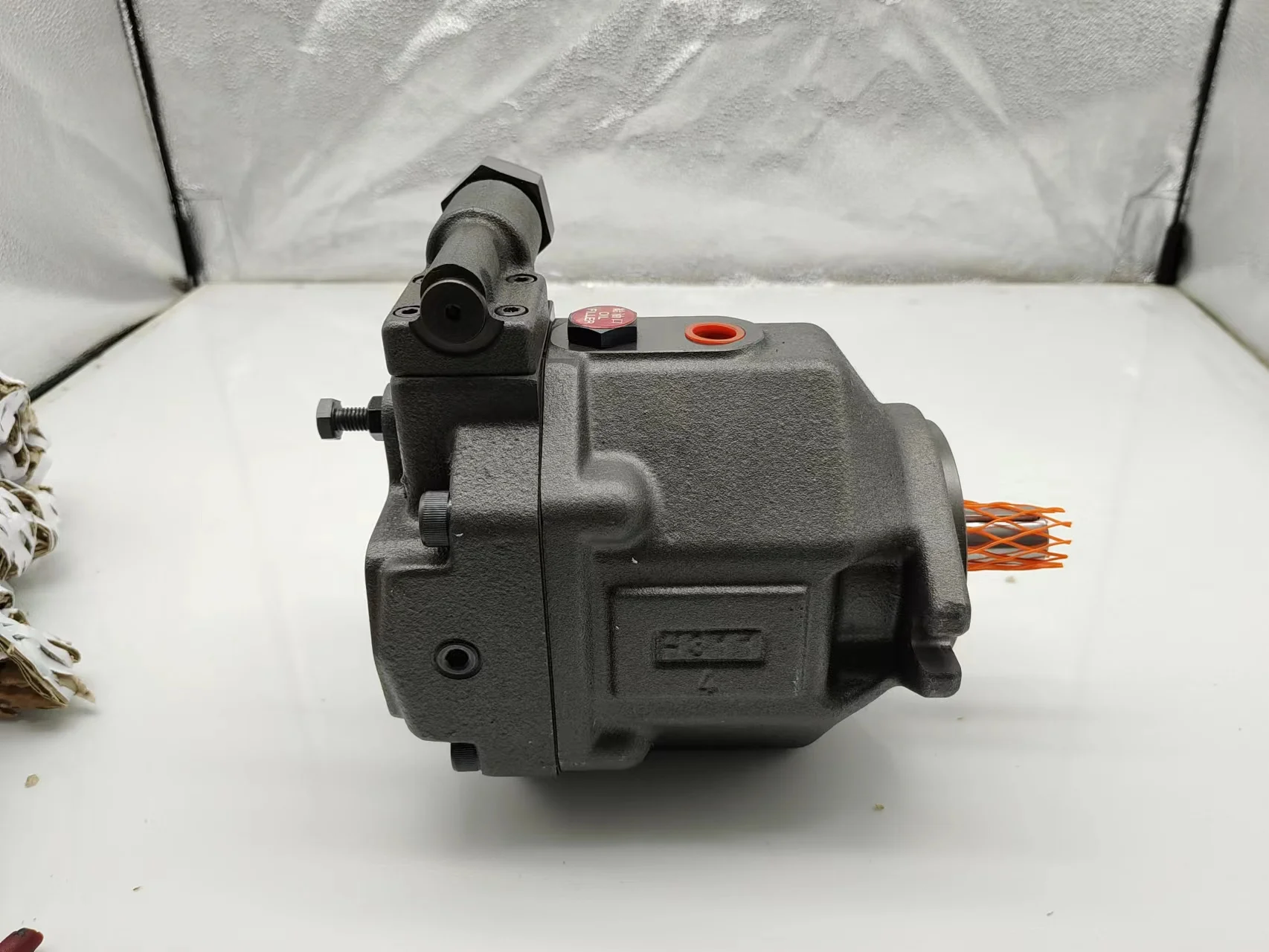

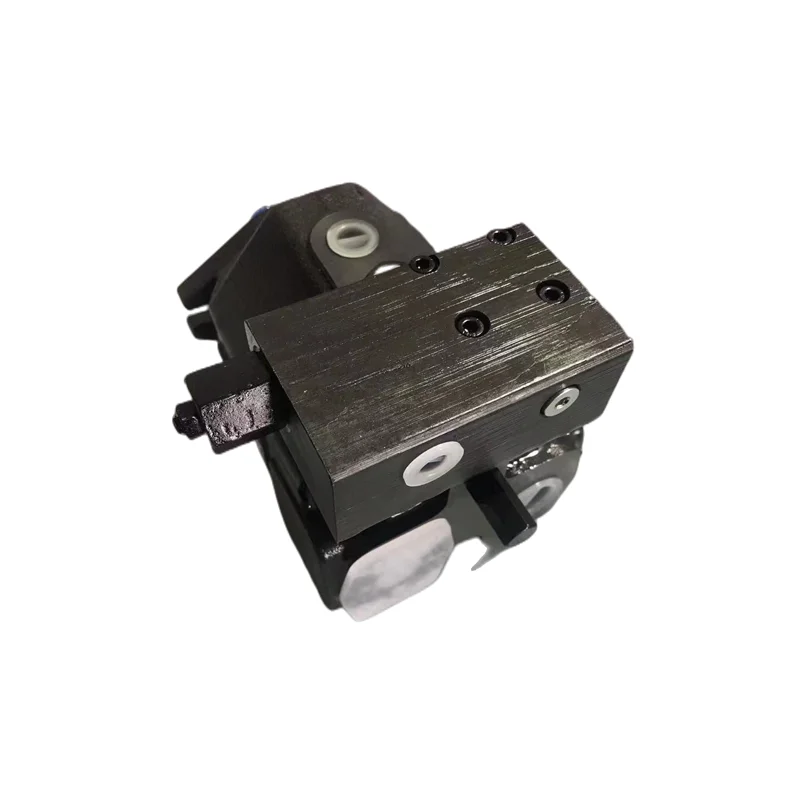

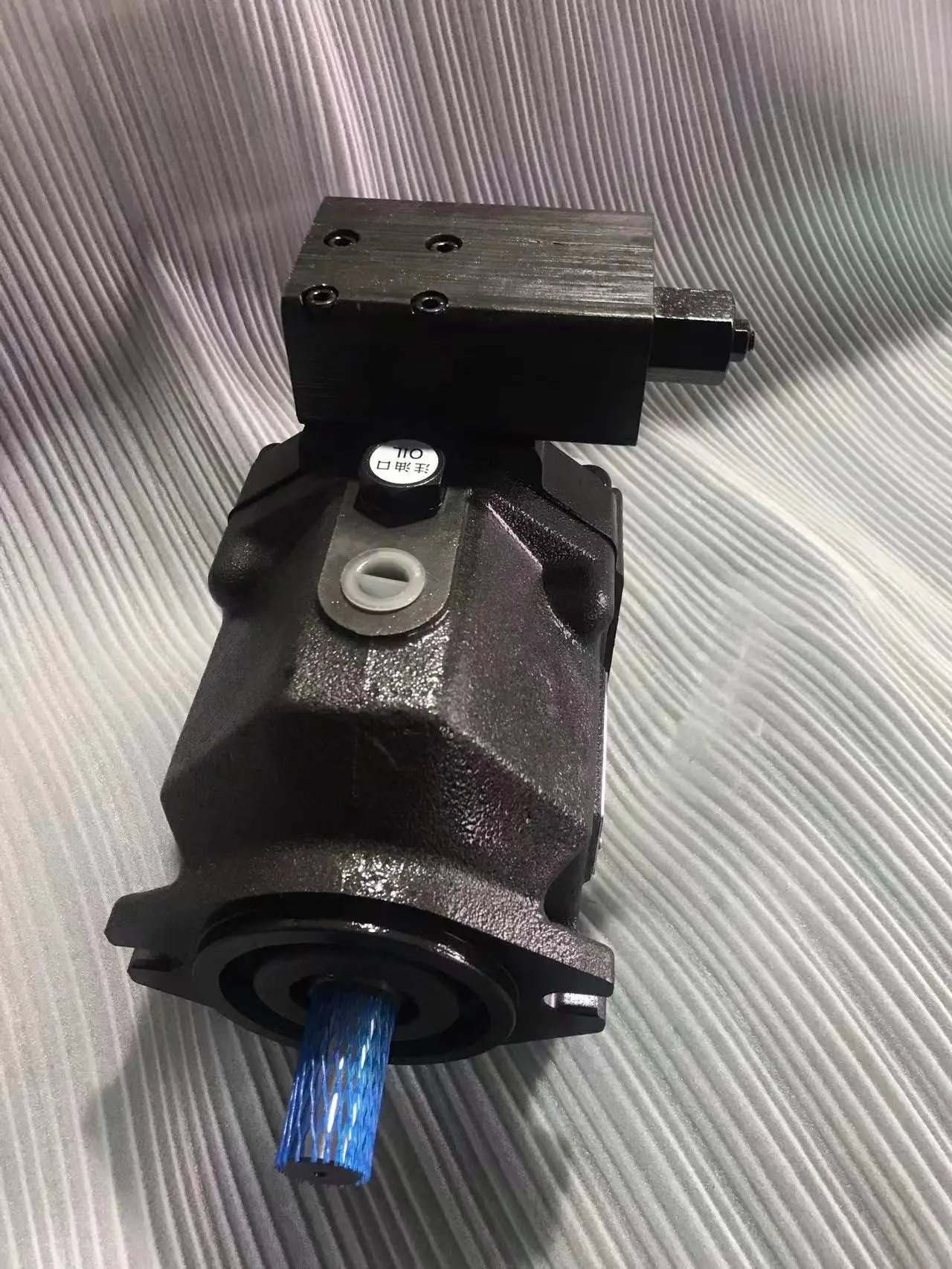

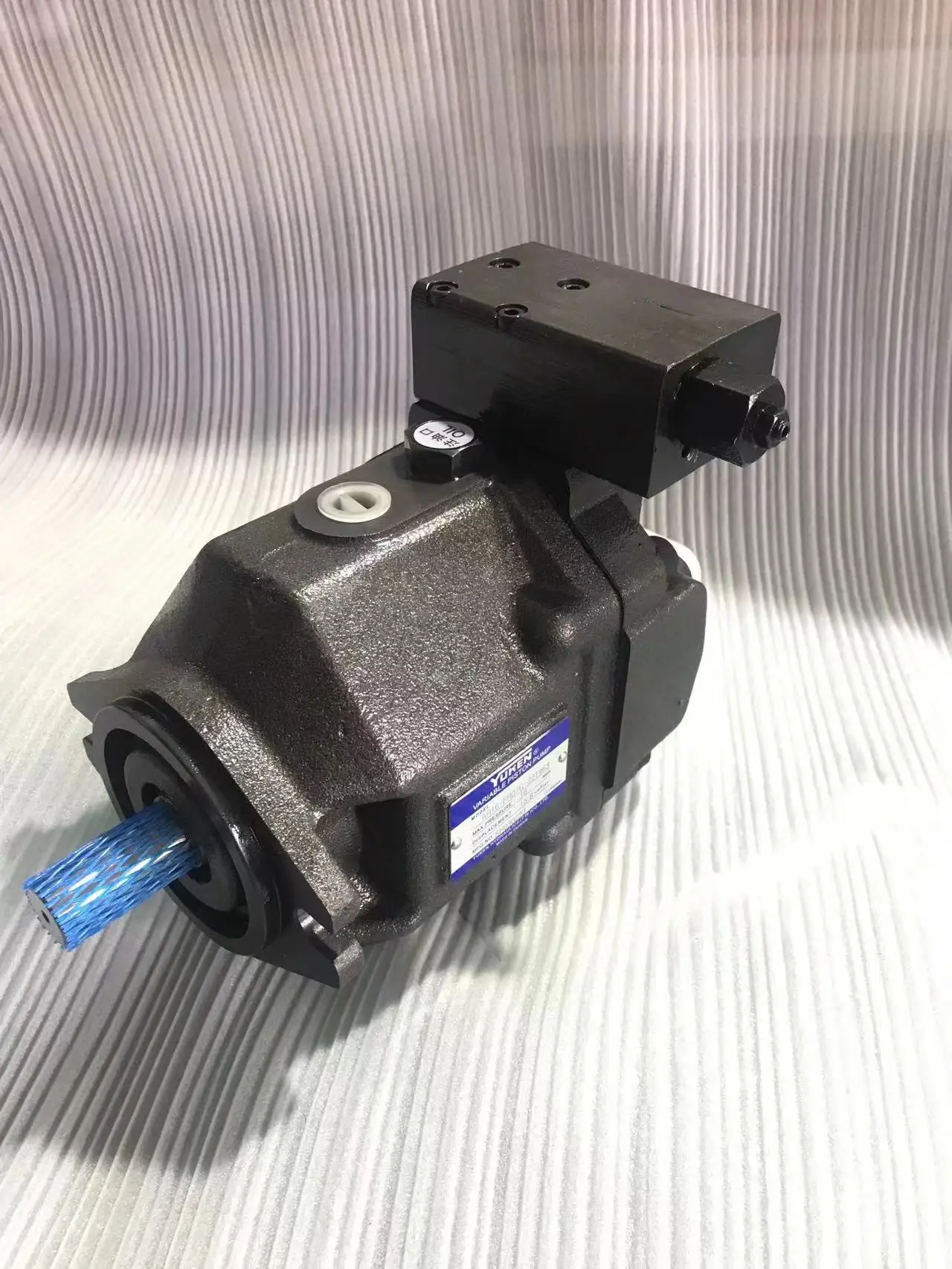

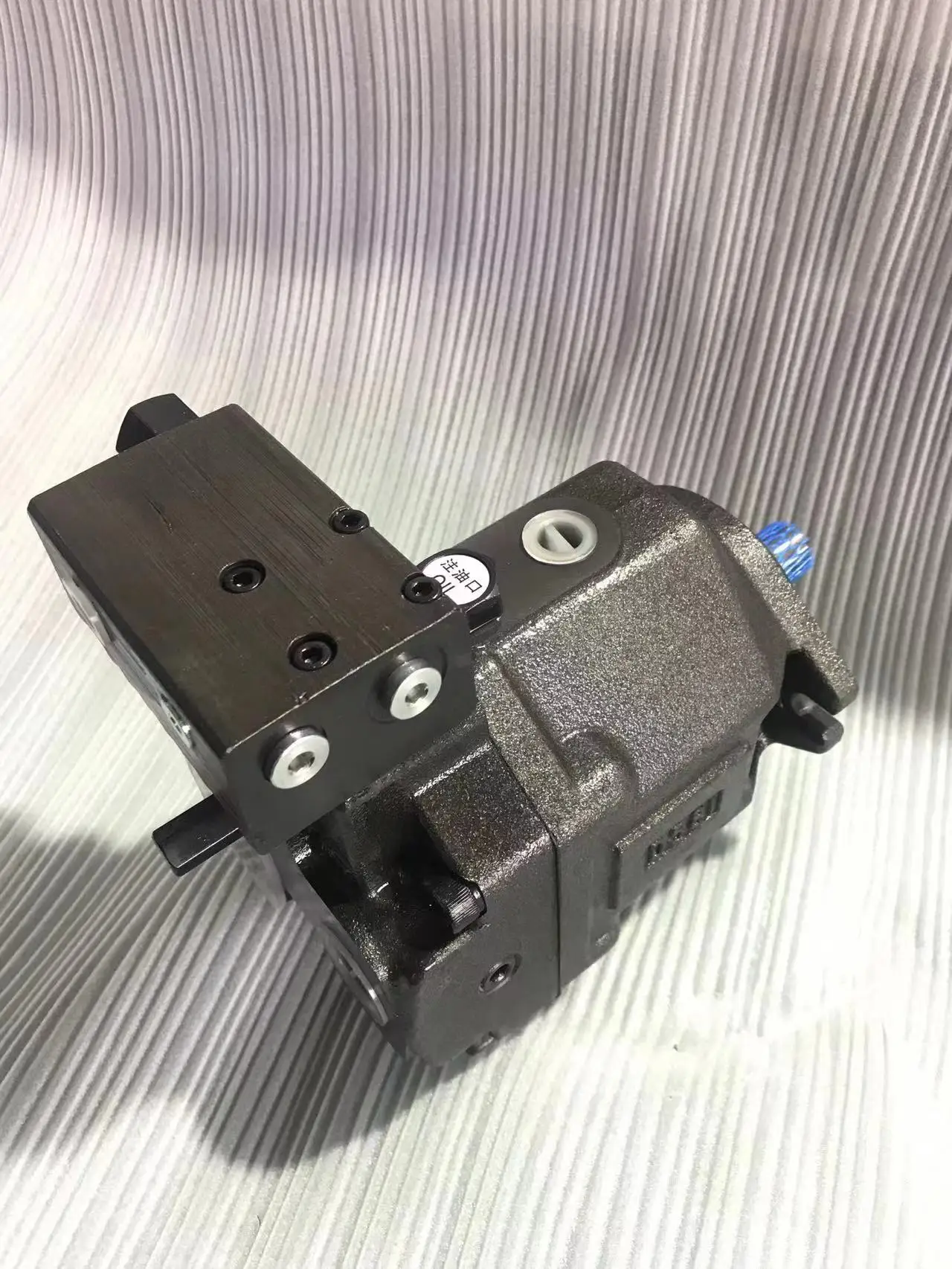

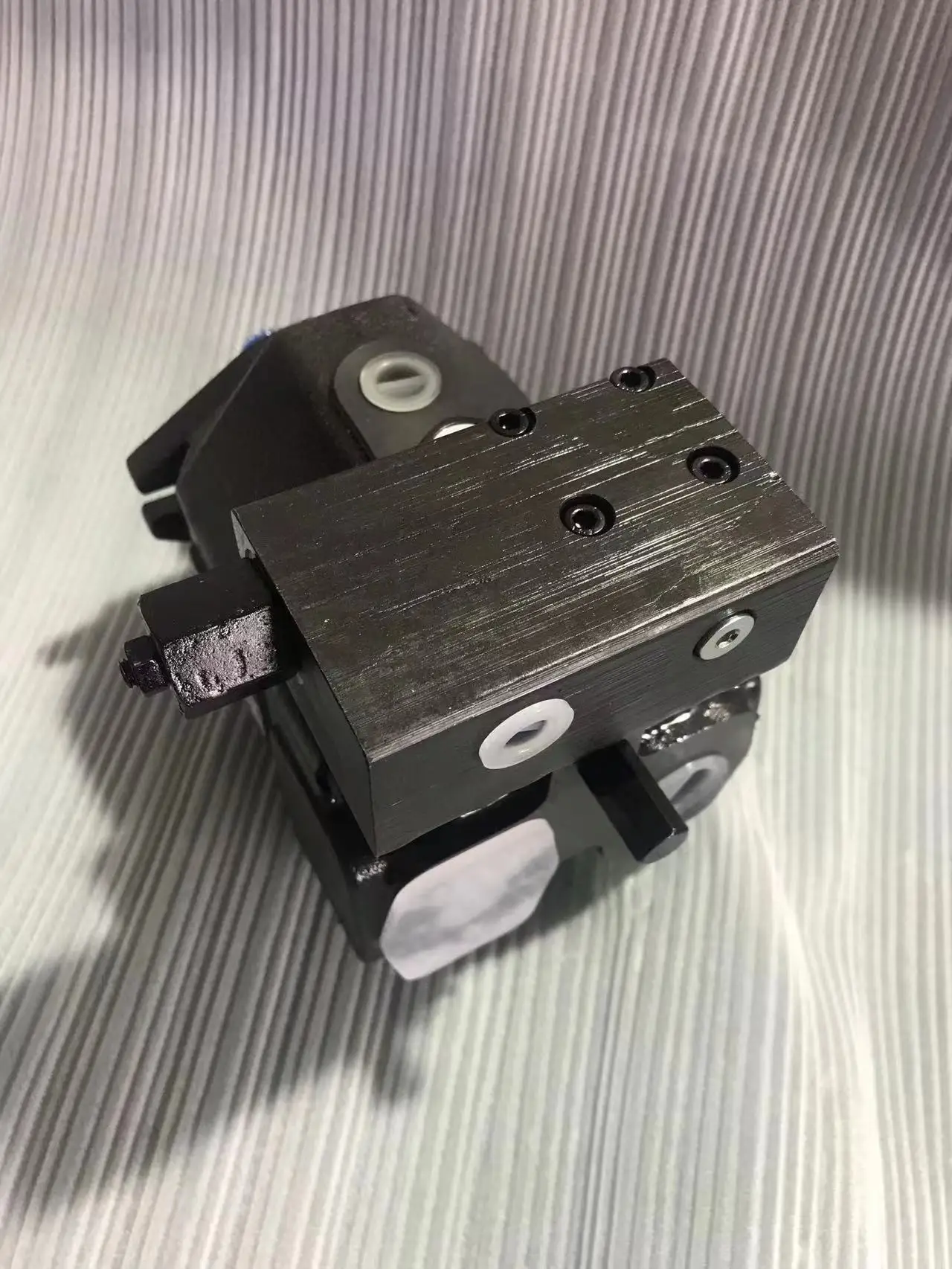

Yuken AR Series Lightweight Axial Piston Variable Pump

Product Overview: The Yuken AR series is a high-performance variable piston pump range specifically developed for the miniaturization and lightweight design of hydraulic machinery. By utilizing aluminum alloy die-casting technology, the AR series achieves a significant weight reduction compared to the traditional A series. Available in 15.8cc (AR16) and 22.2cc (AR22) displacements with a rated pressure of 16 MPa, the AR series incorporates advanced pressure compensator controls (such as 01C and 07C). This ensures precise on-demand oil supply, drastically slashing energy consumption while maintaining ultra-low noise levels.

Key Technical Advantages:

• Superior Lightweight Architecture: The aluminum alloy body reduces the machine’s overall load, facilitating easy installation in space-constrained small machinery or mobile units.

• Low Noise Performance: Inheriting the silent DNA of Yuken’s A series, these pumps ensure quiet and smooth operation across the entire pressure range.

• Precision Control Modes:

  • FR01 Pressure Compensation: Automatically modulates displacement to maintain preset system pressure levels.

  • FR07 Load Sensing/Constant Flow: Models like the AR16-FR07C are ideal for applications requiring precise flow regulation.

• High Responsiveness & Stability: Optimized swashplate balancing mechanisms ensure peak volumetric efficiency even under frequent pressure fluctuations in industrial environments.

Detailed Models & Parameters:

• Core Series: Yuken AR Series.

• Representative Models: AR16-FR01C-22, AR22-FR01C-22, AR16-FR07C-22T463, AR22-FR01B-22.

• Displacements: 15.8 cm³/rev (AR16), 22.2 cm³/rev (AR22).

• Pressure Adjustment Range:

  • B: 1.2 – 7.0 MPa

  • C: 2.0 – 16.0 MPa

• Max Operating Pressure: 16 MPa (2320 PSI).

• Mounting/Rotation: F (Flange Mount) / R (Clockwise).
