YB-E Series Vane Pump for Injection Machine | YB-E63, YB-E100, YB-E200 | 16MPa
| Model Number | YB-E |
|---|
Product Description

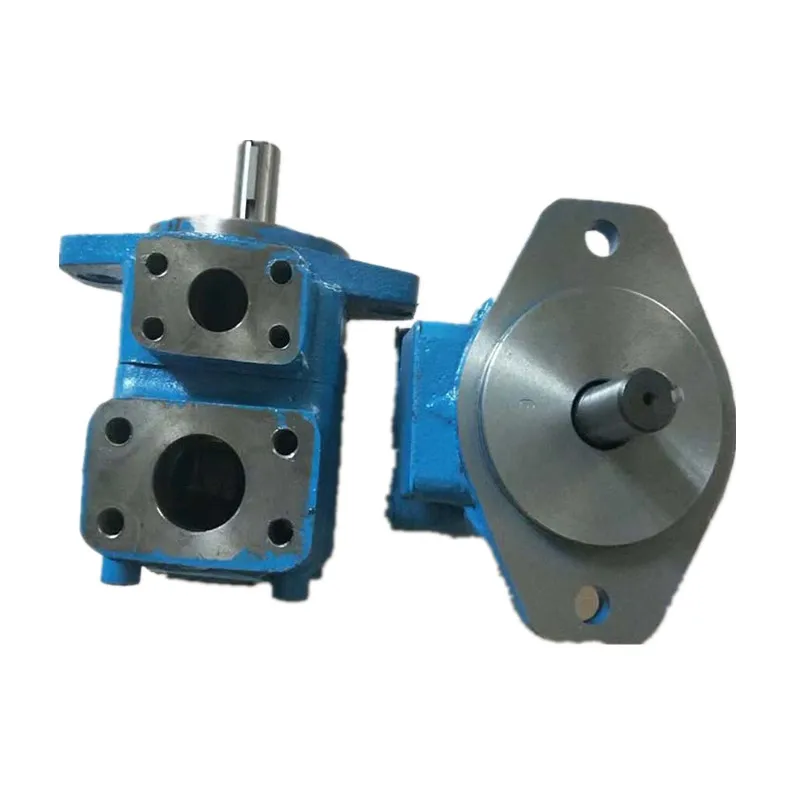

YB-E Series High-Performance Vane Pumps for Injection Molding Machines
Product Overview: The YB-E Series fixed displacement vane pump is a globally recognized, “heavy-duty” power source for plastics machinery and heavy industrial hydraulic systems. Specifically optimized for Injection Molding Machines, this series provides exceptionally stable flow output under continuous high-pressure environments. This selection includes the primary models: YB-E63/32, YB-E63/25, YB-E63/8, YB-E63/12, YB-E100/16, and the high-capacity YB-E200/125. Featuring a dual-vane structure and high-strength cast iron housing, the YB-E series excels in shock resistance and service longevity at pressures up to 16.0 MPa (160 Bar).
Key Technical Advantages:
Optimized for Injection Cycles: Specifically engineered for the mold-clamping and injection phases of plastic machinery, handling frequent pressure spikes without performance degradation.
High Reliability Structure: The dual-vane design effectively balances radial forces on the rotor, reducing bearing wear and ensuring stability during 24/7 continuous operation.
Low Maintenance Cost: Simple internal architecture with highly interchangeable components allows for rapid on-site disassembly and core part replacement.
Superior Cost-Efficiency: Provides high-efficiency output while significantly lowering initial procurement and long-term maintenance costs compared to variable pumps.
Target Applications: Plastic injection machines, hydraulic balers, brick presses, and general-purpose Hydraulic Power Units (HPU).
Detailed Models & Parameters:
Core Series: YB-E Series (Fixed Displacement Vane Pump).
Model Keywords: YB-E63/32, YB-E63/25, YB-E63/8, YB-E63/12, YB-E100/16, YB-E200/125.
Displacement Ratings (mL/r): Including frame sizes 8, 12, 16, 25, 32, 125, 160, and 200.
Pressure Ratings: Rated continuous pressure of 16.0 MPa (160 Bar).
Rated Speed: Supports operation up to 1500 RPM.
Mounting: Standard flange mounting (compliant with international hydraulic pump standards).
