VPVC Series Variable Volume Vane Pump | VPVC-F12, F20, F30, F40 | Low Noise
| Model Number | VPVC-F12-A3-10 |
|---|
Product Description

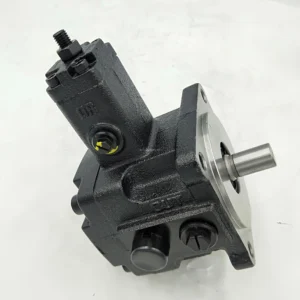

VPVC Series High-Performance Variable Volume Hydraulic Vane Pumps
Product Overview: The VPVC Series variable volume vane pump is the definitive solution for high-efficiency, energy-saving hydraulic systems. Engineered with a built-in Pressure Compensated mechanism, it instantaneously adjusts flow output based on real-time load demand. This featured range includes the compact VPVC-F12-A3-10, mid-range VPVC-F20-A4-02A and VPVC-F30-A4-02A, and the high-flow VPVC-F40-A4-03A. Utilizing superior cutoff characteristics, the pump automatically minimizes displacement once the preset pressure is reached, significantly lowering electrical costs and inhibiting oil heat—making it a core power source for machine reliability.
Key Technical Advantages:
Automatic Energy Saving: Features a pressure compensation mechanism. When system pressure reaches the preset limit (e.g., 70 Bar), the pump automatically minimizes flow, eliminating wasted overflow and reducing operational costs.
Minimal Temperature Rise: By reducing excess flow during standby, it effectively controls system heat buildup, extending seal life and reducing the need for cooling equipment.
Ultimate Silent Operation: Precision-ground vanes and eccentric rings effectively smooth out pressure pulsations, ensuring exceptionally low decibel levels even under full-load cycles.
Rapid Dynamic Response: Provides millisecond-level flow switching, ensuring smooth actuator movement and precise positioning for automated machinery.
Target Applications: CNC cutting machines, specialized grinders, automated presses, precision woodworking machinery, injection molding auxiliary circuits, and energy-saving industrial Hydraulic Power Units (HPU).
Detailed Models & Parameters:
Core Series: VPVC Series Variable Volume Vane Pump.
Model Keywords: VPVC-F12-A3-10, VPVC-F20-A4-02A, VPVC-F30-A4-02A, VPVC-F40-A4-03A.
Flow Ratings (L/min @ 1800rpm): Complete spectrum including frame sizes 12, 20, 30, and 40.
Pressure Regulation Range: A3 (3.0-5.0 MPa / 30-50 Bar), A4 (5.0-7.0 MPa / 50-70 Bar).
Technical Specs: F (Flange Mounting identifier); 02A / 03A / 10 (Design and connection sequence identifiers).
Max Operating Pressure: Rated continuous working pressure up to 7.0 MPa (70 Bar).
