Product Description

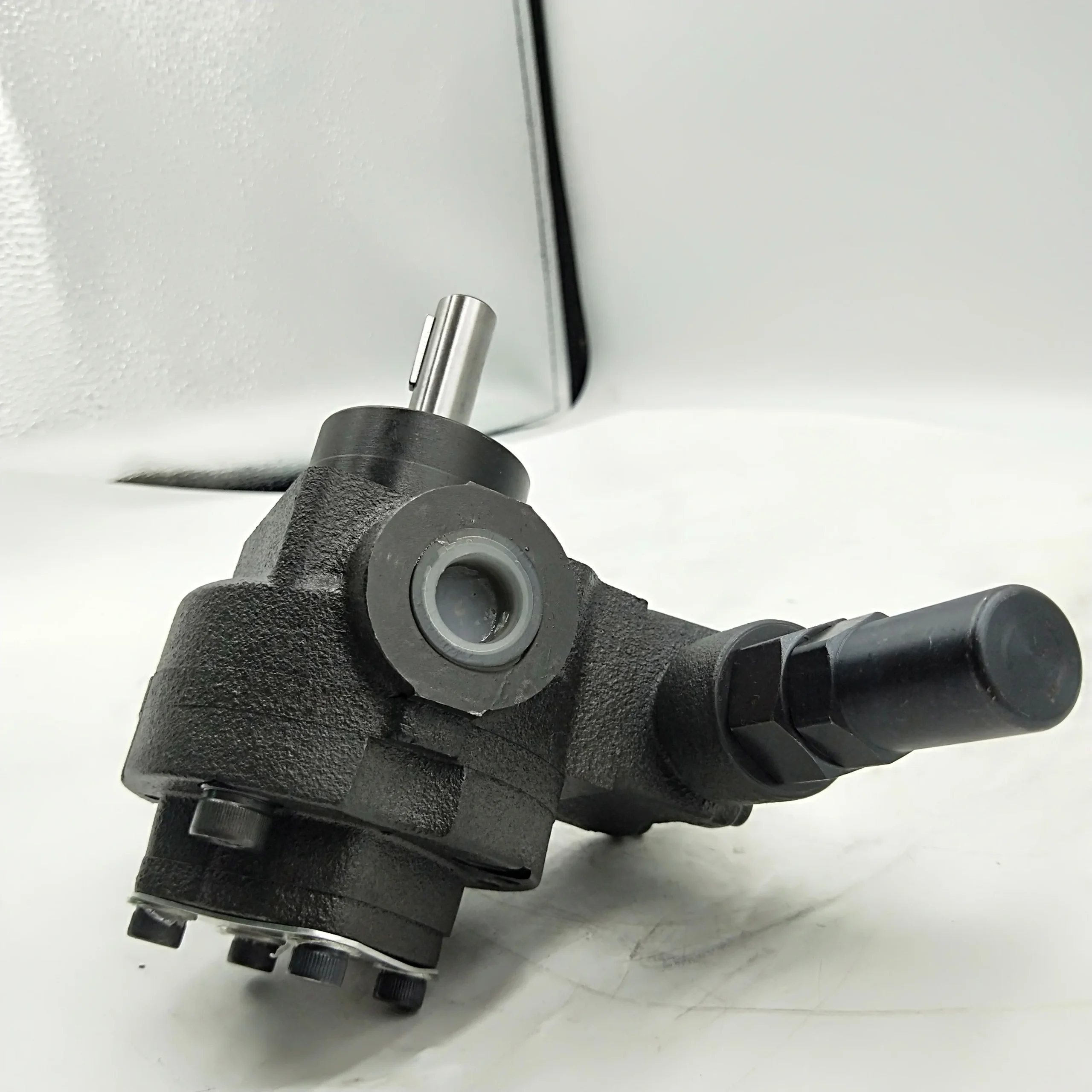

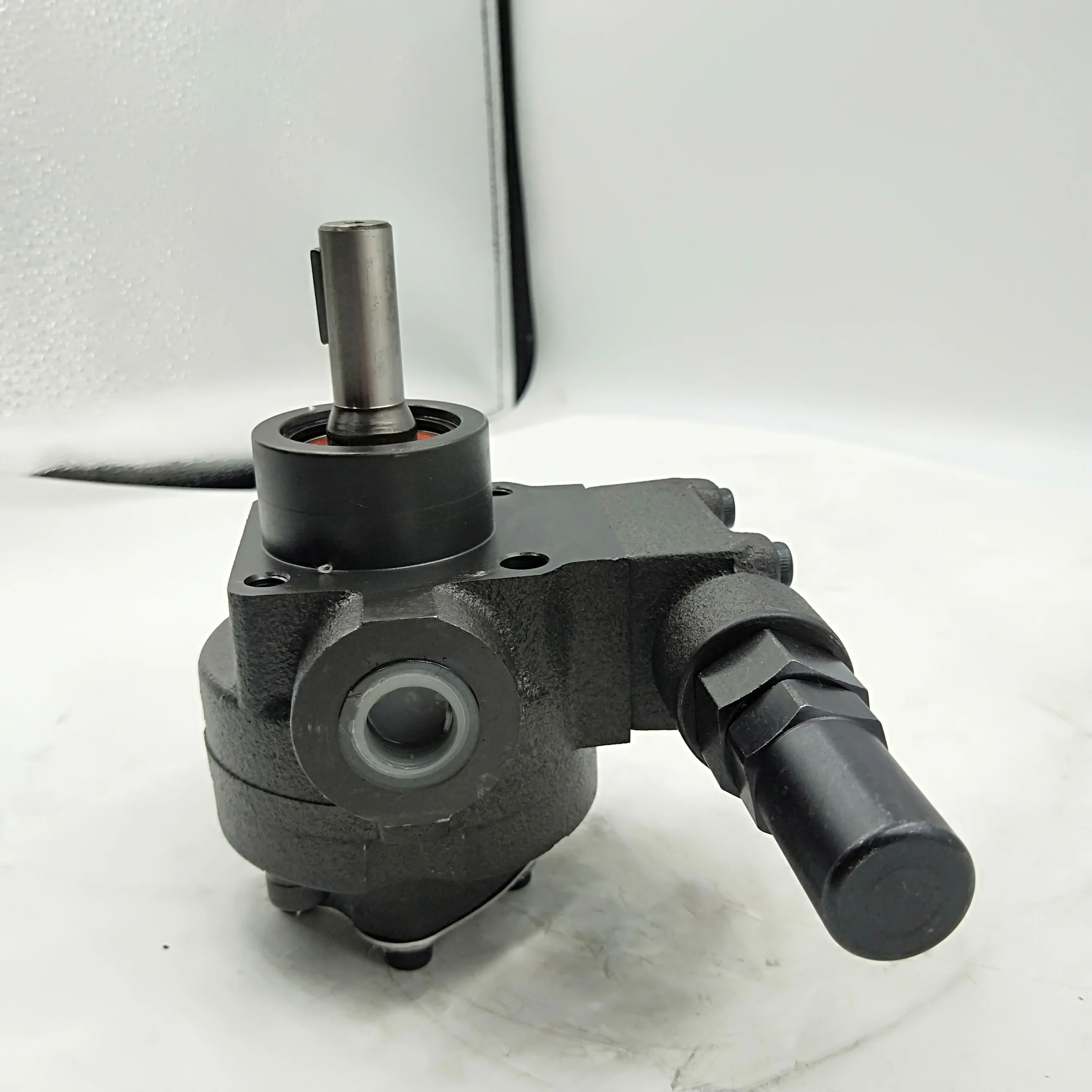

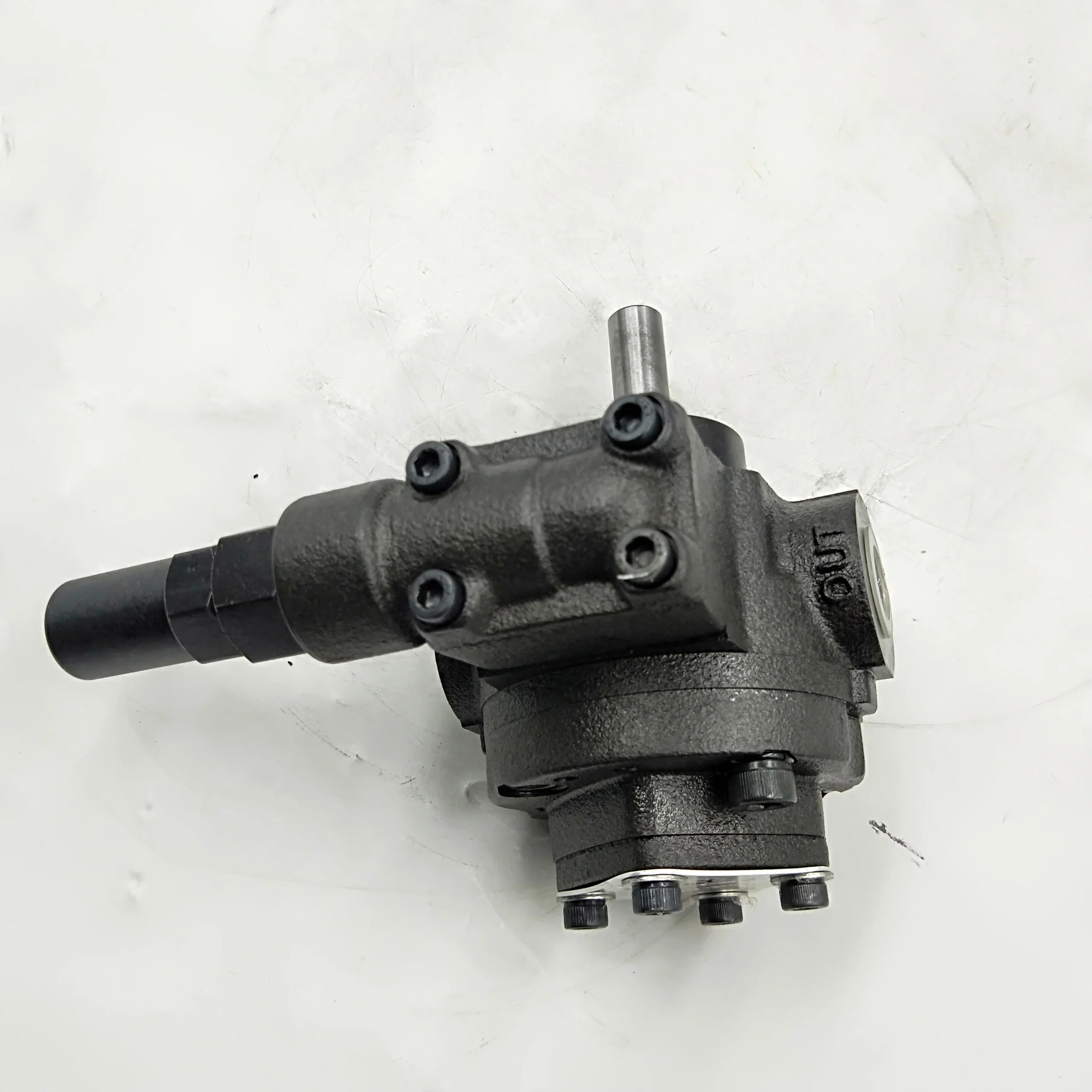

VOP Series High-Performance Variable Displacement Vane Pumps
Product Overview: The VOP Series variable displacement vane pumps are the premier solution for modern precision hydraulic systems seeking “Low Noise, Low Temperature Rise, and High Efficiency.” Featuring a high-sensitivity pressure compensation mechanism, these pumps automatically adjust output displacement based on load demand. This range highlights the complete specification lineup, covering compact models VOP-203, VOP-204, VOP-206, VOP-208, as well as medium-displacement models VOP-210, VOP-212, VOP-216, and VOP-220. Utilizing unique silencing grooves and side-plate pressure compensation technology, the VOP series automatically reduces displacement to a minimum during pressure deadhead states, drastically cutting power loss.
Key Technical Advantages:
Intelligent Energy Saving & Low Heat: The variable design ensures the pump only delivers the required flow. During pressure-holding, the pump de-strokes to reduce internal leakage and heat, effectively controlling hydraulic oil temperature.
Ultimate Silent Operation: Precision-ground vanes and cam rings combined with a reinforced housing design ensure decibel levels remain far below industrial standards even under full load.
Linear Pressure Regulation: Equipped with a sensitive regulator for precise pressure settings within the rated range, ensuring smooth and accurate actuator movements.

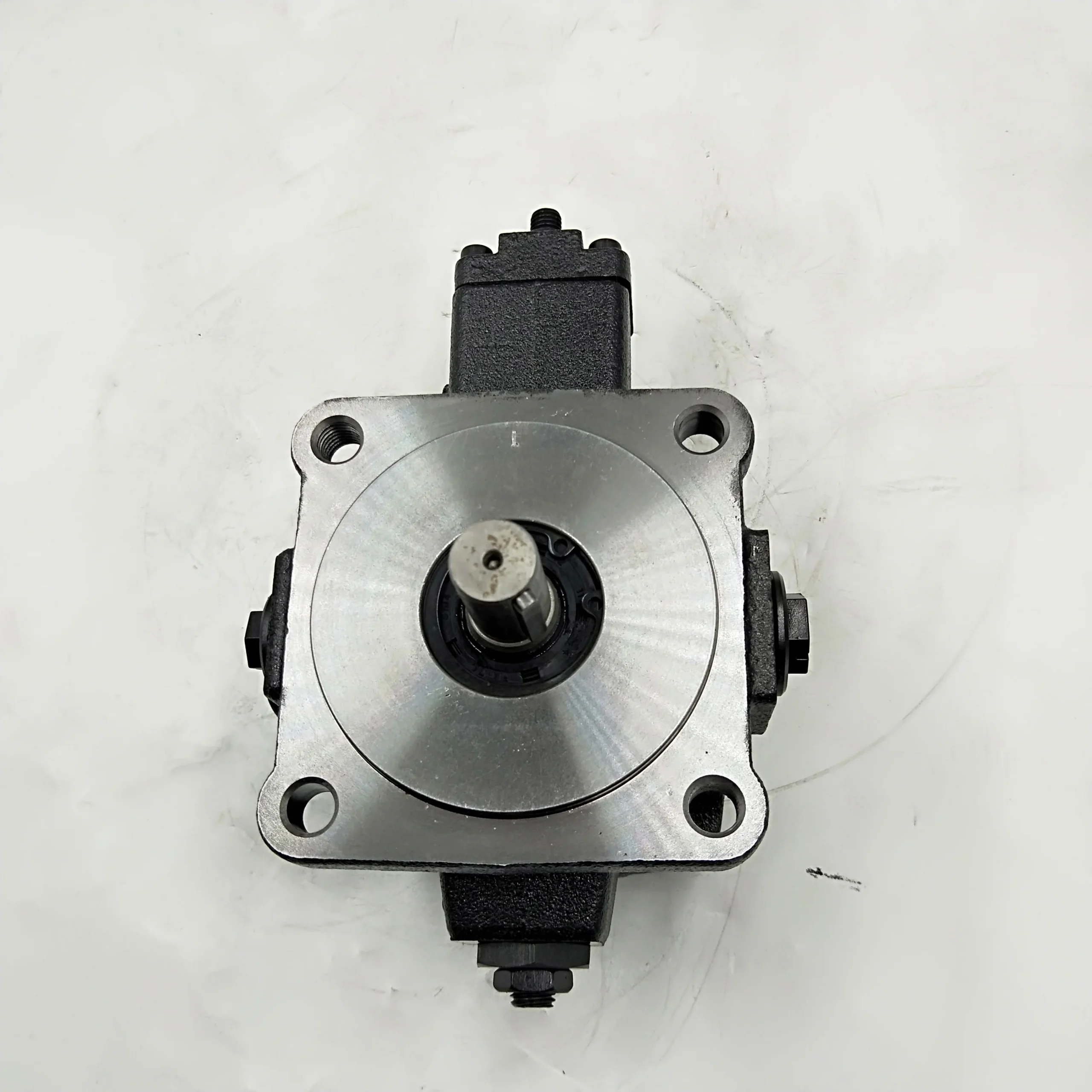

Compact Flange Mounting (F-RV): Features standard SAE or universal industrial flange interfaces. The compact structure is easily integrated into various CNC machine hydraulic tanks.
Target Applications: CNC lathe clamping systems, precision grinding machines, automated machining units, shoe-making machinery, and energy-saving hydraulic power units.

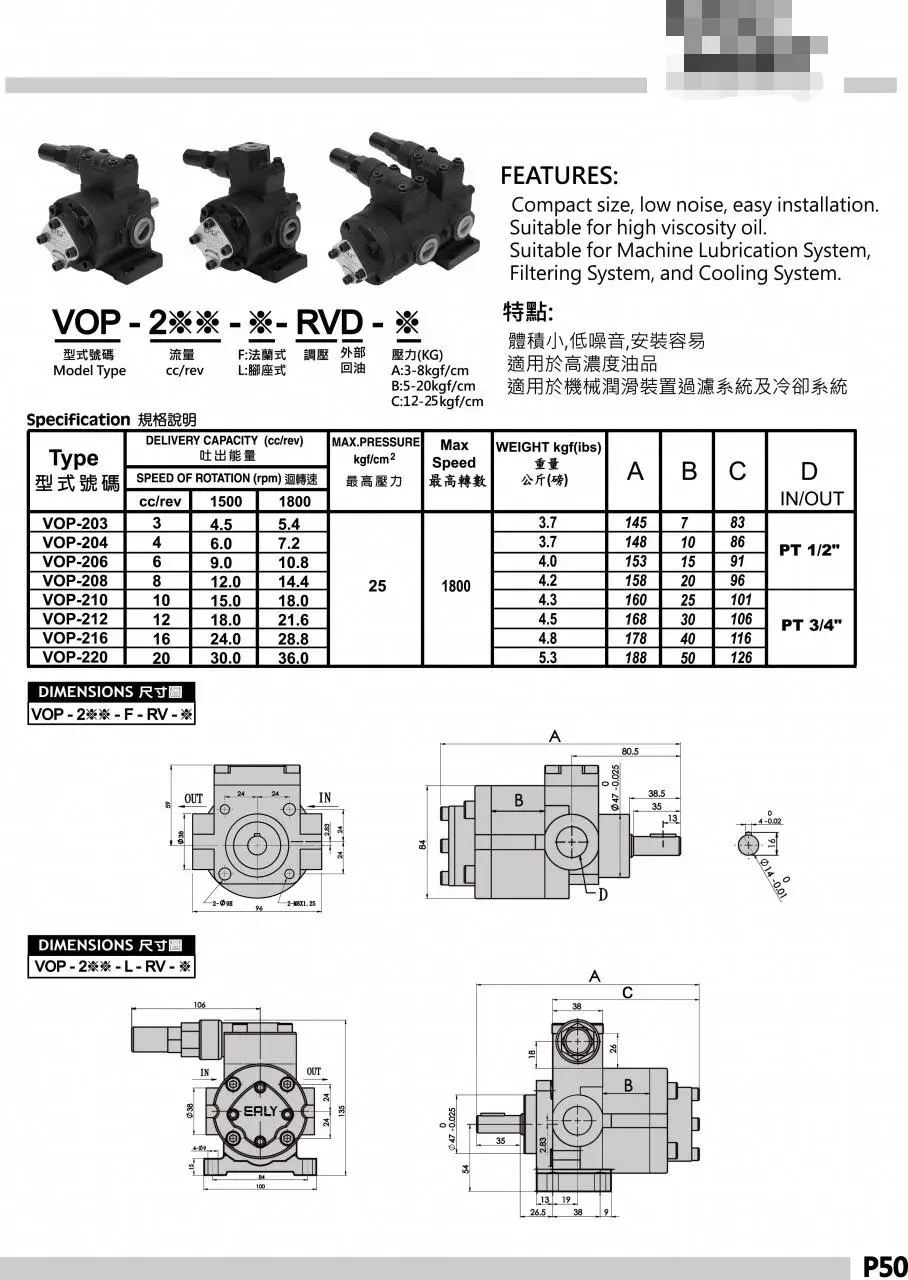

Detailed Models & Parameters:
Core Series: VOP Series Variable Displacement Vane Pump.

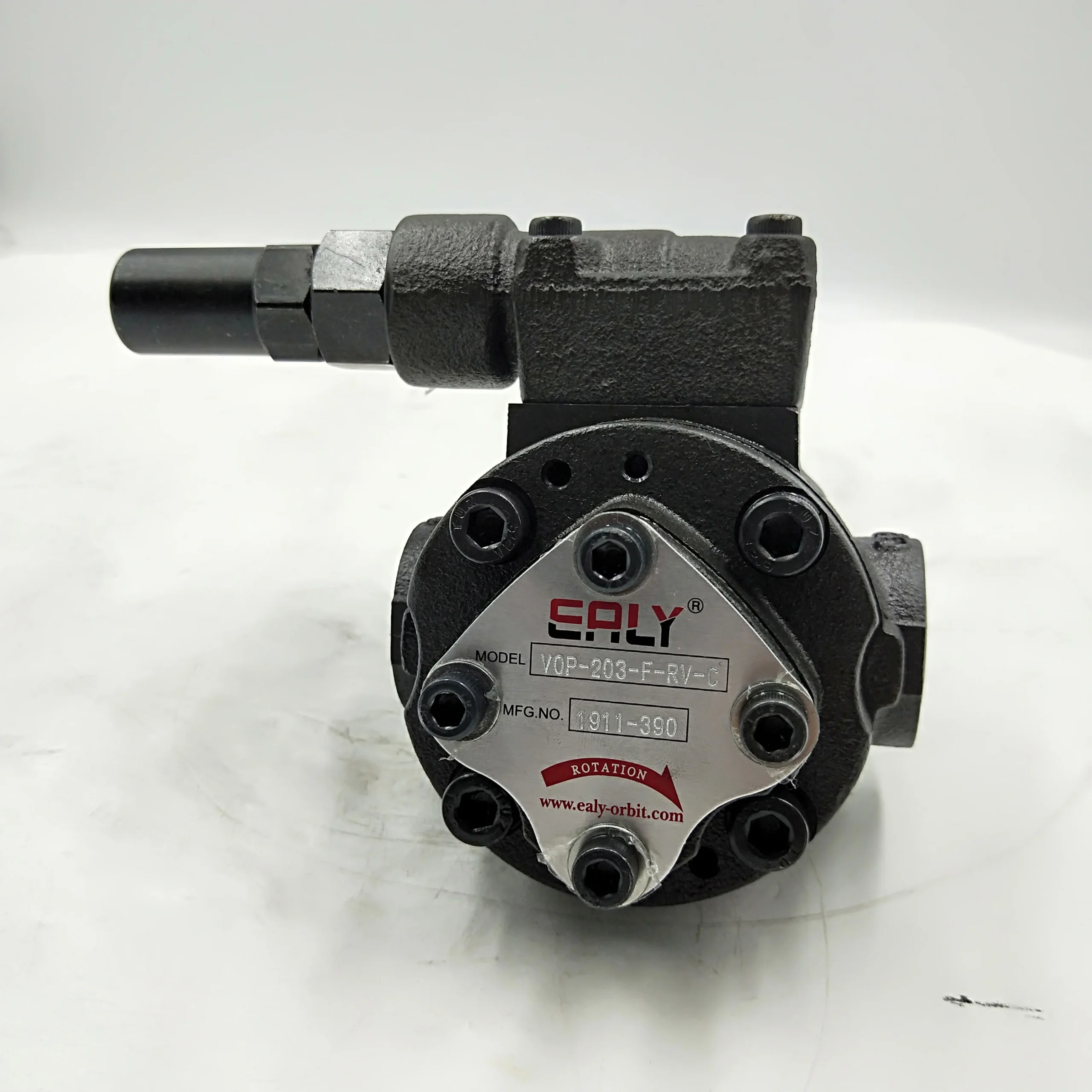

Model Keywords: VOP-203-F-RV-C, VOP-204, VOP-206, VOP-208, VOP-210, VOP-212, VOP-216, VOP-220.
Flow Rates: Key specifications ranging from 3 L/min to 20 L/min (at 1800 rpm).
Pressure Ratings: Rated adjustment pressure up to 7 MPa (70 Bar).
Technical Specs: F (Flange Mounting); RV (Flow adjustment/Relief valve indicator); C (Specific pressure range code).
