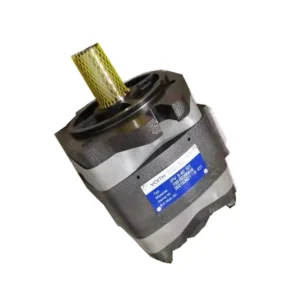

Voith Type IPV IPVP IPVS Series Internal Gear Pump | IPVS5, IPVP5, IPVS6 | High Pressure Servo Pump
| Model Number | IPVS5-25-101 |
|---|
Product Description
IPV, IPVP & IPVS Series High-Performance Internal Gear Pumps
Product Overview: The IPV and IPVS/IPVP Series represent the global gold standard for “Silent Hydraulic Pumps.” As precision internal gear pumps, these series are engineered specifically for applications demanding extreme working pressures (up to 30 MPa) and extended service life. This featured range includes core specifications: the high-performance IPVS5-25-101, high-flow IPVP 5-32 151, heavy-duty IPVS6-100-101, and specialized protocol model IPVAP5-50-101. Utilizing unique radial and axial gap compensation mechanisms, these pumps maintain an exceptional volumetric efficiency above 95% across the entire pressure spectrum.
Key Technical Advantages:
Ultimate Silence & Low Pulsation: Featuring a straight-line conjugate gear profile, it delivers incredibly smooth flow with virtually zero pressure ripples. Operational noise is significantly lower than external gear pumps, ideal for green factory environments.
Dual Automatic Pressure Compensation: Equipped with patented gap compensation technology that adjusts in real-time to system pressure, ensuring stable displacement output throughout the pump’s lifecycle.
Optimized for Servo Drive Systems: Excellent low-speed, high-pressure holding characteristics allow servo motors to maintain pressure at near-zero RPMs, significantly reducing overall energy consumption.
Modular Multi-Stage Capability: Available in frame sizes 3, 4, 5, 6, and 7, supporting tandem pump configurations for complex multi-circuit hydraulic systems.
Target Applications: Energy-saving servo injection molding machines, CNC press brakes, high-precision hydraulic power units, brick presses, and aerospace testing equipment.
Detailed Models & Parameters:

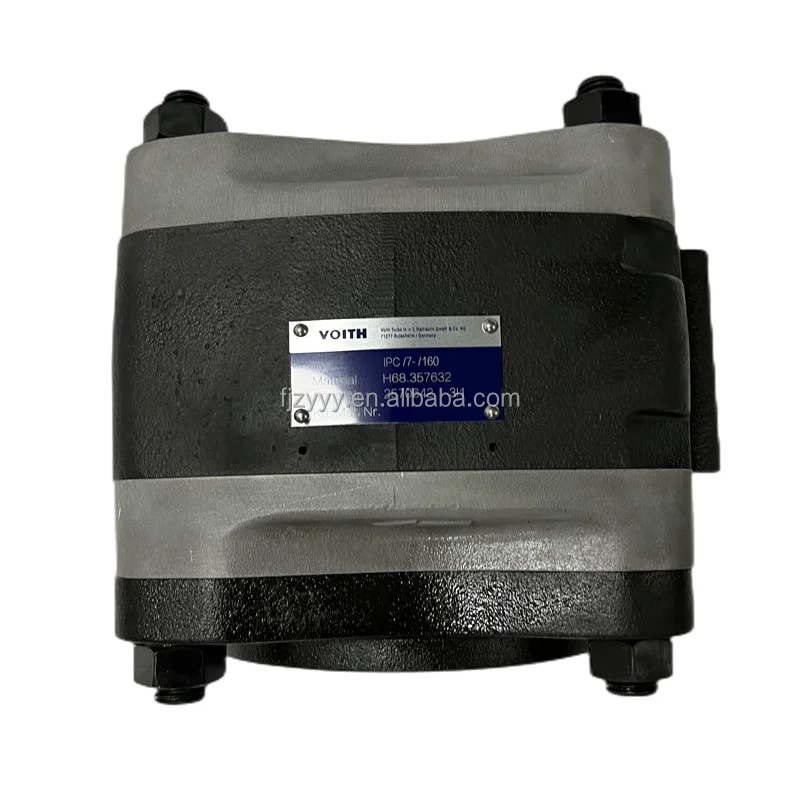

Core Series: IPV, IPVP, IPC, IPVS, IPVAP (Internal Gear Pump).

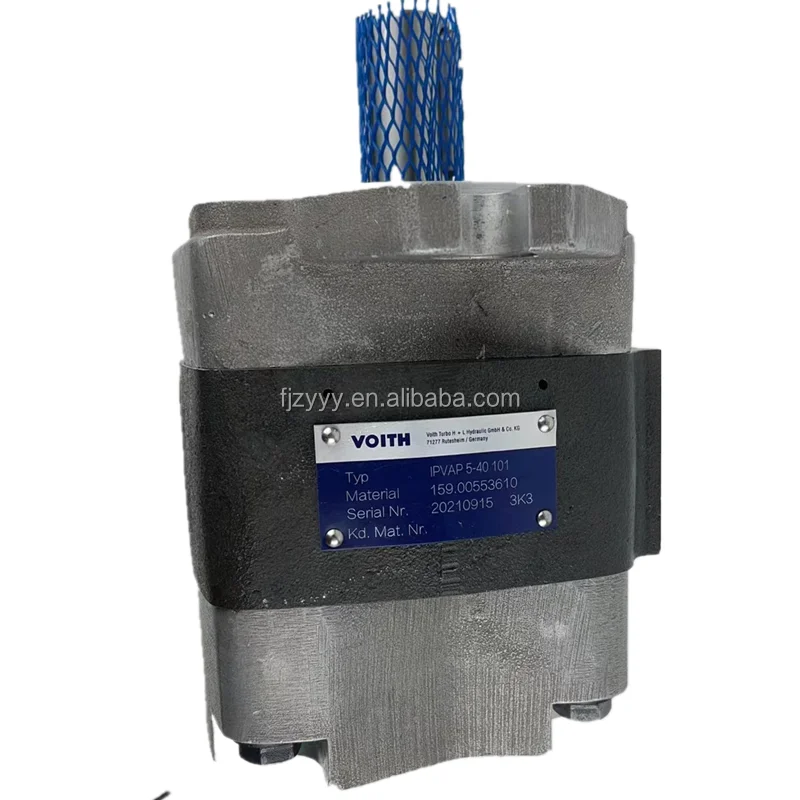

Model Keywords: IPVS5-25-101, IPVP 5-32 151, IPVS6-100-101, IPVAP5-50-101.
Frame Sizes: 3, 4, 5, 6, 7.
Displacements (cm³/rev): Key specifications including 25cc, 32cc, 50cc, and 100cc.
Pressure Ratings: Continuous working pressure of 25-30 MPa (250-300 Bar); Peak pressure up to 31.5 MPa.
Technical Codes: 101 (Standard SAE mounting); 151 (Specific port protocol).
