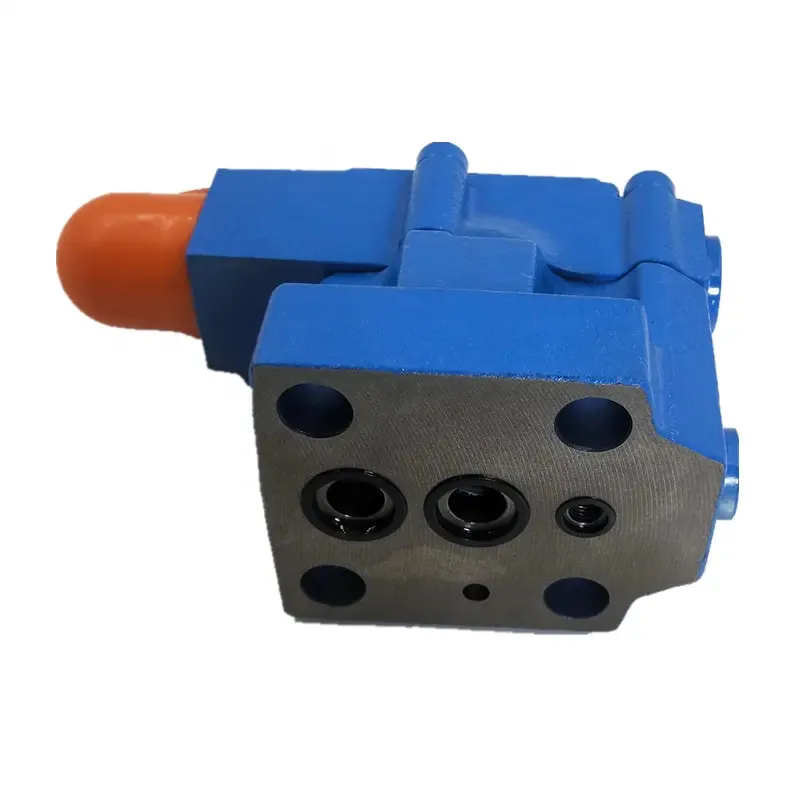

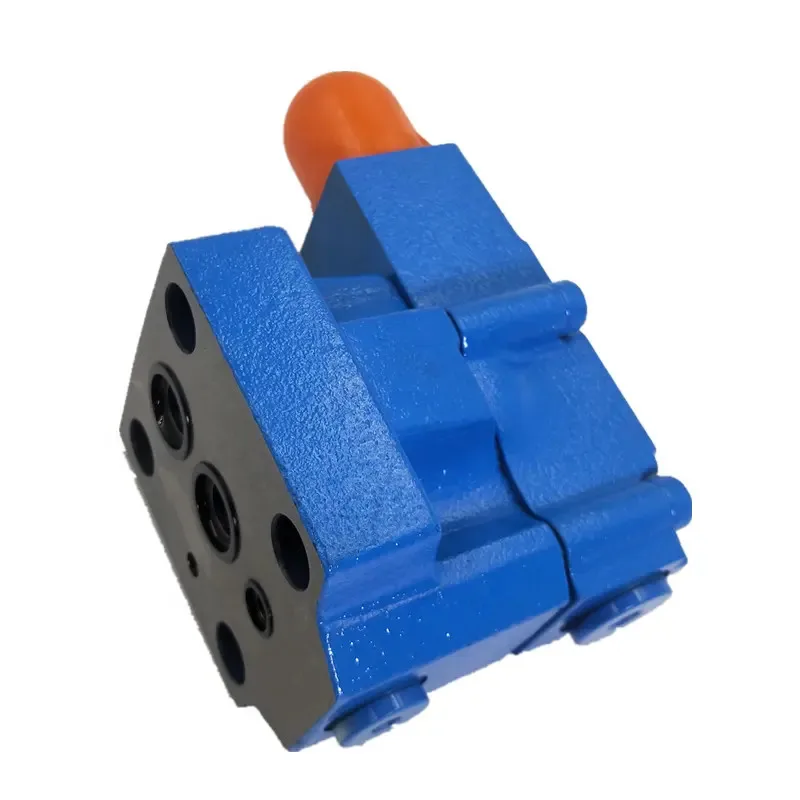

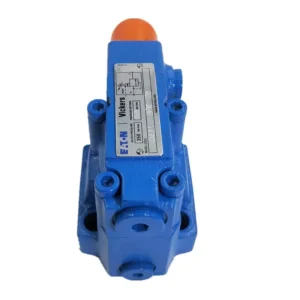

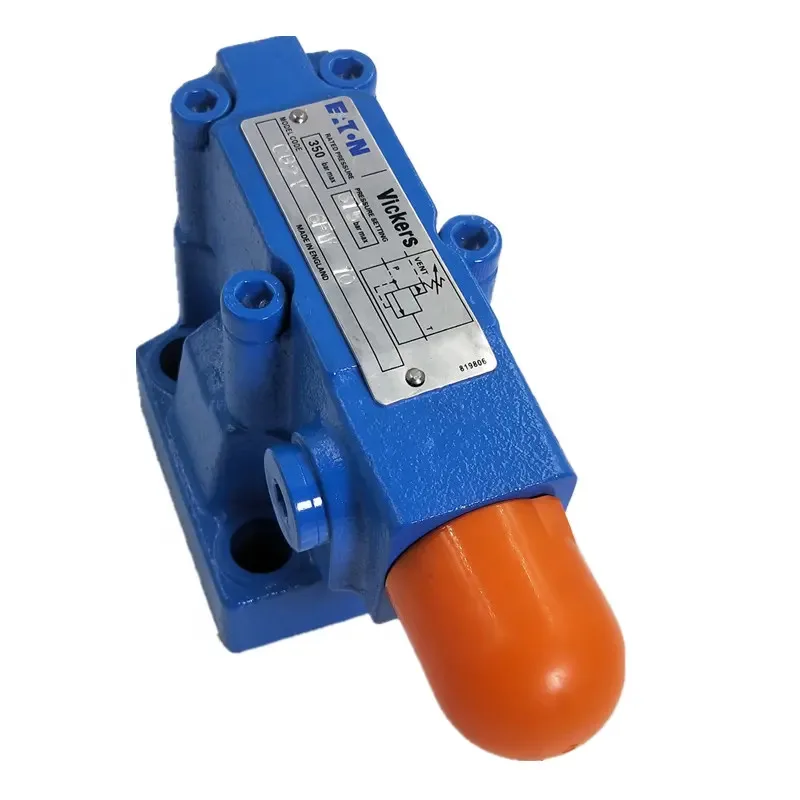

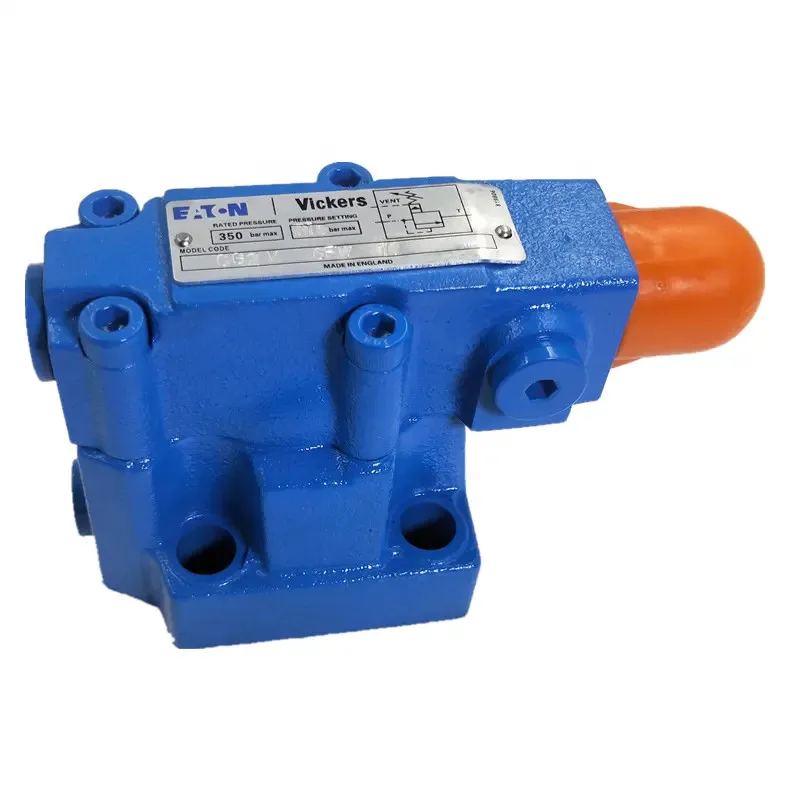

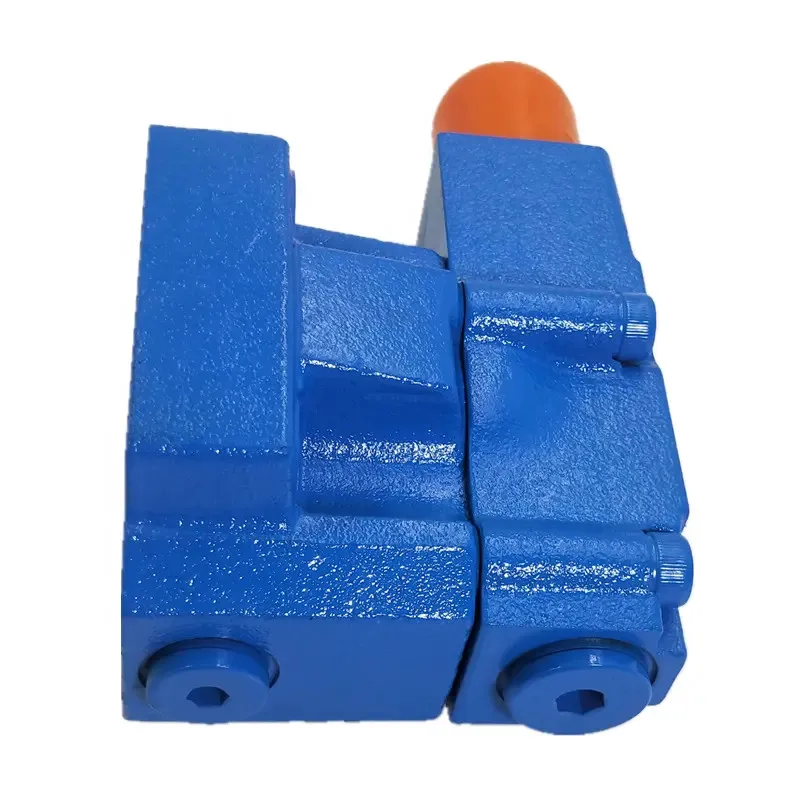

Vickers XG2V Series Pilot Operated Pressure Relief Valves

Product Overview: The Vickers XG2V Series is a high-performance pilot-operated pressure relief valve engineered for pressure limitation, regulation, and safety protection in hydraulic systems. This series (including XG2V-8FW and XG2V-CFW) typically combines a solenoid pilot stage with a main relief stage, enabling remote electronic unloading or multi-stage pressure presetting. The 10 Design Series features optimized internal flow paths to ensure minimal pressure override and exceptional stability during high-pressure, high-flow cycles, making it an ideal choice for machine tools, plastic machinery, and general industrial power units.

Featured models include the manually adjustable XG2V-8FW-10, XG2V-8GW, and the high-spec XG2V-CFW-10.

Key Technical Advantages:

• Superior Pilot Stability: Unlike direct-acting valves, the pilot-operated structure maintains set relief pressure even under significant flow fluctuations, reducing system vibration.

• Flexible Unloading Function: The integrated solenoid pilot allows for zero-pressure pump starting or idling cycles via electrical signals, significantly reducing energy consumption.

• Precision Pressure Adjustment: Equipped with an adjustment knob and locknut, allowing for fine-tuned opening pressure settings within the rated range.

• Compact Subplate Mounting: Standard mounting interface facilitates easy integration onto hydraulic manifolds, reducing piping and potential leakage points.

Detailed Specifications & Parameters:

• Core Series: Vickers XG2V Series (10 Design).

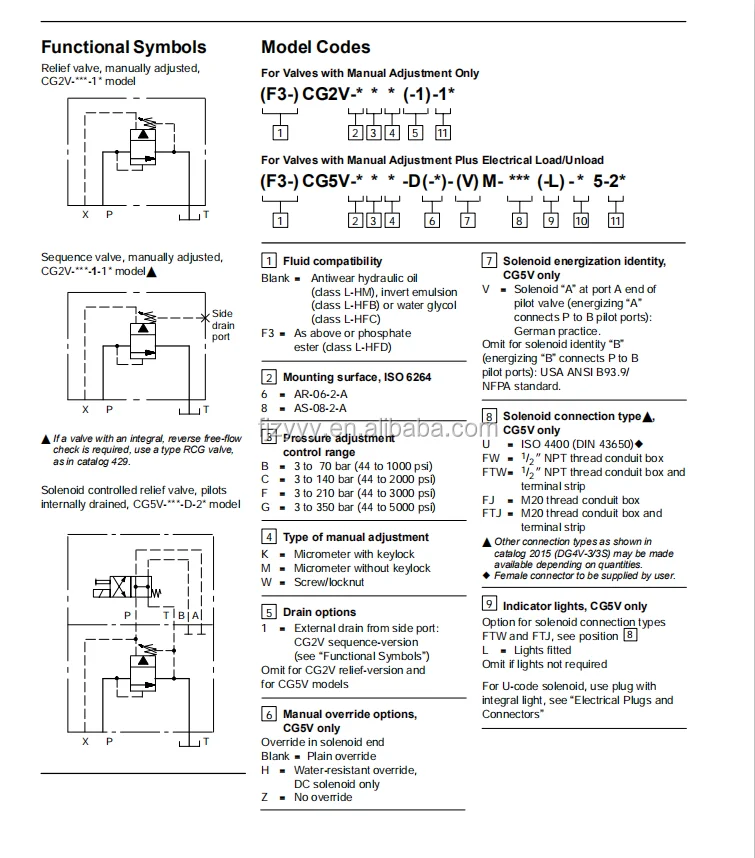

• Featured Model Matrix:

  • XG2V-8FW-10 (Pilot relief valve, F-spring spec, manual adjustment)

  • XG2V-8GW-10 (Pilot relief valve, G-spring pressure range)

  • XG2V-CFW-10 (High-flow/Custom pressure configuration)

  • XG2V8FW10 (Standard industrial abbreviated code)

• Core Technical Specs:

  • Mounting Type: Subplate mounting.

  • Max Operating Pressure: Rated up to 315 Bar (4,500 PSI).

  • Adjustment Ranges: F-range, G-range, and other spring settings available.

  • Solenoid Voltage: Compatible with AC110V, AC220V, and DC24V coils (depending on pilot configuration).
