Vickers Type VQ Series Intra-Vane Pumps for Injection Molding Machines

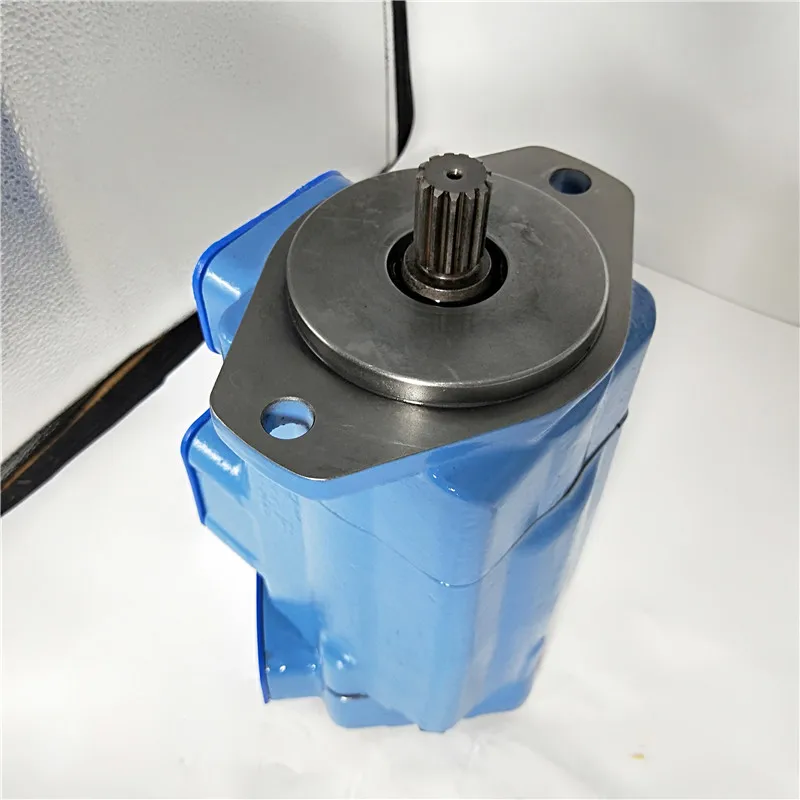

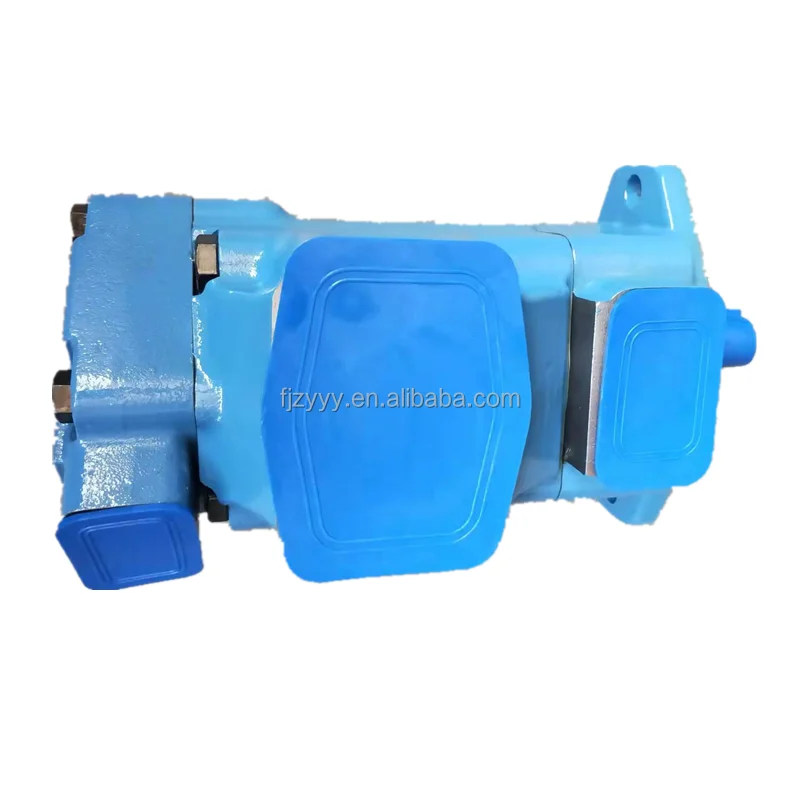

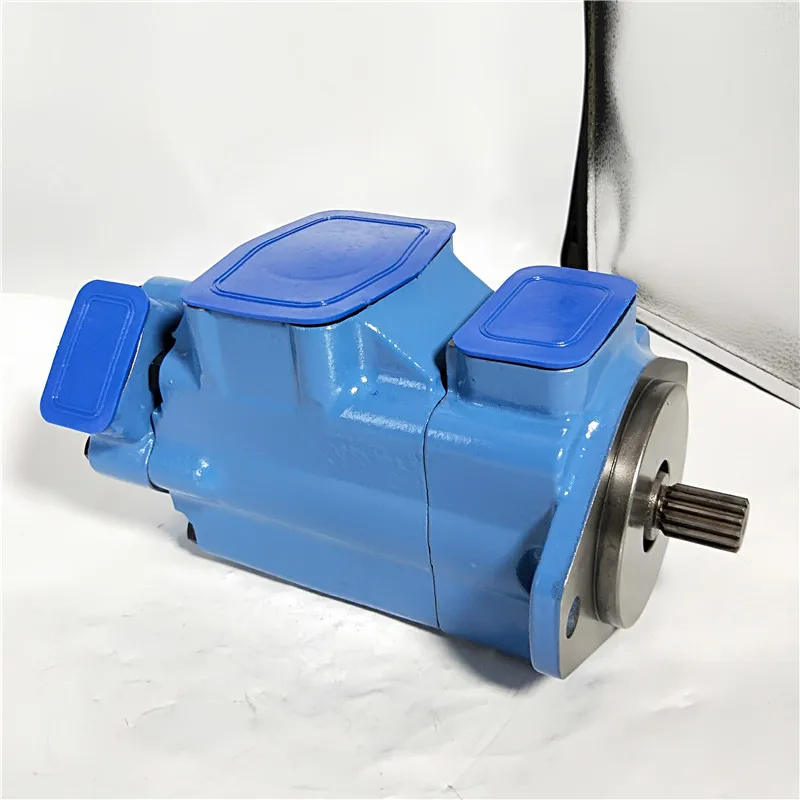

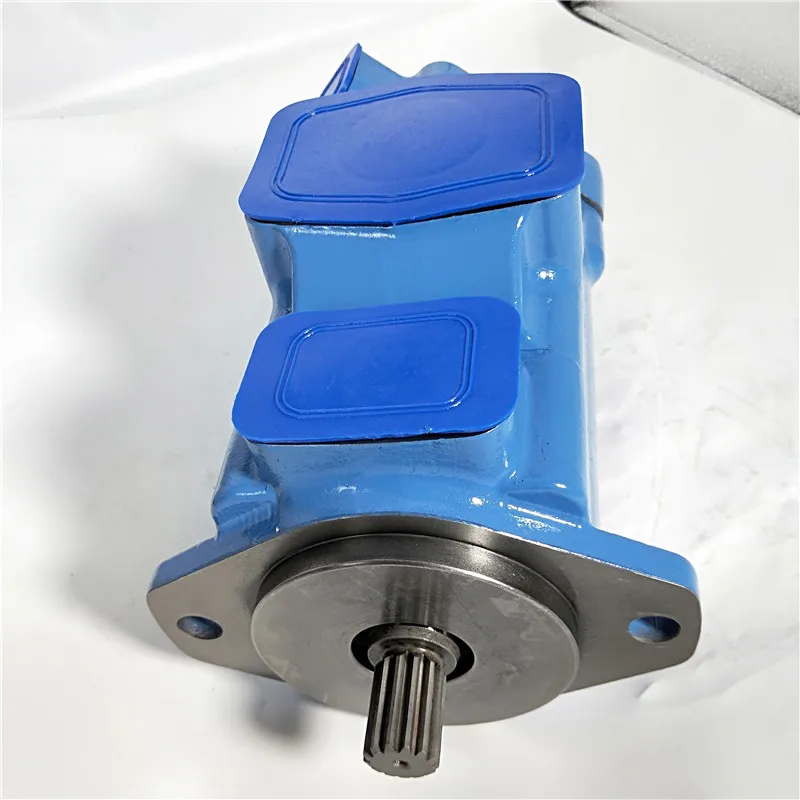

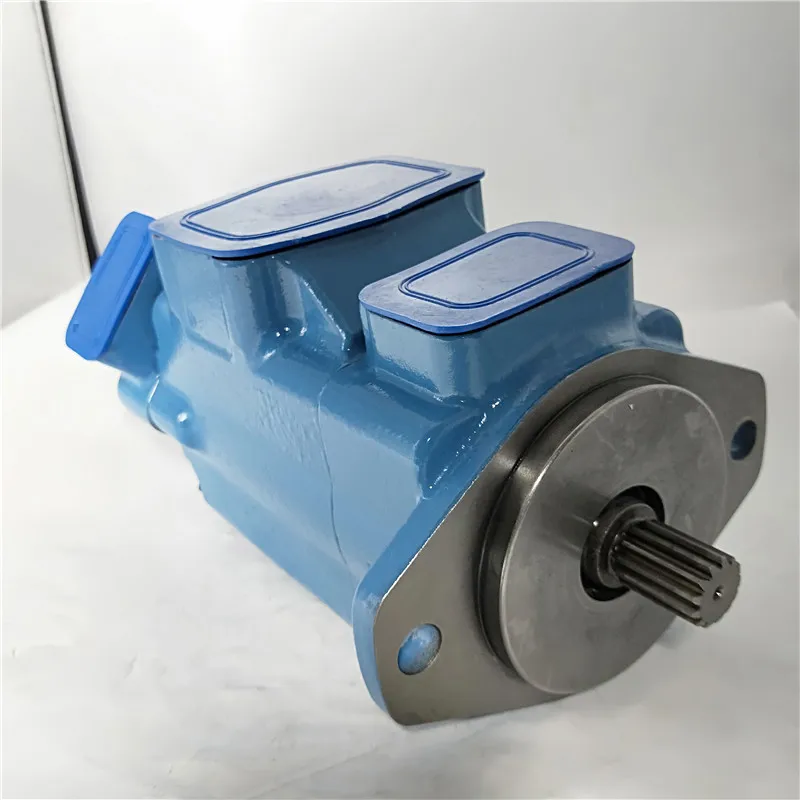

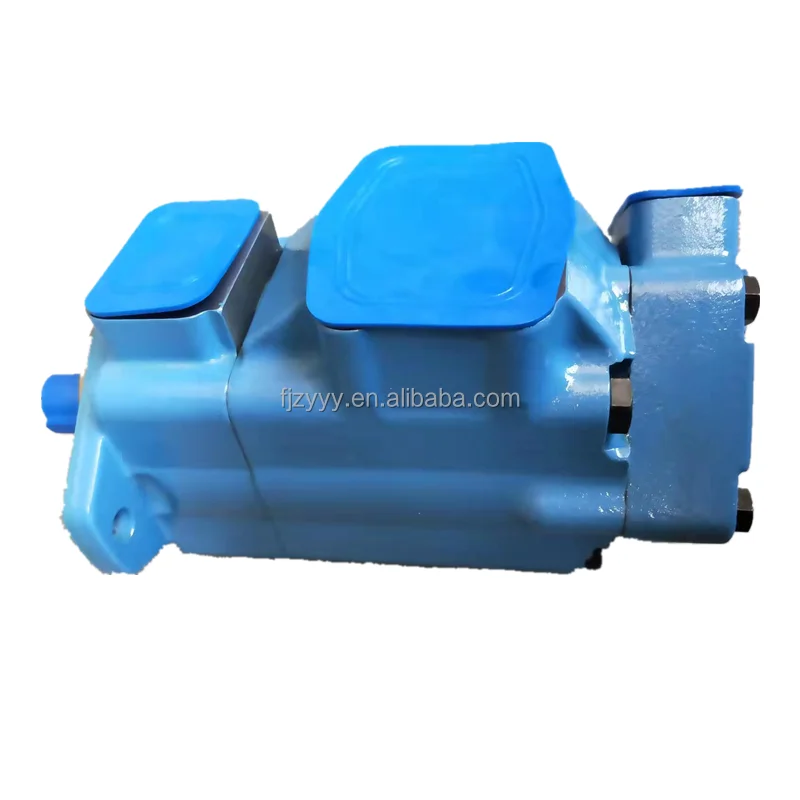

Product Overview: The Vickers VQ Series is the definitive power source for global injection molding machinery and mobile hydraulic systems. As the flagship of Intra-Vane technology, the VQ series is specifically engineered to handle high-frequency cycling, continuous high pressure, and high-speed operations. This selection features core models optimized for large-scale injection machines: single pumps 45VQ50A-1A30R, 45VQ60A-1A30R, and high-performance double pumps 2520VQ21A5-1AB20R, 4525VQ60A21-1AB20R. Utilizing a unique intra-vane design, the VQ series maintains superior volumetric efficiency and extended service life even at pressures up to 21.0 MPa (3050 PSI).

Key Technical Advantages:

• Optimized for Injection Machines: Designed for the rigorous mold opening/closing and pressure-holding cycles of injection molding, providing rapid response and minimizing system heat generation.

• Patented Intra-Vane Technology: Reduces radial loading of vanes against the stator, ensuring high mechanical efficiency and minimal wear even under low-viscosity fluid conditions or high-pressure cycles.

• Double Pump Versatility: Models like the 4525VQ support flexible combinations (e.g., 60GPM + 21GPM), enabling high-flow rapid filling and precise low-flow pressure holding.

• Rapid “Drop-in” Cartridge Maintenance: Internal components are housed in self-contained cartridges. Maintenance is streamlined—swap the internal cores on-site in minutes without disconnecting heavy plumbing, drastically cutting downtime.

• Target Applications: Plastic injection machines, rubber presses, die-casting equipment, wheel loaders, refuse trucks, and heavy-duty industrial Power Units.

Detailed Models & Parameters:

• Core Series: Vickers Type VQ Series (High Performance Intra-Vane).

• Model Keywords: 45VQ50A, 45VQ60A, 2520VQ21A5, 4525VQ60A21.

• Displacement Rating Examples (USgpm @ 1200rpm):

  • 45VQ Single: 50 GPM, 60 GPM (Approx. 162-193 cm³/rev).

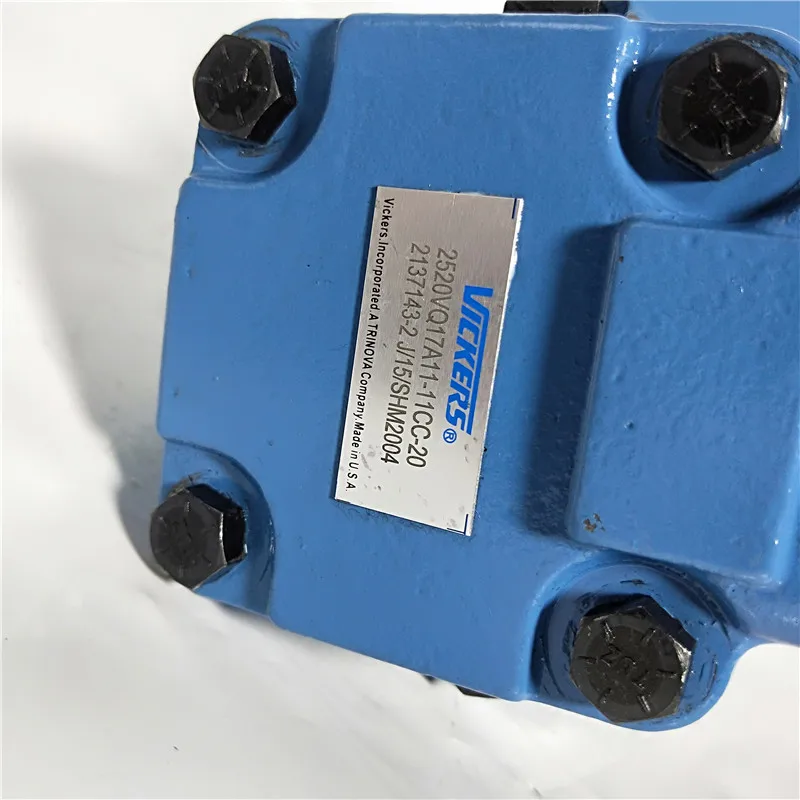

  • 2520VQ Double: P1 End 21 GPM / P2 End 5 GPM.

  • 4525VQ Double: P1 End 60 GPM / P2 End 21 GPM.

• Technical Specs Decoding:

  • 1A / 1AB: Shaft configurations (e.g., splined) and porting orientation identifiers.

  • 20 / 30: Official design sequence numbers.

  • R: Denotes Right-hand (Clockwise) rotation direction.

• Max Operating Pressure: Rated for continuous operation up to 21.0 MPa (210 Bar / 3050 PSI).

• Max Speed: Supports high-speed operation up to 2200 – 2700 RPM.
