Vickers Type VQ Series Double Vane Pump | 3525VQ, 4535VQ, 4520VQ | High Pressure

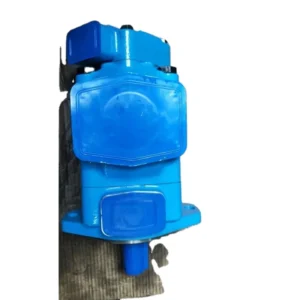

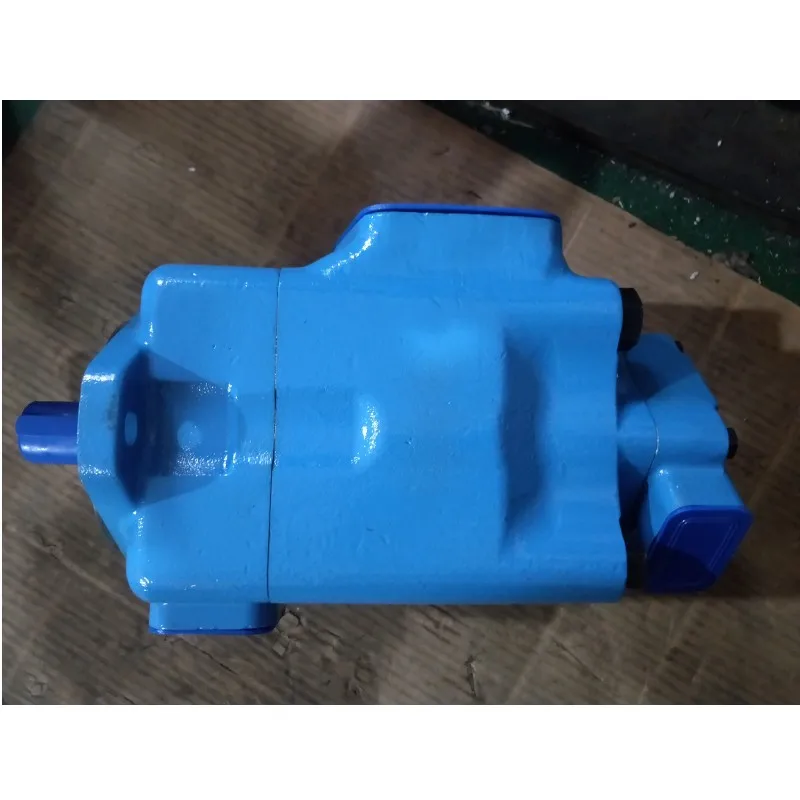

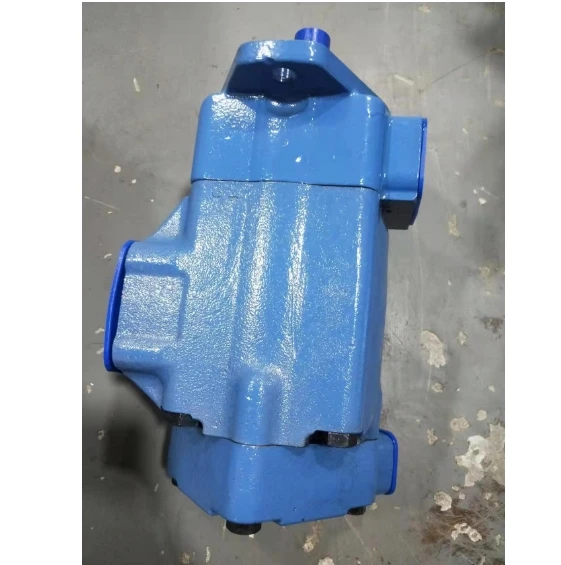

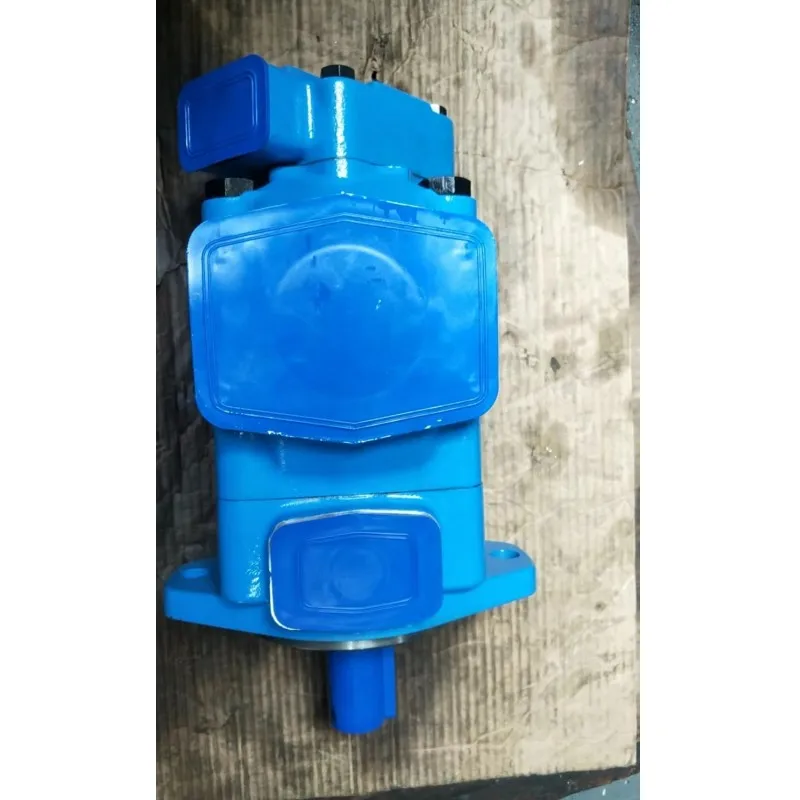

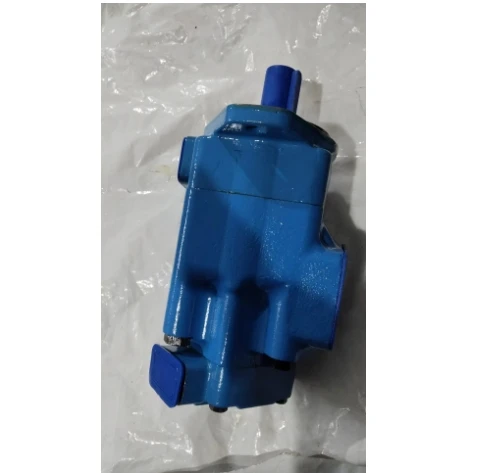

Vickers Type VQ Series High-Performance Double Vane Pumps

Product Overview: The VQ Series Double Vane Pump is the global durability benchmark for mobile and heavy industrial hydraulic systems. Engineered with specialized Intra-vane technology for high-pressure and high-speed operation, this series integrates two heavy-duty cartridge kits within a single housing to deliver multi-circuit output and exceptional power density. This range features premium specifications: 3520VQ, 3525VQ, 4520VQ, 4525VQ, and the high-flow 4535VQ, including the specific configuration 3525VQ3817-11CC-20L. Its unique modular design not only minimizes operational noise but also provides unparalleled convenience for field maintenance.

Key Technical Advantages:

• Superior Pressure Durability: Utilizing Intra-vane technology, rated pressures reach 21 MPa (3000 PSI), effortlessly handling frequent pressure transients and load shocks in construction machinery.

• Dual-Output Efficiency: Integrated dual-cartridge design allows flexible configuration of Shaft-end (Large) and Cover-end (Small) flows, catering to multi-circuit split or merged flow requirements.

• Modular Cartridge Kits: Features “drop-in” cartridge design. Maintenance is streamlined—swap the cartridge kit without disconnecting main plumbing to restore factory performance and minimize downtime.

• Ultimate Silence & Volumetric Efficiency: Precision-ground stator geometry and 10-vane rotors ensure smooth fluid output and drastically reduced operational noise even under full load.

• Target Applications: Wheel loaders, excavators, scrapers, scrap metal shears, mining machinery, and heavy industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Vickers Type 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ.

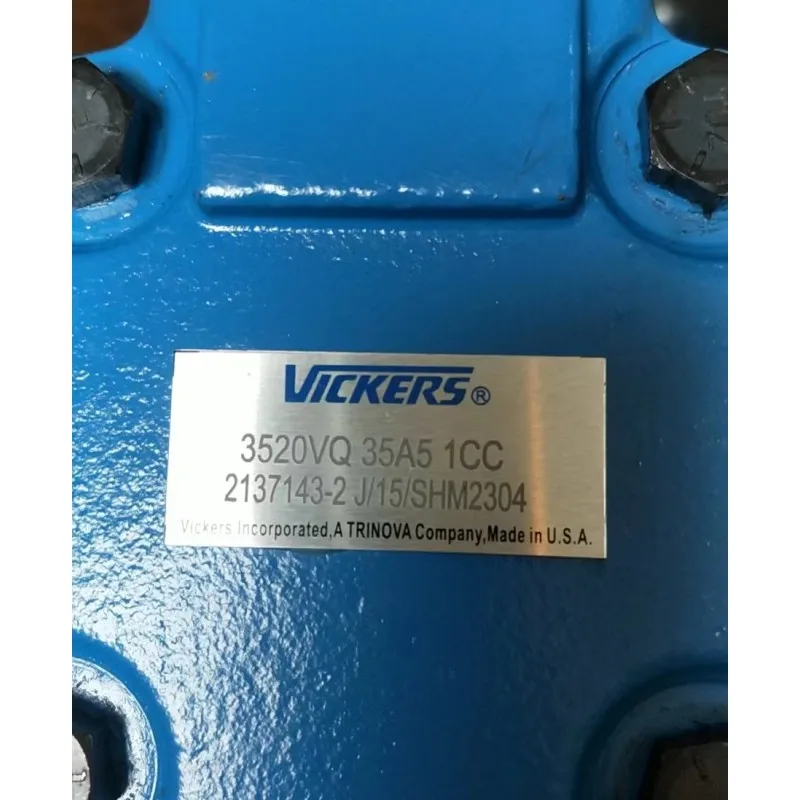

• Model Keywords: 3525VQ3817-11CC-20L, 4535VQ6038-11CC, 3520VQ3011-1AA.

• Flow Ratings (USgpm @ 1200rpm):

  • 3525VQ: 25, 30, 35, 38 (Shaft End) / 12, 14, 17, 19, 21 (Cover End)

  • 4535VQ: 42, 47, 50, 57, 60 (Shaft End) / 25, 30, 35, 38 (Cover End)

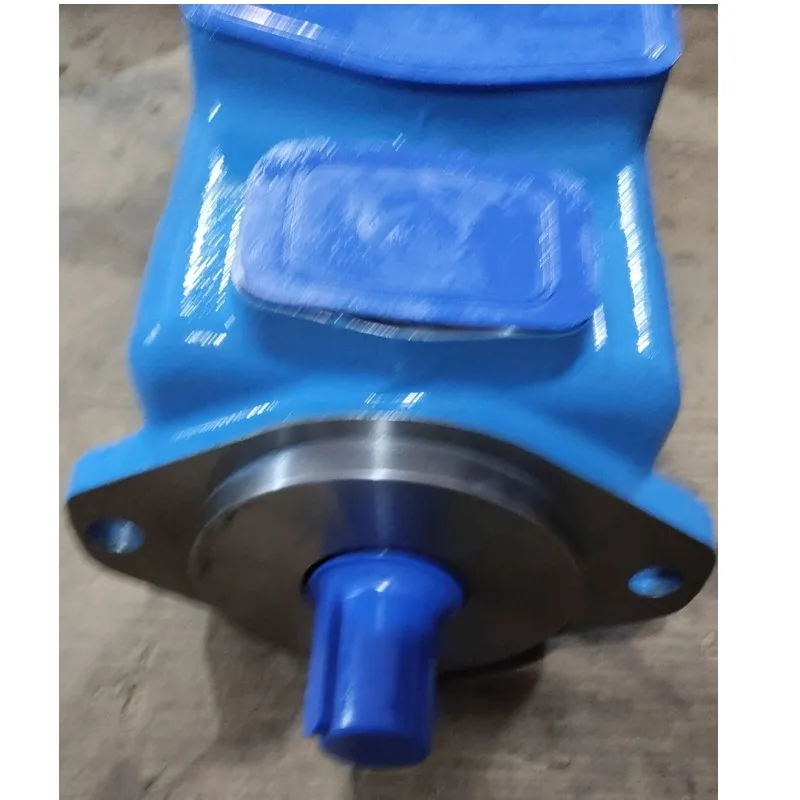

• Technical Specs: 11 (Flange Mounting); CC (Port position code); 20 (Design sequence); L (Left-hand rotation identifier).

• Pressure Ratings: Rated continuous working pressure up to 21 MPa (3000 PSI / 210 Bar).
