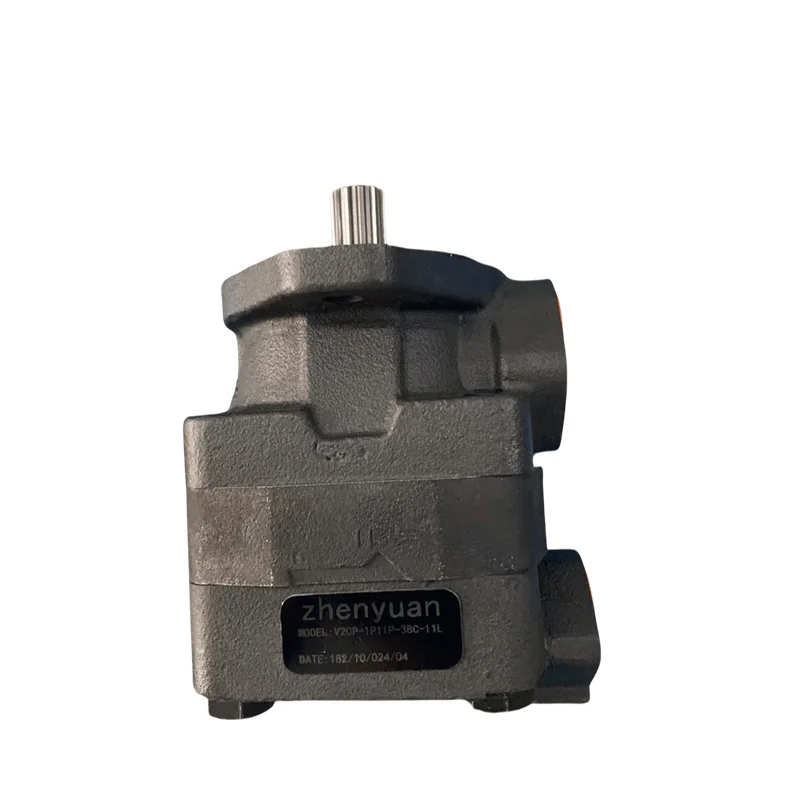

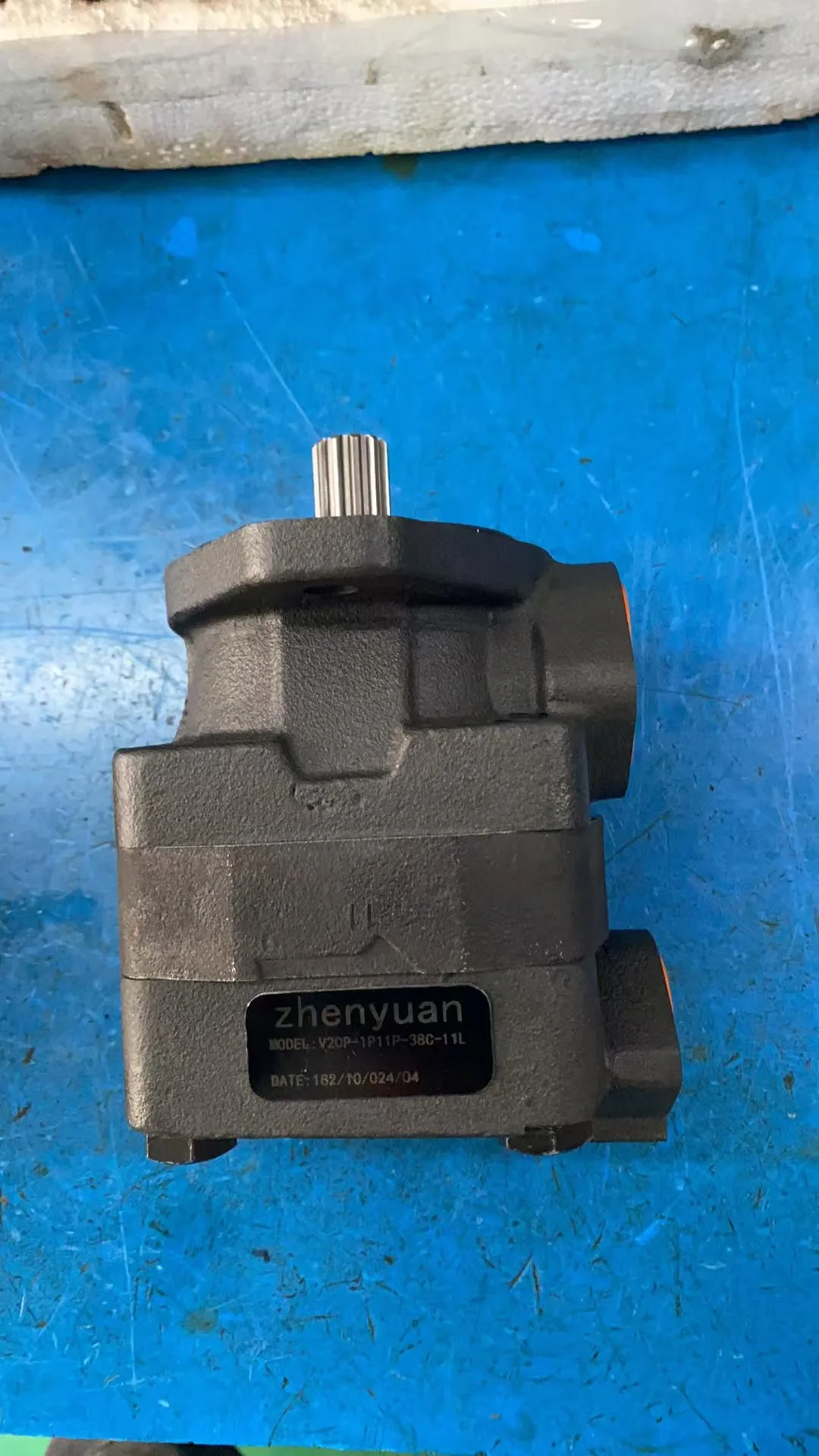

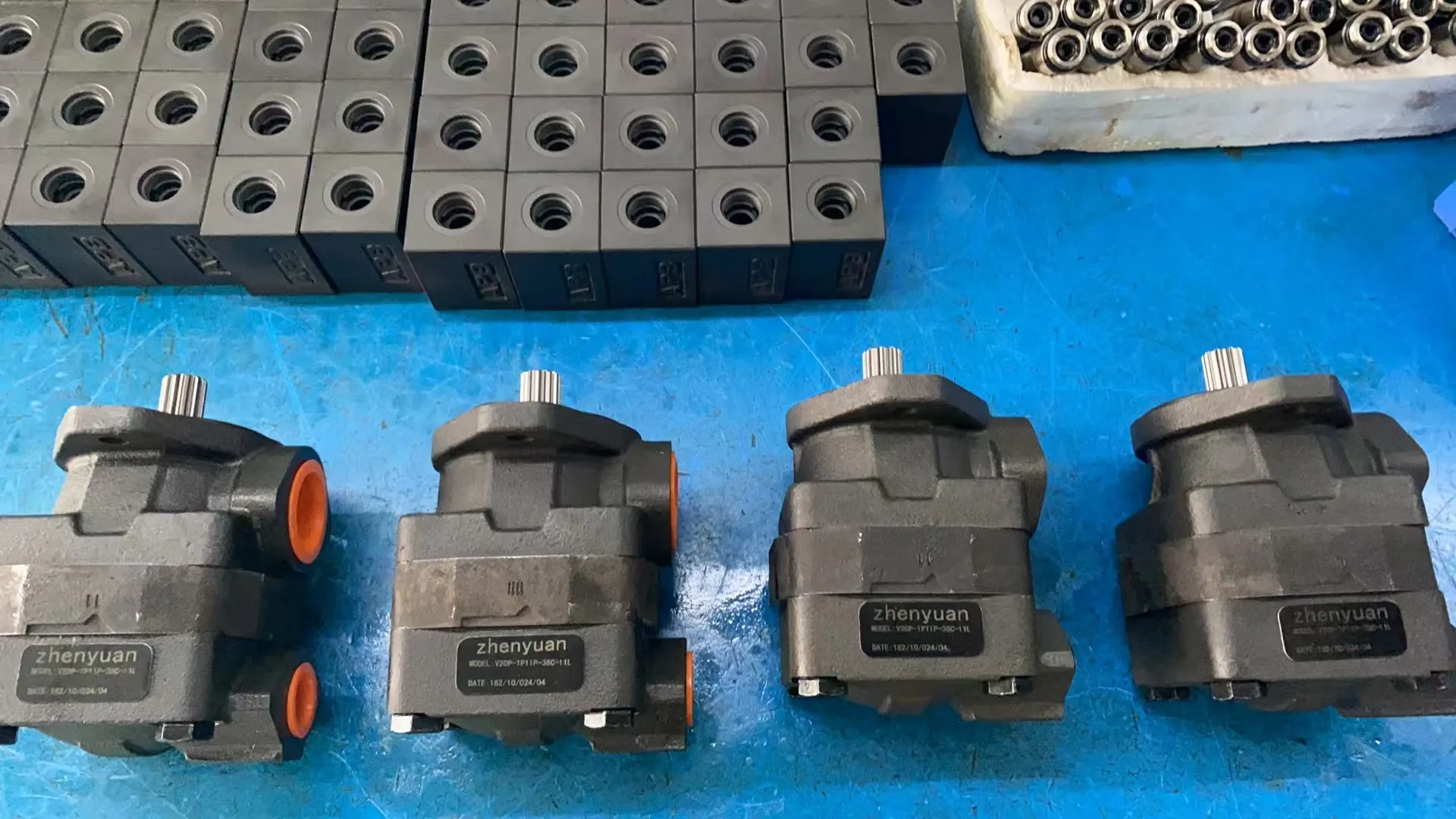

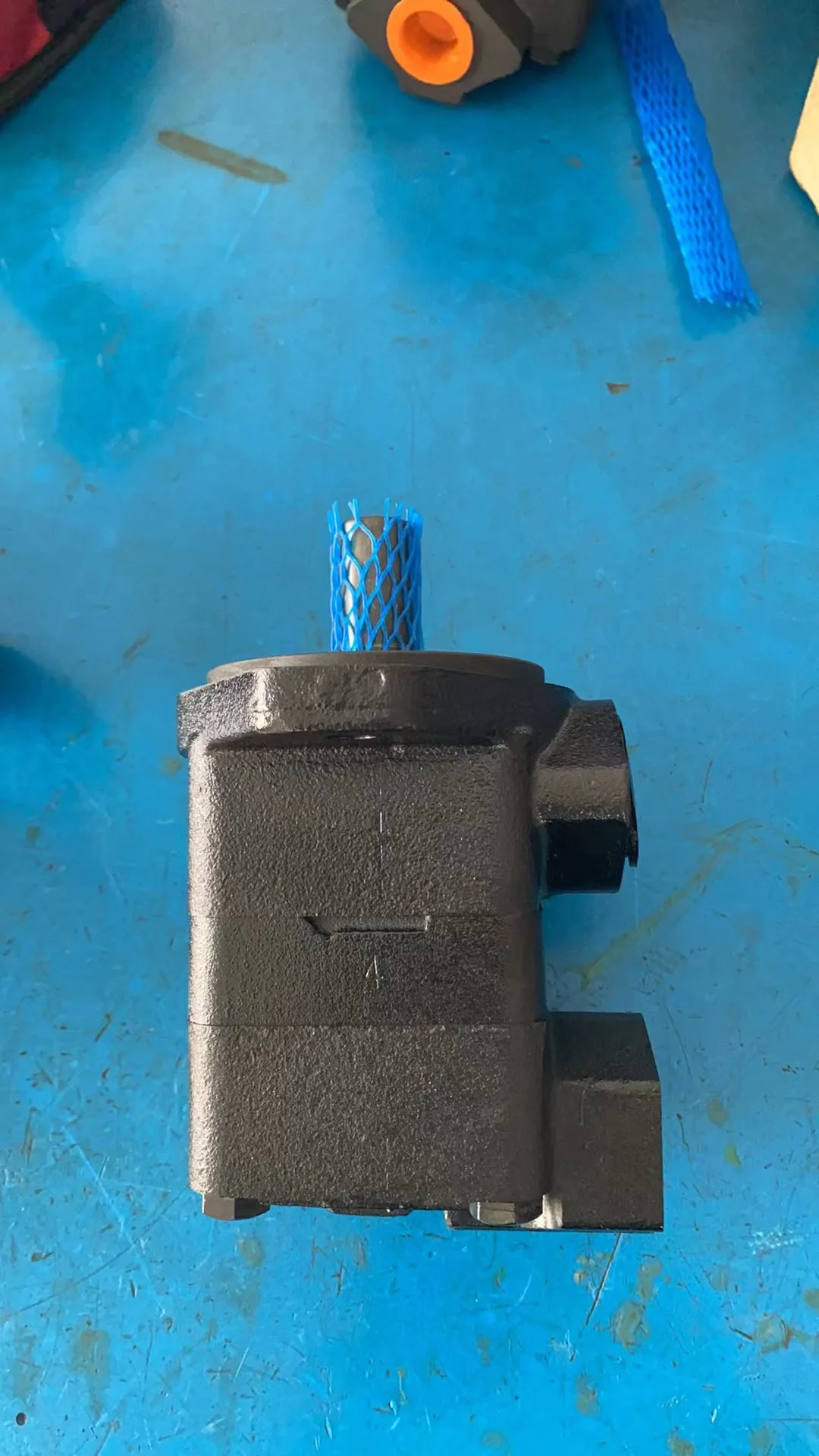

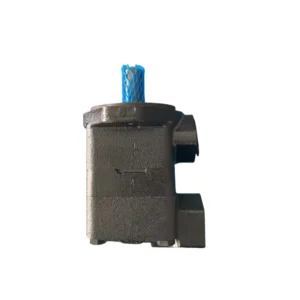

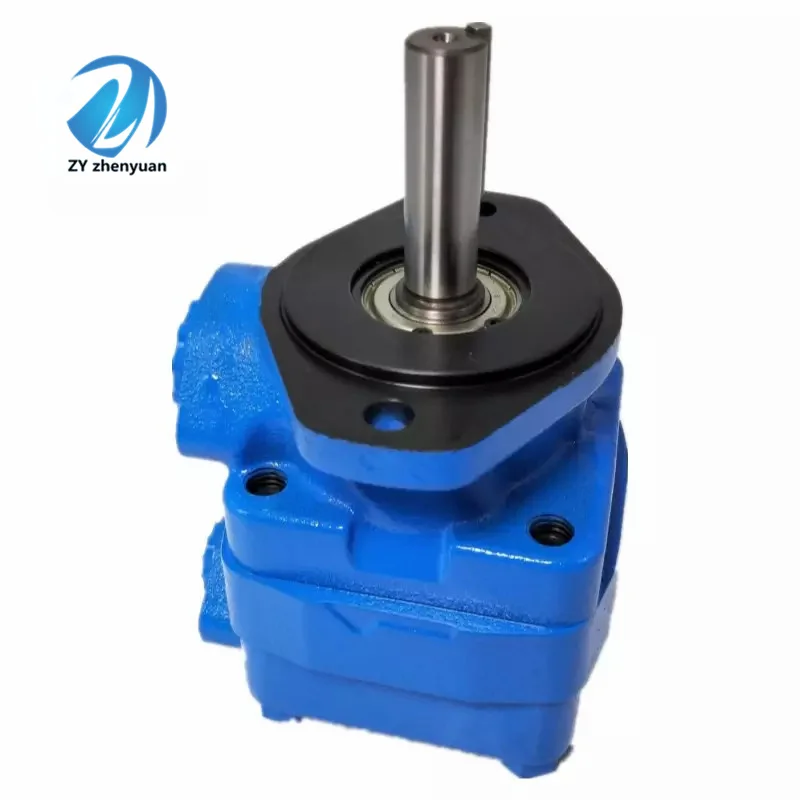

Vickers Type V10 & V20 Series High-Performance Fixed Vane Pumps

Product Overview: The Vickers V10 and V20 Series are the globally recognized benchmarks for compact hydraulic power. As classic hydraulically balanced vane pumps, this series is engineered specifically for medium-to-low pressure industrial applications and mobile machinery such as power steering and lift platforms. This selection features core specifications: V10-1B-4B-1C-20, V10-1B6B-1A-20, V10-1B3B-1B20, and V10-1B5B-1A-20. Renowned for their durability and simple design, the V10/V20 series maintains stable flow delivery even at pressures up to 17.2 MPa (2500 PSI), making them the definitive choice for cost-effectiveness and ease of maintenance.

Key Technical Advantages:

• Hydraulically Balanced Design: Features a double-acting core that neutralizes radial loads on bearings, drastically extending the service life under continuous high-pressure cycles.

• Exceptional Installation Flexibility: The compact frame combined with versatile porting orientations allows for seamless integration into tight spaces, such as forklifts, material handling vehicles, and small power units.

• Low Noise Operational Environment: The optimized 12-vane rotor system minimizes flow pulsations, ensuring a significantly quieter workspace compared to equivalent gear pumps.

• Cost-Efficient & Easy Service: Minimal internal components allow for rapid on-site parts replacement without complex tools, significantly reducing long-term operational costs.

• Target Applications: Power steering systems, scissor lifts, forklift hydraulic circuits, small injection machines, and agricultural control systems.

Detailed Models & Parameters:

• Core Series: Vickers Type V10 & V20 Series (Fixed Displacement).

• Model Keywords: V10-1B4B, V10-1B6B, V10-1B3B, V10-1B5B, 1C-20, 1A-20, 1B-20.

• Displacement Rating Examples (USgpm @ 1200rpm):

  • 1 GPM to 7 GPM (V10 Series): Covering displacements from 3.3 to 22.8 cm³/rev.

• Technical Specs Decoding:

  • 1B / 1A / 1C: Identifiers for shaft configurations (Keyed/Splined) and porting arrangements.

  • 20: Official design sequence number representing the latest internal structure.

  • 4B/6B/3B/5B: Codes for nominal displacement ratings.

• Max Operating Pressure: Rated for continuous operation up to 17.2 MPa (172 Bar / 2500 PSI).

• Speed Range: Supports high-speed operation up to 2800 – 4800 RPM.
