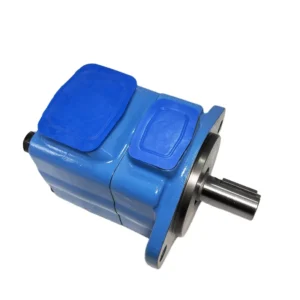

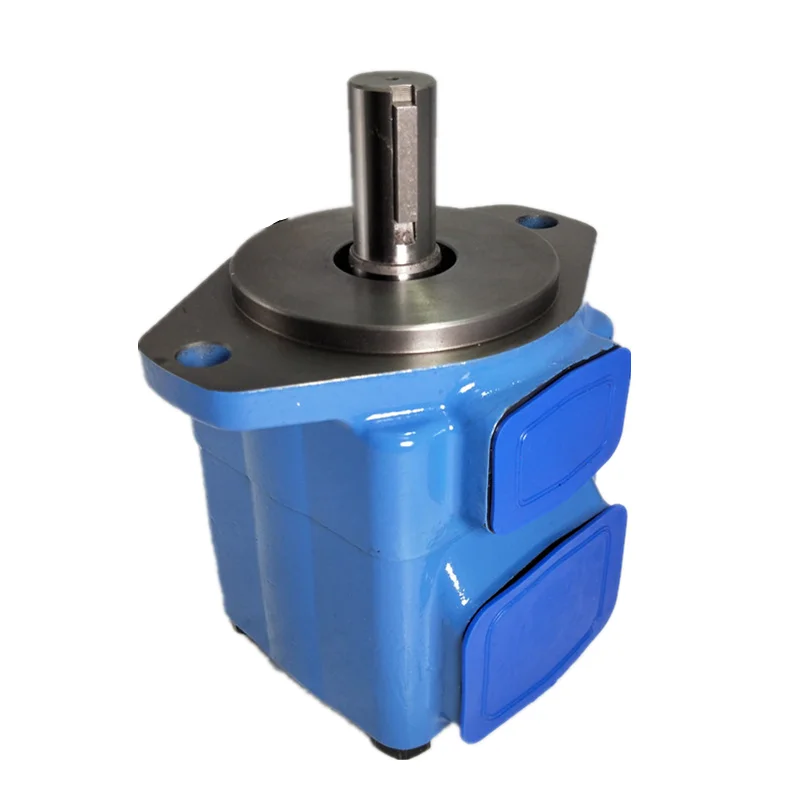

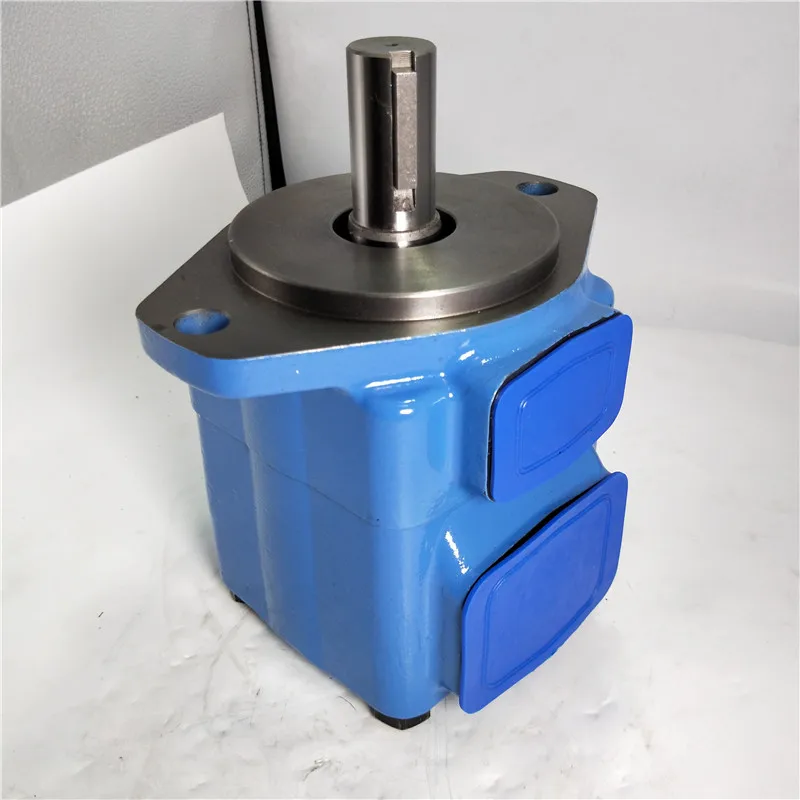

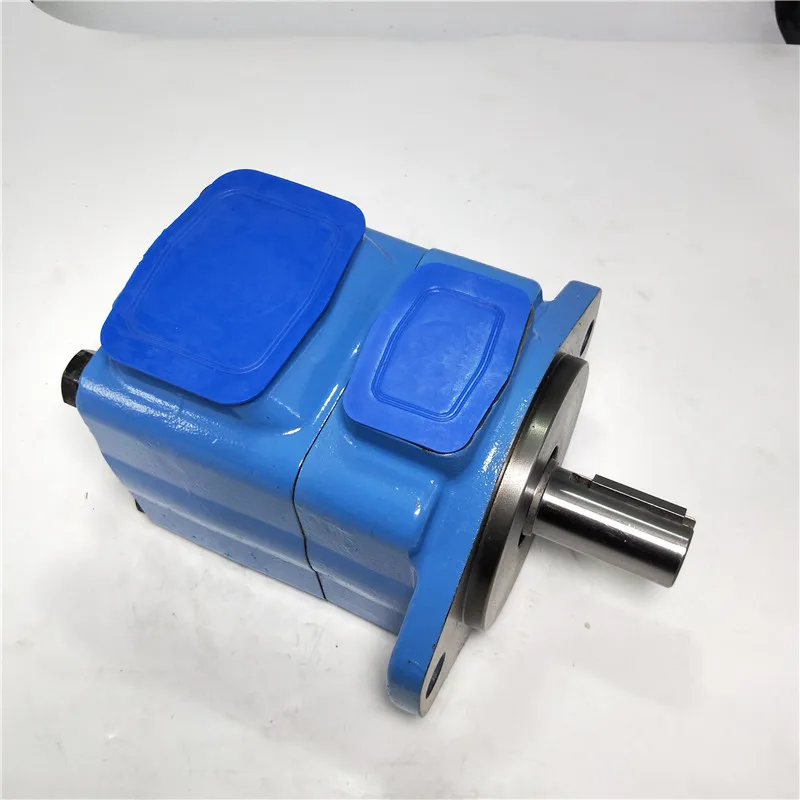

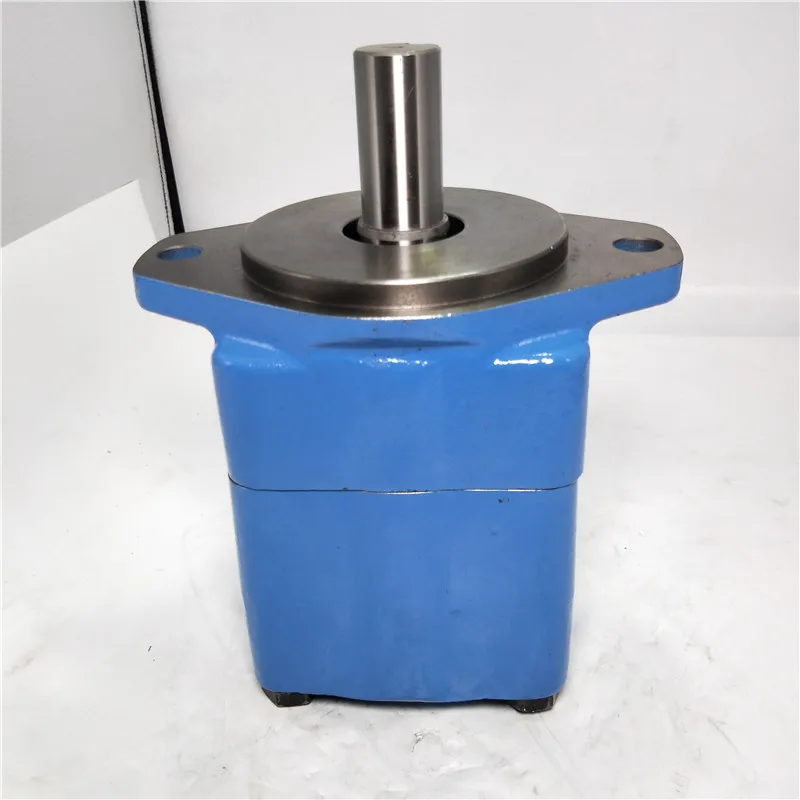

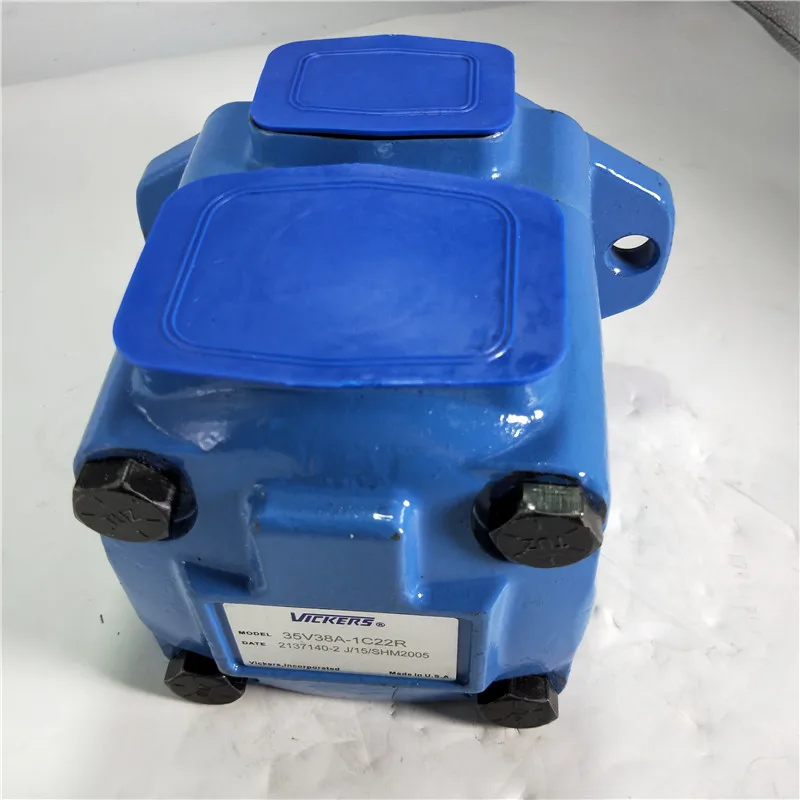

Vickers Type V Series High-Performance Industrial Fixed Vane Pumps

Product Overview: The V Series fixed displacement vane pumps serve as the evergreen benchmark for industrial hydraulic systems globally. As a high-efficiency power source, the series covers four major frame sizes: 20V, 25V, 35V, and 45V. This range features core models including 25V17A-1C22R, 25V-14A-1C-22L, 25V-21A-1CR, and 25V21A-1B. Utilizing patented Intra-Vane technology, the V series maintains exceptional volumetric efficiency and ultra-low noise levels even at continuous working pressures up to 17.2 MPa—making it the definitive power choice for injection molding and general industrial power units.

Key Technical Advantages:

• Patented Intra-Vane Technology: The unique double-vane design automatically compensates for vane-tip wear, drastically reducing contact stress against the cam ring. This ensures factory-level performance throughout thousands of hours of high-cycle operation.

• Modular Cartridge Kit Rapid Maintenance: Features a replaceable “drop-in” cartridge system. During maintenance, performance can be restored by swapping the internal kit without disconnecting plumbing, significantly reducing downtime costs.

• Ultimate Silent & Smooth Flow: The 12-vane rotor system provides highly smooth flow output with minimal pressure pulsation, significantly improving the noise environment of modern workshops.

• High Reliability Bearing Design: The radial pressure-balanced design cancels out radial loads on the rotor, minimizing bearing stress and ensuring a significantly extended service life with low maintenance.

• Target Applications: Plastic injection molding machines, waste balers, brick presses, hydraulic press brakes, conveyor power sources, and various industrial machinery.

Detailed Models & Parameters:

• Core Series: Vickers Type V Series (20V, 25V, 35V, 45V).

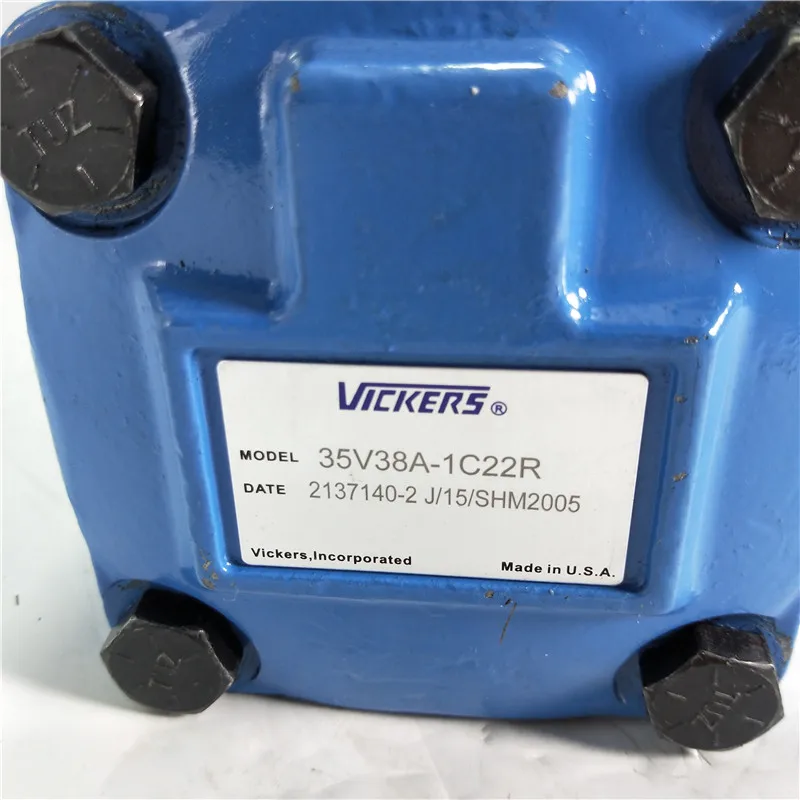

• Model Keywords: 25V17A-1C22R, 25V-14A-1C-22L, 25V-21A-1CR, 25V21A-1B.

• Flow Codes (GPM @ 1200rpm): Key specifications including 14A, 17A, and 21A (corresponding to nominal GPM).

• Technical Specs: 1 (Cover end bearing code); C (Port orientation layout); 22 (Design sequence code).

• Rotation: R (Right-hand/Clockwise); L (Left-hand/Counter-Clockwise).

• Pressure Ratings: Rated continuous working pressures up to 17.2 MPa (172 Bar).
