Vickers Type V Series Vane Pump | 25V, 35V, 45V | 25V21A, 35V38A, 45V60A
| Model Number | 35V30A IC22A |
|---|
Product Description

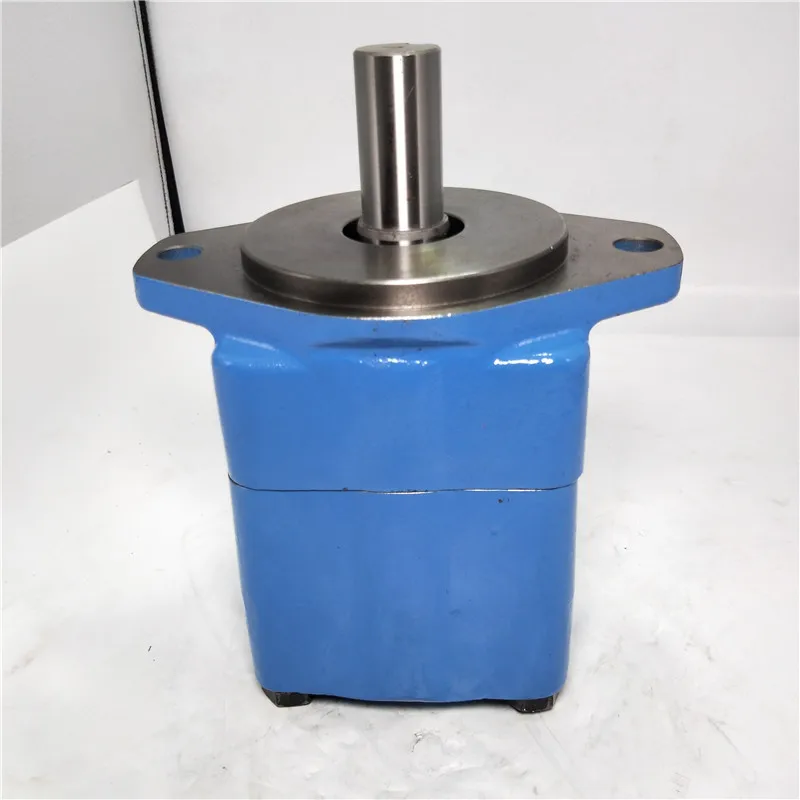

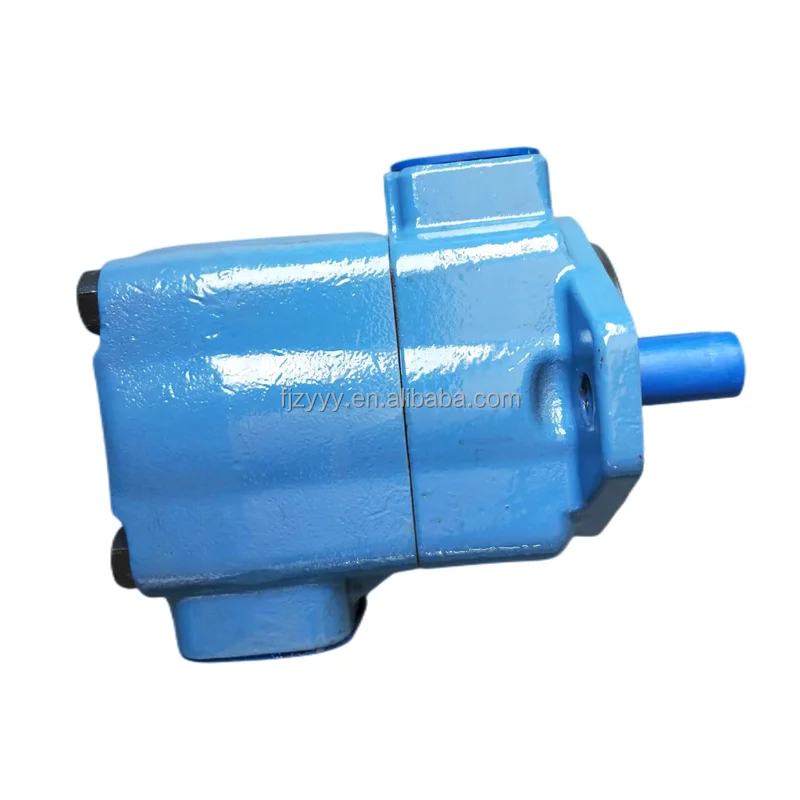

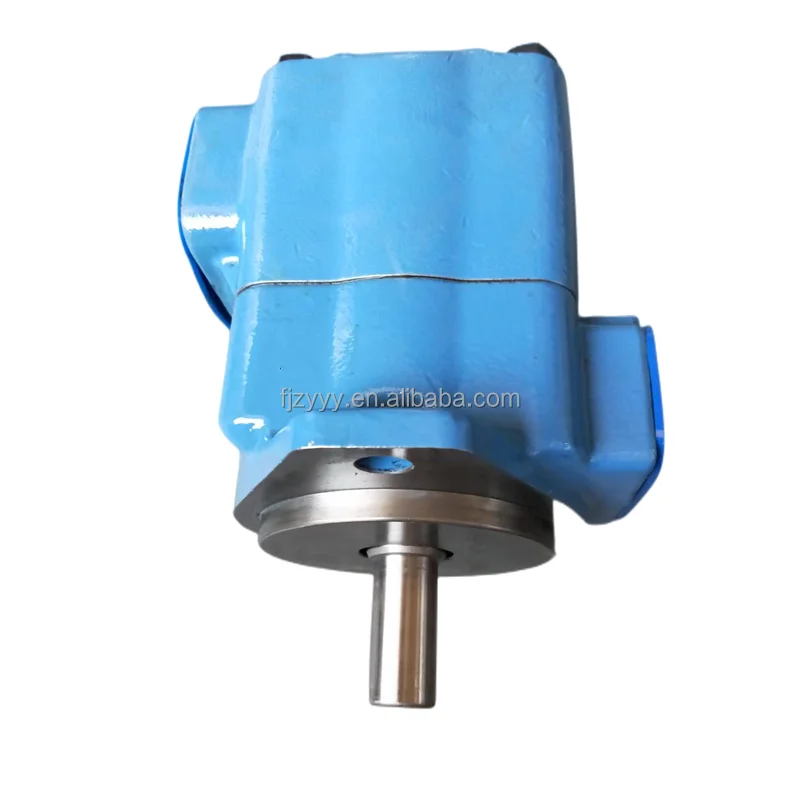

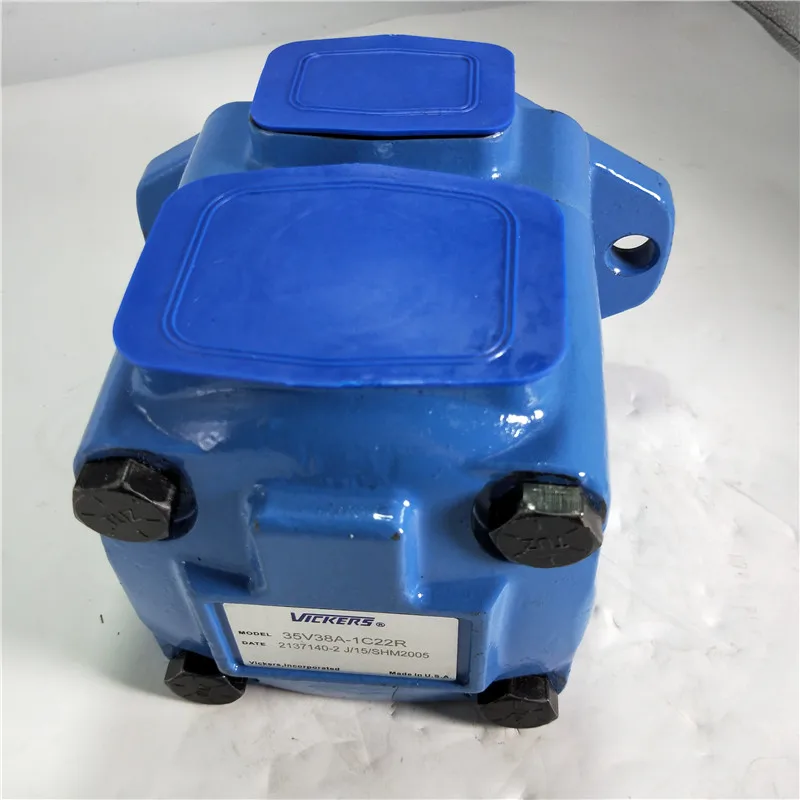

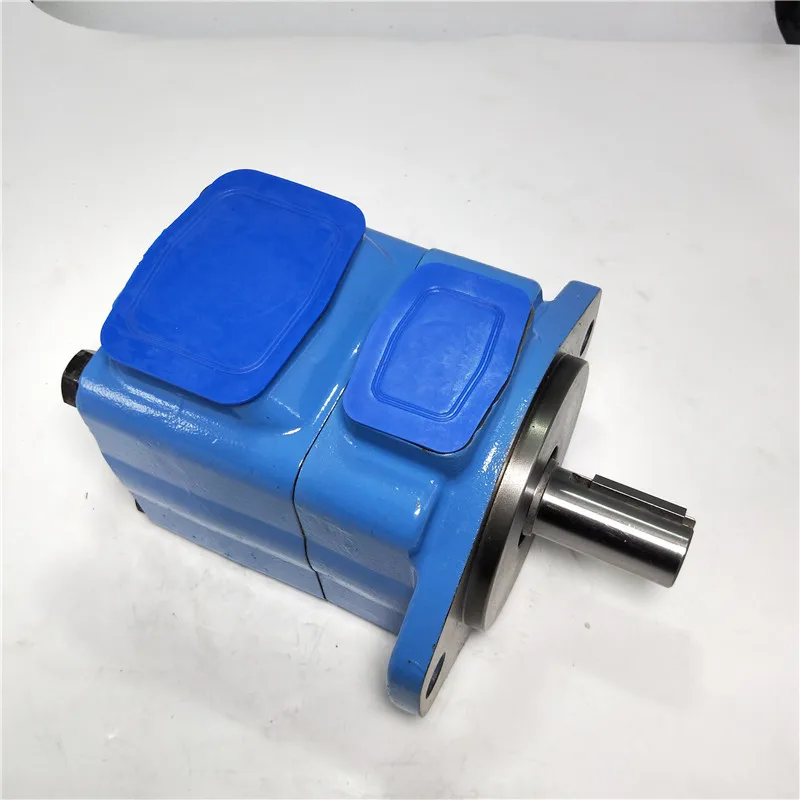

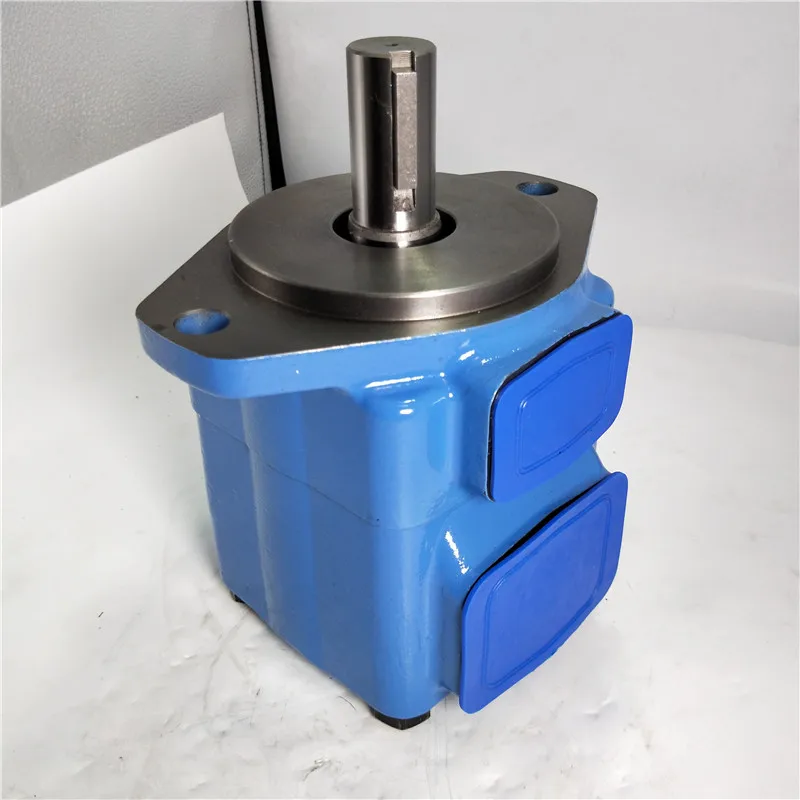

Vickers Type V Series High-Performance Industrial Vane Pumps
Product Overview: The V Series is recognized as the global benchmark for high reliability in the industrial hydraulic sector. Featuring a Pressure Balanced design, these high-pressure vane pumps are engineered for heavy-duty applications requiring 24/7 continuous and stable operation. This range features the complete specification lineup from 25V-14A/21A and 35V-30A/38A to the high-flow 45V-60A. Utilizing unique intra-vane technology, the V series effectively cancels out radial hydraulic loads at rated pressures, ensuring exceptional service life and peak volumetric efficiency—serving as the definitive power core for precision industrial equipment.
Key Technical Advantages:
Radial Pressure Balancing: Symmetrical inlet and outlet porting layouts within the pump body cancel out radial loads on the rotor, drastically reducing bearing wear and ensuring stable operation under continuous 21 MPa pressure.
Ultimate Silent Performance: The optimized 12-vane rotor design provides highly smooth flow output, significantly reducing hydraulic vibration and operational noise.
Modular Cartridge Kit Design: Features a replaceable cartridge system. Maintenance is simplified—no need to remove the entire pump housing; simply replace internal components to restore 100% performance, drastically reducing factory downtime.
Superior Thermal Stability: Precision-ground side plates and cam ring profiles ensure high-efficiency output (above 90%) even under fluctuating oil temperature conditions.
Target Applications: Plastic injection molding machines, metal shears, die-casting equipment, hydraulic brick presses, and large-scale industrial power units.
Detailed Models & Parameters:
Core Series: Vickers Type V Series (25V, 35V, 45V).

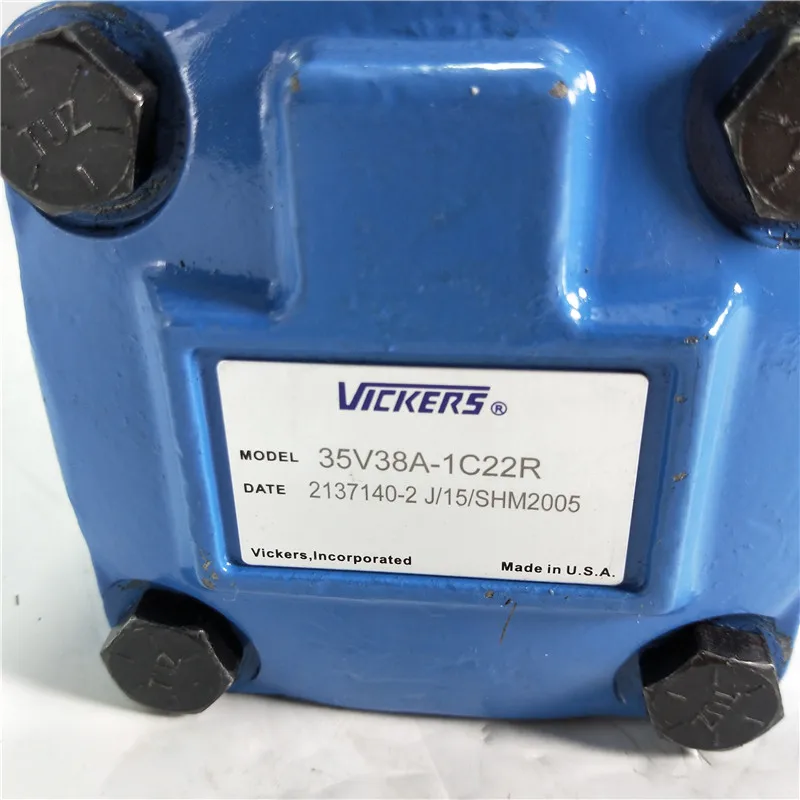

Model Keywords: 25V14A1C22R, 35V30AIC22A, 25V21A1C22R, 35V38A1B-10-180, 45V60A86C.
Flow Codes (GPM @ 1200rpm): Key specifications including 14, 21, 30, 38, and 60 GPM.
Pressure Ratings: Rated working pressures up to 17.2 – 21 MPa (172 – 210 Bar).
Technical Specs: 1C/1B/86C (Shaft and flange protocols); 22 (Design sequence); R (Right-hand/Clockwise rotation); 22L (Specific displacement identifier).
