Vickers Type SV1-10 Servo Valve | SV1-10/8/315/6 | SV1-10/16/120 | SV1-10/32/100

Vickers Type SV1-10 Series High-Response Proportional Servo Valves

Product Overview: The Vickers SV1-10 Series is a high-performance line of proportional servo directional valves engineered for precision industrial closed-loop control. As the industry standard for Size 10 (NG10) interfaces, these valves integrate advanced solenoid technology with precision-ground spool and sleeve assemblies to instantly translate complex electrical commands into accurate flow output. Whether utilized for cylinder synchronization in presses, speed control in injection molding, or dynamic simulation in test rigs, the SV1-10 series delivers exceptional stability and linearity across a pressure range of 100 Bar to 315 Bar.

Featured prominently are the high-pressure SV1-10/8/315/6, the versatile SV1-10/8/120/6, and the high-flow SV1-10/32/100/6.

Key Technical Advantages:

• High Dynamic Frequency Response: Optimized internal flow paths and lightweight spool designs ensure high control bandwidth, capable of real-time response to microsecond signal changes.

• Multi-Stage Pressure Compatibility: Available in 100 Bar, 120 Bar, and 315 Bar pressure ratings, catering to everything from standard industrial power units to high-pressure heavy-duty systems.

• Ultra-Low Hysteresis & Repeatability: Advanced friction compensation technology keeps hysteresis to a minimum, ensuring high positional and repetitive accuracy throughout the control stroke.

• Ruggedized Industrial Design: Seals and metal components are rigorously fatigue-tested to maintain a long service life under harsh vibration and high-temperature hydraulic conditions.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1-10 High Performance Series.

• Featured Model Matrix:

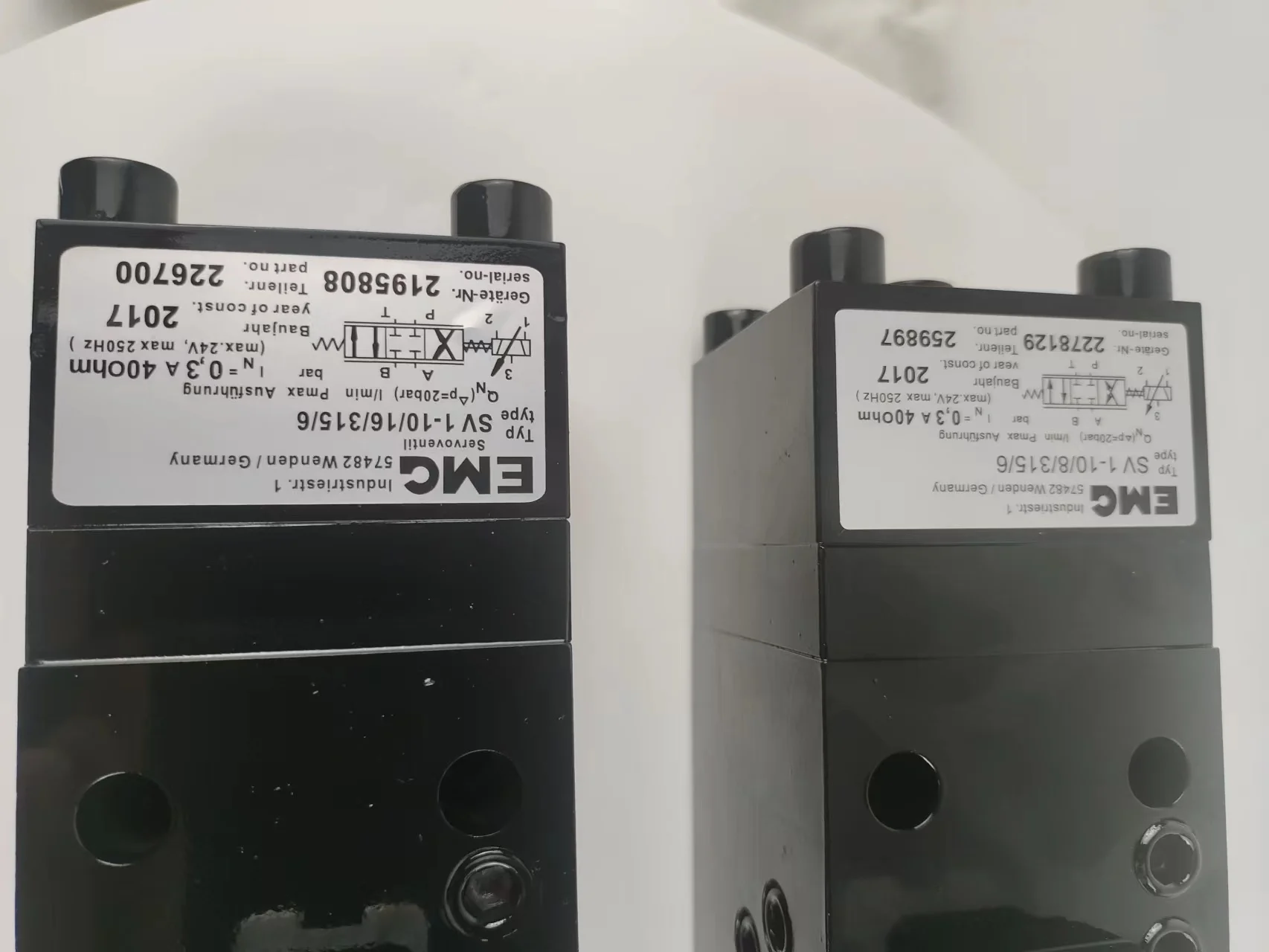

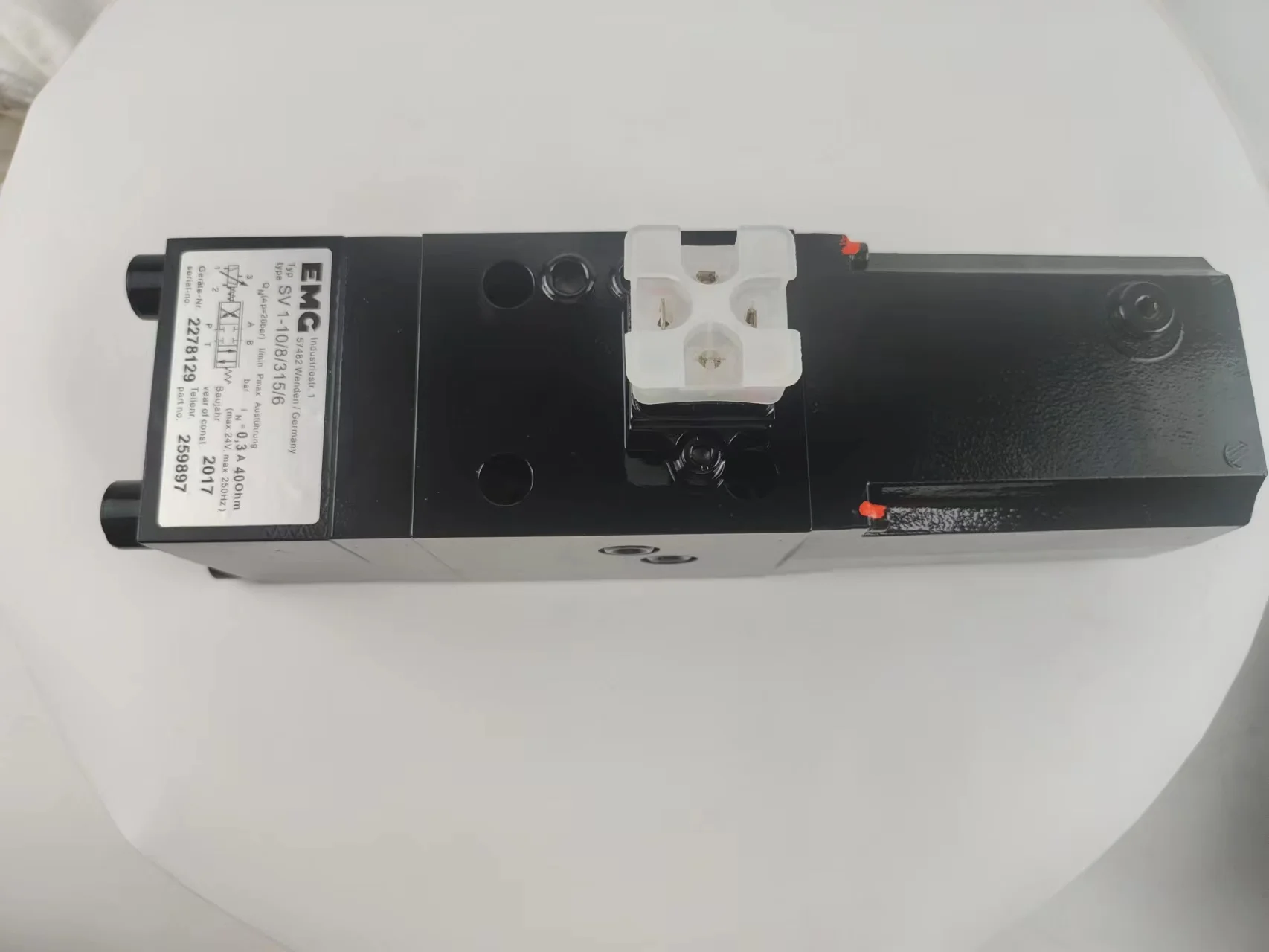

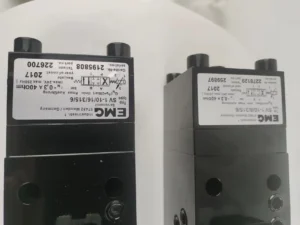

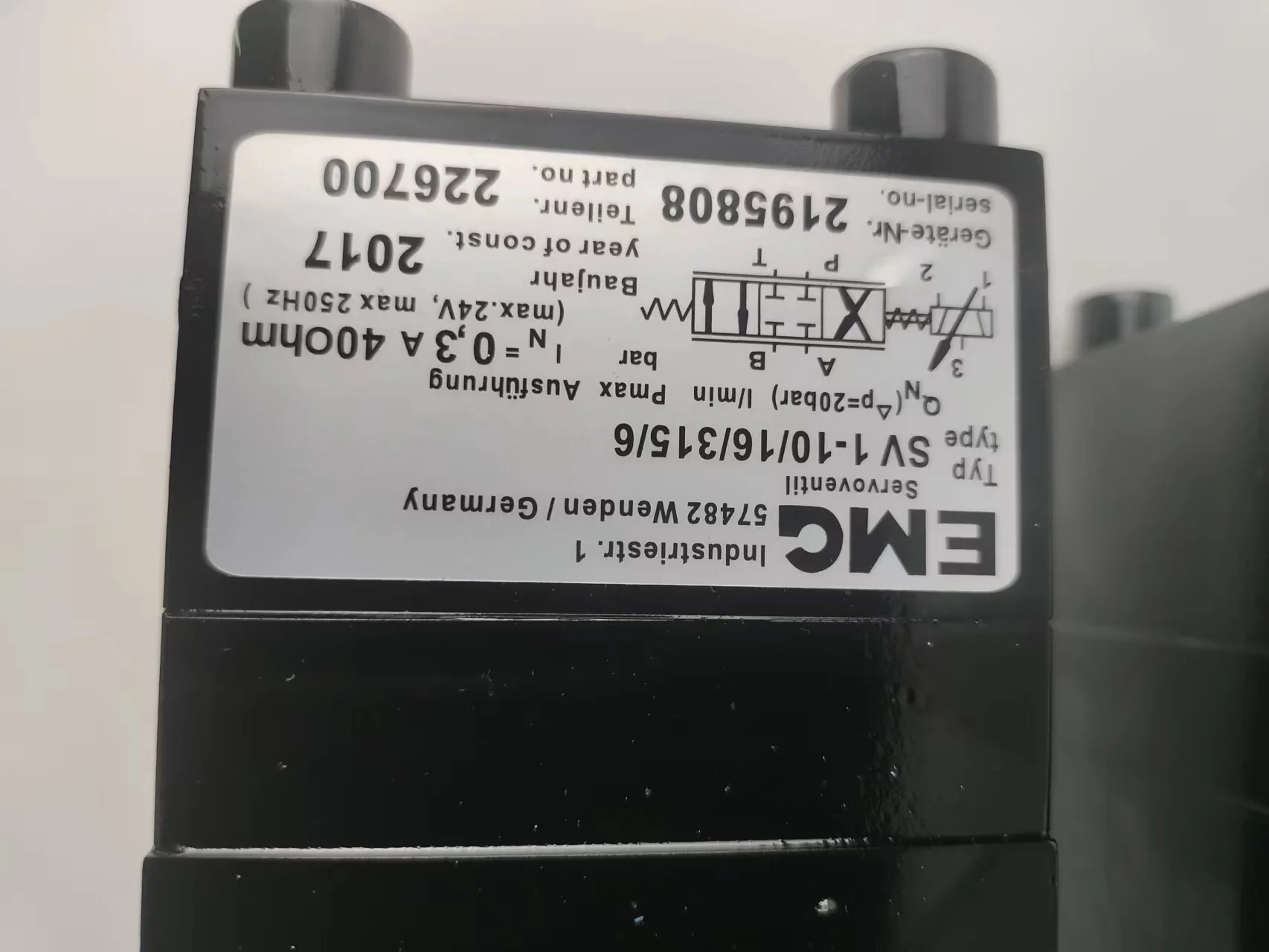

  • SV1-10/8/315/6 (Rated Flow 8 L/min, Rated Pressure 315 Bar)

  • SV1-10/8/120/6 (Rated Flow 8 L/min, Rated Pressure 120 Bar)

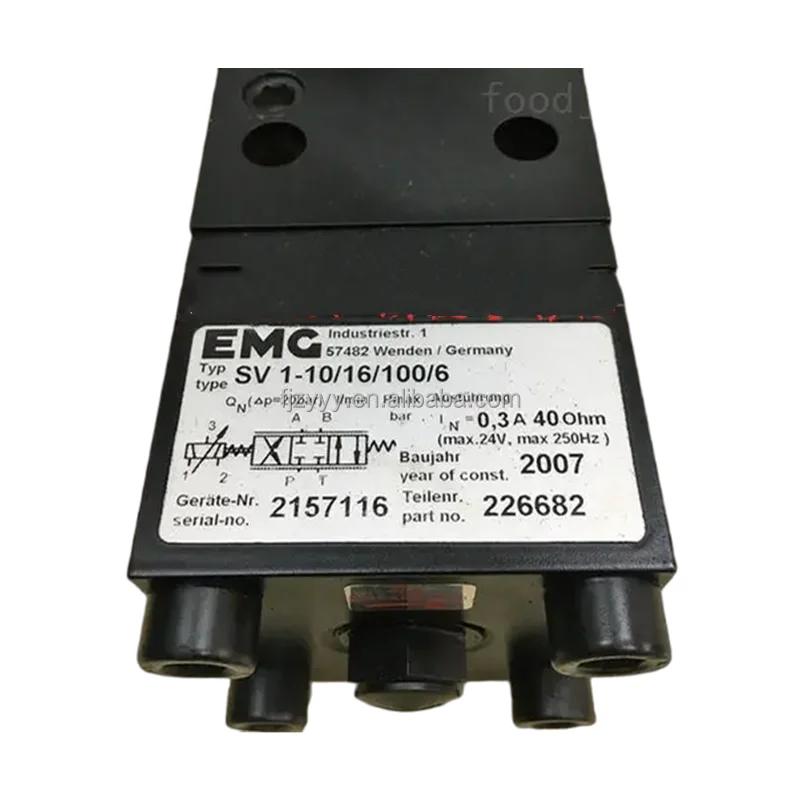

  • SV1-10/16/120/6 (Rated Flow 16 L/min, Rated Pressure 120 Bar)

  • SV1-10/32/100/6 (Rated Flow 32 L/min, Rated Pressure 100 Bar)

• Core Performance Specs:

  • Nominal Size: Size 10 (NG10 / CETOP 05).

  • Max Operating Pressure: 100 Bar, 120 Bar, or 315 Bar (model specific).

  • Rated Flow Range: 8 L/min, 16 L/min, or 32 L/min (at standard pressure drop).

  • Control Command: Analog proportional current input.

  • Design Sequence: 6 Series.
