Vickers Type PVQ Series Quiet Piston Pump | PVQ10, PVQ13 | PVQ10-A2R, PVQ12-A3R

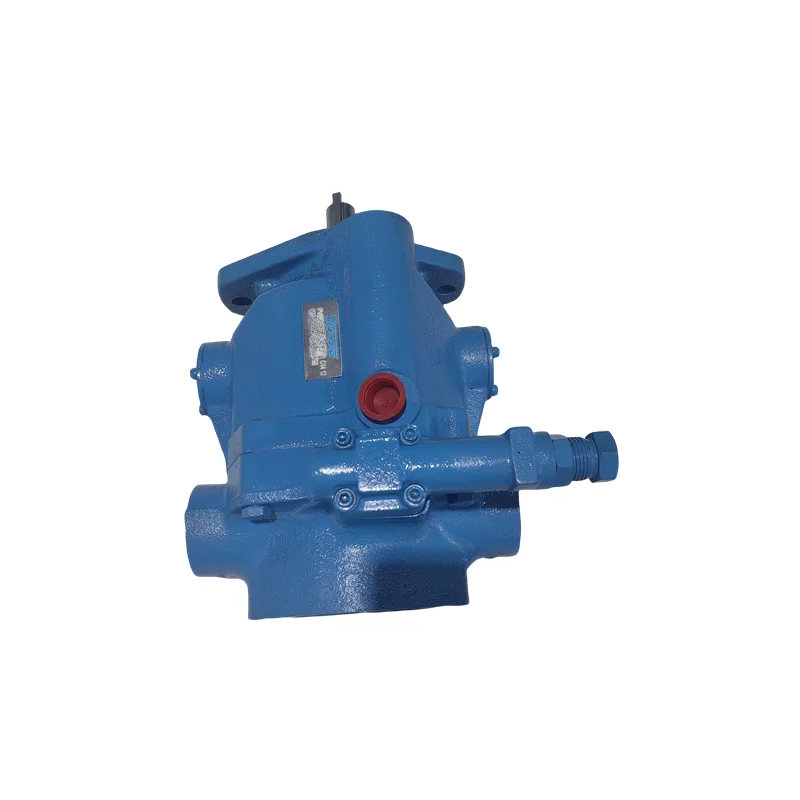

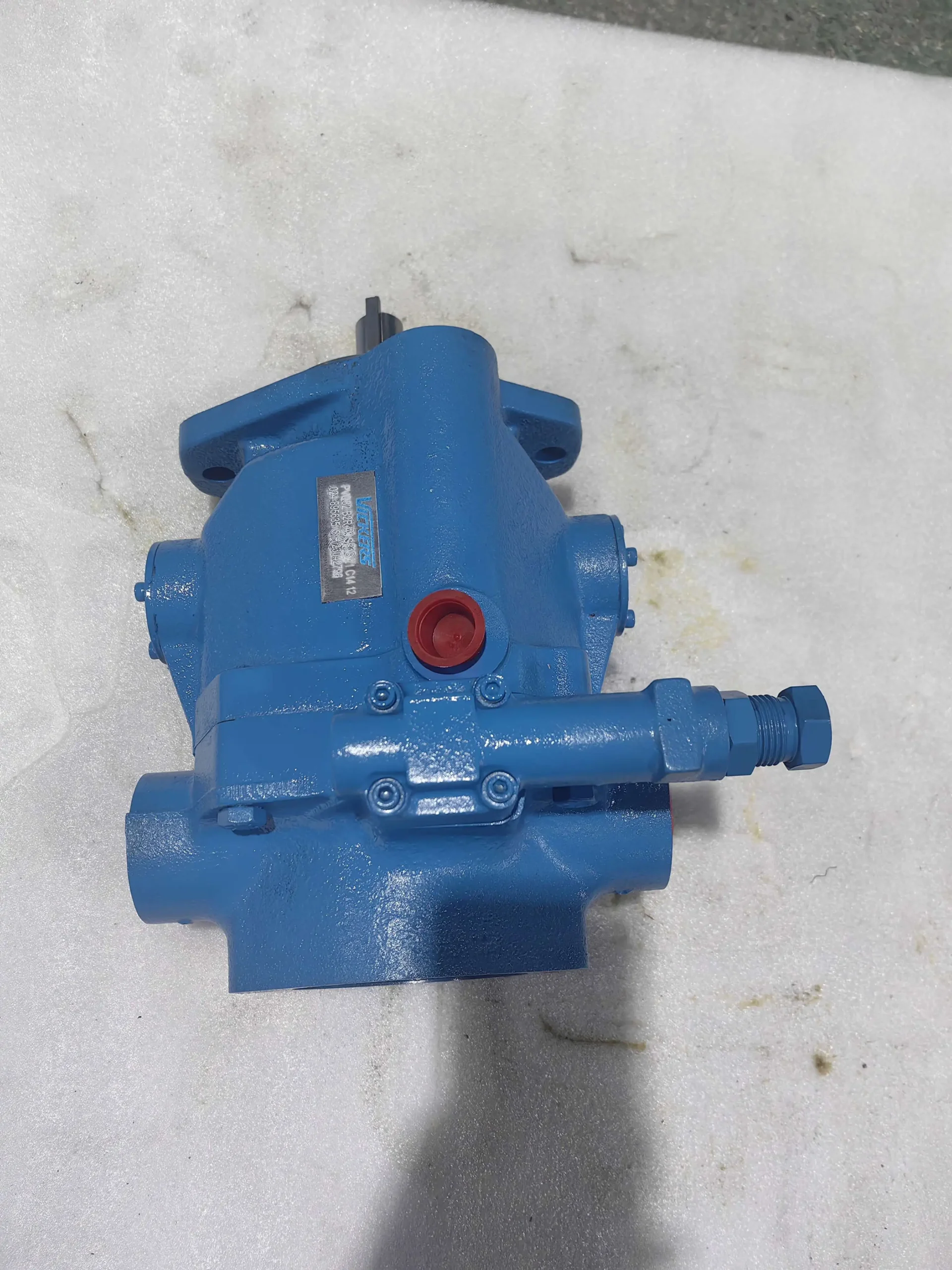

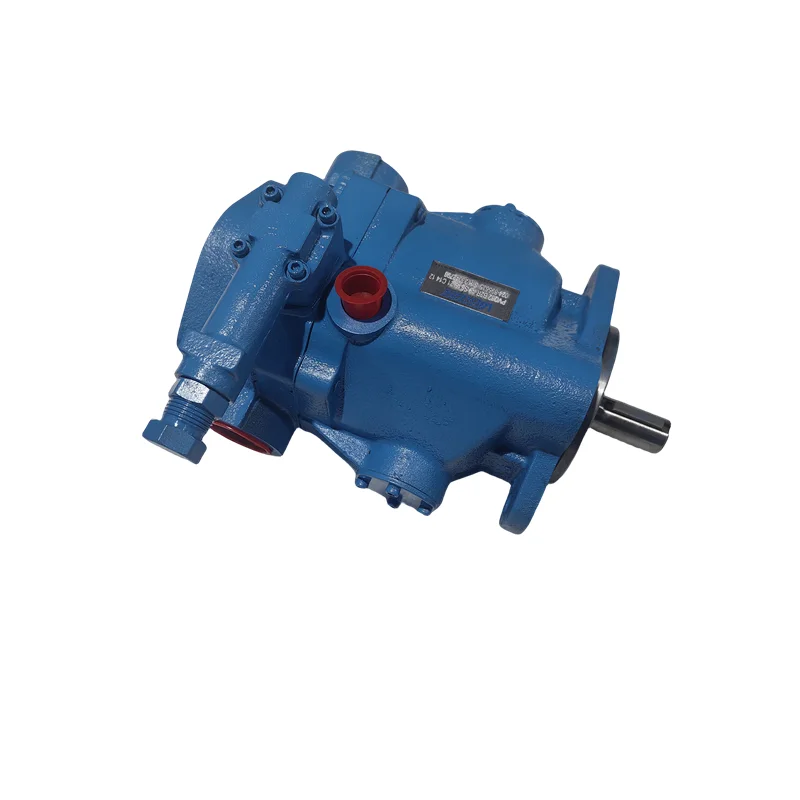

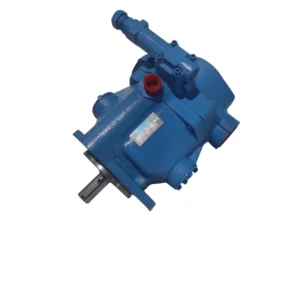

Vickers Type PVQ Series High-Performance Quiet Variable Piston Pumps

Product Overview: The PVQ Series axial piston pump is the premier power core renowned for its “Extreme Silence” in modern industrial hydraulic systems. Engineered specifically for machine tools and in-plant machinery, the PVQ series delivers efficient power with noise levels barely exceeding the electric motor itself. This range features premium specifications including PVQ10-A2R-SE1S-20CG-30, PVQ12-A3R-SE1S-20CG-33, and PVQ12-A5R-SE1S-20CG-32. Utilizing a unique timed port plate design, this series effectively eliminates pressure pulsations, making it the ideal choice for high-precision control and low-energy hydraulic power units.

Key Technical Advantages:

• Ultra-Quiet Operation: Features patented noise-reduction valve plate technology, maintaining exceptionally low decibel levels to enhance the workshop environment and meet strict occupational health standards.

• Flexible Control Options: Built-in Pressure Compensated control allows for a “pressure-holding” mode. When the preset pressure is reached, displacement automatically minimizes, drastically reducing heat generation and energy costs.

• Compact & Durable Construction: Built with high-strength cast iron housings and precision-hardened internal rotating groups, it withstands frequent starts and load cycles for tens of thousands of trouble-free hours.

• Superior Volumetric Efficiency: Maintains high efficiency even at peak pressures (up to 21 MPa), reducing internal leakage and enhancing the responsiveness of hydraulic actuators.

• Target Applications: CNC cutting machines, plastic processing equipment, brick presses, waste compactors, and automated industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Vickers Type PVQ10, PVQ13 Series (Variable Displacement).

• Model Keywords: PVQ10-A2R-SE1S-20CG-30, PVQ12-A3R-SE1S-20CG-33, PVQ12-A5R-SE1S-20CG-32.

• Displacement Ratings (cm³/rev): Featuring sizes 10.5 (PVQ10) and 13.8 (PVQ13).

• Pressure Regulation Range: A2 (7-14 MPa), A3 (10-21 MPa), A5 (14-21 MPa).

• Technical Specs: R (Right-hand rotation); SE1S (SAE A Flange & Keyed Shaft identifier); 20 (Flow rating code); CG (Pressure Compensated control code); 30/32/33 (Design sequence codes).

• Pressure Ratings: Rated operating pressures up to 21 MPa (210 Bar).
