Vickers Type PVCM & PVC Series Pump-Mounted Proportional Control Valves

Product Overview: The Vickers PVCM Series consists of electro-hydraulic proportional control modules specifically designed for integration onto axial piston pumps (such as the PVH and PVQ series). These modules precisely regulate pump displacement and output pressure based on electrical input signals, enabling dynamic P/Q (Pressure/Flow) closed-loop control. Whether in injection molding machines, industrial extrusion equipment, or mobile machinery power systems, the PVCM module significantly enhances system response and energy efficiency, serving as a key component in transitioning from fixed to intelligent variable displacement control.

This selection integrates essential control configurations, including the standard PVCMET1N1, the high-performance feedback-equipped PVCMEFCN, and the specialized PVCMAMCN.

Key Technical Advantages:

• Pump-Valve Integrated Design: Mounted directly on the piston pump housing, this design drastically reduces external piping, minimizes system vibration and leakage risks, and shortens control response times.

• Precise P/Q Regulation: Dynamically adjusts the pump swashplate angle based on load demand to achieve constant power, pressure, or flow, effectively reducing relief losses and system heat generation.

• Advanced Feedback Options: Models like the PVCMEFCN support LVDT position or pressure sensor feedback, ensuring high linearity and repeatability even under complex operating conditions.

• Industrial Durability: Valve bodies are machined from high-strength alloy steel to withstand high-frequency pressure pulsations from the pump, ensuring long-term stability in harsh environments.

Detailed Specifications & Parameters:

• Core Series: Vickers PVCM / PVC / PVCR / PVCMAM Series.

• Featured Model Matrix:

  • PVCMET1N1 (Standard proportional displacement control)

  • PVCMEFCN3X5932 / Pvcmefcn (Electro-hydraulic proportional module with advanced feedback)

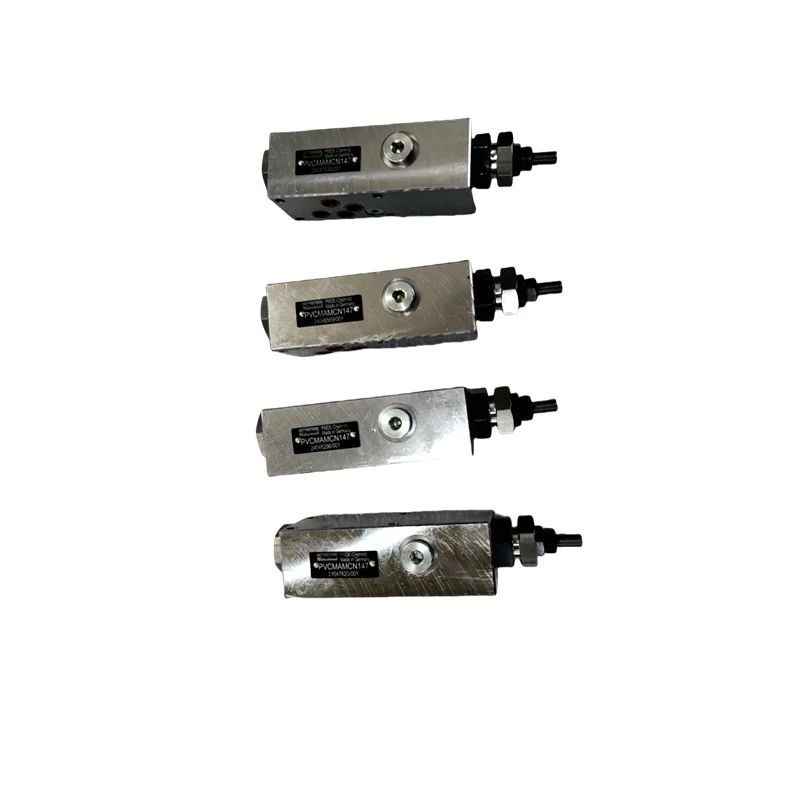

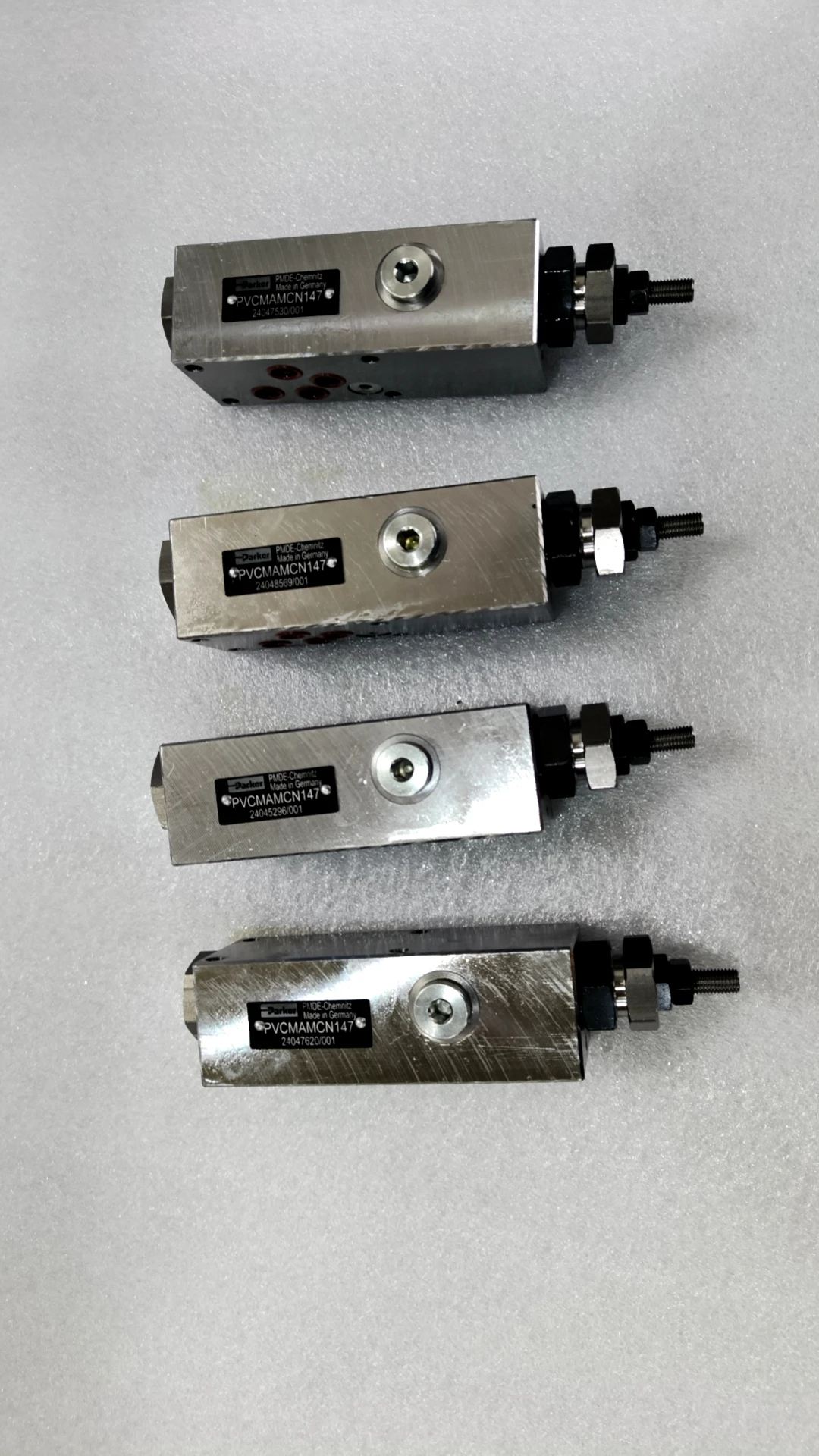

  • PVCMAMCN147 (Derived sequence for specific industrial applications)

• Core Performance Specs:

  • Control Type: Electro-Hydraulic Proportional.

  • Pump Compatibility: Optimized for Vickers Axial Piston Pumps.

  • Supply Voltage: Typically 24V DC (depending on coil configuration).

  • Feedback Type: Supports LVDT position feedback or external pressure compensation signals.

  • Design Sequences: 3X, 1N industrial design standards.
