Vickers Type KDG4V Proportional Valve | KDG4V-5-33C50N | KDG4V-3-33C30X | NG6 NG10 Valve

Model Number

KDG4V-3, KDG4V-5

Inquiry

Product Description

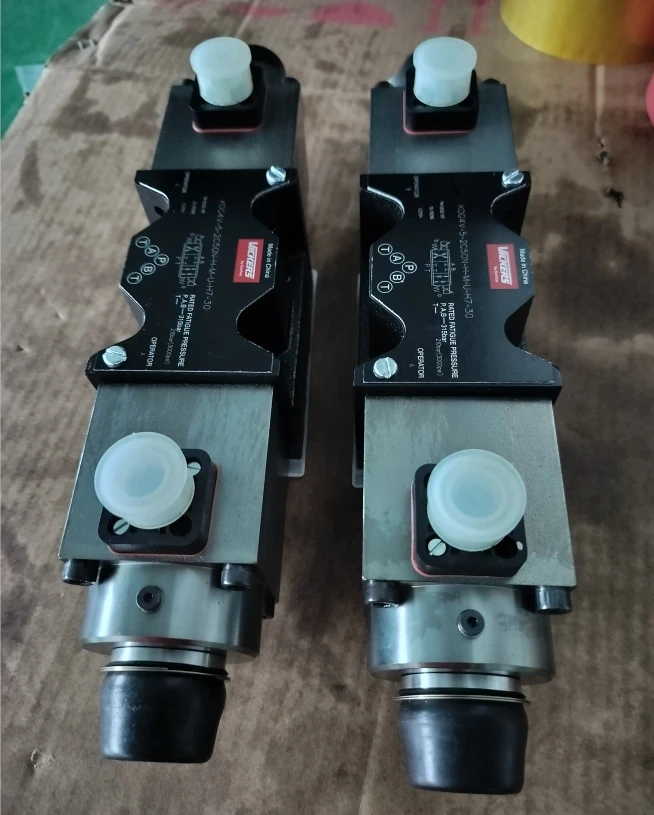

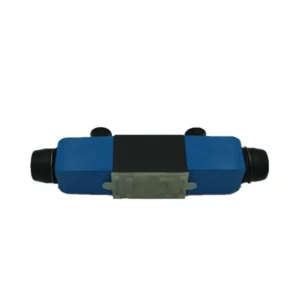

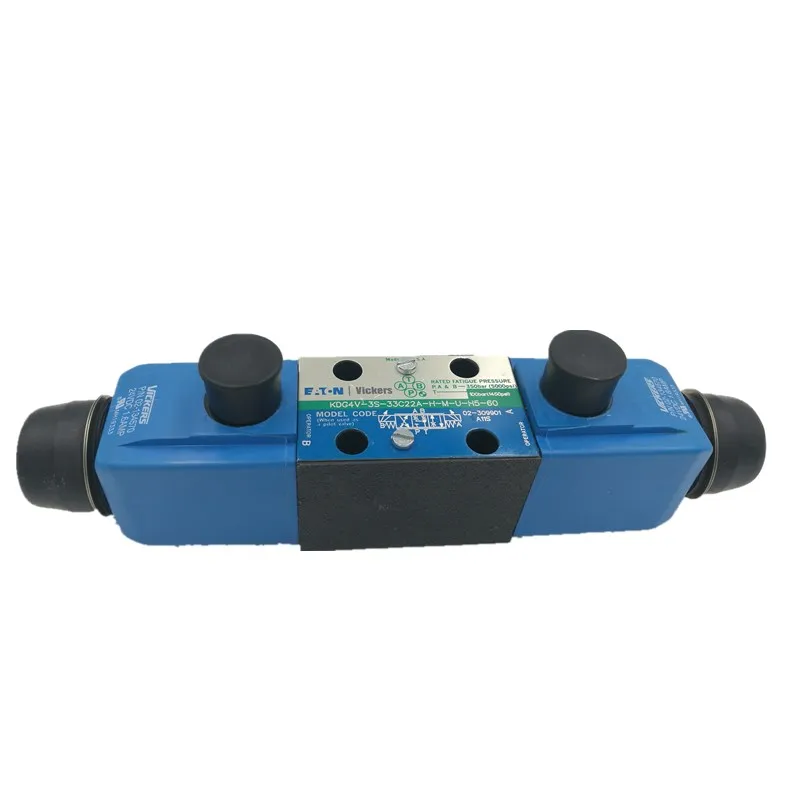

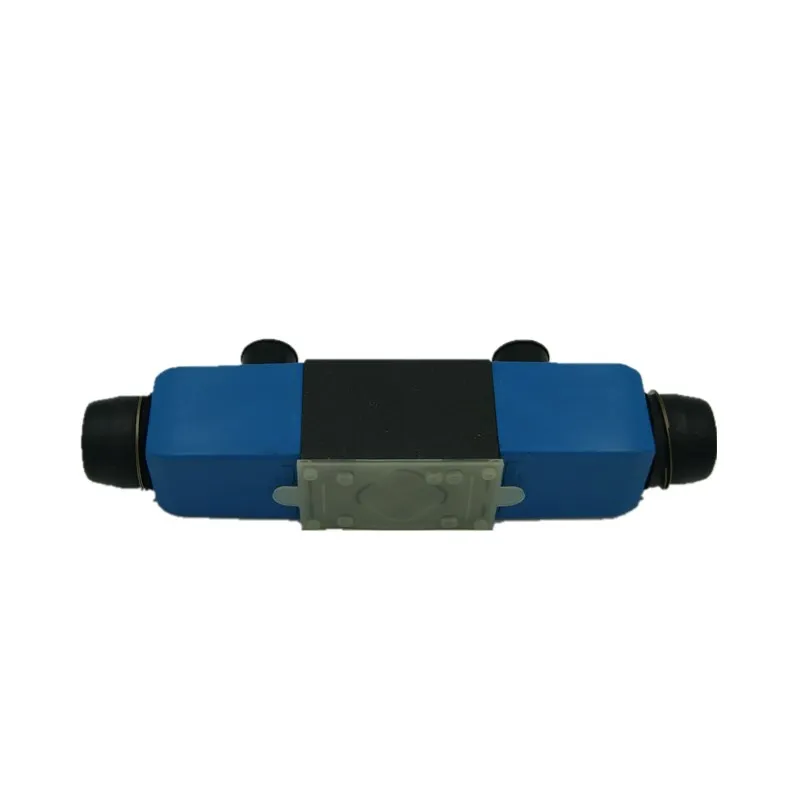

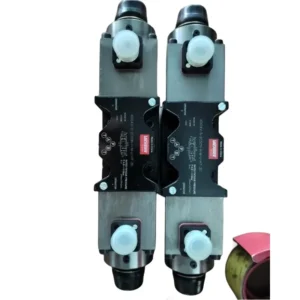

Vickers Type KDG4V-3 & KDG4V-5 Series Proportional Directional Valves

Product Overview: The Vickers KDG4V Series consists of direct-operated proportional solenoid valves designed for the stepless and precise regulation of flow and direction within hydraulic systems. Available in Size 3 (NG6 / CETOP 03) and Size 5 (NG10 / CETOP 05) footprints, this range offers exceptional dynamic response and control linearity. It is the premier choice for plastic machinery, die-casting equipment, heavy industrial automation, and high-precision hydraulic control circuits.

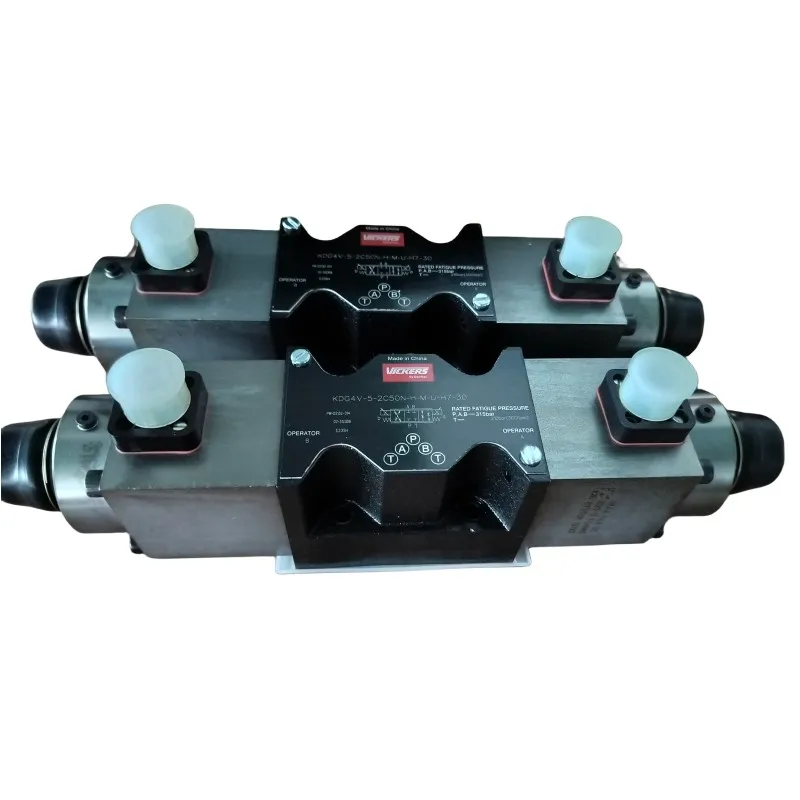

This selection highlights primary configurations: the high-flow KDG4V-5-33C50N (with Z specs) and KDG4-5-33C50N-H, alongside the compact KDG4V-3-33C30X (60-design sequence).

Key Technical Advantages:

  • Precision Proportional Control: Proportional solenoids drive the spool to precisely control actuator speeds via input current signals, effectively eliminating switching shocks.

  • Wet-Pin Solenoid Architecture: Armatures operate fully immersed in oil for superior self-lubrication and heat dissipation, ensuring ultra-quiet operation and extended mechanical service life.

  • High Dynamic Response: Optimized 30 and 60 design sequences significantly reduce hysteresis, ideal for precision applications requiring frequent and rapid switching.

  • Global Mounting Standard: Strictly adheres to ISO 4401 mounting standards, ensuring seamless integration with global proportional controllers and hydraulic manifolds.

Detailed Specifications & Parameters:

  • Core Series: Vickers Type KDG4V Series (Design 30/60).

  • Featured Model Matrix: KDG4V-5-33C50N-Z-M-U-H7-30, KDG4-5-33C50N-H-M-U-HA7-30, KDG4V-3-33C30X-H-M-U-H7-60.

  • Core Performance Specs:

    • Nominal Sizes: Size 3 (NG6) and Size 5 (NG10).

    • Max Operating Pressure: Rated up to 315 Bar (4,500 PSI).

    • Flow Control Ratings: 30X (30 L/min); 50N (50 L/min) ratings.

    • Spool Functions: 33C (3-pos proportional control, closed center).

    • Electrical Interface: H7 (Standard DIN connector); HA7 (Special coil/actuation options).

    • Auxiliary Features: M (Manual Override); Z (Zero-adjustment or specific function spec).
