Vickers Type Double Vane Pump V Series | 2520V, 3520V, 3525V, 4525V, 4535V

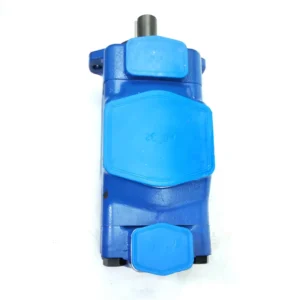

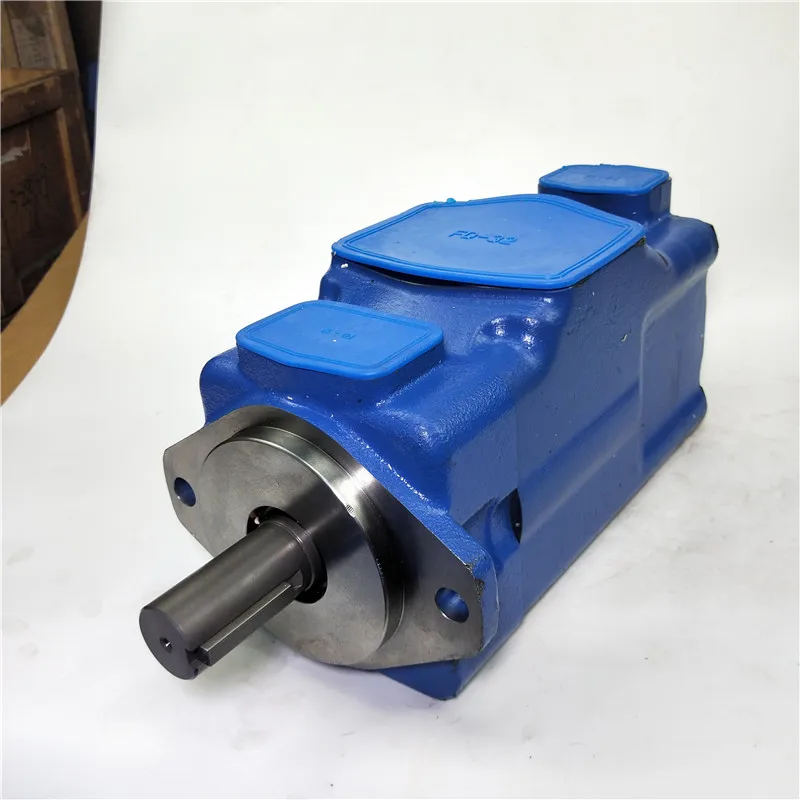

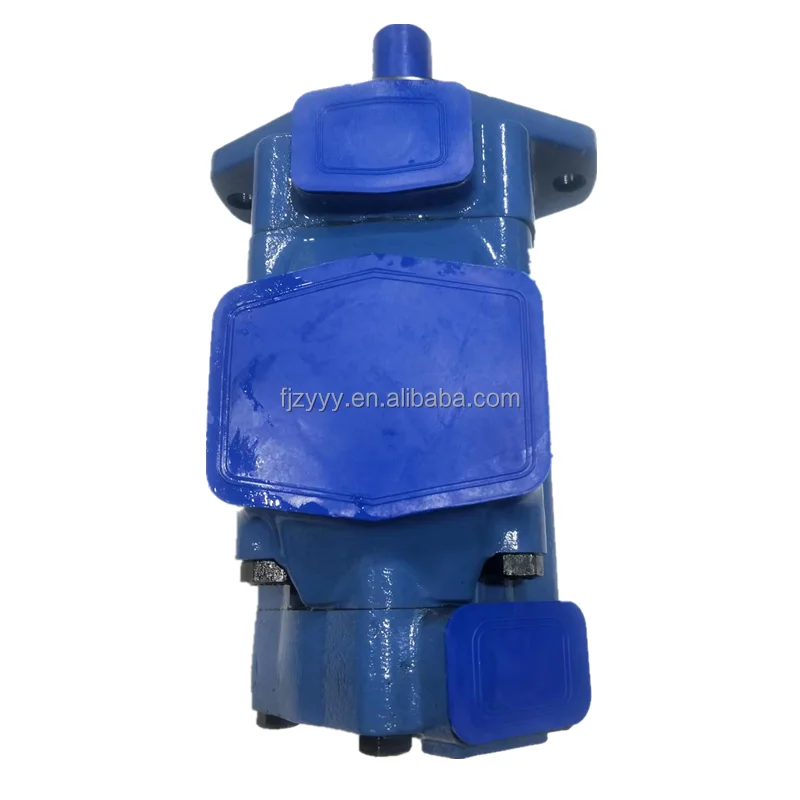

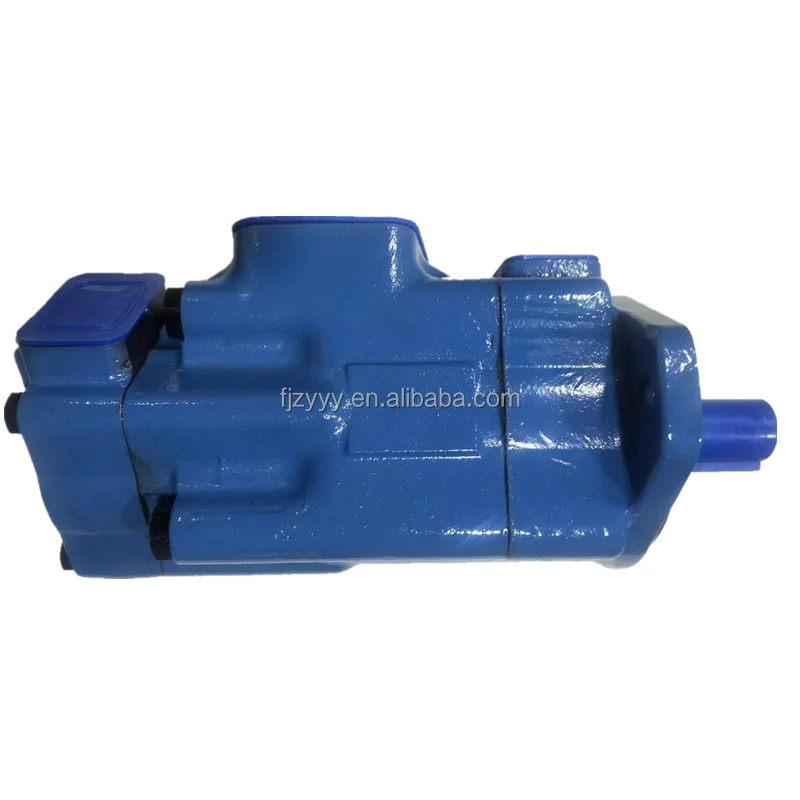

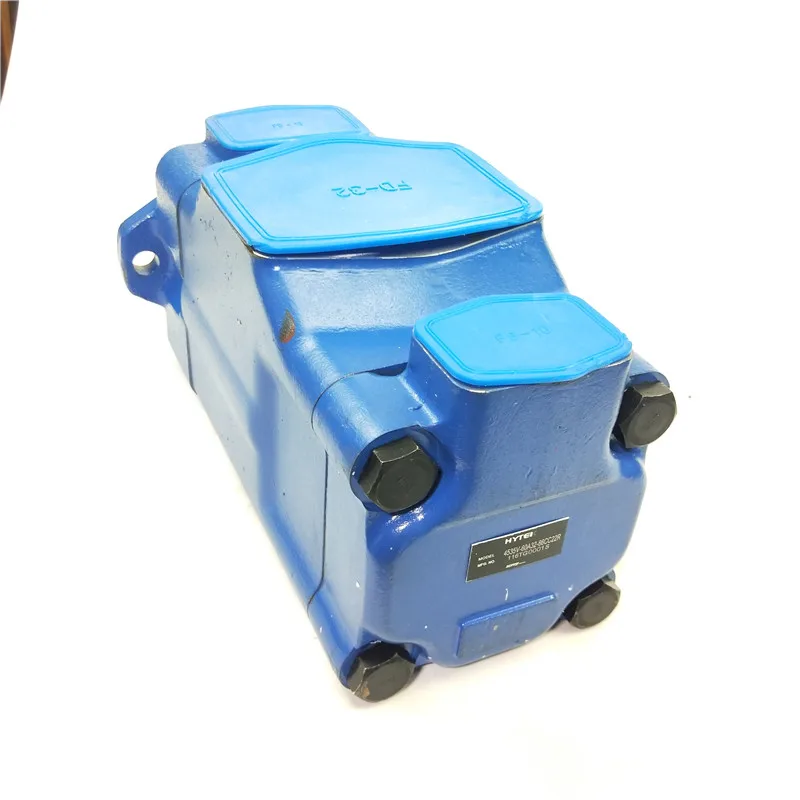

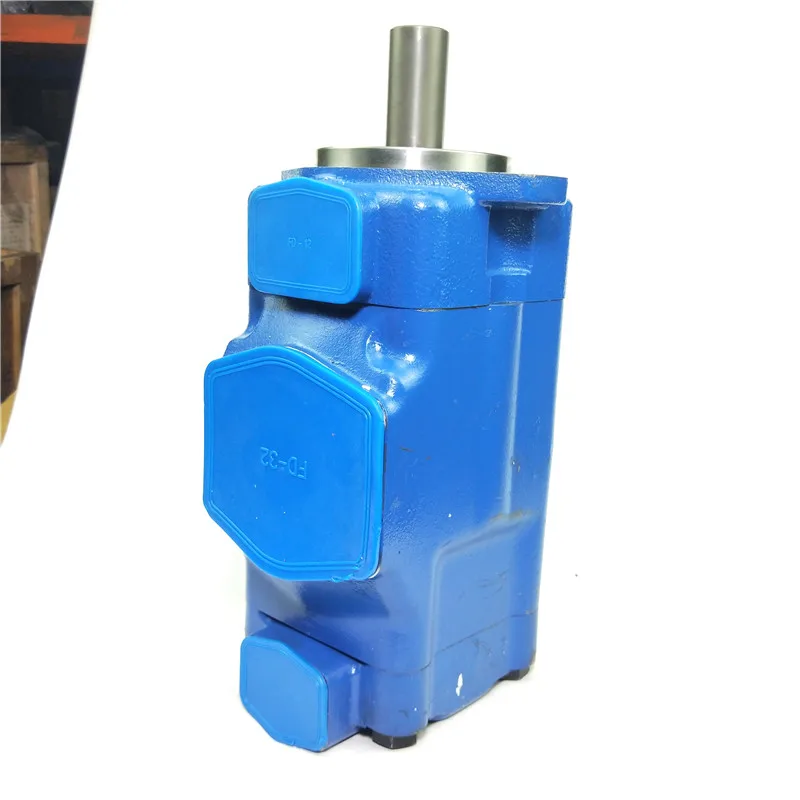

Vickers Type V Series High-Performance Double Vane Pumps

Product Overview: The V Series Double Vane Pump is the core power source for implementing multi-circuit flow control in industrial and mobile hydraulic systems. Utilizing the time-tested Intra-Vane design, this series integrates two independent cartridge kits within a single housing, enabling high-low pressure combinations or multi-flow outputs. This range features premium specifications including 2520V, 3520V, 3525V, 4520V, 4525V, and the high-power 4535V. Through various configurations such as 4535V-60A32-86CC22R, 3525V35A21-11CC-10, and 3520V-30A14-1AA-22R, users can precisely match complex actuator requirements for maximum energy efficiency.

Key Technical Advantages:

• Efficient Double Design: Delivers two independent flows from a single drive shaft, reducing the number of motors required and simplifying hydraulic circuit layouts.

• Intra-Vane Technology: Reduces the pressure exerted by the vanes on the stator curve, significantly minimizing wear and ensuring an exceptionally long service life even under high-pressure conditions.

• Ultimate Silence & Low Pulsation: Optimized 12-vane construction ensures smooth fluid output and drastically reduces operational noise, meeting strict indoor industrial decibel requirements.

• Modular Cartridge Kits: Features a “drop-in” cartridge design. Maintenance is streamlined—swap the cartridge kit without disconnecting main plumbing to restore factory performance and minimize downtime.

• Target Applications: Widely used in injection molding machinery, brick presses, scrap metal balers, heavy-duty machine tools, and industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Vickers Type V Series Double Pump.

• Model Keywords: 2520V, 3520V, 3525V, 4520V, 4525V, 4535V.

• Specific Configurations: 4535V-60A32-86CC22R, 3525V35A21-11CC-10, 3520V-30A14-1AA-22R.

• Flow Ratings (USgpm @ 1200rpm): * Shaft End Pump: 25, 30, 35, 38, 42, 45, 50, 60

  • Cover End Pump: 5, 8, 11, 12, 14, 17, 19, 21, 25, 30, 35, 38

• Technical Specs: F (Flange Mounting); A (Shaft type identifier); CC (Port position: Cover end relative to inlet end); 22R (Design sequence and Right-hand rotation).

• Pressure Ratings: Rated continuous working pressure up to 17.2 – 21 MPa (172 – 210 Bar).
