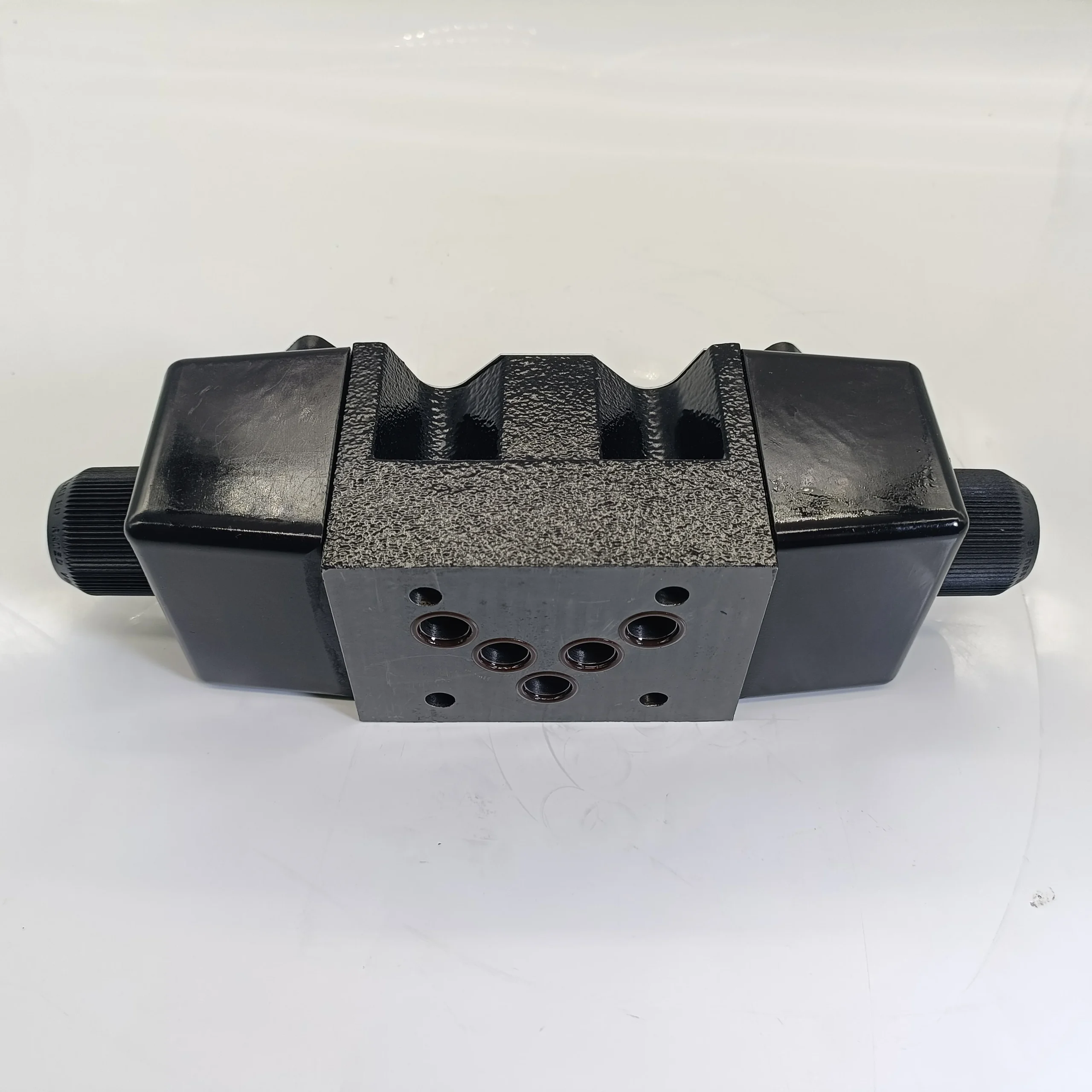

Vickers Type DG4V & DG5V Series Industrial Solenoid Directional Valves

Product Overview: The Vickers DG Series is a globally recognized benchmark for directional control in the hydraulic industry. This category integrates the full spectrum from direct-acting to pilot-operated valves: covering the compact Size 3 (NG6), the standard Size 5 (NG10), and the high-capacity pilot-operated Size 7 (NG16). Renowned for superior switching power limits, low-pressure drop designs, and extended mechanical life, these valves are the premier choice for heavy-duty machine tools, die-casting machinery, metallurgical equipment, and mobile hydraulics.

Featured models include the detented DG4V-3-2N, the 2-position single solenoid DG4V-5-2A, and the high-performance pilot-operated DG5V-7-8C.

Key Technical Advantages:

• Comprehensive Size Range: Offers a seamless transition from direct-acting (DG4V) to pilot-operated (DG5V) series, supporting everything from precision micro-control to high-power flow switching.

• Wet-Pin Solenoid Architecture: Armatures operate fully immersed in oil for superior self-lubrication and heat dissipation, ensuring ultra-quiet operation and high shock resistance.

• Efficient Pilot Control: The DG5V-7 series utilizes pilot pressure to shift the main spool, maintaining minimal electrical power consumption even under extreme system pressures and flows.

• Global Standard Mounting: Strictly adheres to ISO 4401 mounting standards, ensuring 100% interchangeability with leading hydraulic brands worldwide.

Detailed Specifications & Parameters:

• Core Series: Vickers Type DG4V (Direct) & DG5V (Pilot Operated) Series.

• Featured Model Matrix:

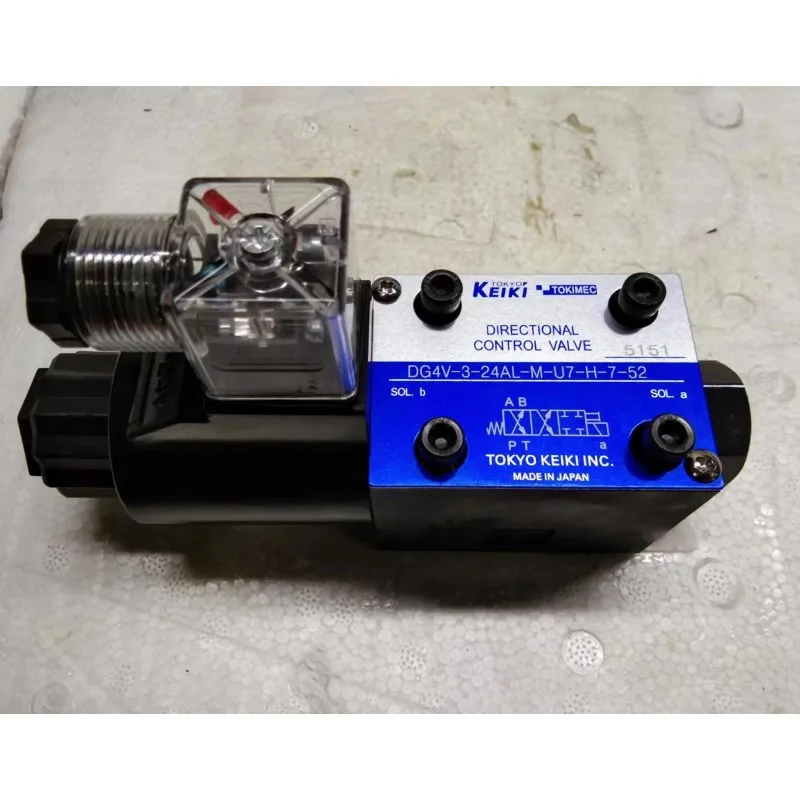

  • DG4V-3-2N-M-P2-T-7-5 (Size 3, Detented Type)

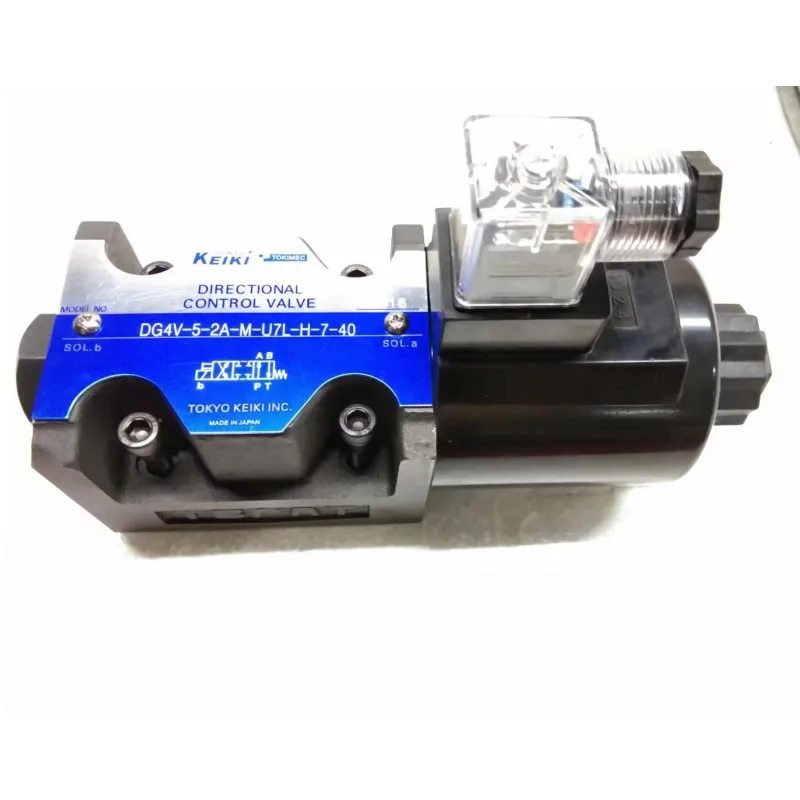

  • DG4V-5-2A-M-P7L-D-6-40 (Size 5, Single Solenoid Spring Offset)

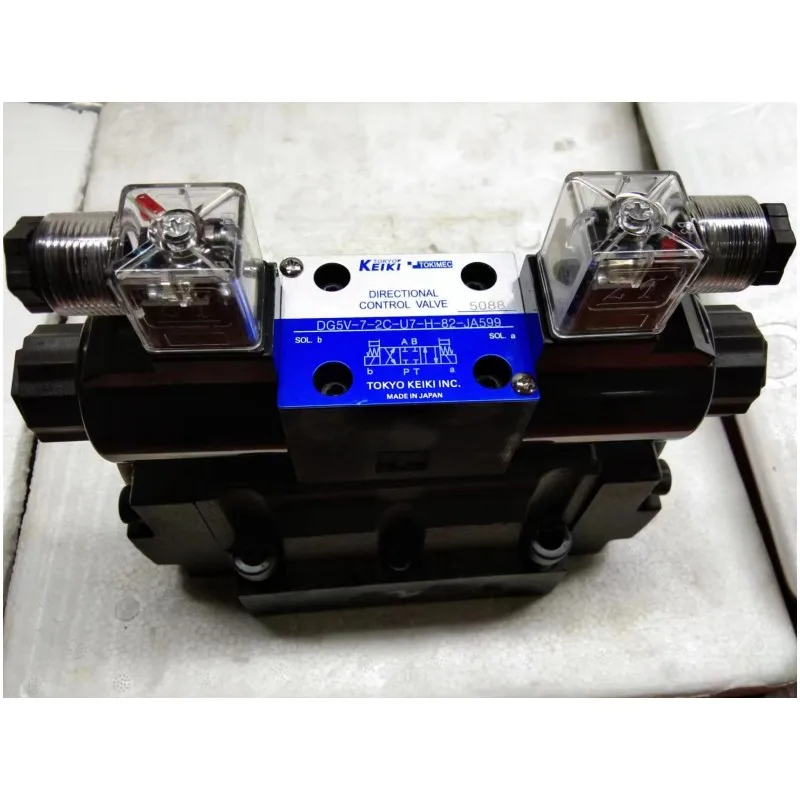

  • DG5V-7-8C-E-T-M-U1-H-7-52-S (Size 7, Pilot Operated 3-pos)

• Core Performance Specs:

  • Nominal Sizes: Size 3 (NG6), Size 5 (NG10), Size 7 (NG16 / CETOP 07).

  • Max Operating Pressure: Rated up to 315 Bar (4,500 PSI) to 350 Bar.

  • Operation Type: Direct-acting (DG4V); Pilot-operated (DG5V).

  • Voltage Specs: P2 (110V AC); P7L (220V AC); U1 (12V DC) available.

  • Spool Functions: 2N (Detented); 2A (Spring offset); 8C (Pilot spool logic).

  • Design Sequences: 5, 40, 52 Series.
