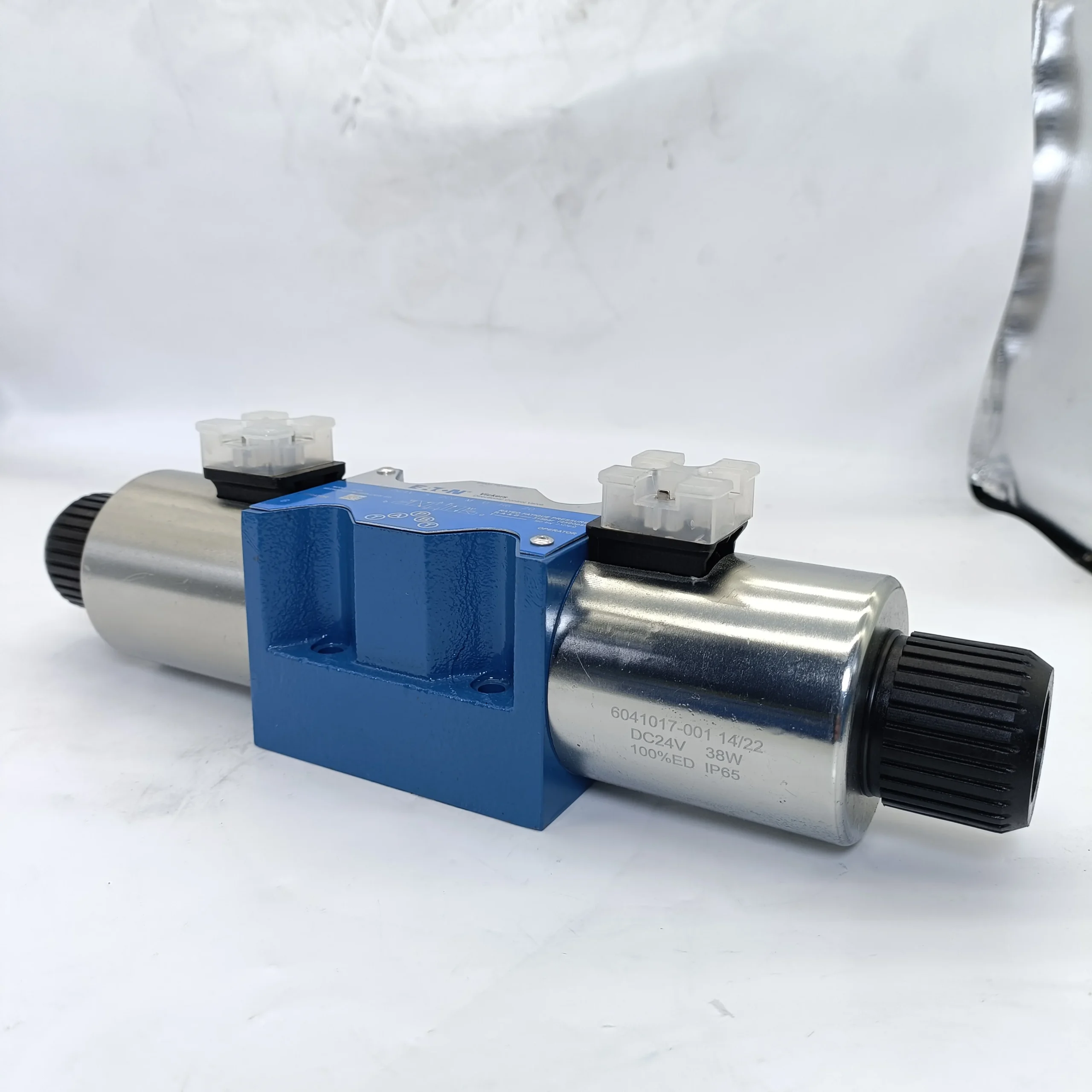

Vickers Type DG4V DG5V Valve | DG4V-3-6C-M-U7-H-100 | NG6 Solenoid Valve
| Model Number | DG4V-3-6C-M-U7-H-100 |
|---|
Product Description

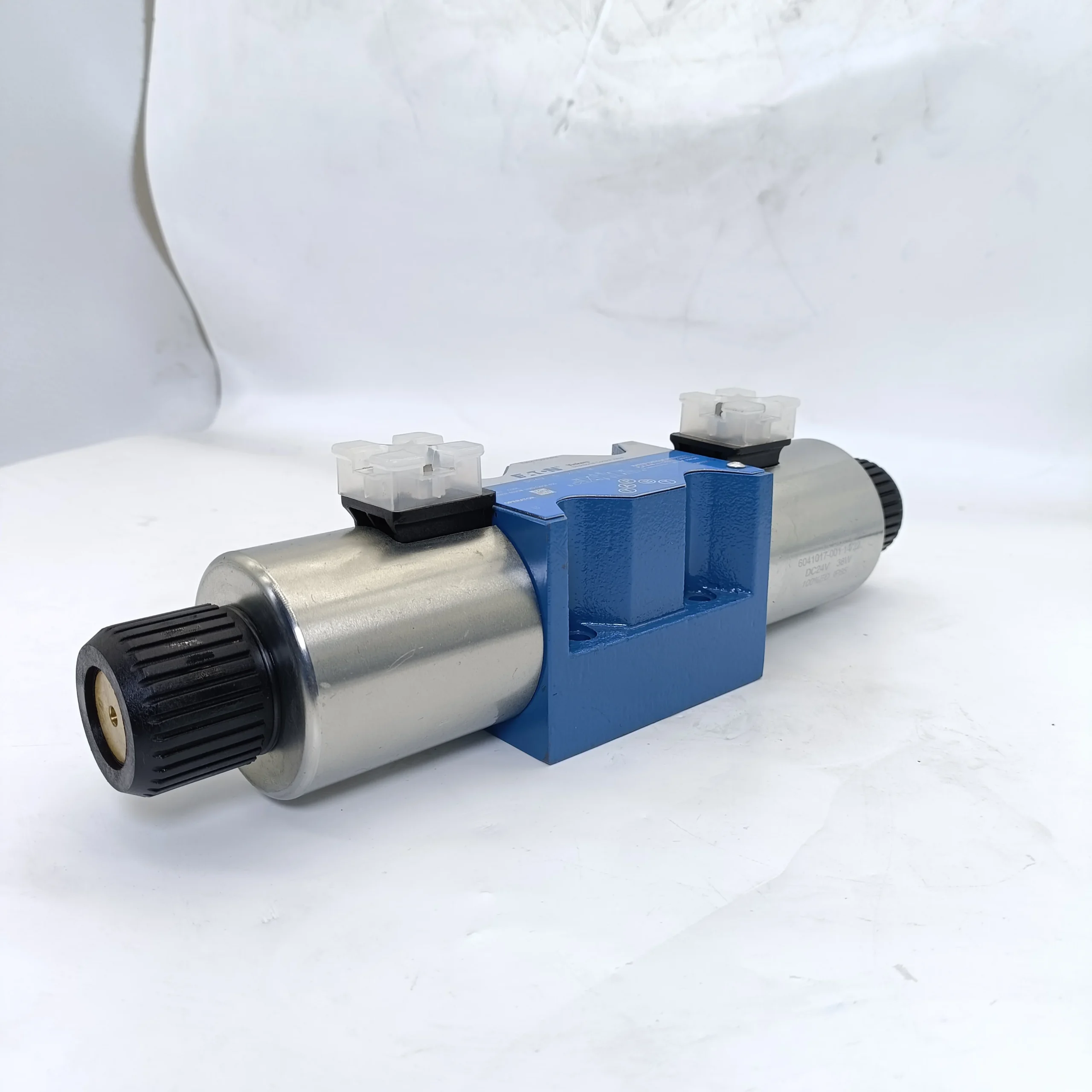

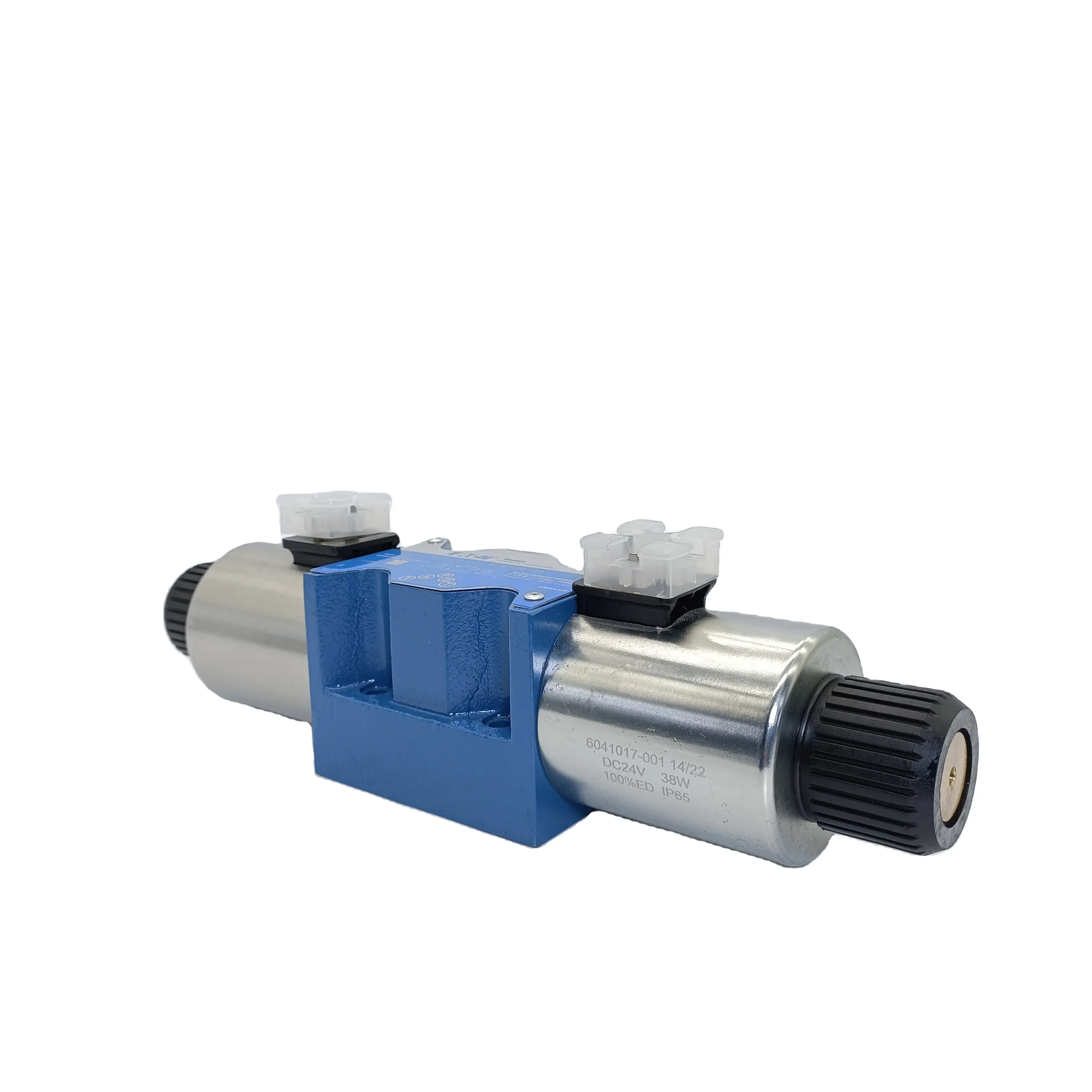

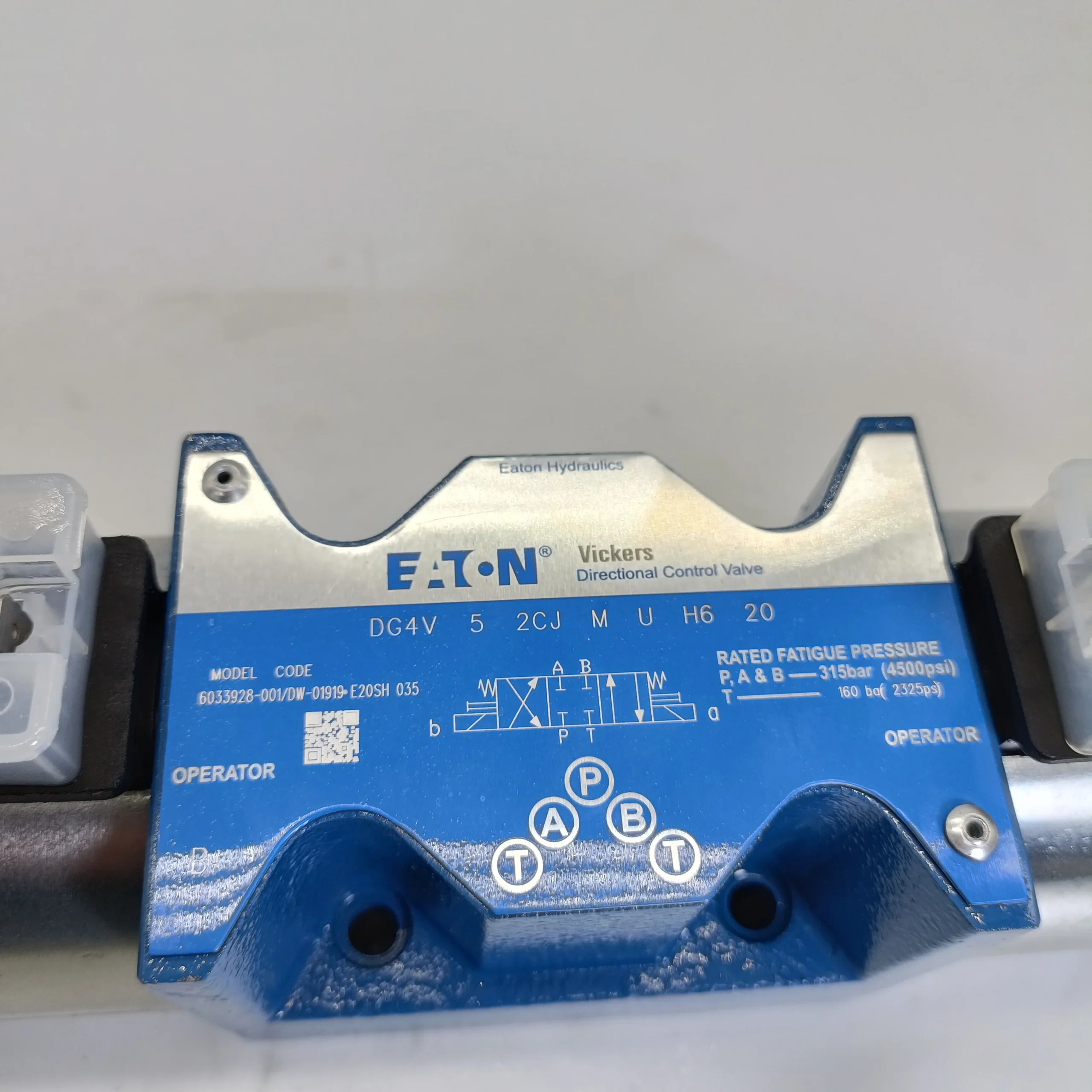

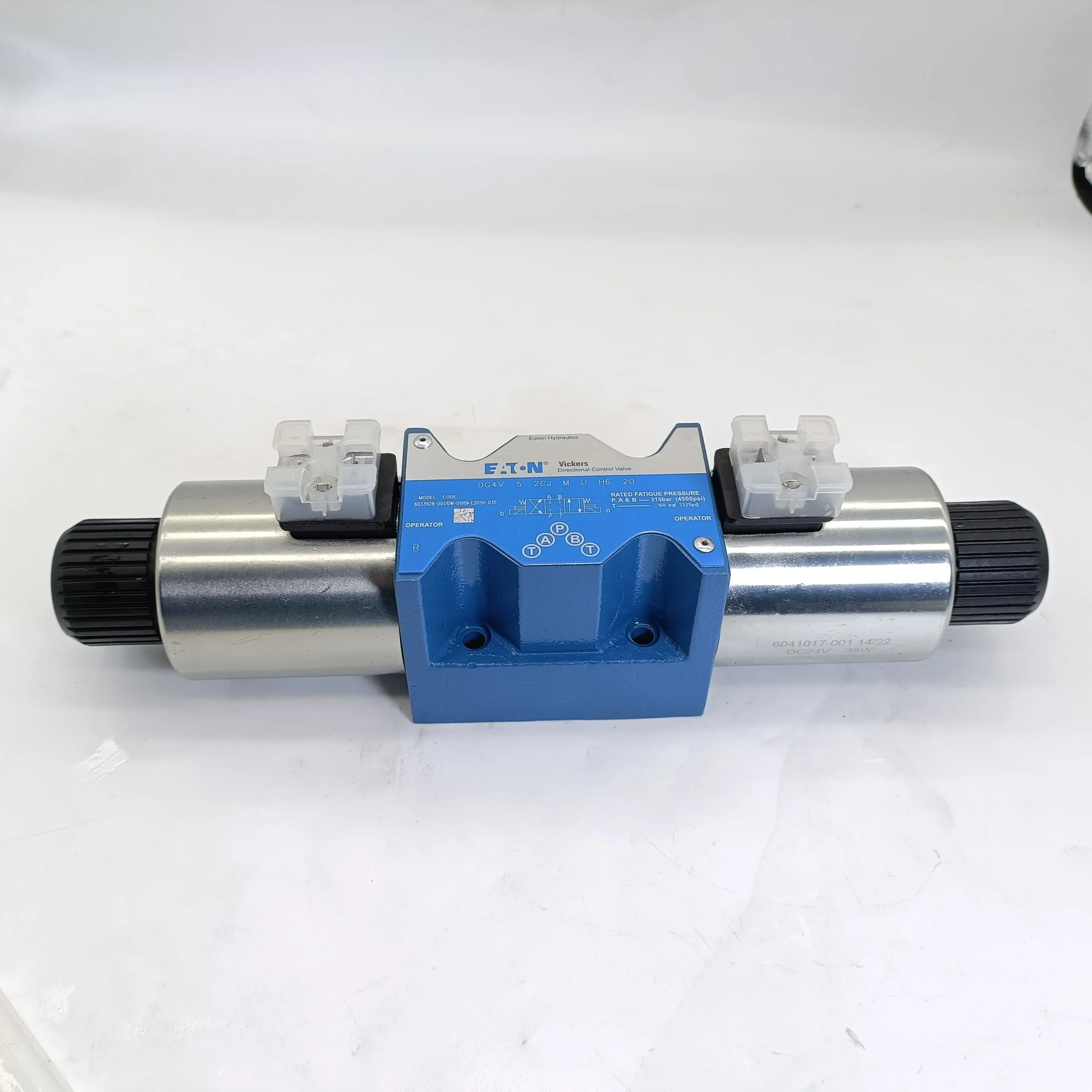

Vickers Type DG4V & DG5V Series Solenoid Directional Valves
Product Overview: The Vickers DG4V and DG5V Series represent the global standard for high-reliability directional control. The DG4V-3 is a direct-operated series utilizing the Size 3 (NG6 / CETOP 03) footprint, renowned for its high switching power limits and superior contamination resistance. In contrast, the DG5V series serves as the pilot-operated variant, engineered to handle significantly higher flow rates.
This category focuses on the high-specification DG4V-3-6C-M-U7-H-100 model. This valve utilizes wet-pin solenoid technology to ensure quiet operation and an extended service life under demanding conditions. Its 6C spool function (3-position, 4-way, all ports open in center) makes it an excellent choice for unloading circuits. It is widely used in CNC machine tools, injection molding machinery, material handling equipment, and automated production lines.
Key Technical Advantages:
High-Performance Direct Action: The DG4V-3 features optimized internal geometries that minimize pressure drop and enhance switching stability under high-pressure conditions.
Wet-Pin Solenoid Engineering: The armature operates fully immersed in hydraulic fluid, effectively absorbing switching shocks and providing self-lubrication for maximum coil longevity.
Rugged Reliability: Built with high protection ratings (IP) to withstand industrial vibrations and temperature fluctuations during 24/7 operations.

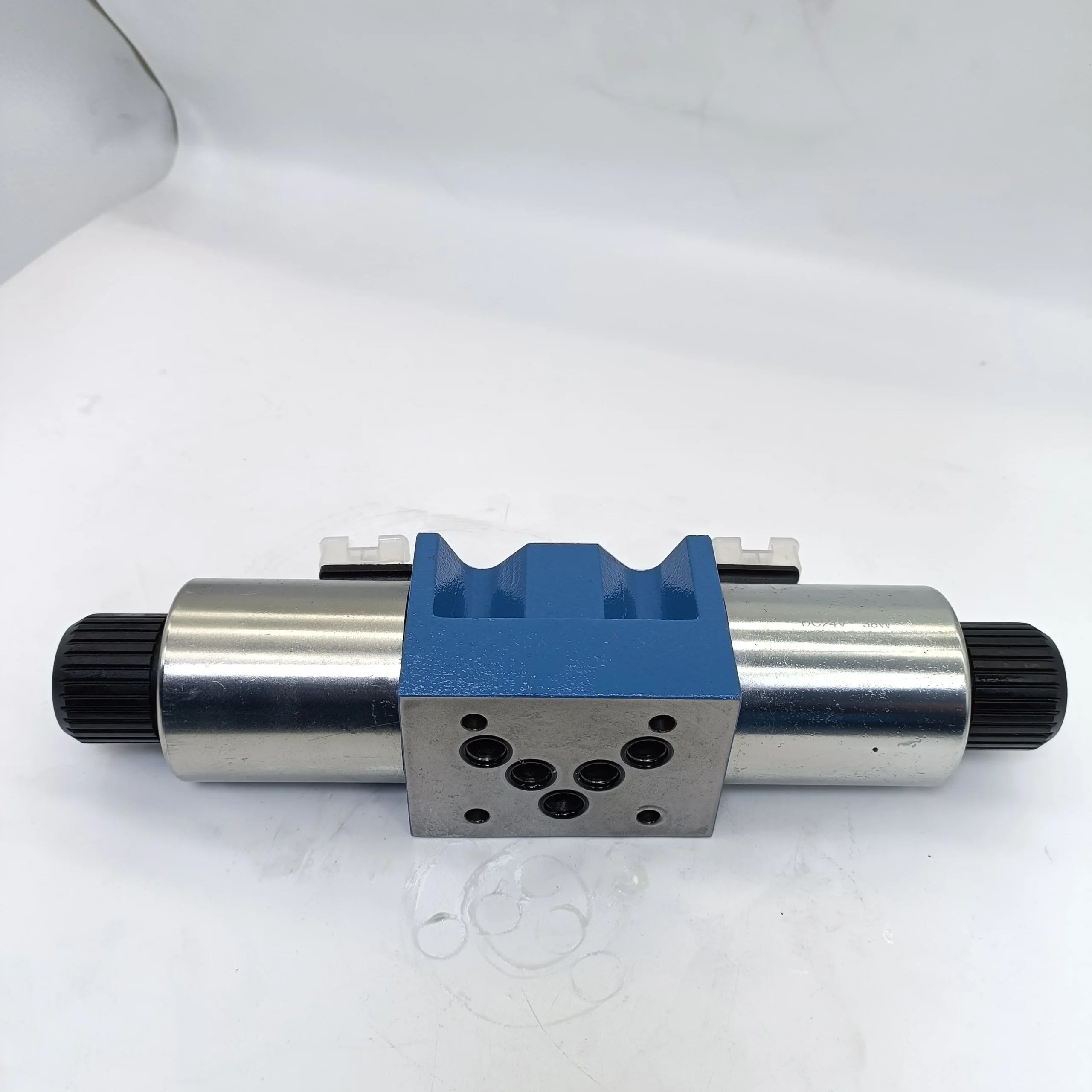

Standardized Mounting: Fully compliant with ISO 4401 mounting patterns, ensuring seamless interchangeability with leading global hydraulic brands.
Detailed Specifications & Parameters:
Core Series: Vickers Type DG4V/DG5V Solenoid Valve.
Featured Model: DG4V-3-6C-M-U7-H-100.
Core Performance Specs:
Nominal Size: Size 3 (NG6 / CETOP 03).
Max Operating Pressure: Rated up to 350 Bar (5,076 PSI).
Max Flow Capacity: Rated up to 80 L/min (21 GPM).
Spool Function: 6C (3-position, 4-way, P/A/B/T all open in center).
Electrical Interface: U7 (Standard connector interface).
Design Sequence: 100 Series.
