Vickers Type DG4V-3 Valve | DG4V-3-2C | DG4V-3S-2C | DG4V-3-6N | NG6 Solenoid Valve

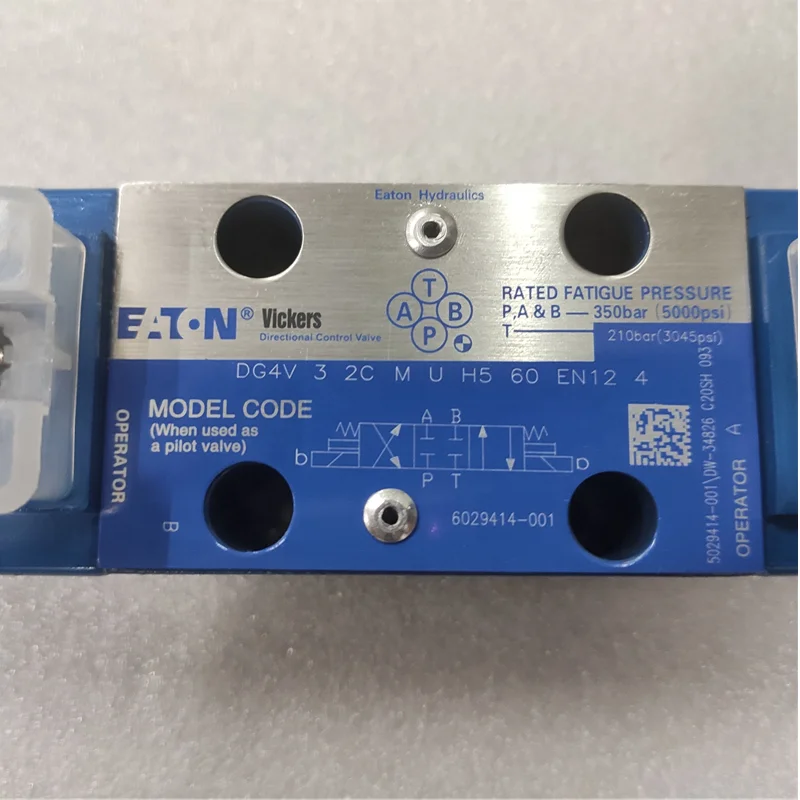

| Model Number | DG4V 3 2C M U H5 60 EN12 4, DG4V-3S-2C-M-U-H7-60, DG4V-3-6N-M-U-H7-60 |
|---|
Product Description

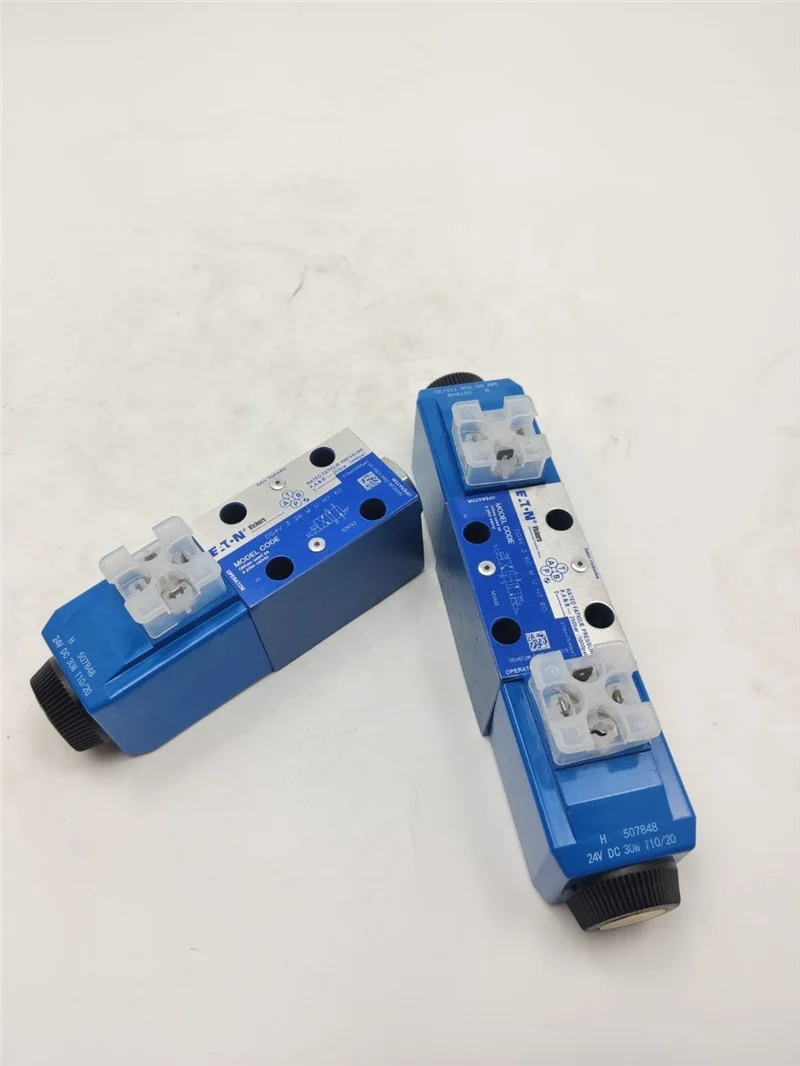

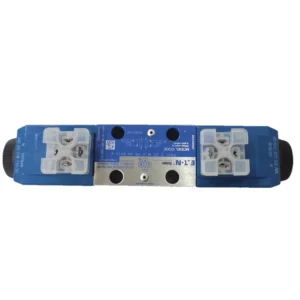

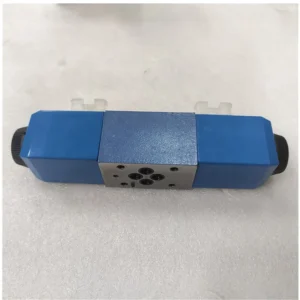

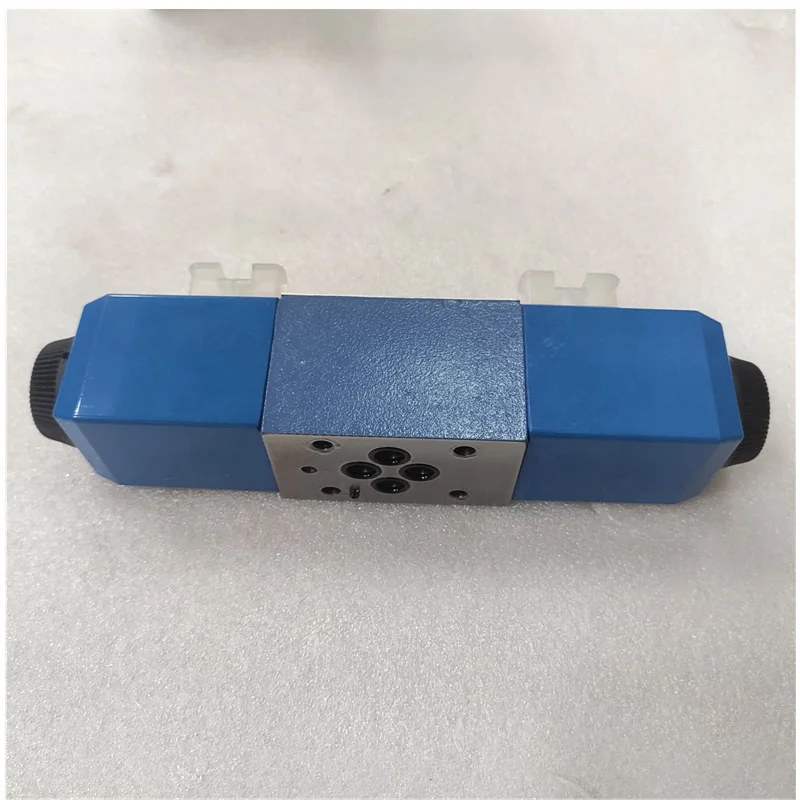

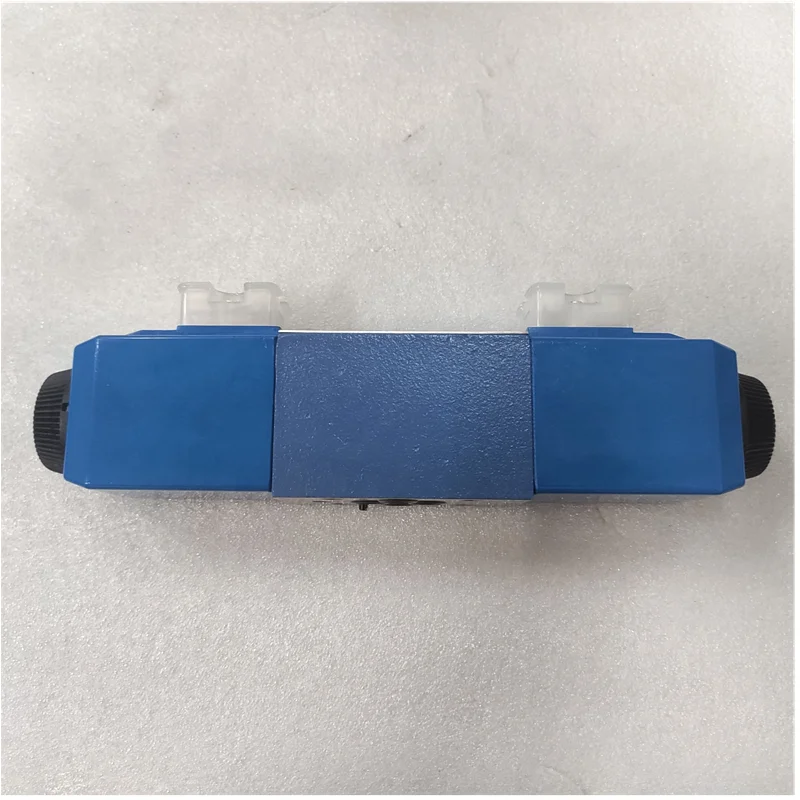

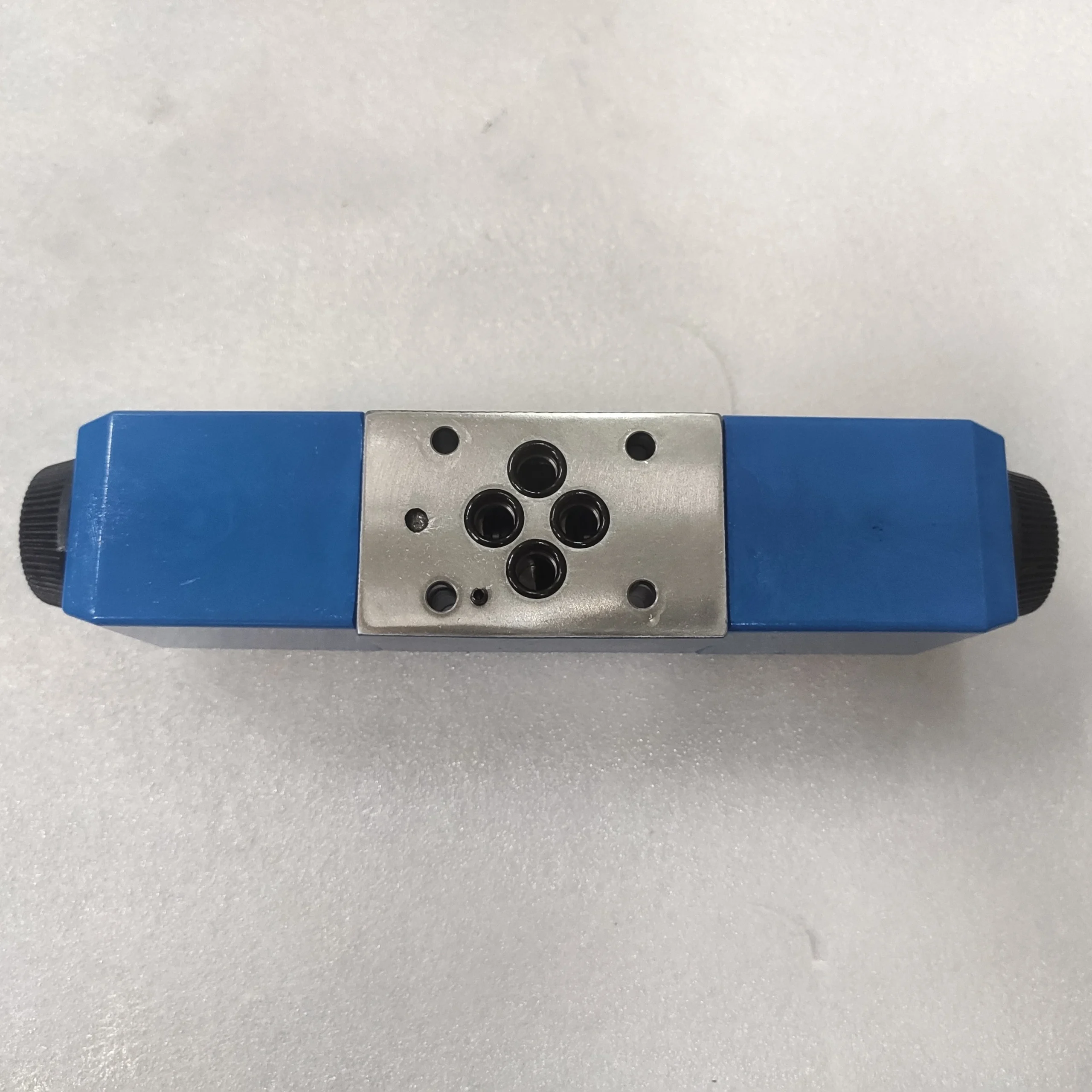

Vickers Type DG4V-3 & DG4V-3S Series High-Performance Solenoid Directional Control Valves

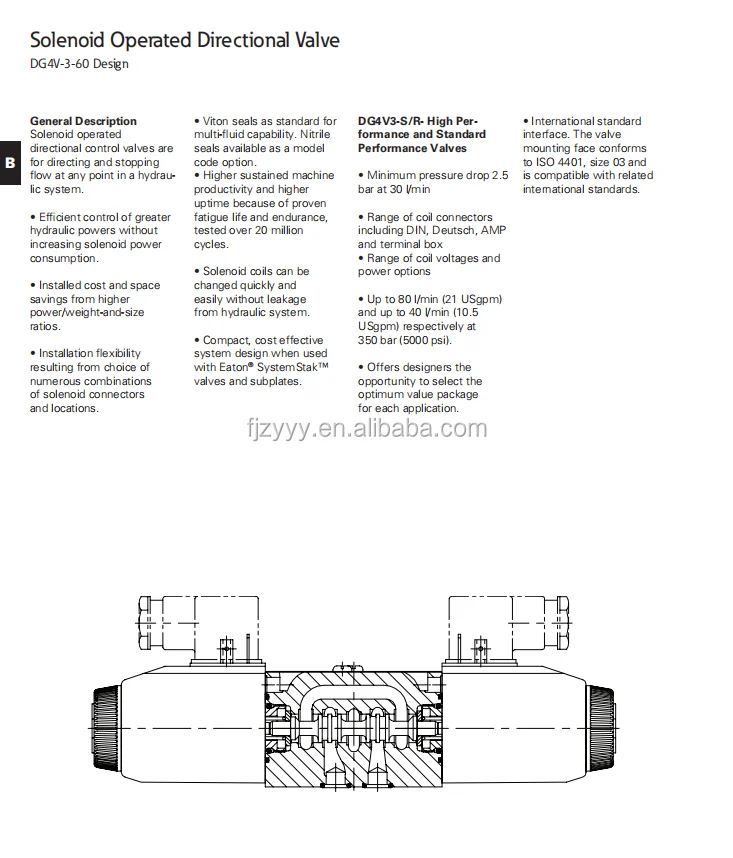

Product Overview: The Vickers DG4V-3 Series is a direct-operated solenoid directional spool valve featuring the global standard Size 3 (NG6 / CETOP 03) interface. As a benchmark of the 60-design sequence, this series is renowned for its high switching power limits, low pressure drop, and extended operational life.
This category focuses on essential application models: the standard power DG4V-3-2C-M-U-H5-60, the performance-optimized DG4V-3S-2C-M-U-H7-60 (both with 3-position closed-center logic), and the 2-position double-solenoid DG4V-3-6N-M-U-H7-60. These valves are the premier choice for CNC machine tools, automated production lines, hydraulic power units (HPUs), and light industrial machinery.
Key Technical Advantages:
Superior Switching Capability: Optimized 60-series solenoids provide robust actuation force, ensuring precise and reliable spool reset even under high-pressure or high-viscosity conditions.
Low Pressure Drop Design: Precision-cast bodies feature spacious internal galleries that minimize hydraulic energy loss and reduce system heat generation.
Wet-Pin Solenoid Architecture: Armatures operate fully immersed in oil for superior self-lubrication, damping, and heat dissipation, resulting in quiet operation and reduced wear.
Flexible Electrical Interfaces: Available in H5 (L-type plug) and H7 (Standard DIN 43650) configurations to suit various industrial wiring requirements.
Detailed Specifications & Parameters:
Core Series: Vickers Type DG4V-3 / DG4V-3S Series.

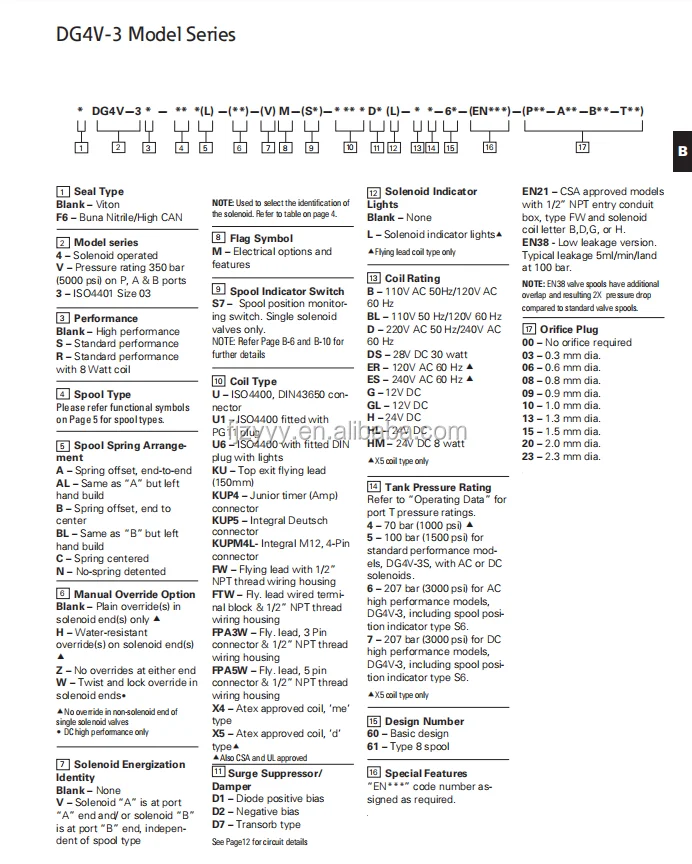

Featured Model Matrix: DG4V-3-2C-M-U-H5-60, DG4V-3S-2C-M-U-H7-60, DG4V-3-6N-M-U-H7-60.
Core Performance Specs:
Nominal Size: Size 3 (NG6 / CETOP 03).
Spool Functions: 2C (3-pos, 4-way, spring centered); 6N (2-pos, 4-way, detented double solenoid).
Max Operating Pressure: Rated up to 350 Bar (5,000 PSI).
Max Flow Capacity: Up to 80 L/min (21 GPM).
Design Sequence: 60 Series (Design 60).
Manual Override: M (Equipped with manual override button).
