DG Series Industrial Hydraulic Directional Control Valves

Product Overview: The Vickers DG series stands as a benchmark in industrial hydraulics, fully compliant with ISO 4401 mounting standards. This range covers diverse configurations from the manually operated DG17 to the solenoid/pilot-actuated DG21, providing precise fluid guidance for complex automated circuits. The valve bodies are cast from high-strength materials with surface-hardened internal galleries, significantly enhancing wear resistance and minimizing internal leakage to ensure superior switching accuracy over millions of cycles.

Featured models include: DG17V-3-2C-60, DG17V-3-6C-60, DG17V4-012C-10, DG21V-3-2AL-2-60, and DG21V-3-OA-2-60.

Key Technical Advantages:

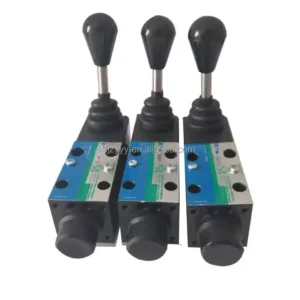

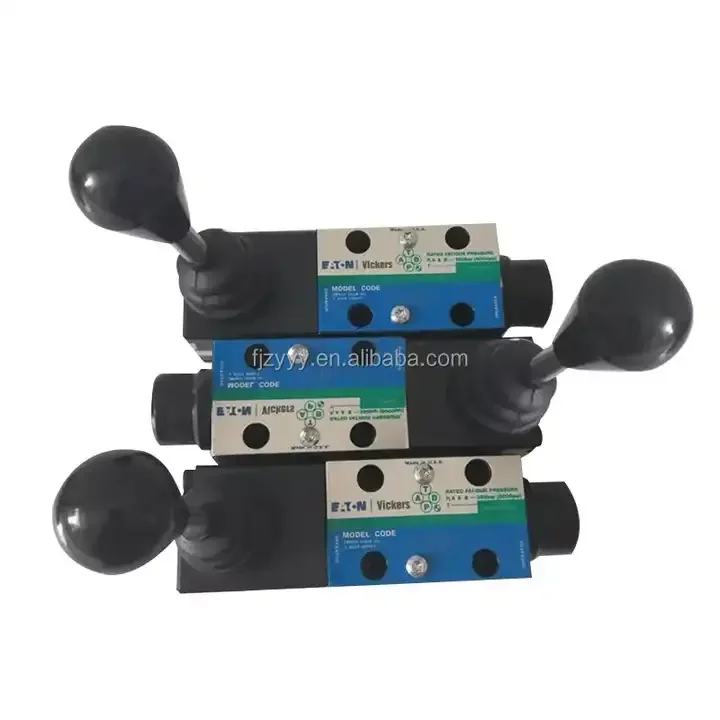

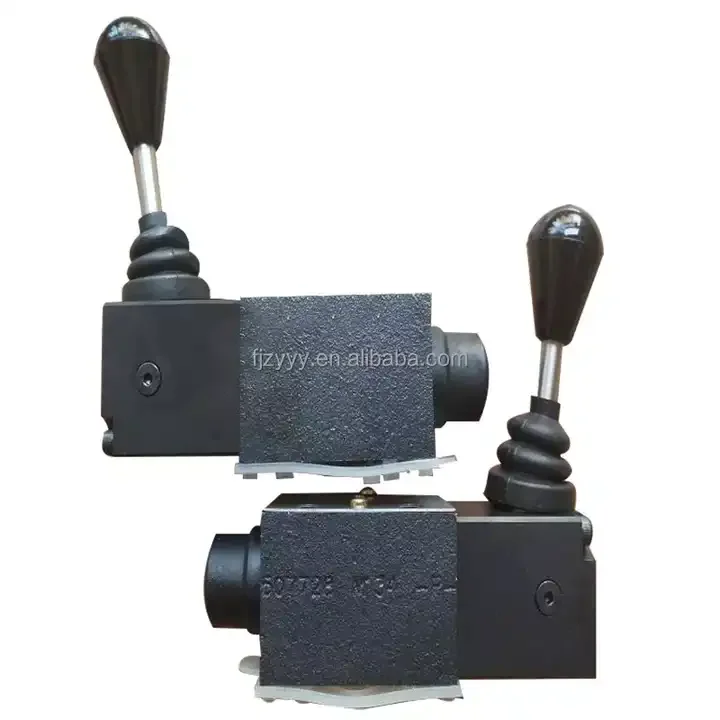

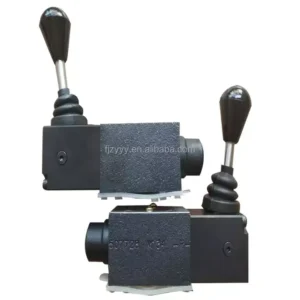

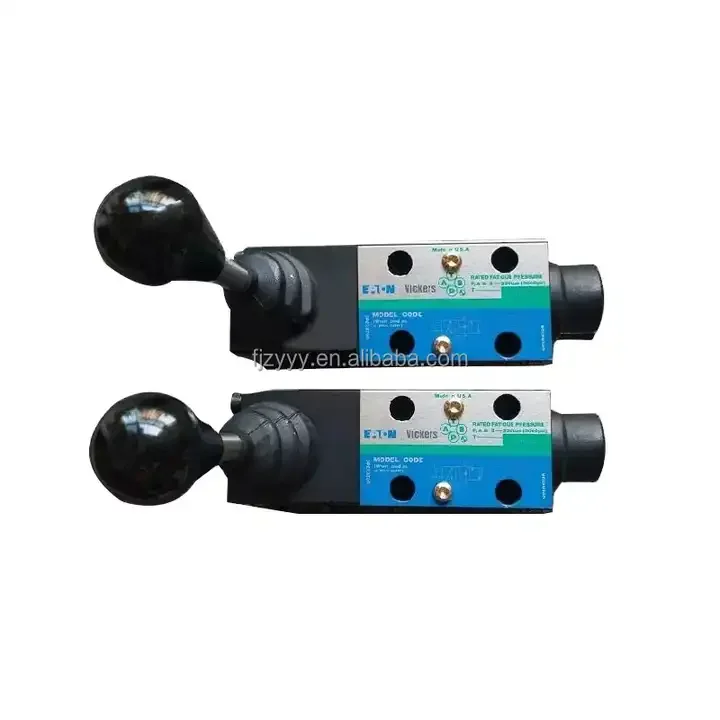

• Versatile Actuation Options: Features DG17 (Lever/Manual operation) and DG21 (Pilot-operated or electronic control), catering to everything from simple manual equipment to high-end CNC machinery.

• Classic Design Series (60/10): Covers the field-proven 60 and 10 design series, ensuring high interchangeability with existing legacy systems.

• Low Pressure Drop & High Flow: Optimized spool geometry significantly reduces energy loss and hydraulic shocks during switching.

• High-Response Spool Logic: Includes 2C (3-pos, closed center), 6C (Unloading center), and OA (Open functionality) configurations for rapid response and accurate positioning.

Detailed Specifications & Parameters:

• Featured Model Matrix:

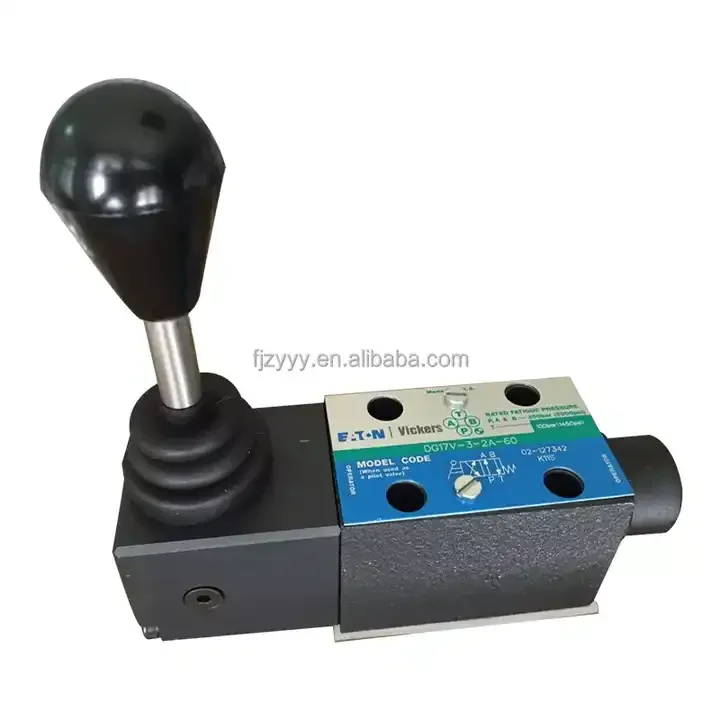

  • DG17V-3-2C-60: Size 3 (NG6), manual control, 3-pos 4-way closed center, 60 design series.

  • DG17V-3-6C-60: Size 3 (NG6), manual control, P blocked, A/B/T connected (unloading).

  • DG17V4-012C-10: Size 4 (NG10), high-flow manual reversing valve, 10 series design.

  • DG21V-3-2AL-2-60: Size 3 (NG6), 2-pos 4-way with offset logic.

  • DG21V-3-OA-2-60: Size 3 (NG6), OA logic characteristics, high-performance industrial version.

• Core Technical Specs:

  • Mounting Standard: NG6 (ISO 4401-03) / NG10 (ISO 4401-05).

  • Max Operating Pressure: Rated at 31.5 MPa (315 bar).

  • Max Flow Capacity: Size 3 up to 80 L/min; Size 4 up to 160 L/min.
