Vickers Type 4535V Series Double Vane Pump | 4535V-60A25, 4535V-60A38

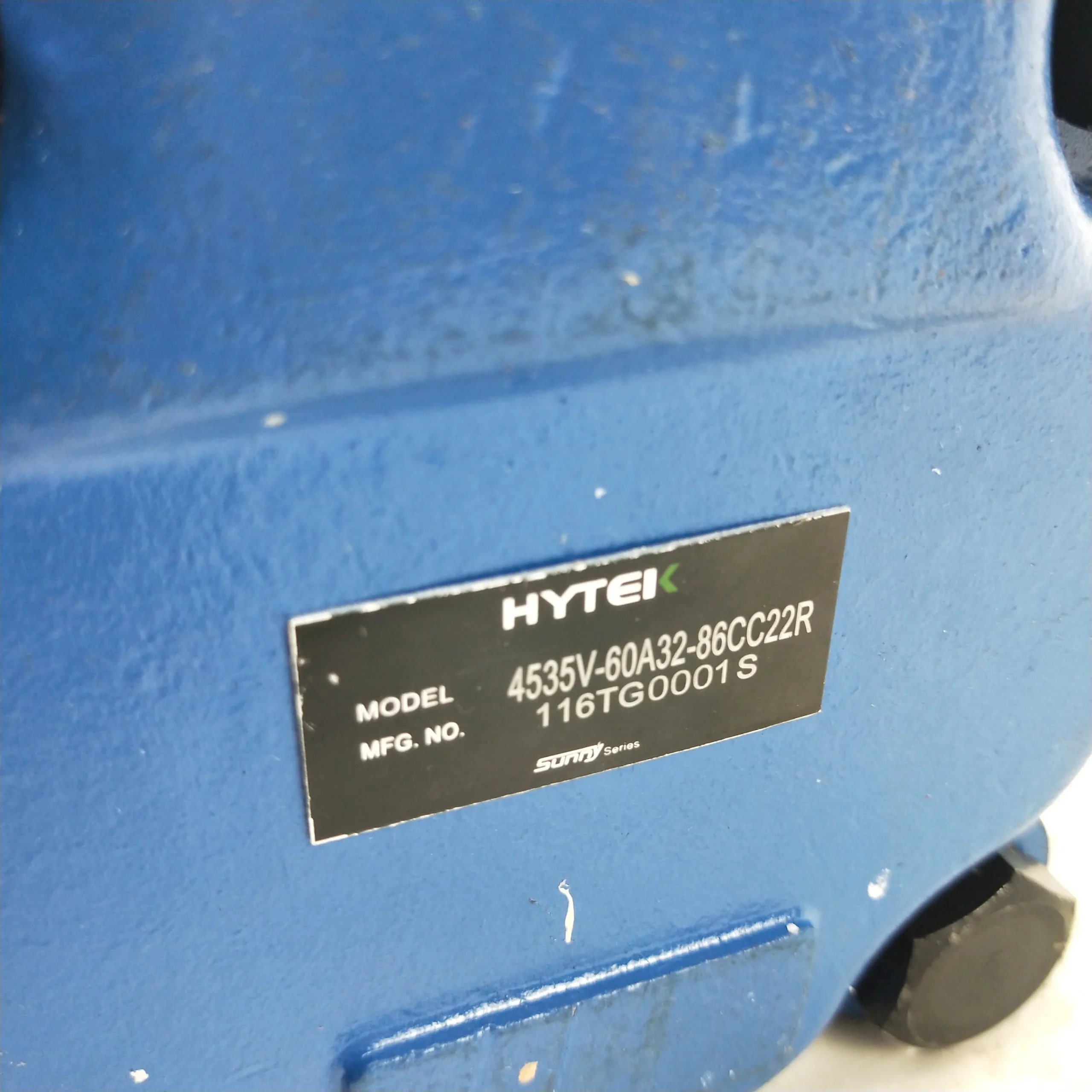

| Model Number | 4535V-60A32-86CC22R |
|---|
Product Description

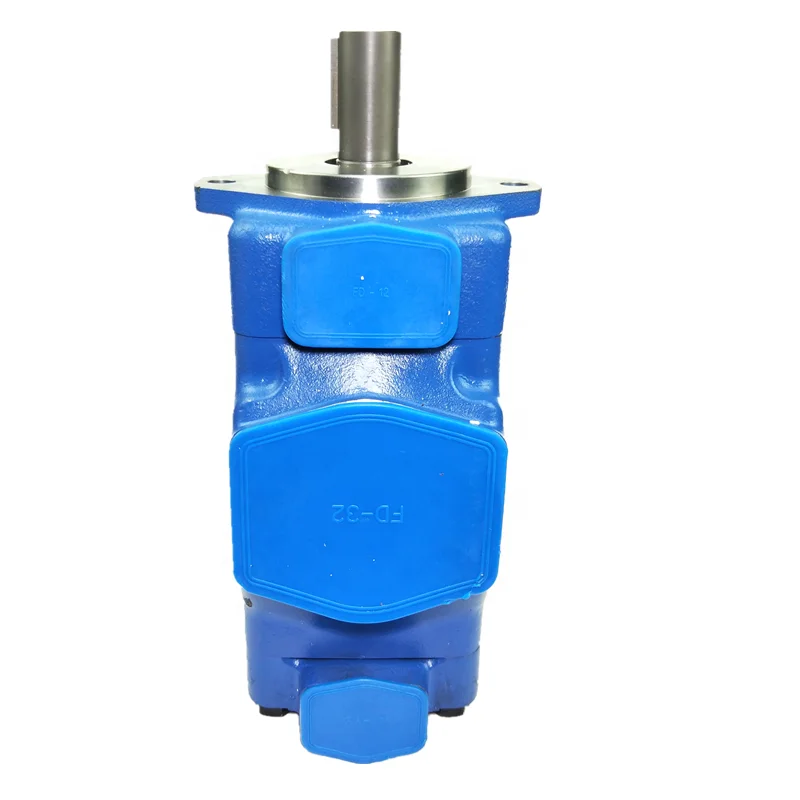

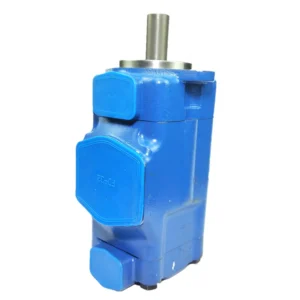

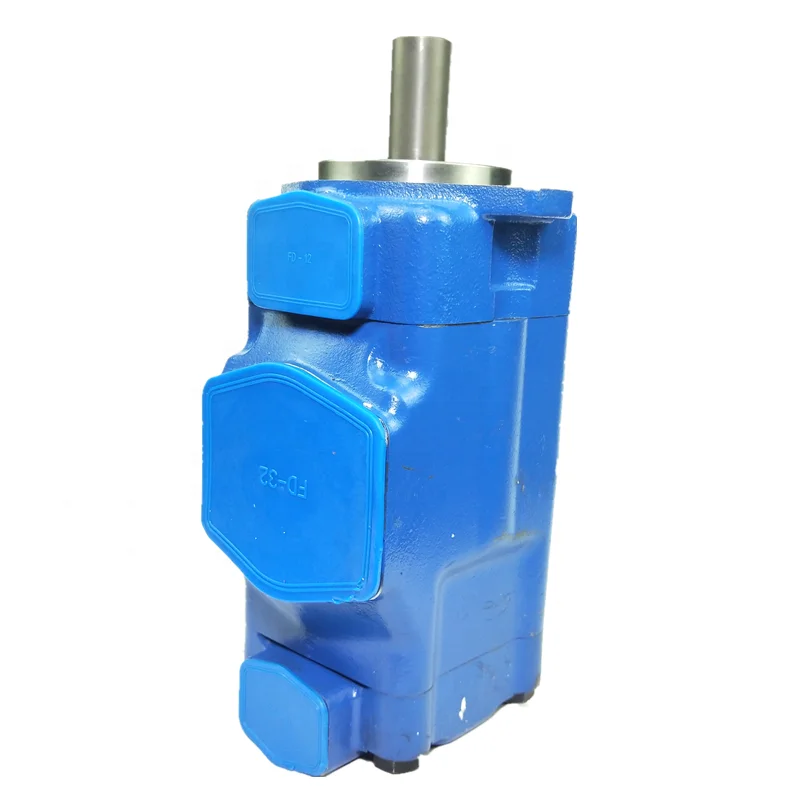

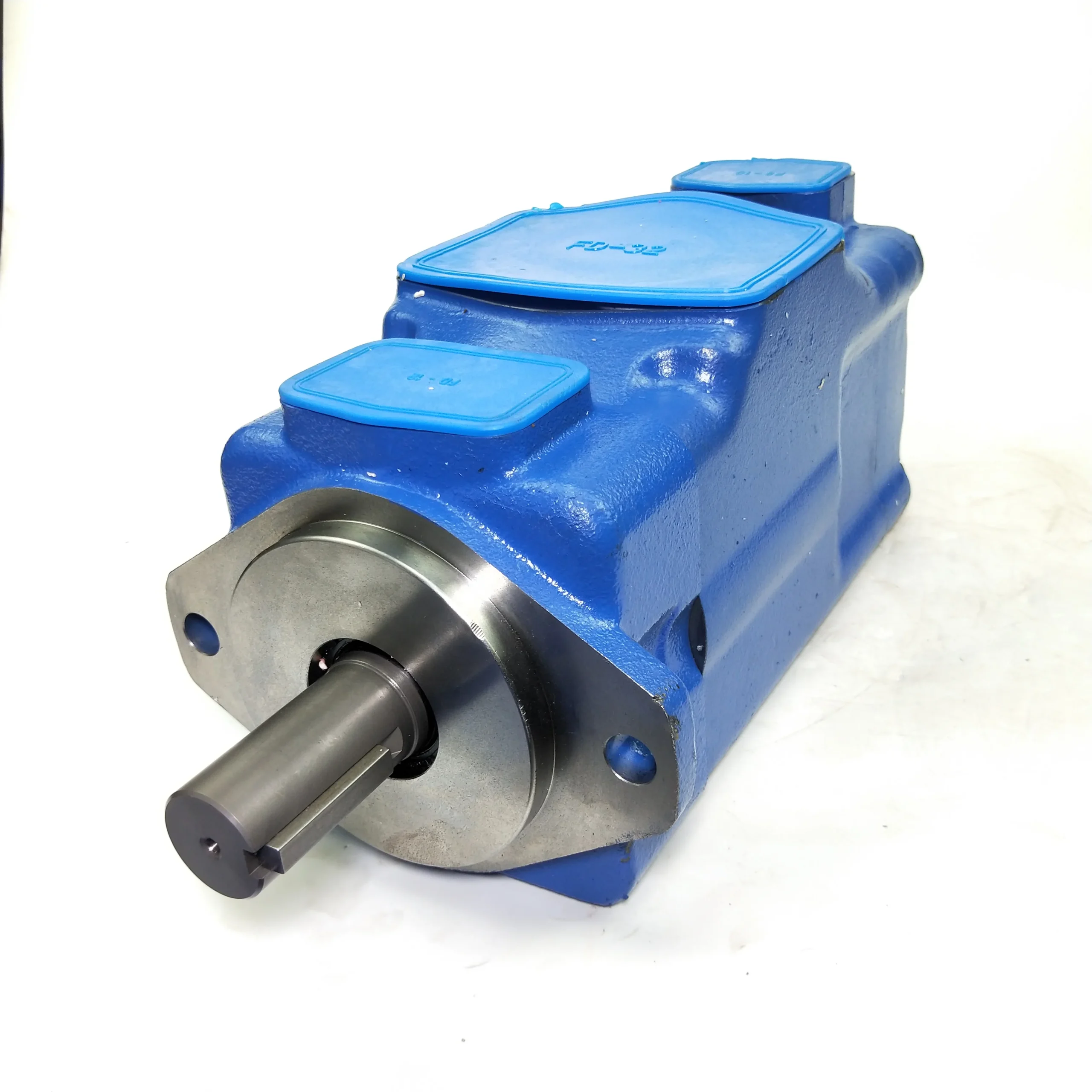

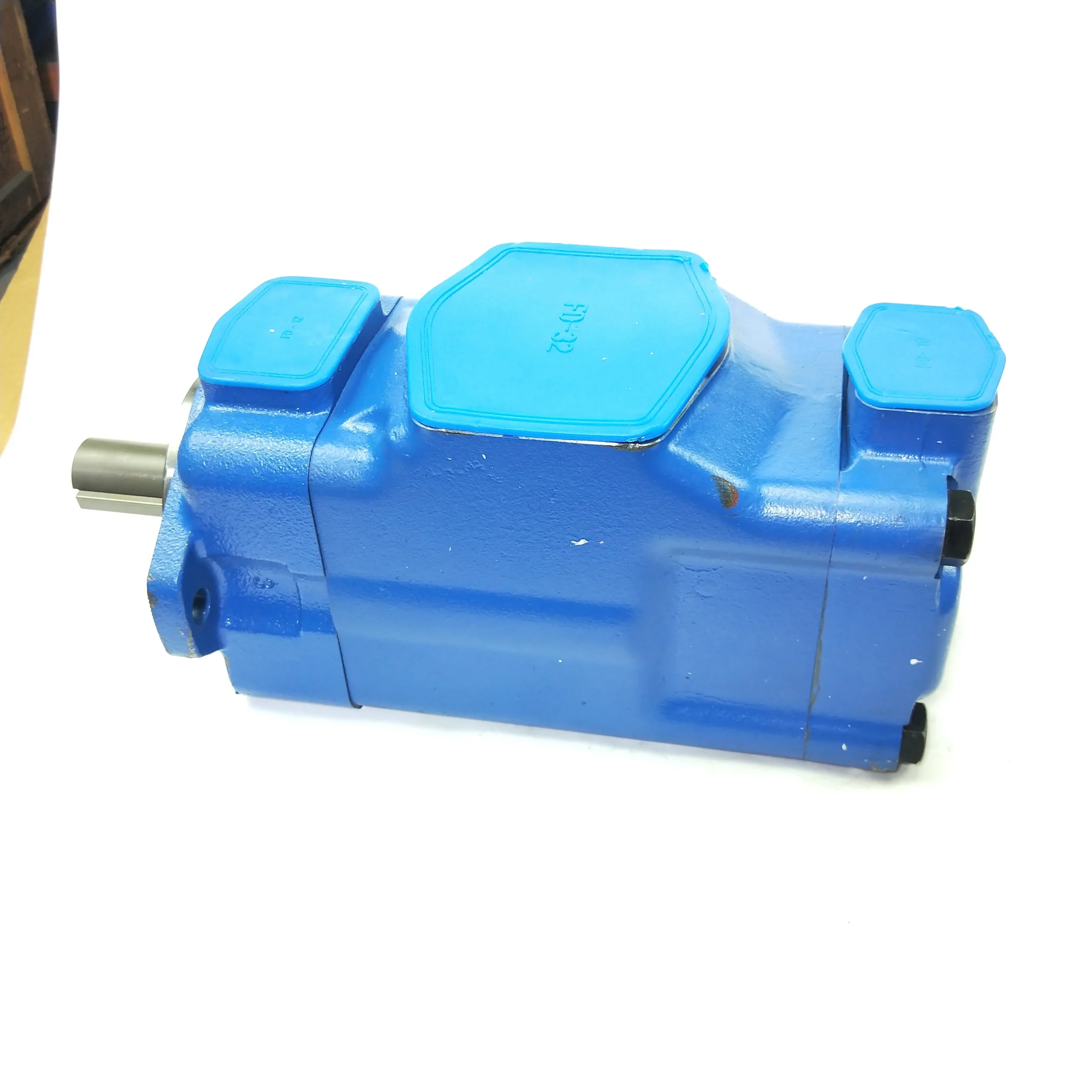

Vickers Type 4535V Series High-Performance Heavy-Duty Double Vane Pumps
Product Overview: The 4535V Series stands as the definitive power pillar for global heavy-duty industrial hydraulic systems. As an ultra-large displacement double fixed vane pump, it combines 45V and 35V cartridges within a single housing, enabling one drive shaft to power two independent heavy-duty circuits. This range features core specifications including 4535V-60A25, 4535V-60A30, 4535V-60A35, 4535V-60A38, and the fully configured model 4535V-60A32-86CC22R. Utilizing patented Intra-Vane technology, the 4535V series is the premier choice for large-scale injection molding and material handling equipment.
Key Technical Advantages:
High-Flow Dual-Circuit Supply: The 4535V integrates two independent high-capacity cartridges. The shaft-end pump (45V) provides high-speed main system power, while the cover-end pump (35V) supplies auxiliary flow, significantly optimizing system architecture.
Patented Intra-Vane Technology: Features automatic wear compensation to minimize contact stress against the cam ring. This ensures peak volumetric efficiency even throughout thousands of hours of high-frequency pressure pulsations.
Rapid Maintenance with Cartridge Kits: The “drop-in” modular cartridge design allows performance to be restored in minutes by swapping internal kits without disconnecting complex plumbing, drastically reducing downtime.
Heavy-Duty Shock Resistance: The high-strength cast iron housing is built to withstand violent shock loads generated by mobile machinery or industrial presses, ensuring stable and silent operation.
Target Applications: Large plastic injection molding machines, aluminum extrusion presses, refuse compactors, port cranes, and energy-saving industrial power units.
Detailed Models & Parameters:
Core Series: Vickers Type 4535V Series (Double Fixed Displacement).
Model Keywords: 4535V-60A25, 4535V-60A30, 4535V-60A32, 4535V-60A35, 4535V-60A38, 4535V-60A32-86CC22R.
Shaft-End Flow Code (GPM @ 1200rpm): 60A (Nominal 60 GPM).
Cover-End Flow Combinations: 25, 30, 32, 35, 38 (Varying displacement levels).
Technical Specs: 86 (Shaft code); CC (Port orientation layout); 22 (Design sequence); R (Right-hand rotation).
Pressure Ratings: Rated continuous working pressures up to 17.2 MPa (172 Bar).
