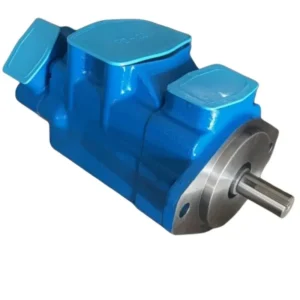

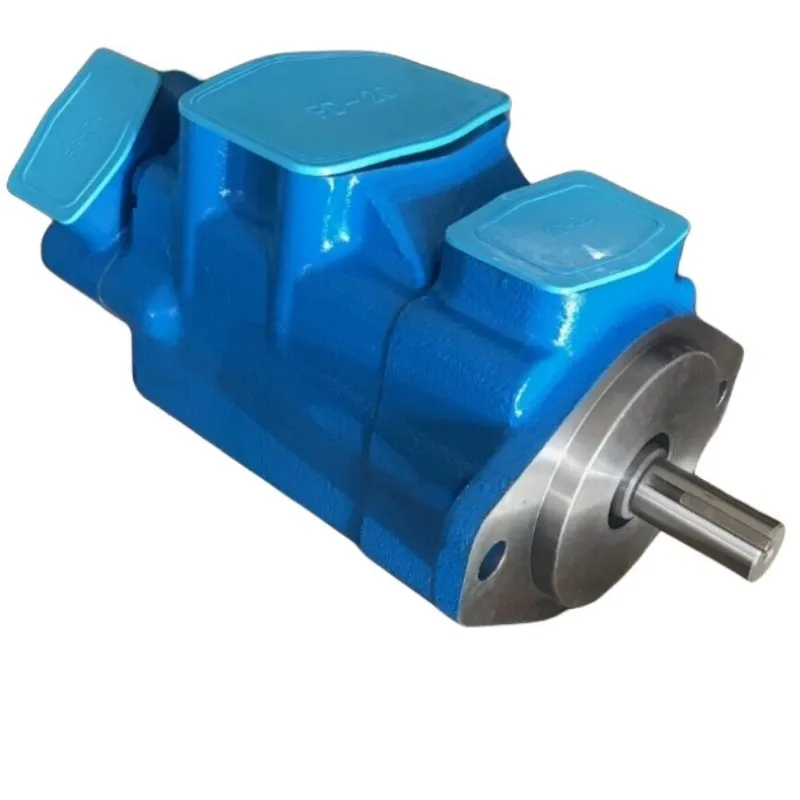

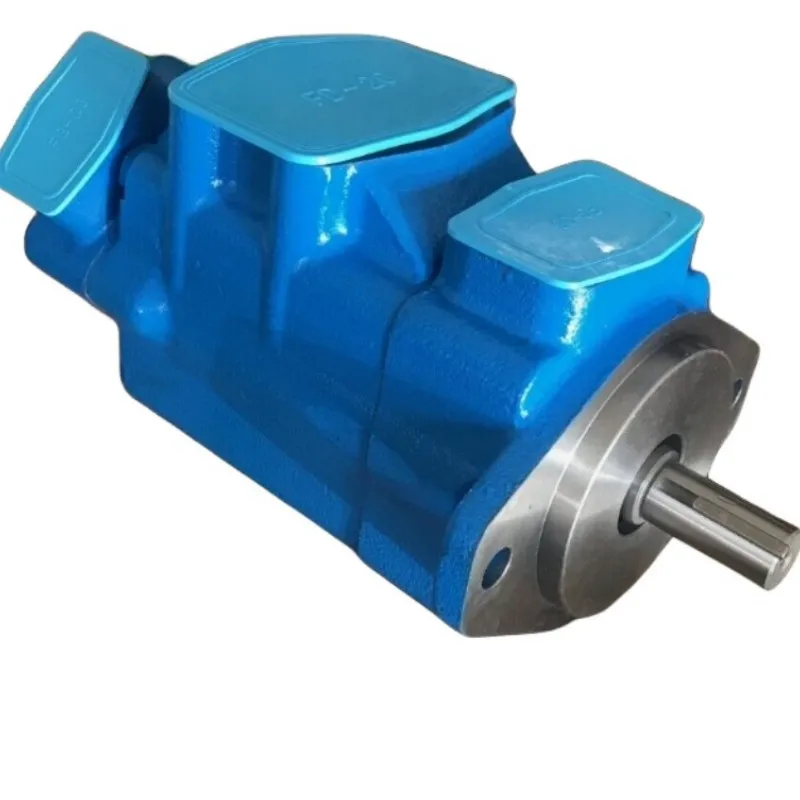

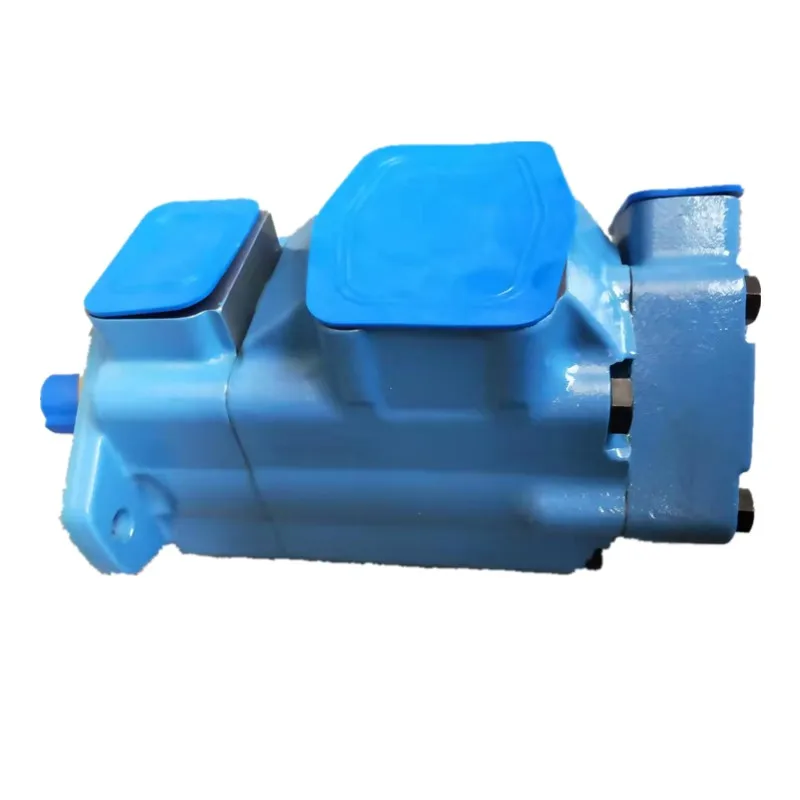

Vickers Type 4520VQ & 4535VQ High-Pressure Double Vane Pumps

Product Overview: The 4520VQ and 4535VQ Series are the definitive power sources for heavy-duty mobile hydraulic systems. As double fixed displacement pumps, this series integrates two independently operating intra-vane cartridges onto a single drive shaft, designed to provide high-low flow splitting or independent dual-circuit supply for complex systems. Featured here are the high-flow powerhouse models: 4520VQ60A8, 4535VQ, and 4535VQ60A38. Powered by Vickers’ patented Intra-vane technology, the 4520VQ/4535VQ series maintains exceptional shock resistance and low operational noise even under continuous pressures up to 21 MPa (3000 PSI).

Key Technical Advantages:

• High-Flow Dual Output: The 45 series shaft end delivers a massive 60 GPM output, perfectly suited for the rapid movement requirements of large hydraulic actuators.

• Patented Intra-vane Technology: The unique vane-within-a-vane structure balances tip loads, significantly extending the service life of both stators and vanes while maximizing volumetric efficiency.

• Rapid Cartridge Maintenance: Both the primary and secondary cartridges feature a “drop-in” design. Maintenance is streamlined—swap the internal core on-site to restore factory performance without disturbing heavy housings or main plumbing.

• Superior Power-to-Weight Ratio: The robust cast iron housing provides massive power density, saving valuable installation space in heavy-duty vehicles.

• Target Applications: Heavy loaders, graders, excavator auxiliary systems, scrap metal balers, and large-scale road construction machinery.

Detailed Models & Parameters:

• Core Series: Vickers Type 4520VQ, 4535VQ Series (Double Pump).

• Model Keywords: 4520VQ60A8, 4535VQ60A38, 4535VQ.

• Flow Ratings (USgpm @ 1200rpm):

  • Shaft End (Pump 1 – 45 Series): 60 GPM (Approx. 193 cm³/rev).

  • Cover End (Pump 2): 8 GPM (for 20 size) or 38 GPM (for 35 size).

• Max Operating Pressure: Rated continuous pressure up to 21.0 MPa (3000 PSI / 210 Bar).

• Speed Range: Supports high-speed operation up to 2200 – 2500 RPM depending on configuration.
