Vickers Type 35V Series Vane Pump | 35V25A, 35V35A | Low Noise Hydraulic Pump

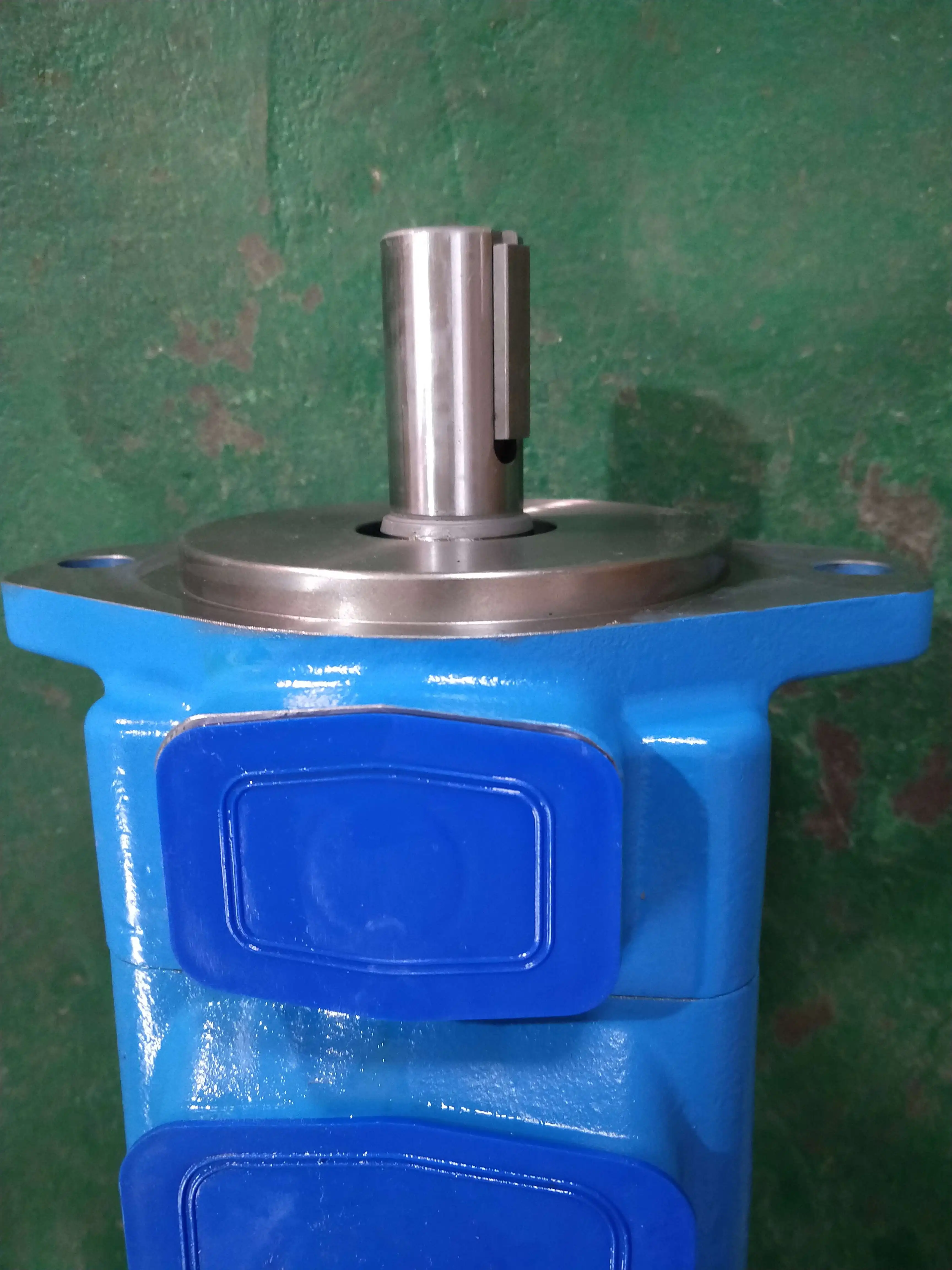

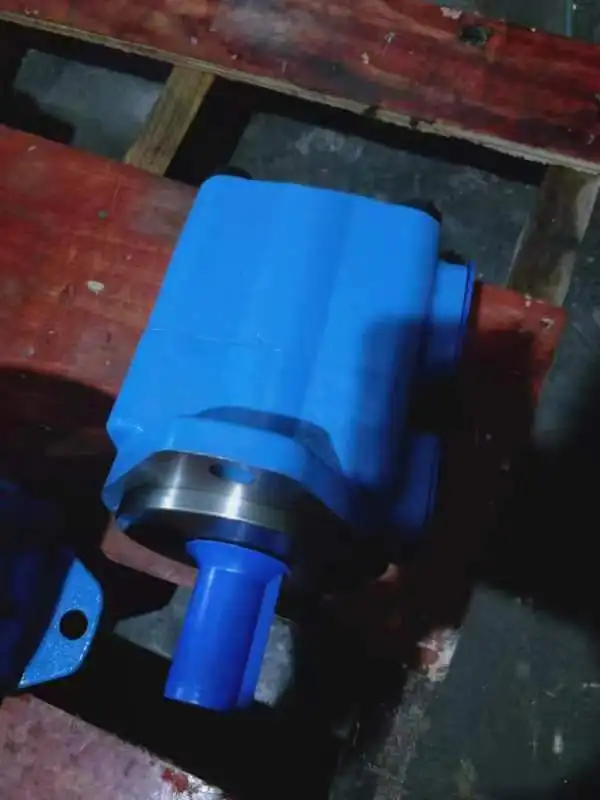

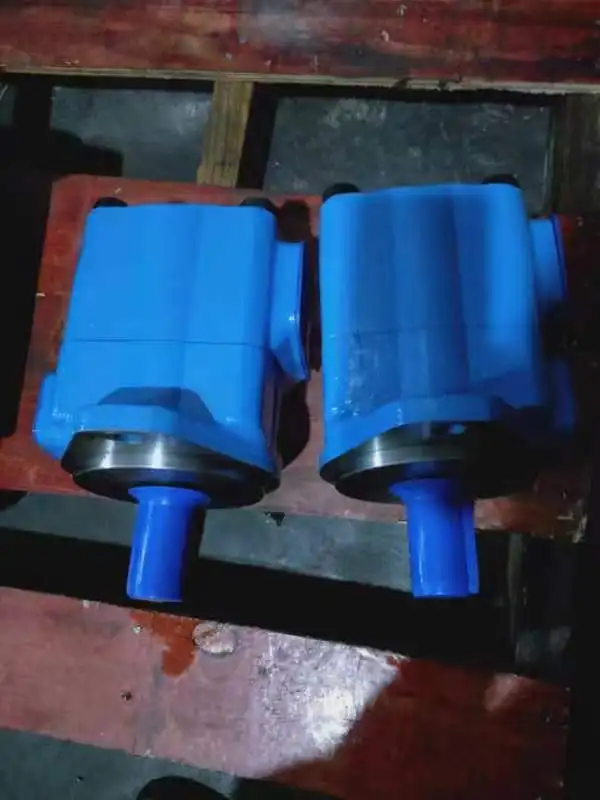

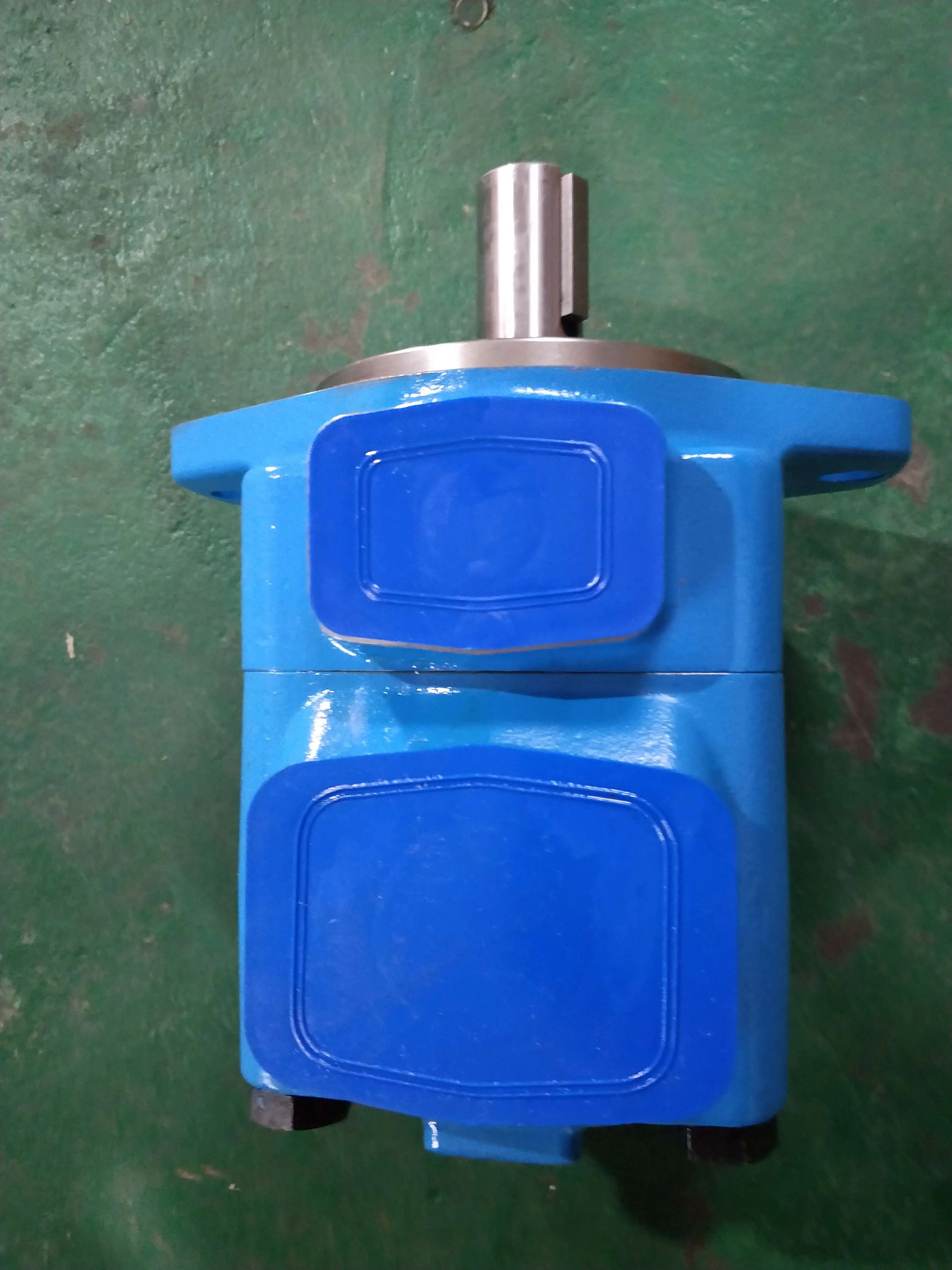

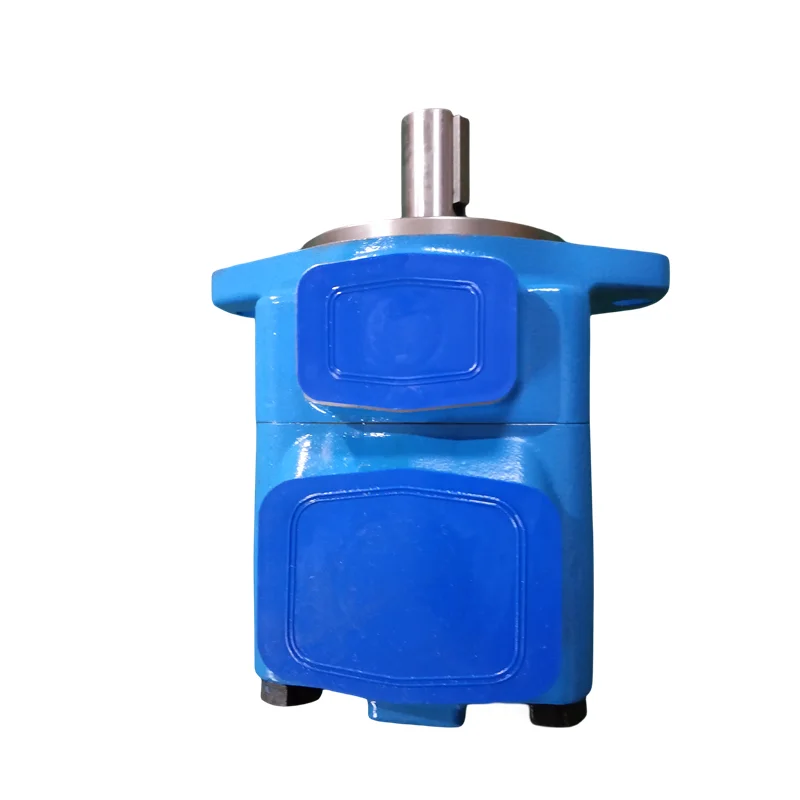

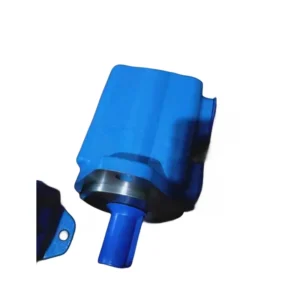

Vickers Type 35V Series High-Pressure Low Noise Vane Pumps

Product Overview: The Vickers Type 35V Series fixed displacement vane pump is a globally trusted power source for high-performance industrial hydraulic systems, renowned for its exceptional Low Noise operation and extended service life. Engineered with the patented Intra-vane technology, these pumps minimize vane-tip loading against the stator, ensuring superior volumetric efficiency even at pressures up to 17.5 MPa (2500 PSI). This range features core models: 35V-25A-1A-22R, 35V-35A-1B-22R, 35V-25A-1C-22R, and 35V-35A-1D-22R. Its unique Cartridge Design allows for rapid core replacement without disconnecting main plumbing, maximizing equipment uptime.

Key Technical Advantages:

• Ultimate Silent Operation: The 12-vane rotor group and pressure-balanced structure drastically reduce fluid pulsations, maintaining decibel levels far below industry standards for a quieter workshop environment.

• Patented Intra-vane Technology: The unique vane-within-a-vane design reduces wear on the stator cam ring, enhancing durability during frequent high-pressure cycles.

• Modular Cartridge Performance: The internal pump core is a “drop-in” module. Maintenance is streamlined—swap the cartridge kit on-site to restore factory-level performance, drastically reducing production downtime.

• Robust Load Adaptation: Built for the toughest industrial environments, capable of withstanding heavy shock loads while providing a consistent, stable flow.

• Target Applications: Brick presses, rubber molding machines, medium-sized injection molding equipment, die-casting machines, and high-performance industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Vickers Type 35V Series (Fixed Displacement).

• Model Keywords: 35V-25A-1A-22R, 35V-35A-1B-22R, 35V-25A-1C-22R, 35V-35A-1D-22R.

• Flow Ratings (USgpm @ 1200rpm): Includes sizes 25 GPM (Approx. 81 cm³/rev) and 35 GPM (Approx. 113 cm³/rev).

• Technical Specs Decoding:

  • 1: Shaft type (Standard straight keyed shaft).

  • A / B / C / D: Port orientations (A-180° inline / B-90° / C-In line / D-270°).

  • 22: Design sequence identifier.

  • R: Rotation (Right-hand/Clockwise).

• Pressure Ratings: Rated continuous working pressure up to 17.5 MPa (2500 PSI / 175 Bar).
