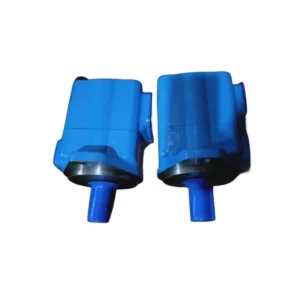

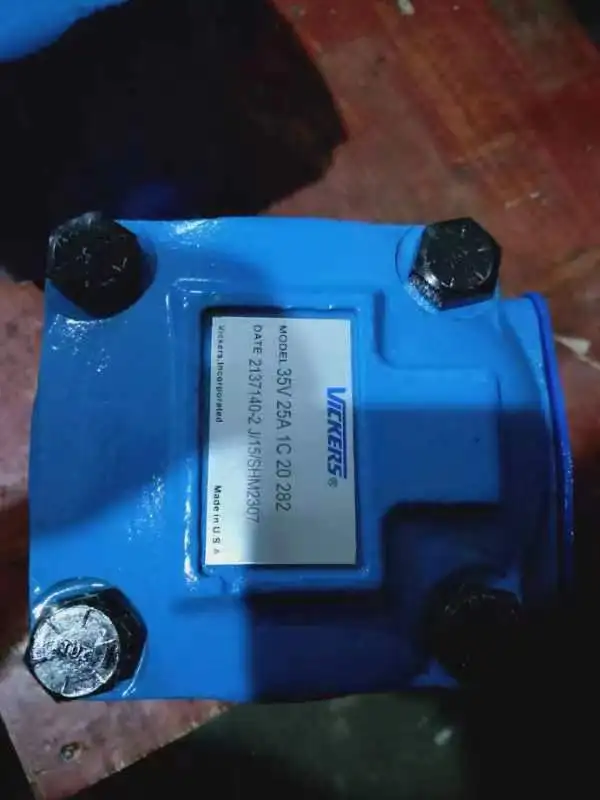

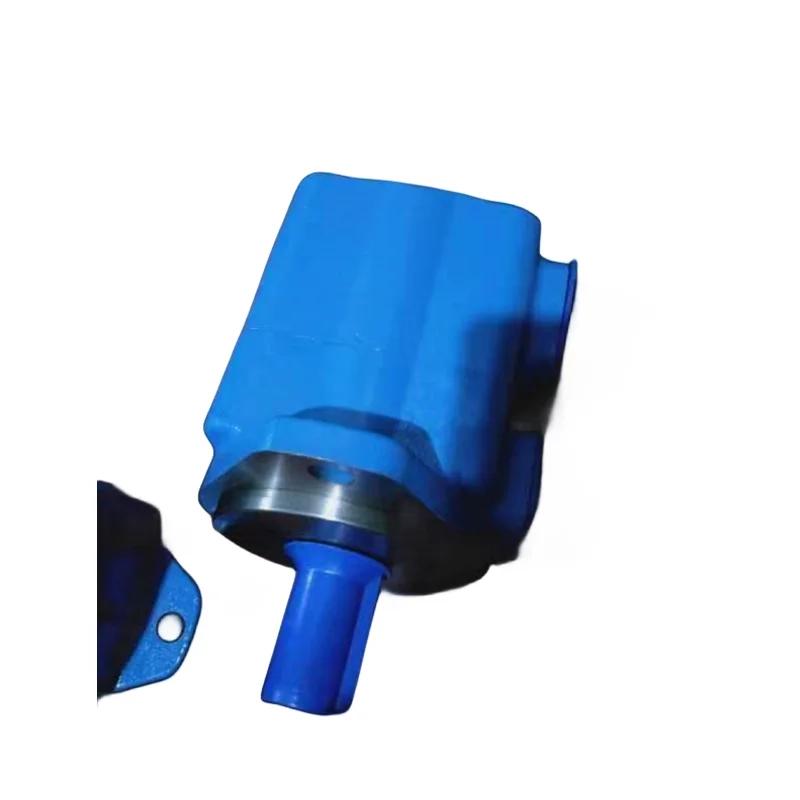

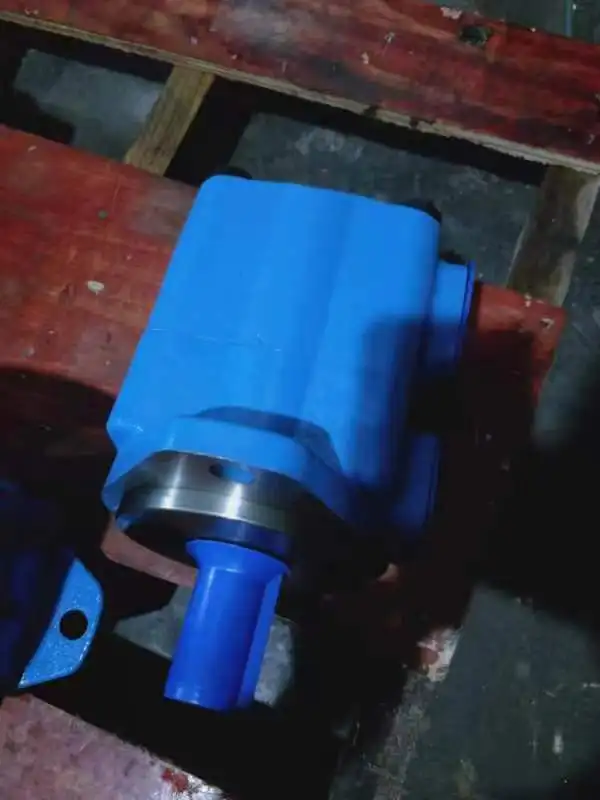

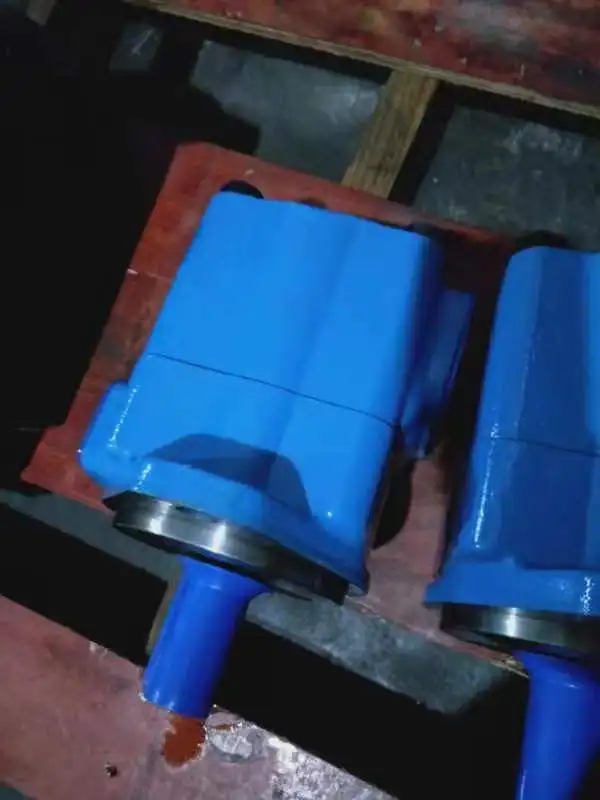

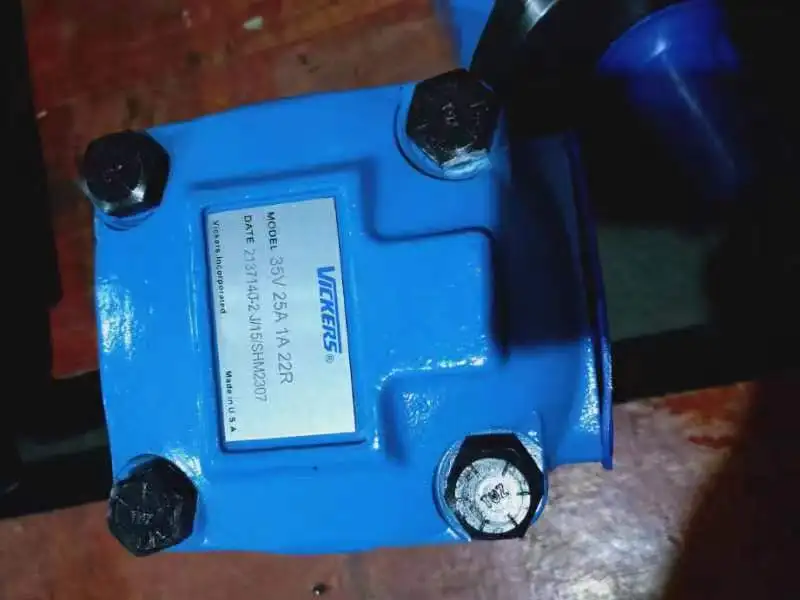

Vickers Type 35V Series Vane Pump | 35V38A, 35V35A, 35V30A, 35V25A

Vickers Type 35V Series High-Performance Industrial Vane Pumps

Product Overview: The 35V Series fixed displacement vane pump is a globally recognized benchmark for efficiency in industrial hydraulic systems. Engineered with Intra-vane technology, this balanced pump is specifically designed for applications requiring consistent high-pressure output and superior noise control. This featured range highlights core 35V specifications: 35V25A, 35V30A, 35V35A, and high-flow 35V38A, including specific configurations such as 35V38A-1A-22L and 35V35A-1D-22R. Utilizing a unique Cartridge Design, these pumps deliver exceptional volumetric efficiency and allow for rapid core replacement without disconnecting main plumbing.

Key Technical Advantages:

• Ultimate Silent Operation: The 12-vane design combined with a pressure-balanced structure significantly reduces bearing loads and flow pulsations, maintaining ultra-low decibel levels even under full load.

• Intra-vane Technology: By reducing the pressure of the vanes against the stator cam ring, wear is minimized, extending the service life of the pump during high-pressure cycles.

• Modular Cartridge Kits: The internal pump core is a “drop-in” module. Maintenance is streamlined—swap the cartridge kit to restore factory-level performance, drastically reducing equipment downtime.

• High Volumetric Efficiency: Precision-ground port plates provide automatic clearance compensation, ensuring stable flow output across the entire pressure range.

• Target Applications: Plastic injection molding machines, metal die-casting equipment, hydraulic presses, shearing machinery, and high-performance industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Vickers Type 35V Series (Fixed Displacement).

• Model Keywords: 35V38A-1A-22L, 35V35A-1D-22R, 35V30A-1D-22R, 35V25A-1D-22R.

• Flow Ratings (USgpm @ 1200rpm): Including frame sizes 25, 30, 35, and 38 GPM.

• Technical Specs Decoding: 1 (Shaft type identifier); A/D (Port position codes); 22 (Design sequence identifier); L/R (Rotation: Left or Right-hand).

• Max Operating Pressure: Rated continuous working pressure up to 17.5 MPa (2500 PSI / 175 Bar).
