Vickers SV1 & SV13 Cartridge Valve | SV1-10-4-0 | SV13-20-0 | SV1-16-C

Vickers Type SV1 & SV13 Series Hydraulic Screw-In Cartridge Valves

Product Overview: The Vickers SV1 and SV13 Series are fundamental components in Hydraulic Integrated Circuit (HIC) design. As high-performance screw-in solenoid directional valves, these series are renowned for their compact architecture, extreme switching reliability, and flexible configuration options. Widely utilized in mobile machinery, material handling equipment, and industrial power units, the SV series provides versatile flow and pressure ratings to ensure long-term durability even under high-frequency operation.

This page prominently features the SV1-10/16/20 full-size range, including models with Manual Override options like the SV13-10-CM.

Key Technical Advantages:

• Space-Saving Design: The screw-in cartridge format allows for direct installation into manifold blocks, significantly reducing the overall size and weight of hydraulic systems.

• Versatile Functionality: Available in 2-way and 3-way configurations, supporting both Normally Open (N.O.) and Normally Closed (N.C.) logic.

• High Pressure & Corrosion Resistance: Valve bodies and internal components are surface-treated for maximum durability, meeting the pressure ratings required for most industrial and mobile circuits.

• Manual Override Options: Selected models (such as the SV13 series) feature manual operation buttons, ensuring emergency pressure relief or system actuation during power outages.

Detailed Specifications & Parameters:

• Core Series: Vickers SV Series Screw-In Cartridge Valves.

• Featured Model Matrix:

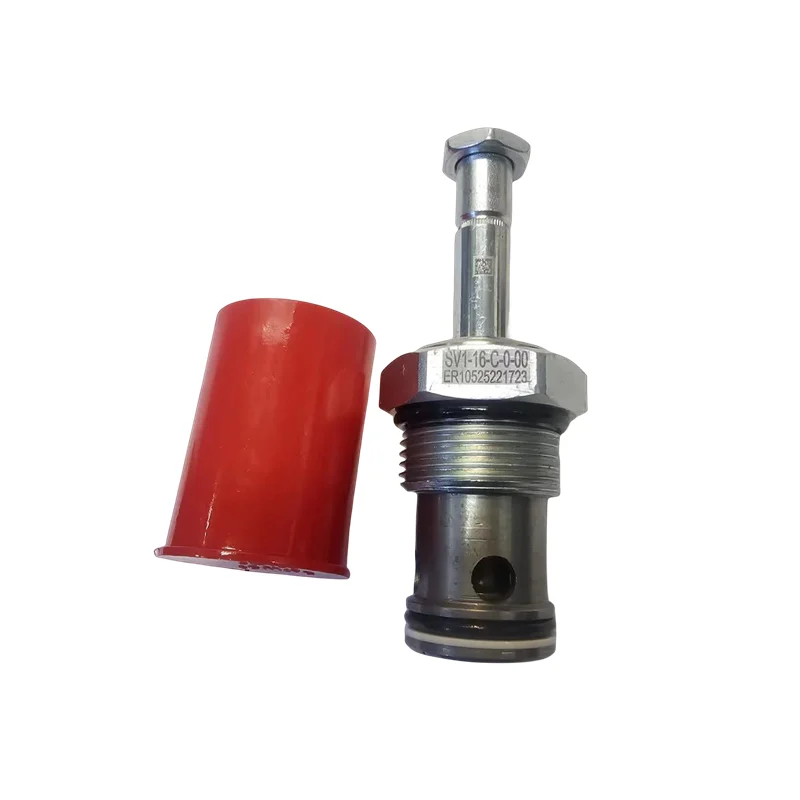

  • SV1-16-C-0-00 (Size 16, 2-Way 2-Position, N.C.)

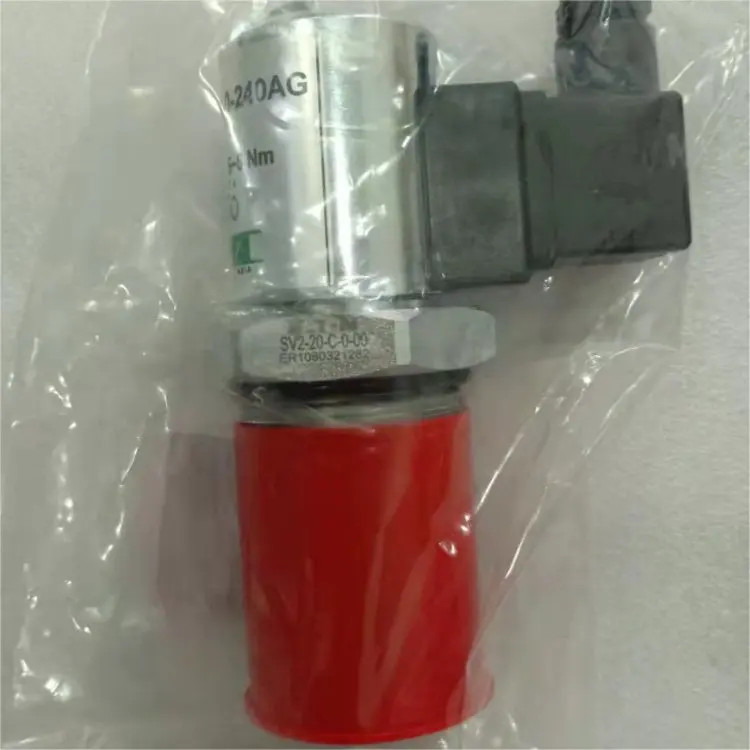

  • SV13-20-0-0-00 (Size 20, High Flow Specification)

  • SV1-10-4-0-00 / SV1-10-3-0-00 (Size 10, Industrial standard variants)

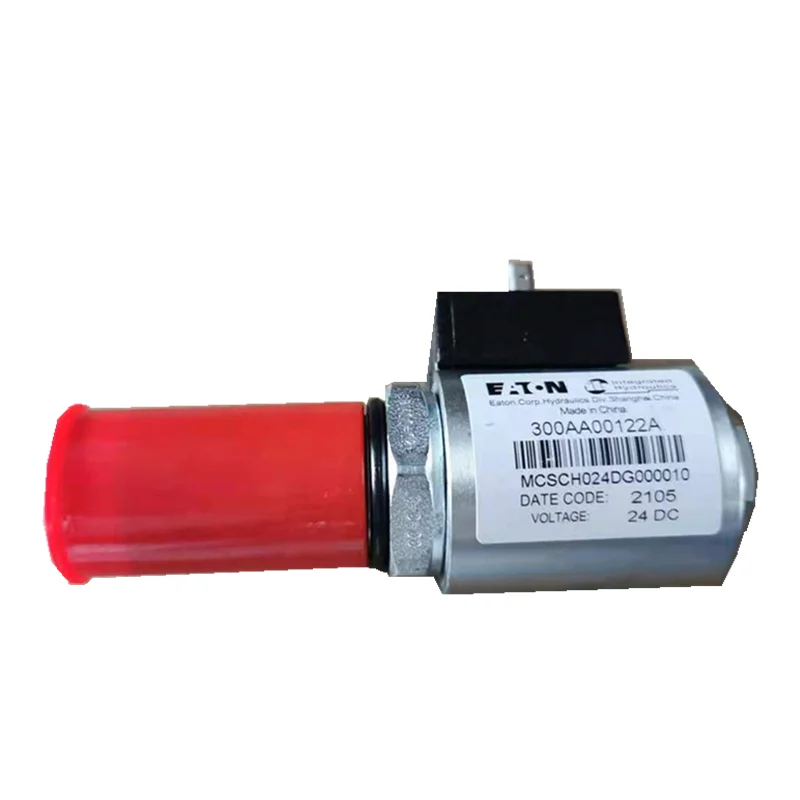

  • SV13-10-CM-0-00 + 300AA60126A (Manual override spec with matching coil assembly)

• Core Performance Specs:

  • Nominal Sizes: Size 10, 16, 20.

  • Valve Type: 2-Way / 3-Way Solenoid Cartridge Valves.

  • Operating Media: Standard mineral oils or fire-resistant fluids.

  • Supply Voltage: Compatible with 12V DC, 24V DC, or 110V/220V AC (with appropriate coils).
