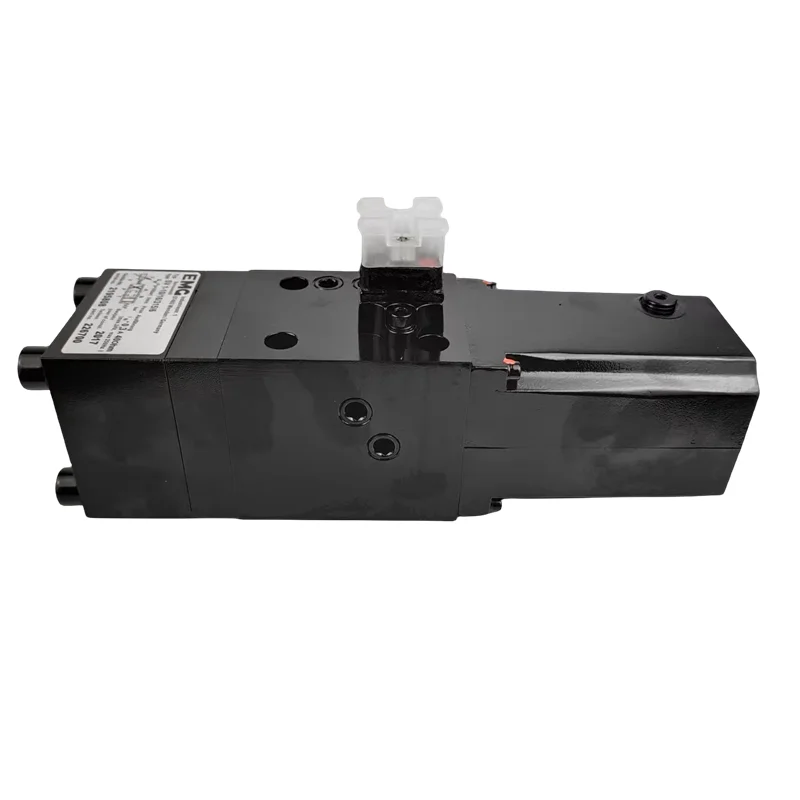

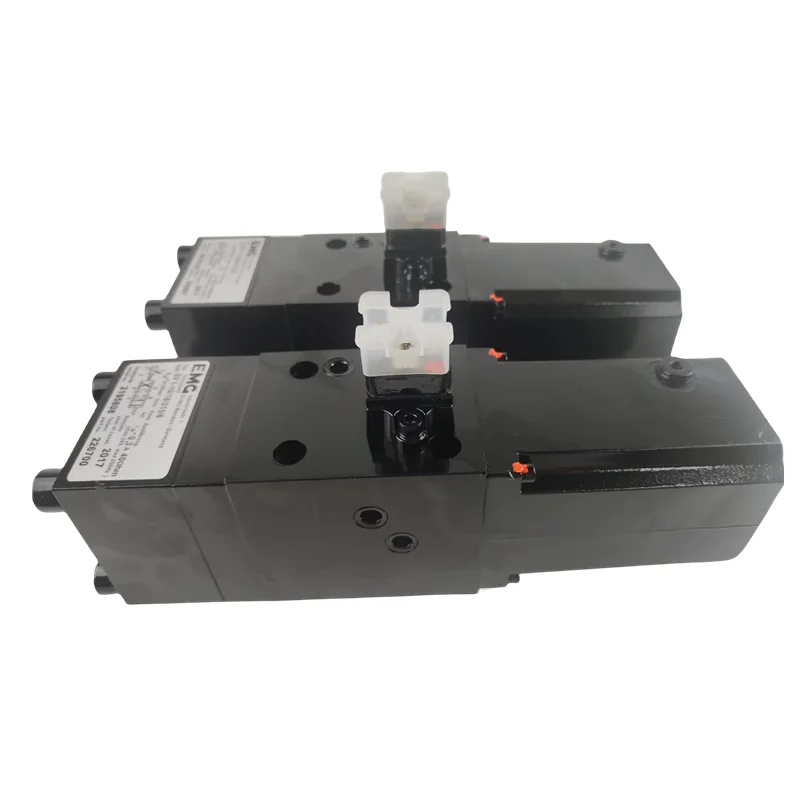

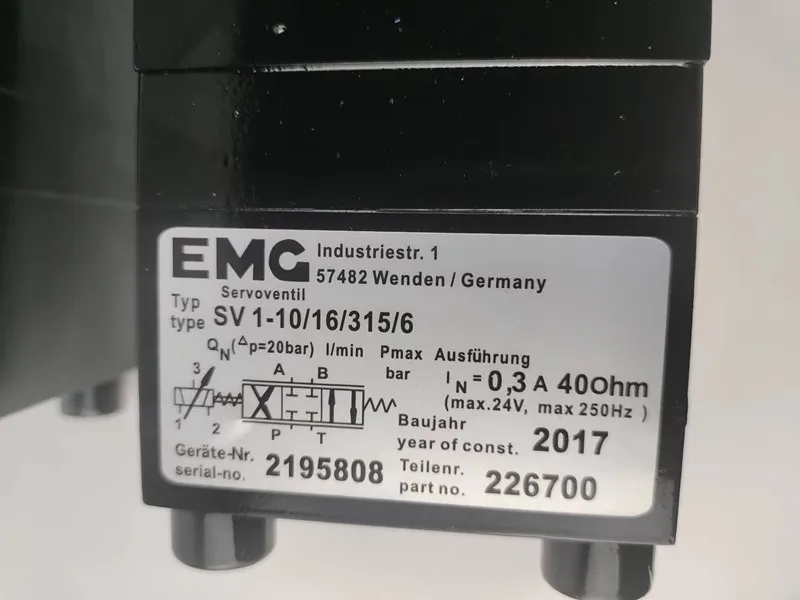

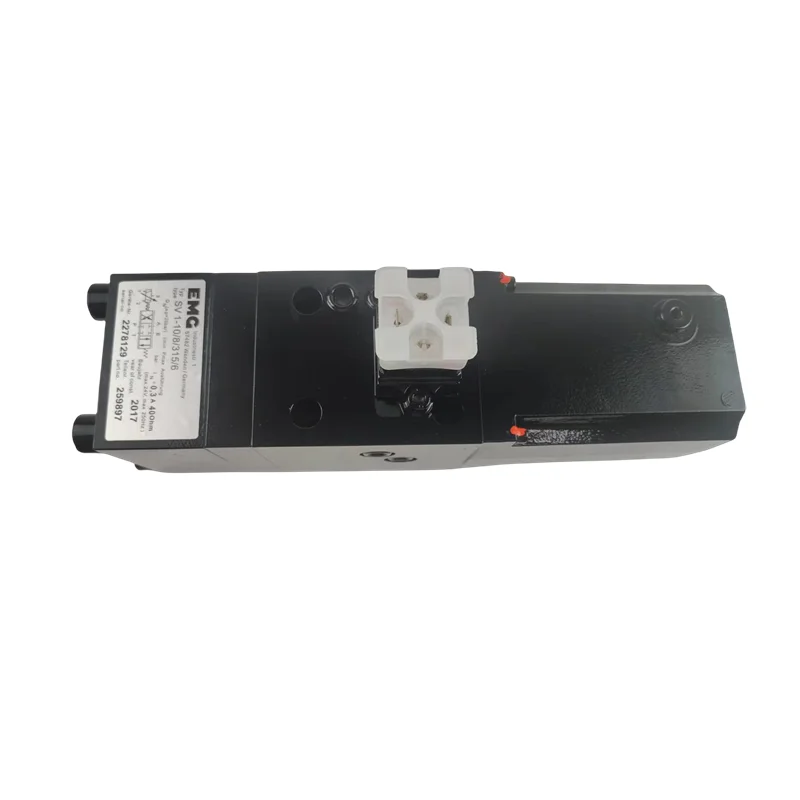

Vickers Type SV1 Series High-Response Direct Drive Servo Valves

Product Overview:

The Vickers SV1 Series represents the pinnacle of direct-drive proportional servo valve technology. By eliminating the pilot stage, this series (available in Size 06 and Size 10) utilizes high-force proportional solenoids to actuate the spool directly. This Direct Drive architecture delivers servo-level dynamic response, minimal hysteresis, and superior positioning accuracy. From micro-flow precision in machine tools (e.g., SV1-06/05) to high-flow closed-loop control in heavy presses (e.g., SV1-10/48), the SV1 series ensures outstanding reliability at operating pressures up to 315 Bar.

Key Technical Advantages:

• Servo-Grade Dynamics: The direct-drive design eliminates pilot-stage lag, providing high frequency response bandwidth ideal for high-speed closed-loop systems.

• Comprehensive Pressure Ratings: Available in 100 Bar standard and 315 Bar high-pressure variants to suit diverse hydraulic requirements.

• Precision Zero-Lap Spool: Spool and sleeve assemblies are micro-ground for excellent linear output and exceptional repetitive positioning accuracy.

• Enhanced Contamination Resistance: Compared to pilot-operated servo valves, the direct-drive structure is more robust against oil particles, reducing maintenance costs.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1 Series (NG6 & NG10).

• Featured Model Matrix:

  • SV1-06/05/210/5 (Size 06, 5 L/min, 210 Bar)

  • SV1-10/8/100/6 (Size 10, 8 L/min, 100 Bar Standard)

  • SV1-10/8/315/6 (Size 10, 8 L/min, 315 Bar High Pressure/Precision)

  • SV1-10/48/315/6 (Size 10, 48 L/min, 315 Bar High Pressure/Flow)

  • SV1-10/48/315/1 (Size 10, 48 L/min, Design Sequence 1)

• Core Technical Specs:

  • Nominal Size: NG6 (Size 06) / NG10 (Size 10).

  • Rated Pressure: 100 Bar, 210 Bar, 315 Bar (4,500 PSI).

  • Rated Flow: 5 L/min, 8 L/min, 48 L/min (@ $\Delta p = 70 \text{ Bar}$).

  • Actuation: Direct-operated proportional solenoid.
