Vickers SV1-10 Servo Valve | SV1-10/32/315 | SV1-10/48/315 | NG10 Direct Drive

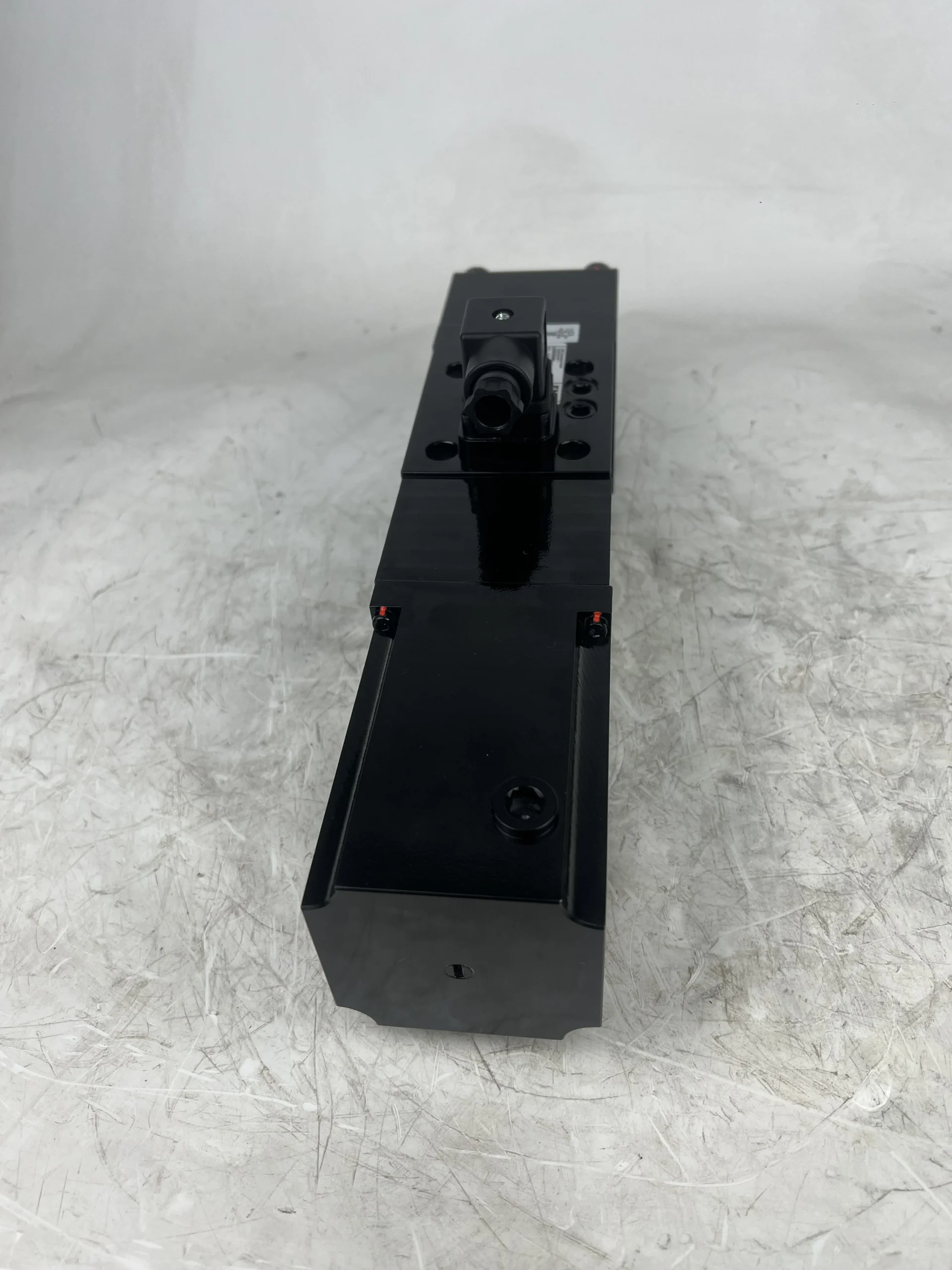

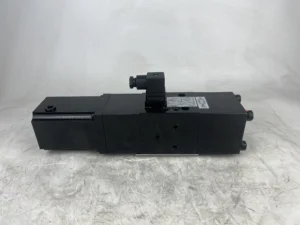

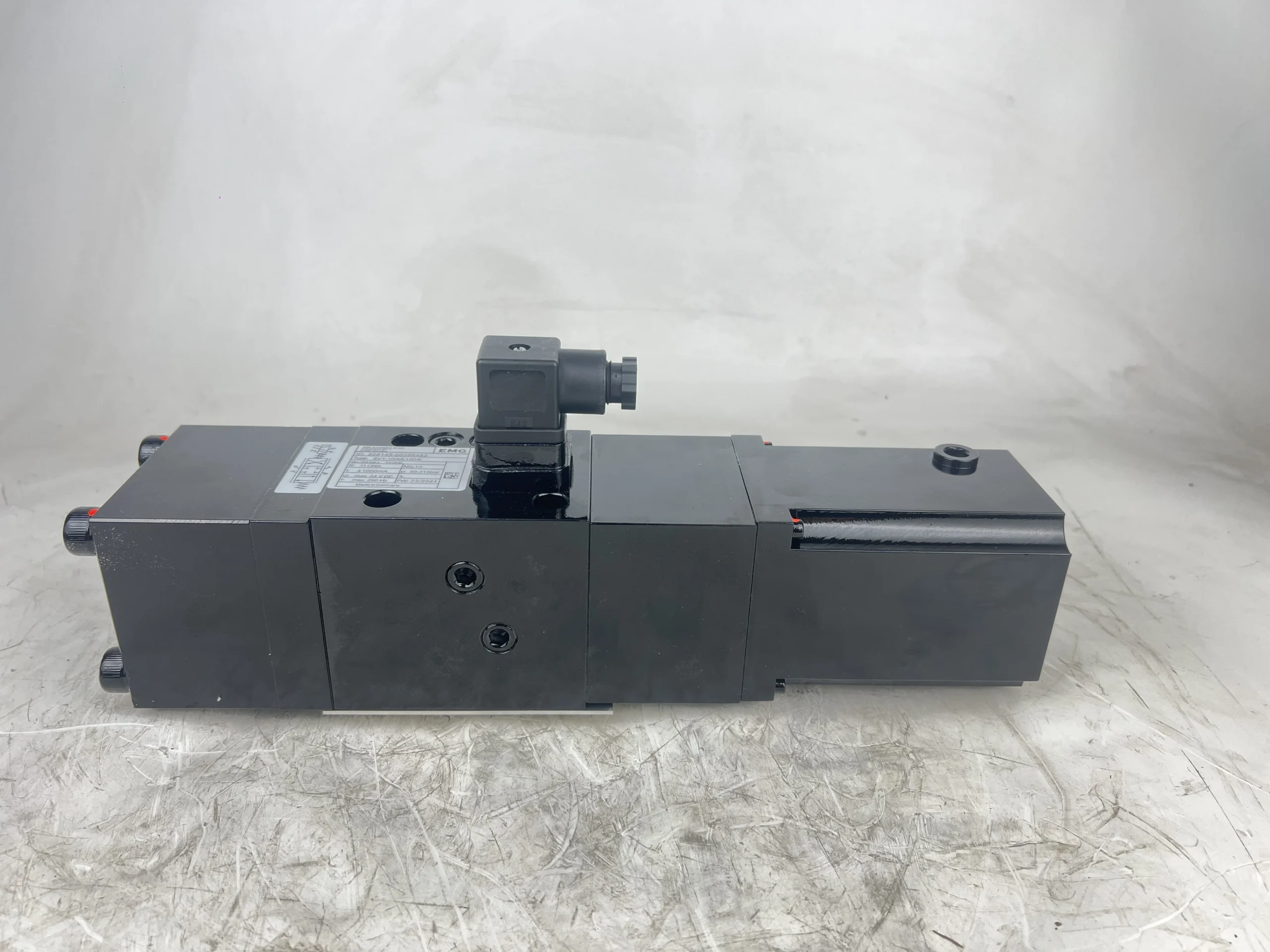

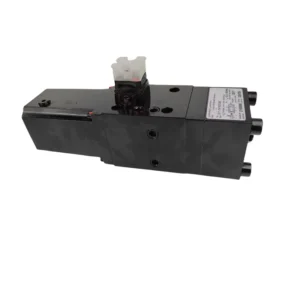

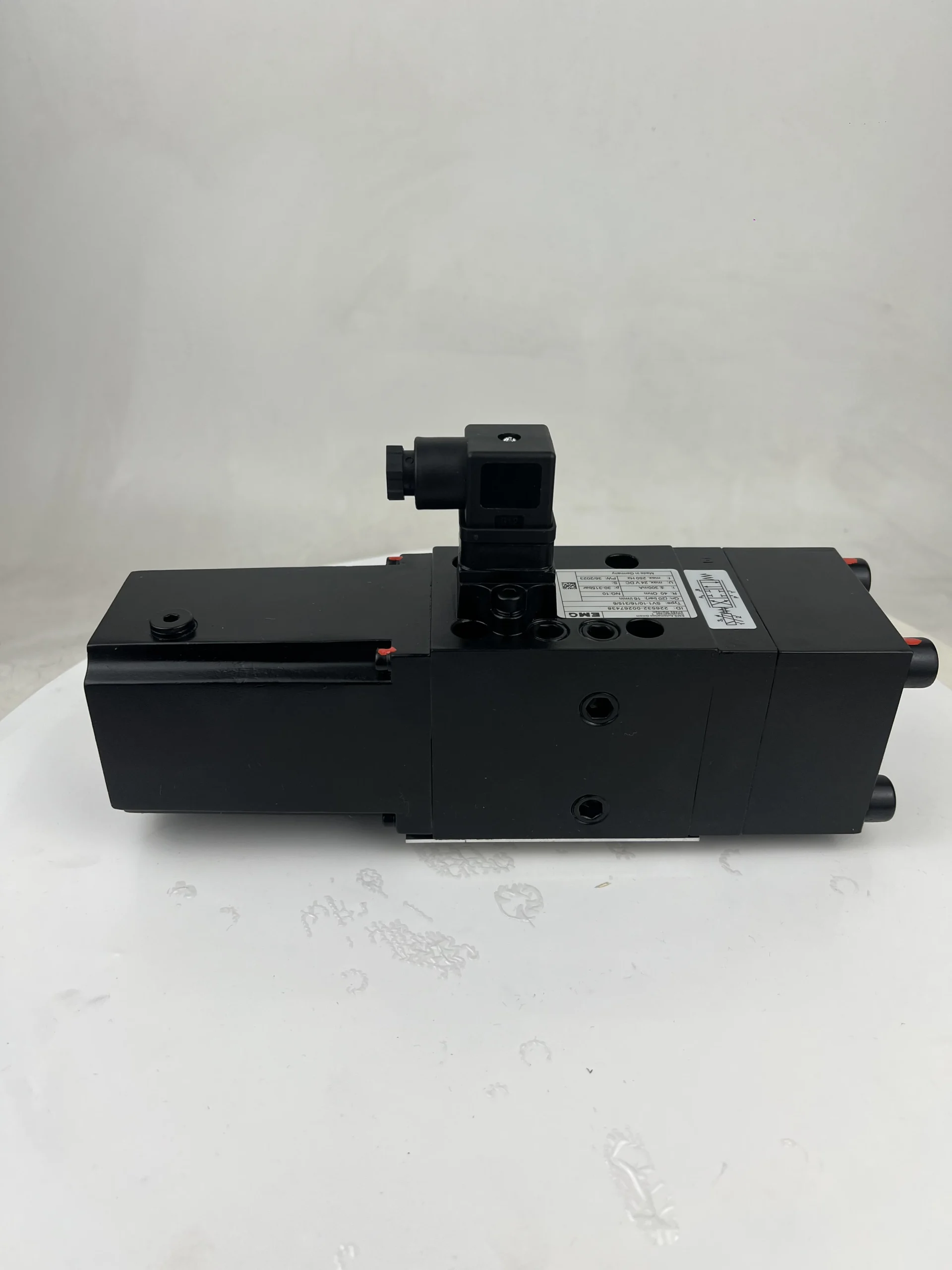

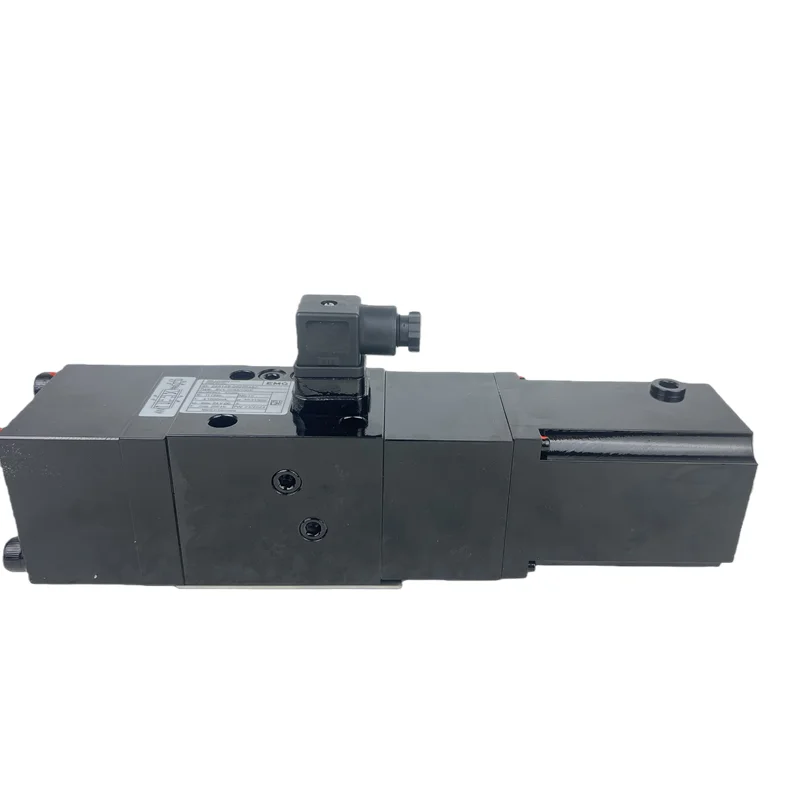

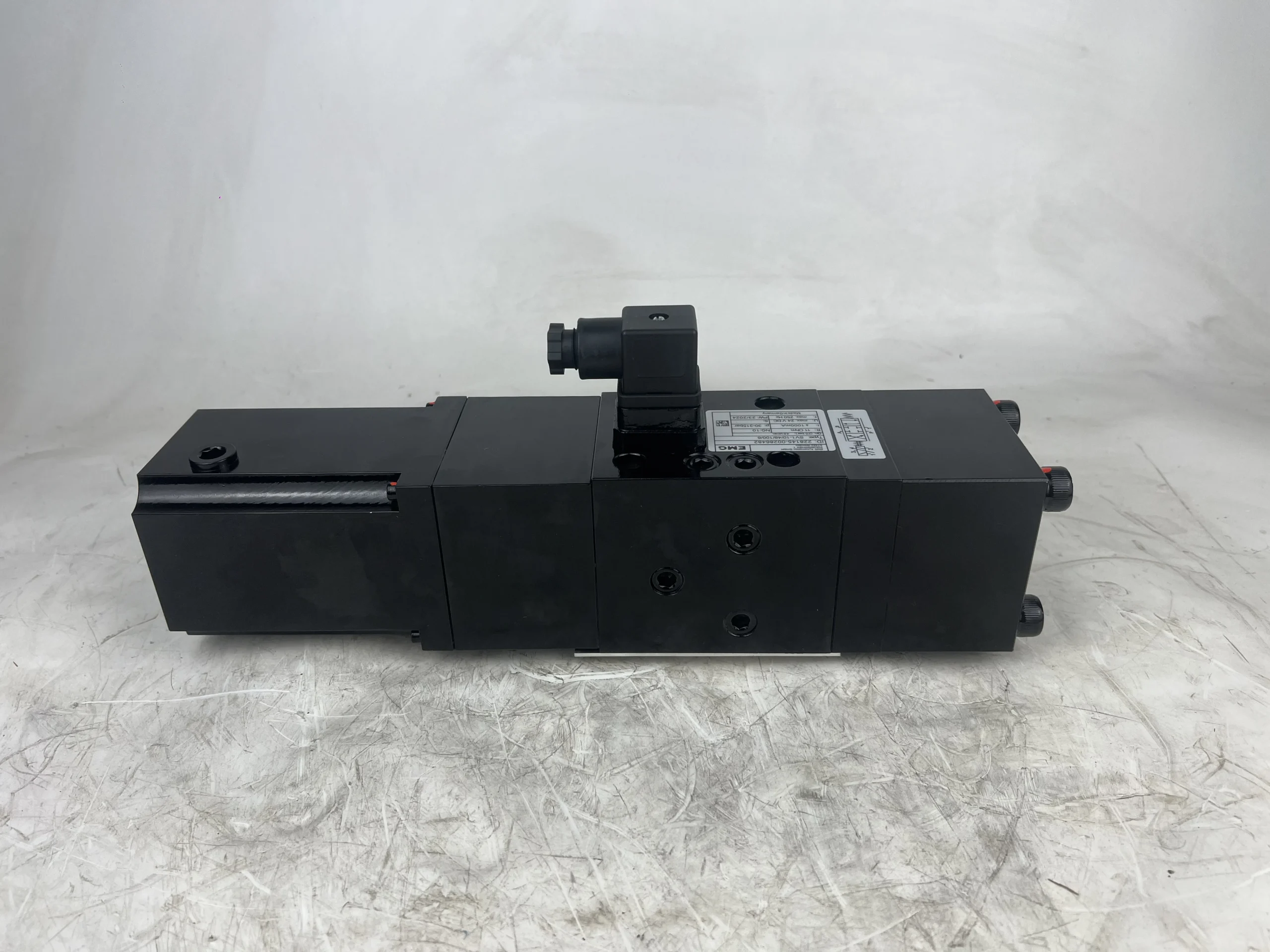

Vickers SV1-10 Series Direct Drive Proportional Servo Valves

Product Overview:

The Vickers SV1-10 Series is a benchmark in industrial hydraulic precision control. As a Size 10 (NG10) direct-drive servo valve, it eliminates the pilot stage, utilizing high-force proportional solenoids to actuate the spool directly, resulting in exceptional dynamic frequency response. This series is engineered for demanding closed-loop applications (position, velocity, and pressure) and supports operating pressures up to 315 Bar. From the refined flow of the SV1-10/8 to the high-flow dynamics of the SV1-10/48, it delivers superior linearity and minimal control hysteresis.

Featured models include the SV1-10/32/315/6, SV1-10/48/315/6, and the specialized SV1-10/32/100/6 for lower pressure requirements.

Key Technical Advantages:

• Direct Drive Dynamics: Instantaneous solenoid-to-spool actuation ensures minimal phase lag, making it the perfect choice for high-speed closed-loop systems.

• Precision Null Design: Micro-ground spool and sleeve assemblies provide excellent linear transitions and high resolution near the center position.

• Full Pressure Range: Available in 100 Bar, 210 Bar, and 315 Bar ratings to match diverse industrial power unit requirements.

• Industrial Ruggedness: The wet-pin solenoid construction ensures long-term operational life in harsh industrial environments.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1-10 Series (Size 10 / NG10).

• Featured Model Matrix:

  • SV1-10/8/315/6 (Rated Flow 8 L/min, Pressure 315 Bar)

  • SV1-10/16/210/6 (Rated Flow 16 L/min, Pressure 210 Bar)

  • SV1-10/32/315/6 (Rated Flow 32 L/min, Pressure 315 Bar)

  • SV1-10/48/315/6 (Rated Flow 48 L/min, Pressure 315 Bar)

  • SV1-10/32/100/6 (Low-pressure high-flow spec, 100 Bar)

• Core Technical Specs:

  • Mounting Interface: ISO 4401-05 (Size 10 / NG10).

  • Design Sequence: Series 6.

  • Rated Flow Rates: 8, 16, 32, 48 L/min (@ $\Delta p = 70 \text{ Bar}$).

  • Max Operating Pressure: Up to 315 Bar (4,500 PSI).
