Vickers SV1-10 Servo Valve | SV1-10/16/315/6 | SV1-10/32/315/6 | SV1-10/4/315

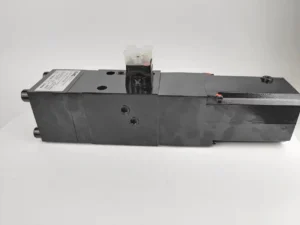

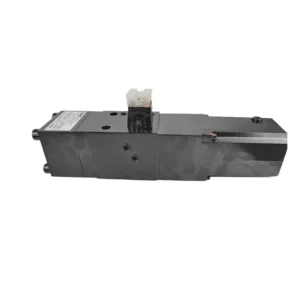

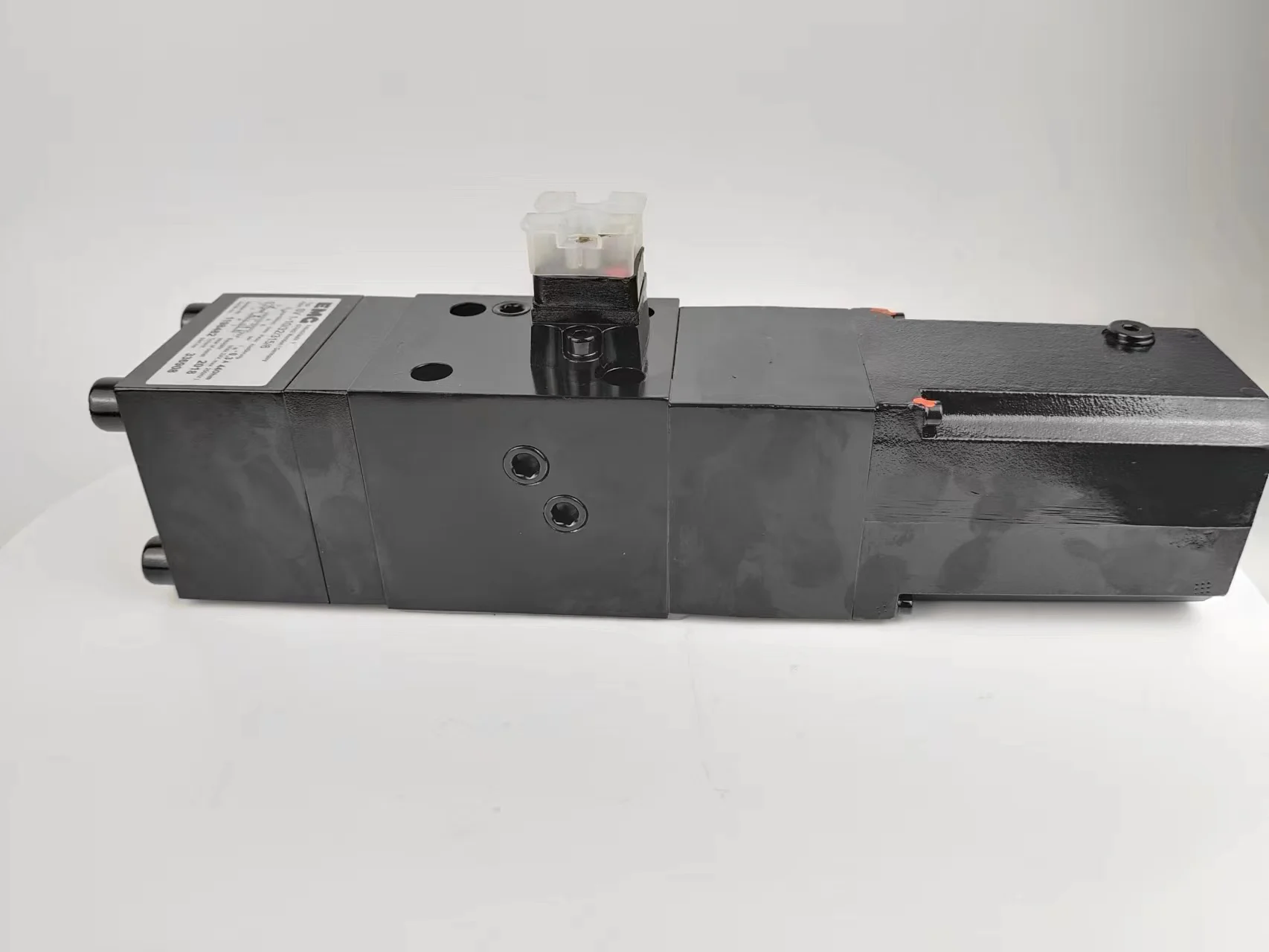

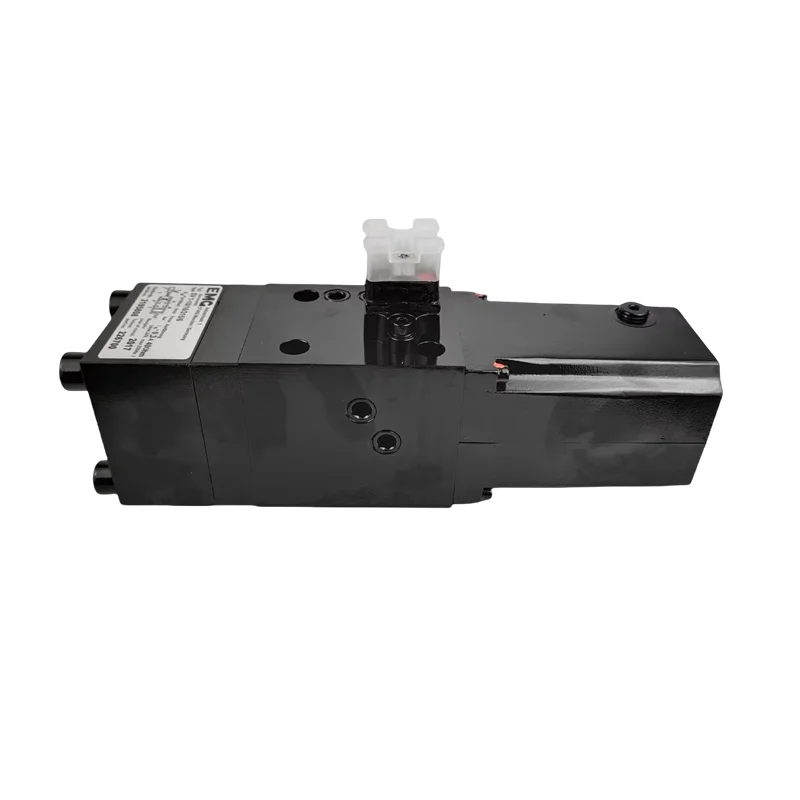

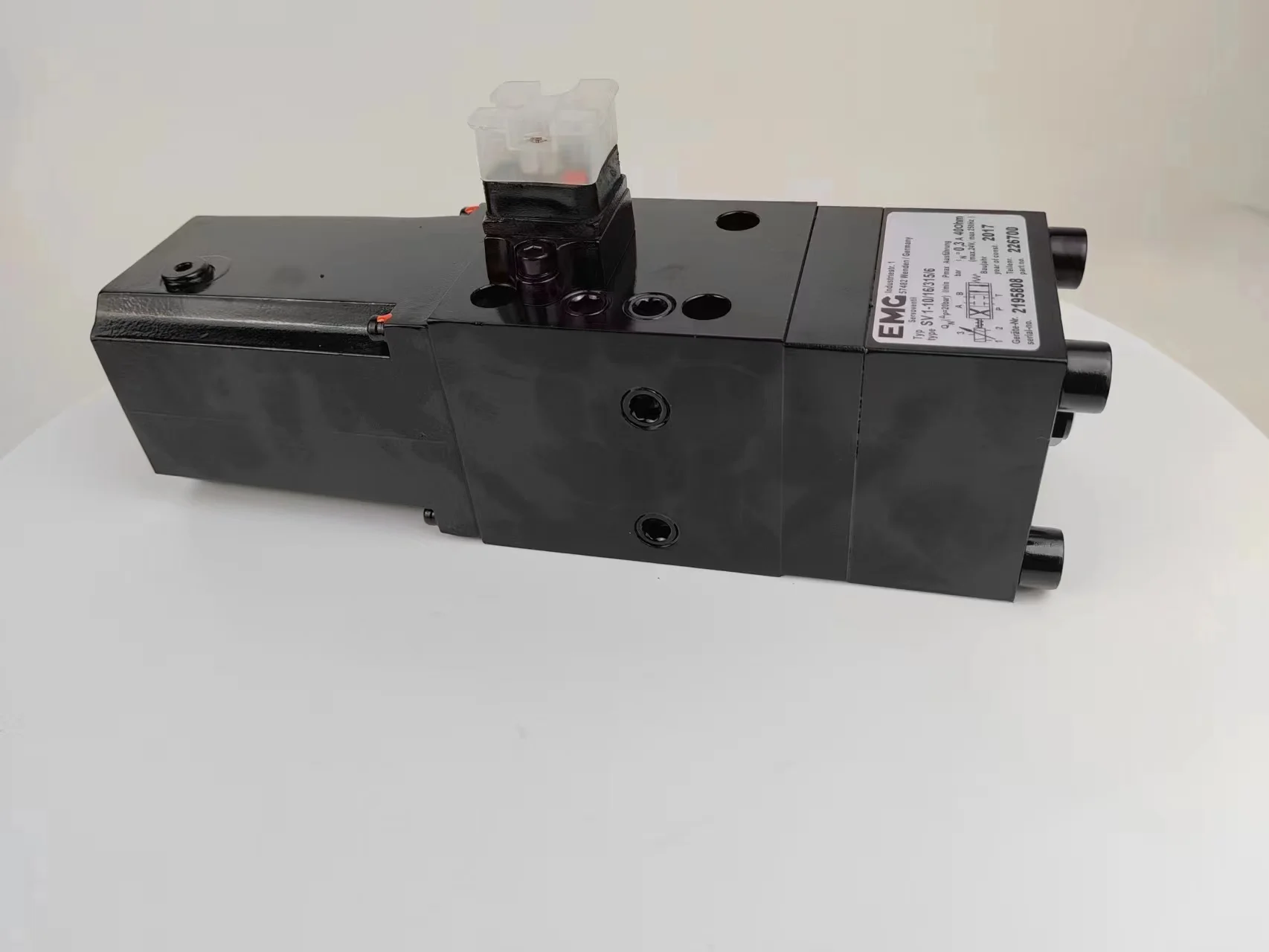

Vickers Type SV1-10 Series High-Performance Direct Drive Servo Valves

Product Overview: The Vickers SV1-10 Series is a benchmark in electro-hydraulic control, engineered for industrial closed-loop systems requiring extreme dynamic response and precise flow regulation. As a standard Size 10 (NG10) valve, the SV1 series utilizes a Direct Drive architecture where a powerful proportional solenoid actuates the micro-ground spool directly. This design eliminates pilot-stage lag, resulting in faster switching speeds and minimal hysteresis. Whether utilized in precision presses, flight simulators, or high-performance automation, the SV1-10 series delivers exceptional linear output at operating pressures up to 315 Bar.

Featured models include the high-pressure precision SV1-10/16/315/6, the high-flow SV1-10/32/315/6, and specialized micro-flow variants.

Key Technical Advantages:

• Extreme Dynamic Response: The direct-drive design significantly increases frequency response bandwidth for real-time tracking of complex command signals.

• High-Pressure Durability: Rated for operating pressures up to 315 Bar (4,500 PSI), meeting the heavy-load requirements of robust industrial machinery.

• Superior Resolution: Spool and sleeve assemblies are micro-ground to ensure minimal deadband, providing smooth transitions and refined adjustment near the null position.

• Low Hysteresis & Longevity: Friction-optimized internal components ensure high consistency and reliability over millions of operational cycles.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1-10 (NG10) Series.

• Featured Model Matrix:

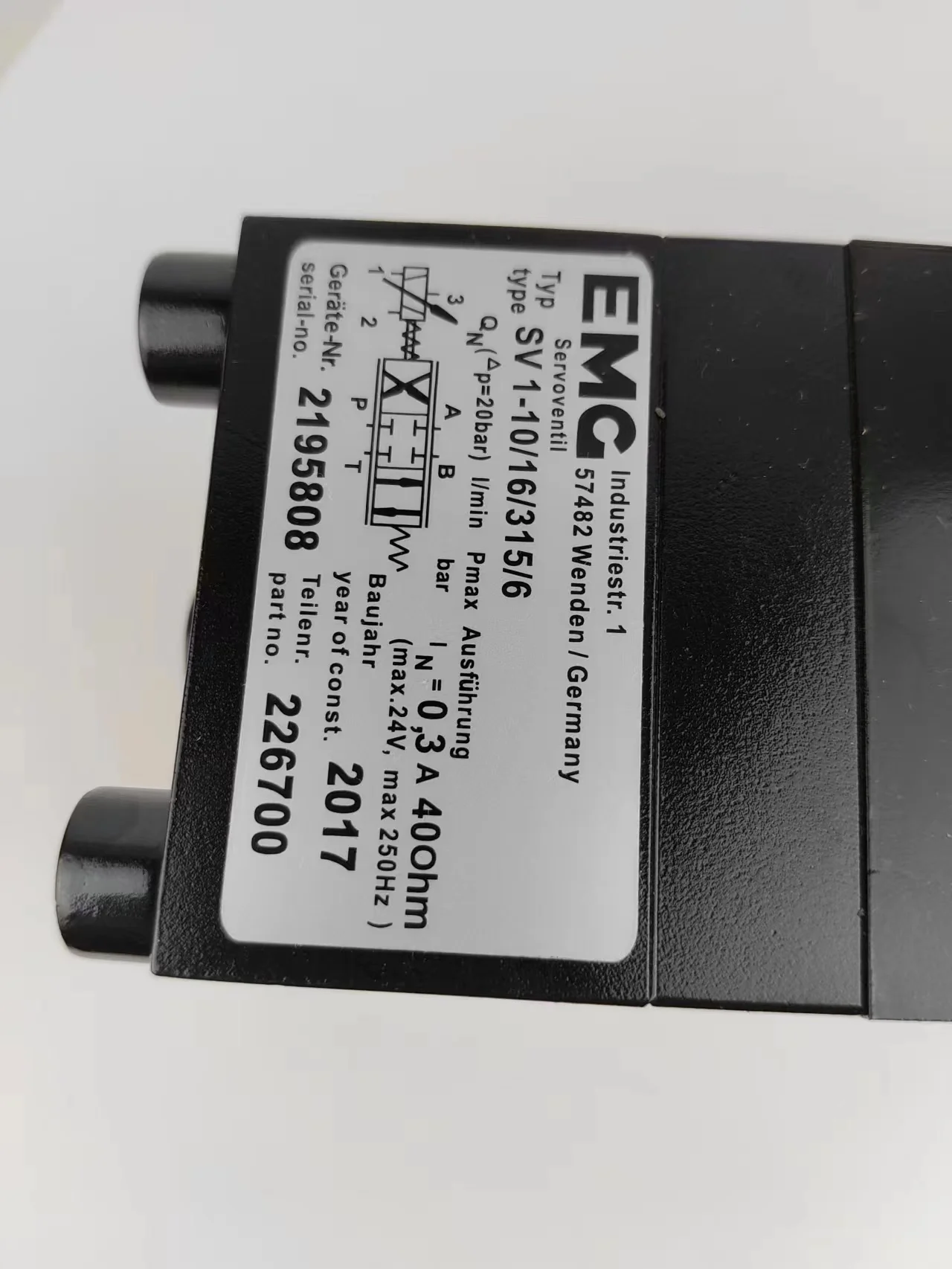

  • SV1-10/16/315/6 (Rated Flow: 16 L/min, Max Pressure: 315 Bar)

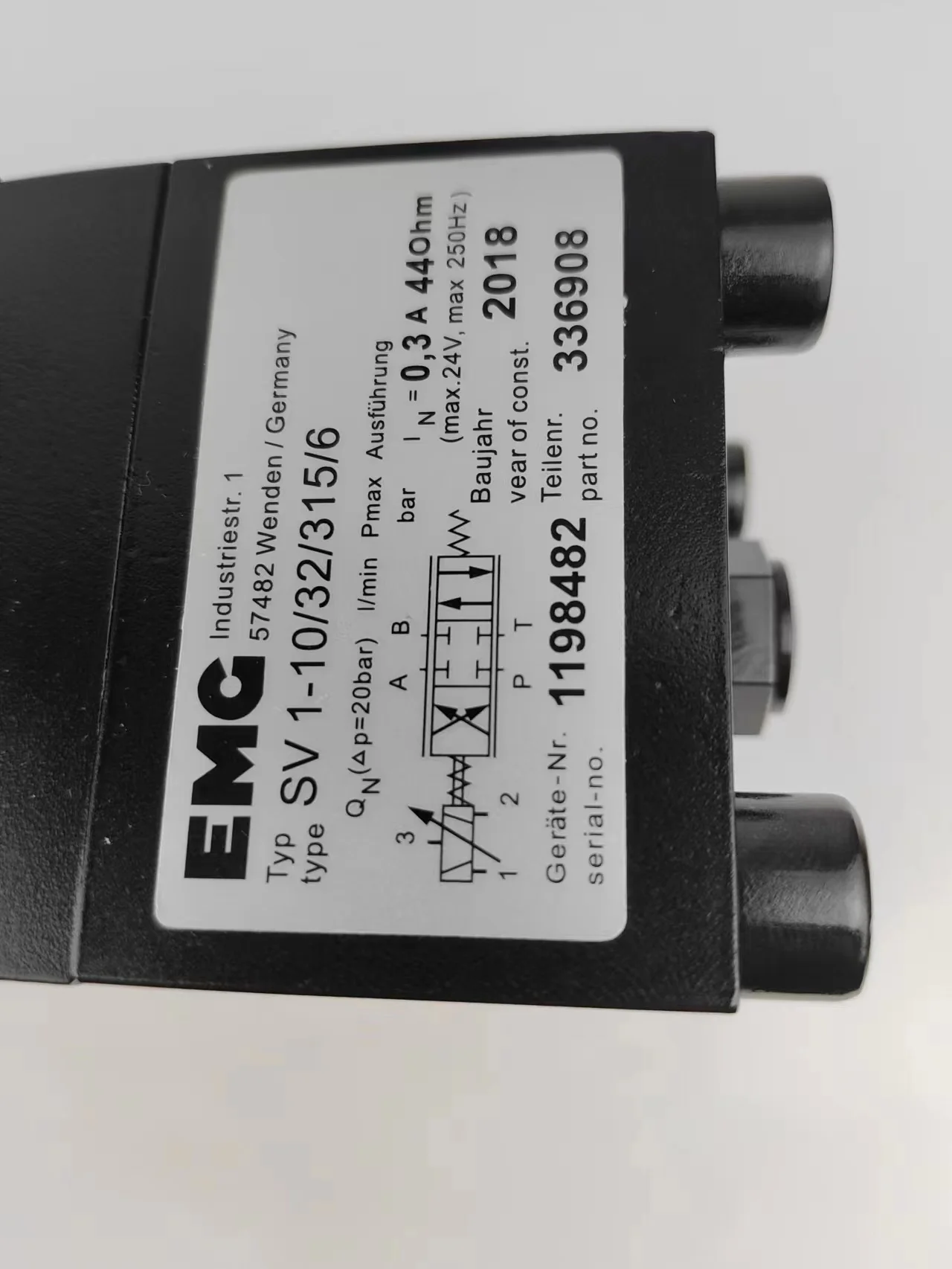

  • SV1-10/32/315/6 (Rated Flow: 32 L/min, Max Pressure: 315 Bar)

  • SV1-10/8/100/1 (Rated Flow: 8 L/min, Max Pressure: 100 Bar)

  • SV1-10/4/315/6 (Rated Flow: 4 L/min, Max Pressure: 315 Bar)

• Core Performance Specs:

  • Nominal Size: NG10 (CETOP 05 / Size 10).

  • Rated Pressure: 100 Bar or 315 Bar.

  • Design Sequence: Series 1 / Series 6.

  • Control Command: Analog proportional servo current input.
