Vickers SV1-10 Servo Valve | SV1-10/48/315/6 | SV1-10/16/315 | SV1-10/32/315

Vickers Type SV1-10 Series High-Response Proportional Servo Valves

Product Overview:

The Vickers SV1-10 Series represents the pinnacle of electro-hydraulic control technology, specifically engineered for industrial applications requiring extreme dynamic response and precise flow regulation. With a standard Size 10 (NG10) interface and a maximum operating pressure of 315 Bar, the SV1-10 series utilizes precision-ground spool and sleeve assemblies to instantly translate micro-electrical commands into linear, smooth hydraulic power. It is the premier choice for injection molding precision, metal forming press synchronization, and aerospace simulation equipment.

Featured prominently are the SV1-10/16/315/6, SV1-10/32/315/6, and the high-flow variant SV1-10/48/315/6.

Key Technical Advantages:

• Superior High-Pressure Capability: Rated for operating pressures up to 315 Bar (4,500 PSI), maintaining exceptional control gain even under heavy loads and high pressure drops.

• Extreme Dynamic Frequency Response: Optimized internal flow paths significantly reduce phase lag, allowing real-time tracking of high-frequency step signals for flawless actuator movement.

• High Resolution & Low Hysteresis: Advanced friction compensation minimizes hysteresis, dramatically enhancing the positioning accuracy of the control system.

• Rugged Industrial Design: Features exceptional null stability and resistance to mechanical vibration and high temperatures, ensuring long-term reliability in 24/7 production cycles.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1-10 High Performance Series.

• Featured Model Matrix:

  • SV1-10/16/315/6 (Rated Flow 16 L/min)

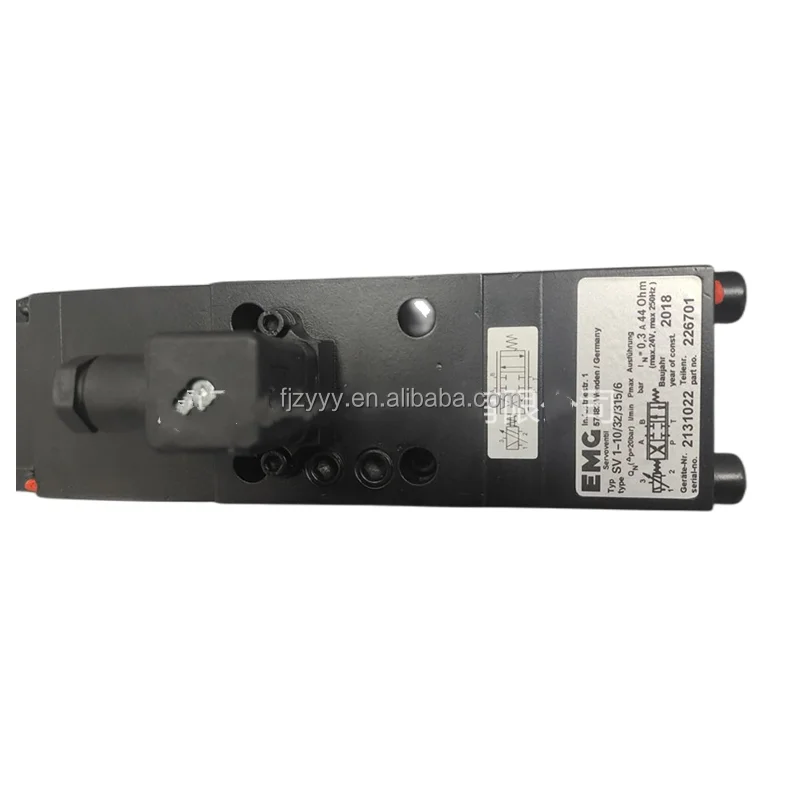

  • SV1-10/32/315/6 (Rated Flow 32 L/min)

  • SV1-10/48/315/6 (High Flow 48 L/min)

• Core Performance Specs:

  • Nominal Size: Size 10 (NG10 / CETOP 05).

  • Max Operating Pressure: Rated at 315 Bar across the series.

  • Rated Flow Classes: 16, 32, and 48 L/min (at standard $\Delta p$).

  • Control Command: Analog proportional servo signals.

  • Design Sequence: 6 Series.
