Vickers SV1-10 Servo Valve | SV1-10/48/100 | SV1-10/16/315 | SV1-10/32/100

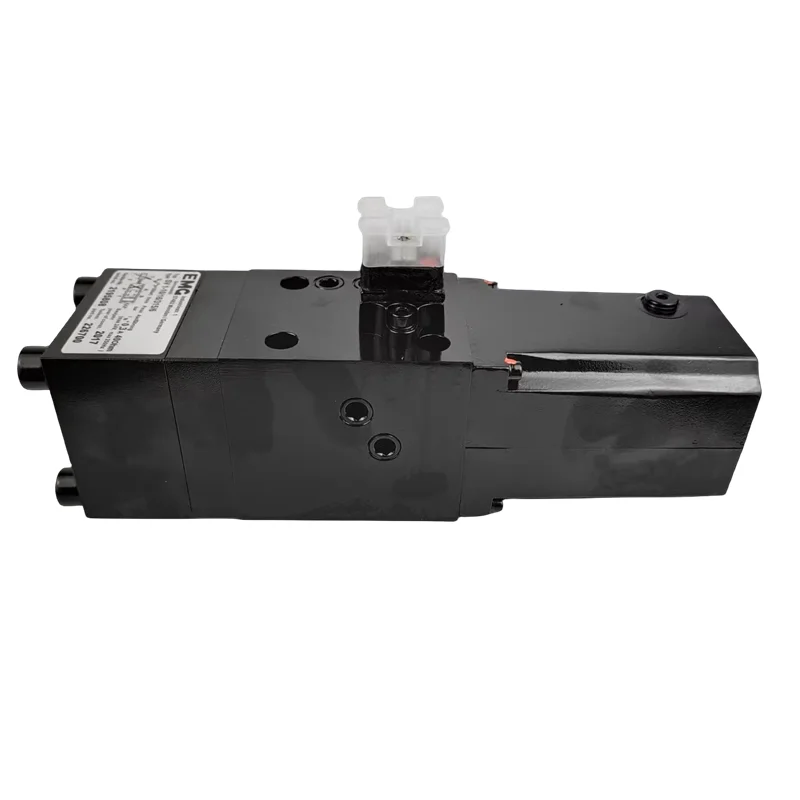

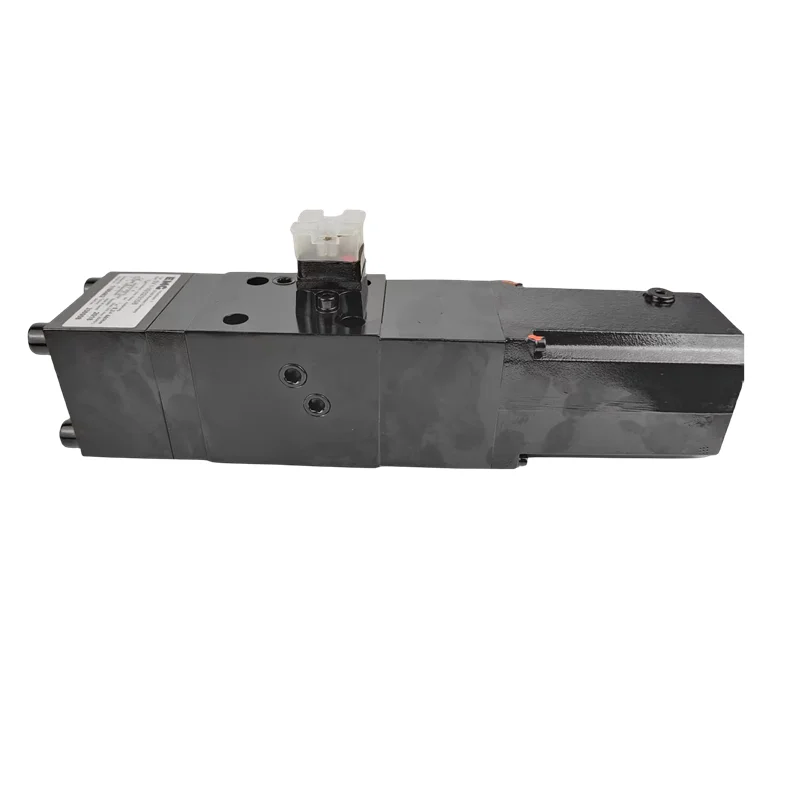

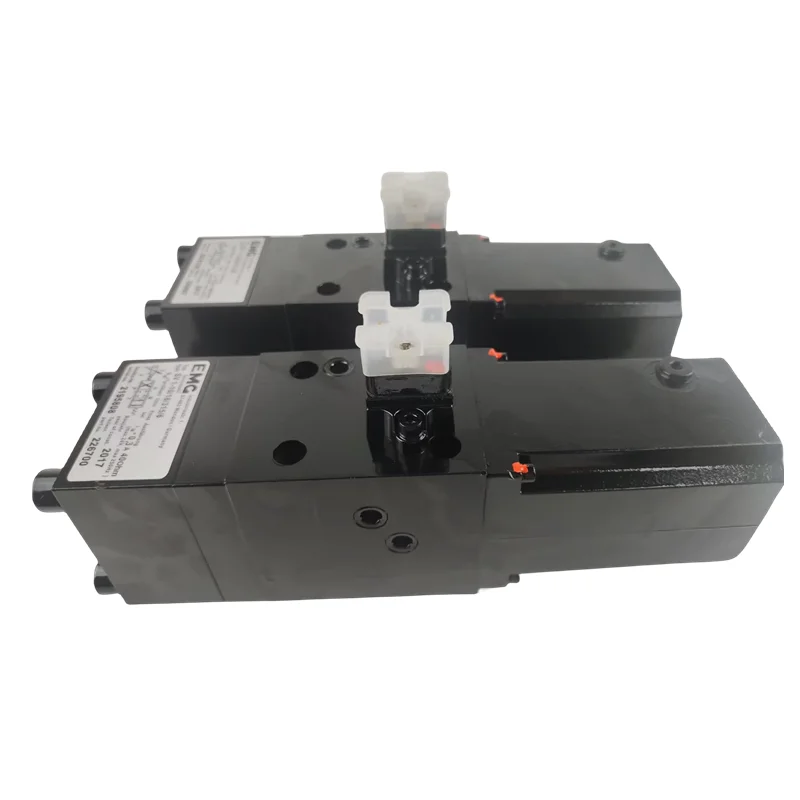

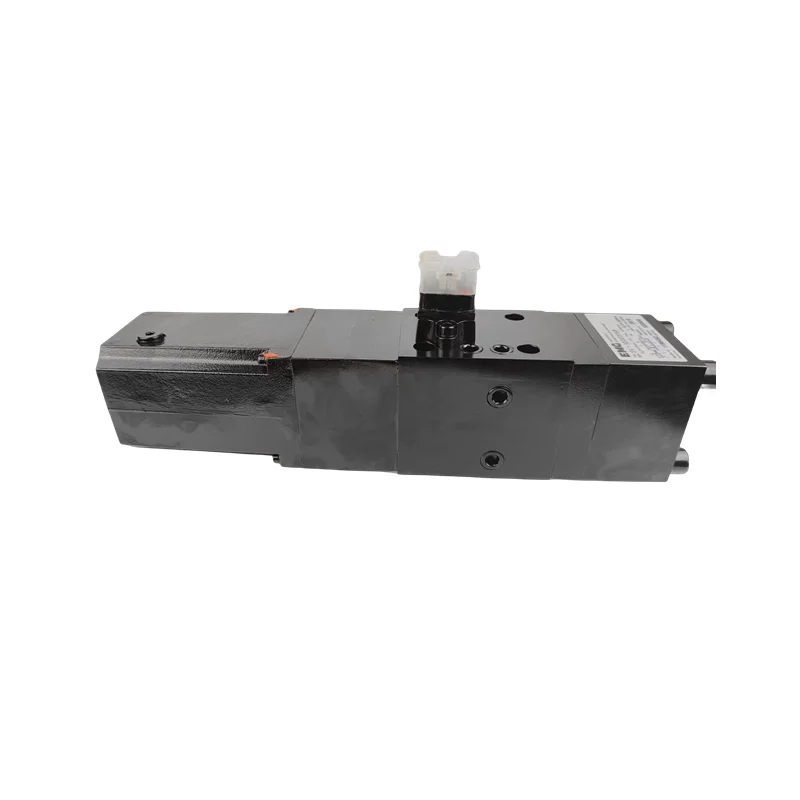

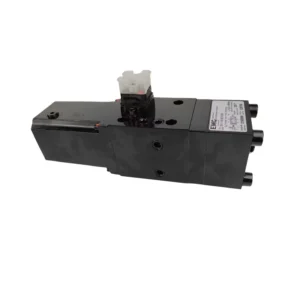

Vickers Type SV1-10 Series High-Performance Direct Drive Servo Valves

Product Overview: The Vickers SV1-10 Series is a precision component in electro-hydraulic control technology, engineered for industrial closed-loop systems requiring extreme dynamic response and accurate flow regulation. As a standard Size 10 (NG10) valve, the SV1 series features a direct-drive mechanism where powerful proportional solenoids actuate the spool directly. This eliminates the complexity of a pilot stage, resulting in faster switching speeds and lower control hysteresis. Whether in press synchronization, precision injection molding, or aerospace test rigs, the SV1-10 series delivers outstanding stability at pressures up to 315 Bar.

Featured models include the high-flow SV1-10/48/100, the high-pressure SV1-10/16/315, and the versatile SV1-10/32/100.

Key Technical Advantages:

• Direct Drive Design: Simplifies architecture and significantly increases frequency response bandwidth for real-time tracking of high-frequency command signals.

• Wide Flow Gradient Selection: Available in flow rates from 8 L/min to 48 L/min, catering to both precision micro-adjustments and rapid actuation.

• Multi-Pressure Rating Support: Offered in 100 Bar and 315 Bar versions to match various hydraulic system power requirements.

• High Resolution Control: Precision-ground spool and sleeve assemblies ensure minimal hysteresis and exceptional repetitive positioning accuracy.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1-10 (NG10) Series.

• Featured Model Matrix:

  • SV1-10/8/315/6 (8 L/min, 315 Bar High Pressure)

  • SV1-10/16/315/6 (16 L/min, 315 Bar High Pressure)

  • SV1-10/16/100/6 (16 L/min, 100 Bar Standard)

  • SV1-10/32/100/6 (32 L/min, 100 Bar Standard)

  • SV1-10/48/100/6 (48 L/min High Flow)

• Core Performance Specs:

  • Nominal Size: NG10 (CETOP 05).

  • Max Operating Pressure: 100 Bar (1,450 PSI) or 315 Bar (4,500 PSI).

  • Rated Flow: 8, 16, 32, 48 L/min.

  • Design Sequence: 6 Series.

SV1-10/8/100/1 EMG SV1-10/4/100/6 EMG SV1-10/8/100/6 EMG SV1-10/8/315/6 EMG SV1-06/05/210/5 EMG SV1-10/48/315/6 EMG SV1-10/8/100/6
EMG SV1-10/8/315/6 EMG SV1-10/48/315/1 EMG SV1-10/8/31/5/6 EMG SV1-10/48/100/6 EMG SV1-10/16/100/6 EMG SV1-10/32/100/6 EMG
SV1-10/16/315/6 EMG SV1-06/05/210/05 EMG SV2-20/105/315/5 EMG SV1-06/05/210/05 EMG SV1-06/05/210/05 EMG SV2-20/130/315/1 EMG
SV1-10/16/31/5/6 EMG SV1-06/05/210/5/DEEMG SV2-16/130/315/1/D EMG SV2-10/64/210/6/D
