Vickers SV1-10 Servo Valve | 315 Bar | SV1-10/48/315/1 SV1-10/32/315/6

Vickers Type SV1-10 Series High-Response Hydraulic Servo Valves

Product Overview: The Vickers SV1-10 Series stands as the performance benchmark for industrial precision closed-loop control. Featuring a standard Size 10 (NG10) interface and inspired by Rotary Direct Drive principles, this series offers exceptional frequency response and superior null stability. With a universal 315 Bar pressure rating, the SV1-10 series utilizes precision-ground spool and sleeve assemblies to translate complex electrical commands into micron-level flow regulation. It is the premier choice for metal forming, die-casting machinery, high-end simulators, and automation systems requiring high-dynamic force or position control.

Featured prominently are the high-flow SV1-10/48, the balanced SV1-10/32, and the high-precision SV1-10/8, all compatible with EMG-20APB22 drive specifications.

Key Technical Advantages:

• Full Pressure Rating Coverage: Rated for operating pressures up to 315 Bar (4,500 PSI), maintaining high control gain even in heavy-duty, high-pressure environments.

• Superior Dynamic Response: Optimized internal actuation significantly reduces phase lag, ensuring real-time signal tracking within milliseconds.

• Low Hysteresis & Repeatability: Advanced friction compensation minimizes hysteresis, ensuring industrial-leading repetitive positioning accuracy for the entire control loop.

• Direct Drive Compatibility: Optimized for servo controllers like the EMG-20APB22, providing stable and efficient electro-hydraulic coupling.

Detailed Specifications & Parameters:

• Core Series: Vickers SV1-10 High Performance Series.

• Featured Model Matrix:

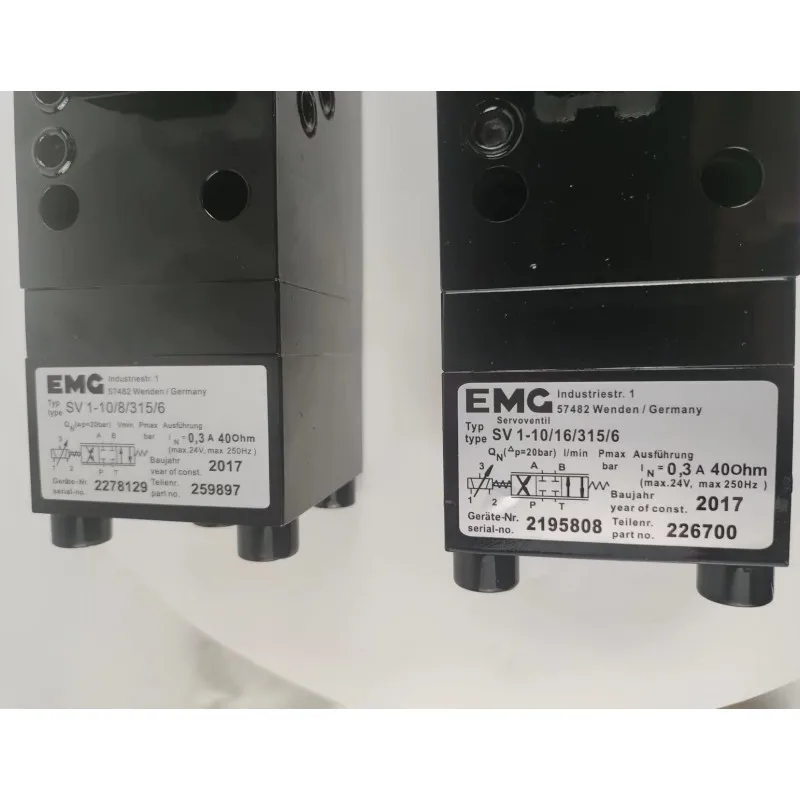

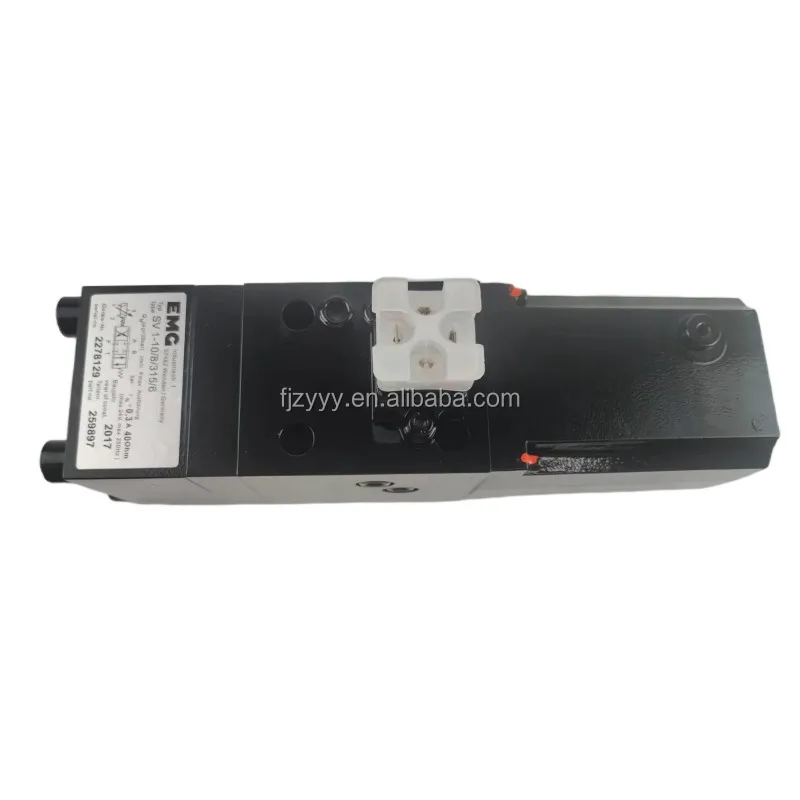

  • SV1-10/8/315/6 (8 L/min Rated Flow)

  • SV1-10/16/315/9 (16 L/min, 9 Series Design)

  • SV1-10/32/315/6 (32 L/min, 6 Series Design)

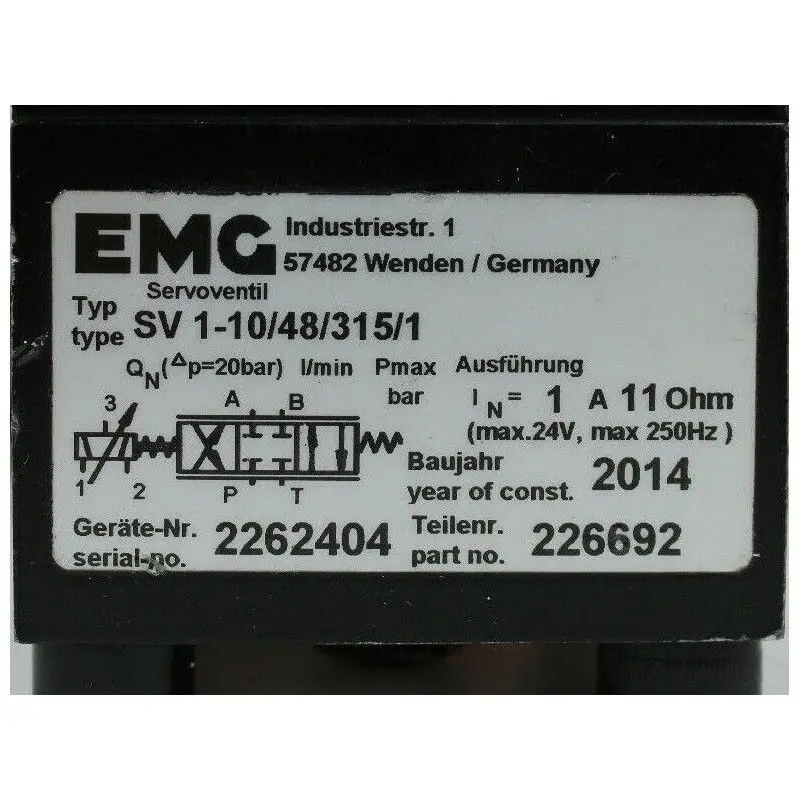

  • SV1-10/48/315/1 (48 L/min High Flow Variant)

• Core Performance Specs:

  • Nominal Size: Size 10 (NG10 / CETOP 05).

  • Max Operating Pressure: Rated up to 315 Bar across the series.

  • Flow Rate Graduations: 8 L/min, 16 L/min, 32 L/min, 48 L/min.

  • Drive Reference: Compatible with EMG-20APB22 electrical specifications.

  • Design Sequences: Includes 1, 6, and 9 series technical iterations.
