Vickers SM4 Servo Valve | SM4-20(15)57-80/40-10-S182 | SM4-40(40)151-80/40
| Model Number | SM4, SM4-20(15)57-80/40-10-S182, SM4-40(40)151-80/40-10-H919H |
|---|
Product Description

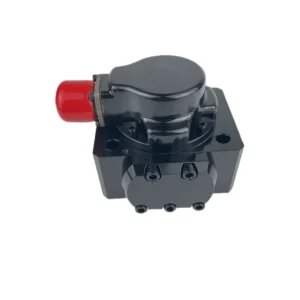

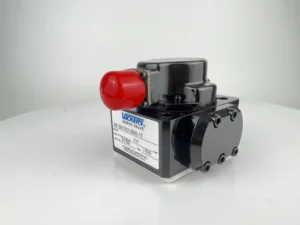

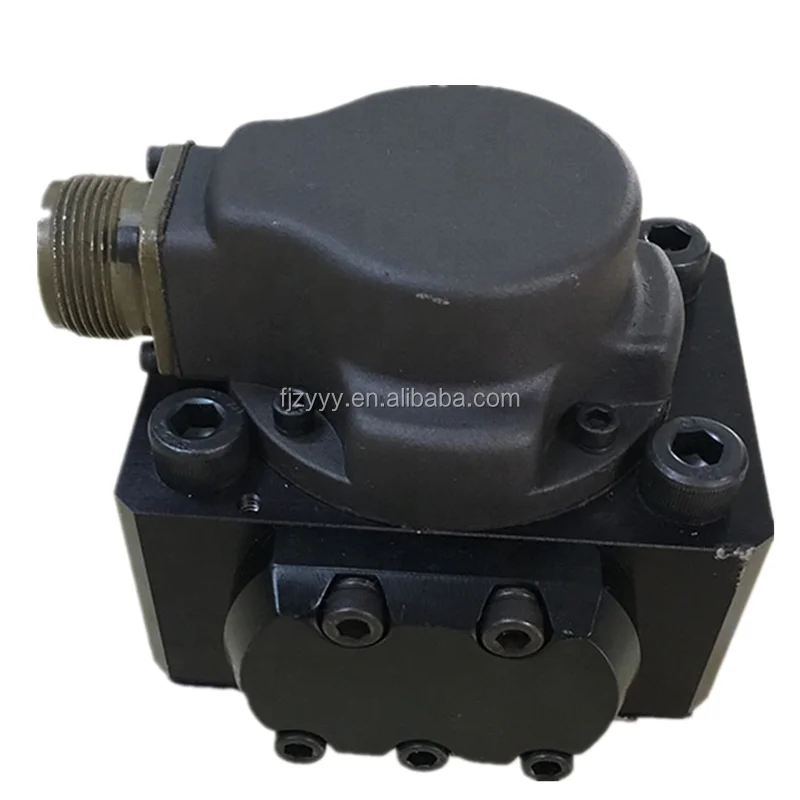

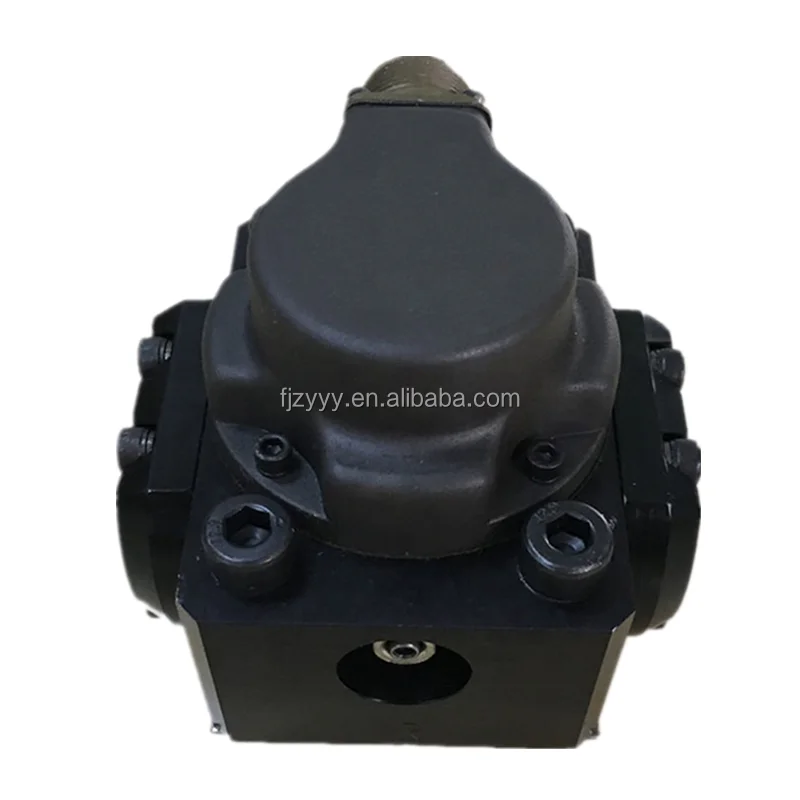

Vickers SM4 Series High-Performance Two-Stage Electro-Hydraulic Servo Valves
Product Overview: The Vickers SM4 Series servo valves are specifically engineered for applications demanding ultimate dynamic response and high-precision flow control. Utilizing a proven two-stage design—a high-sensitivity nozzle-flapper pilot stage and a precision-ground spool/sleeve second stage—this series ensures massive hydraulic force is controlled by minute electrical signals. From the SM4-20(15) for complex motion control to the SM4-40(40) for high-flow requirements, this series delivers near-perfect linear output and minimal hysteresis.
This page prominently features specialized custom models: SM4-20(15)57-80/40-10-S182 and SM4-40(40)151-80/40-10-H919H.
Key Technical Advantages:
High Frequency Dynamic Response: Nozzle-flapper technology provides exceptional bandwidth, enabling real-time tracking of complex frequency command signals.
Exceptional Null Stability: Precision-engineered feedback wire mechanisms minimize null shift during prolonged continuous operation.
Two-Stage Power Amplification: Controls powerful hydraulic forces via micro-level electrical inputs, achieving micron-level adjustment of actuator speed and position.
Custom Specification Support: Specialized suffixes like S182 and H919H denote custom optimizations for flow gain, seal materials, or electrical connectivity to suit specific industrial environments.
Detailed Specifications & Parameters:
Core Series: Vickers SM4 High Performance Series.
Featured Model Matrix:

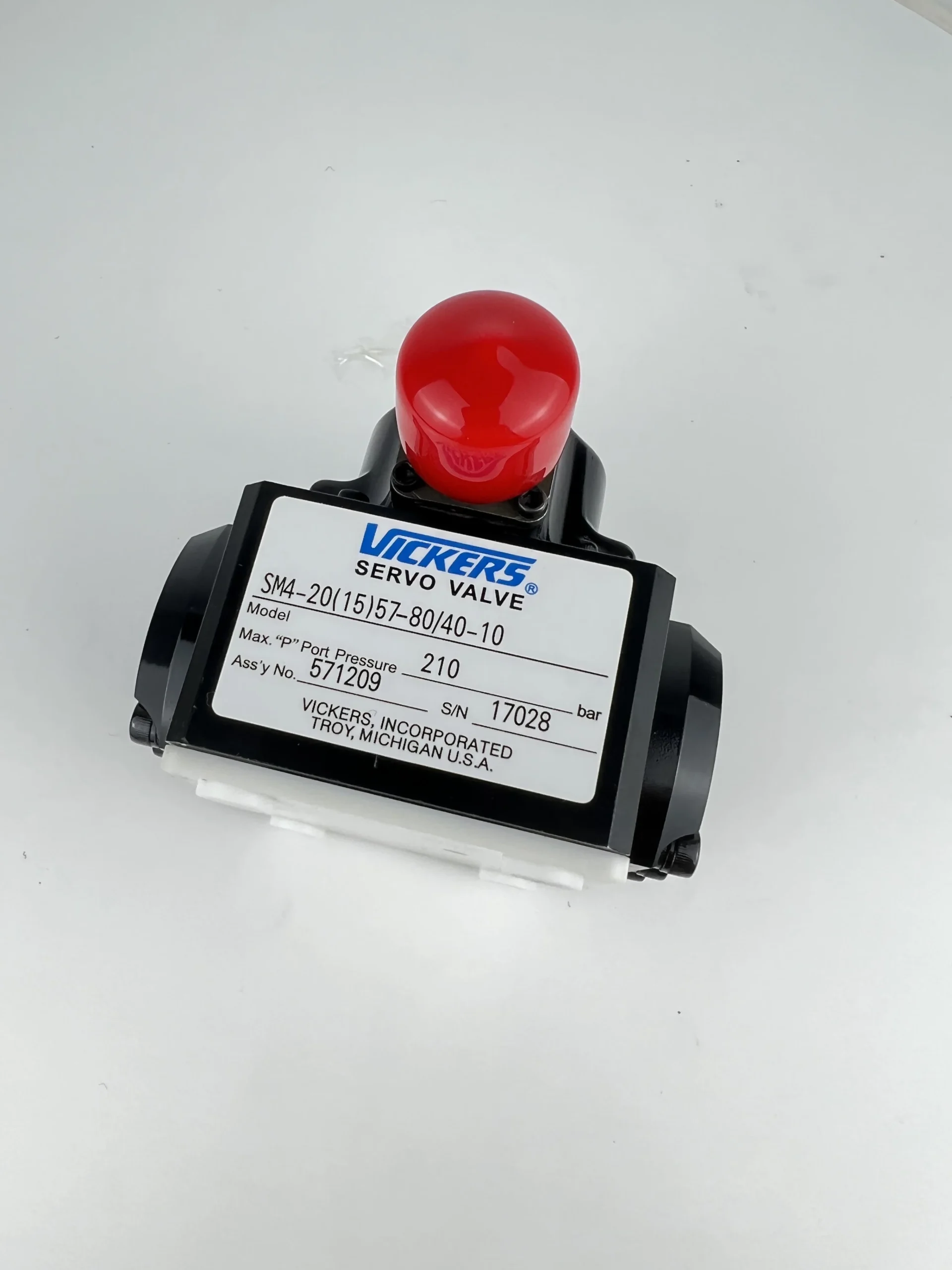

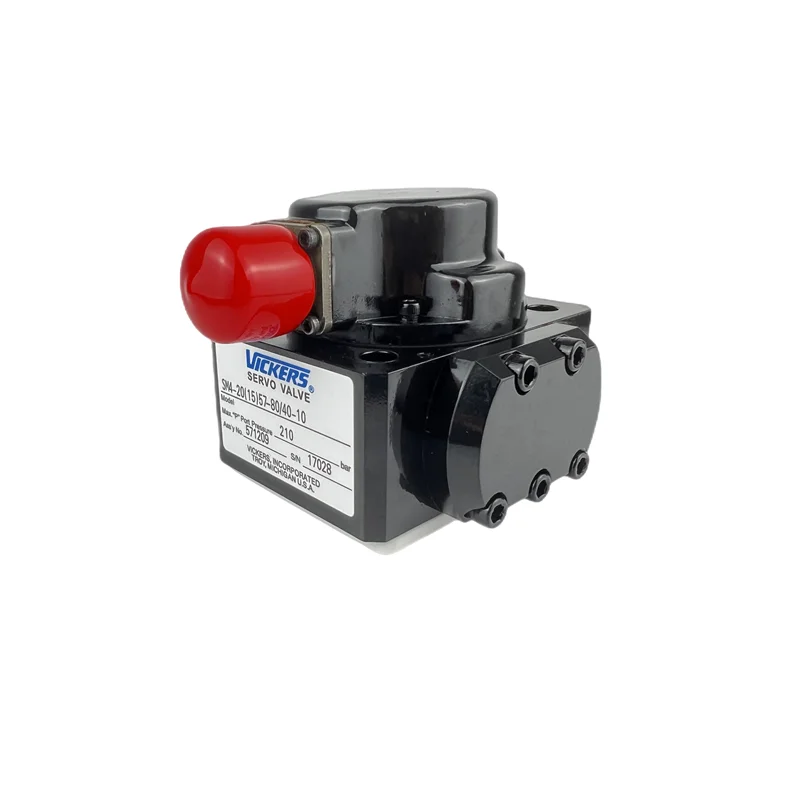

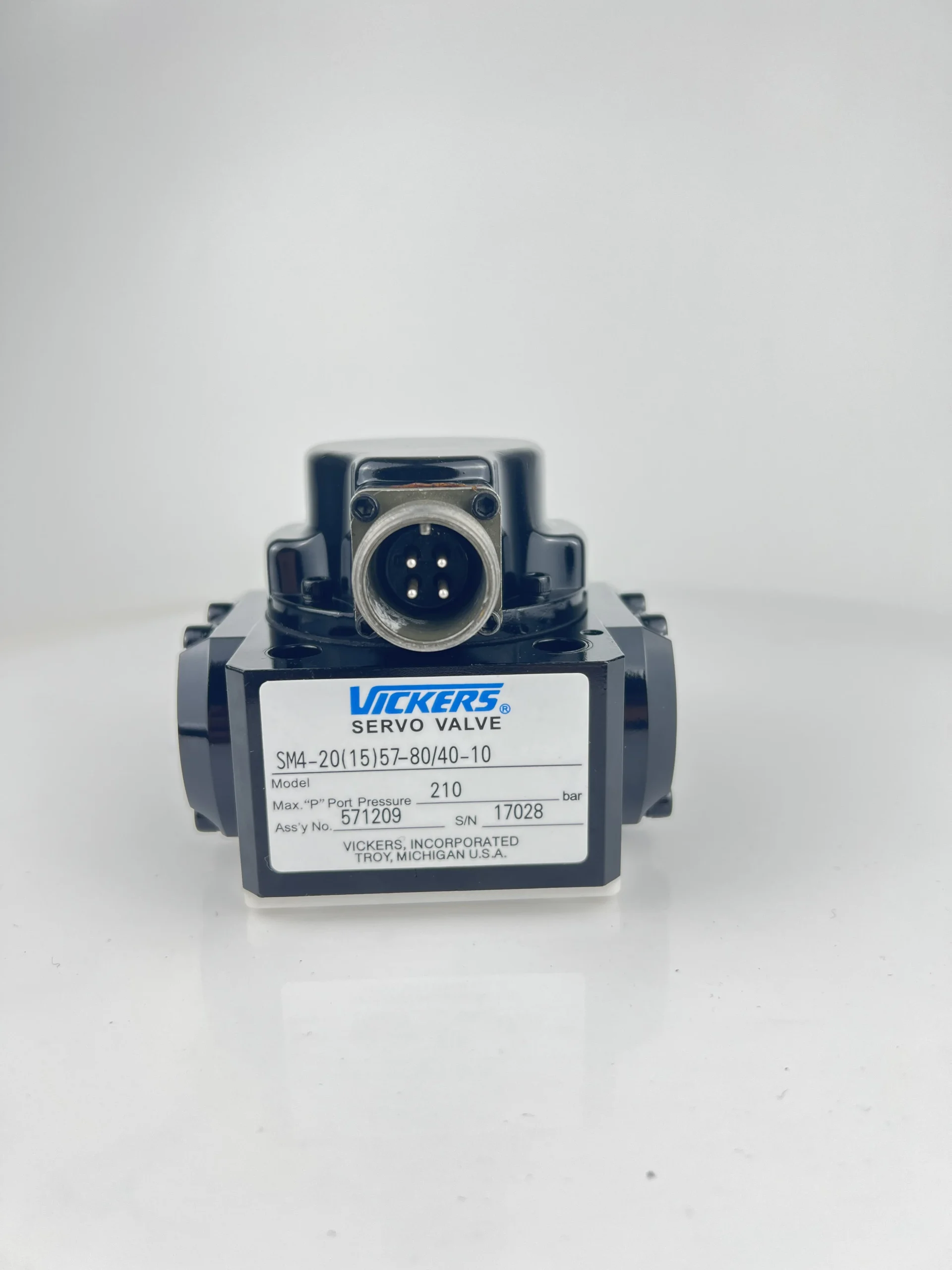

SM4-20(15)57-80/40-10-S182 (Rated Flow: 15gpm / 57Lpm)
SM4-40(40)151-80/40-10-H919H (Rated Flow: 40gpm / 151Lpm)
Core Performance Specs:
Frame Sizes: SM4-20 and SM4-40.
Rated Flow Range: From 57 L/min (15 USgpm) to 151 L/min (40 USgpm).
Max Operating Pressure: Rated up to 210 Bar (3,000 PSI) or custom per spec.
Control Command: Differential servo current input.
Feedback Type: Mechanical Feedback.
