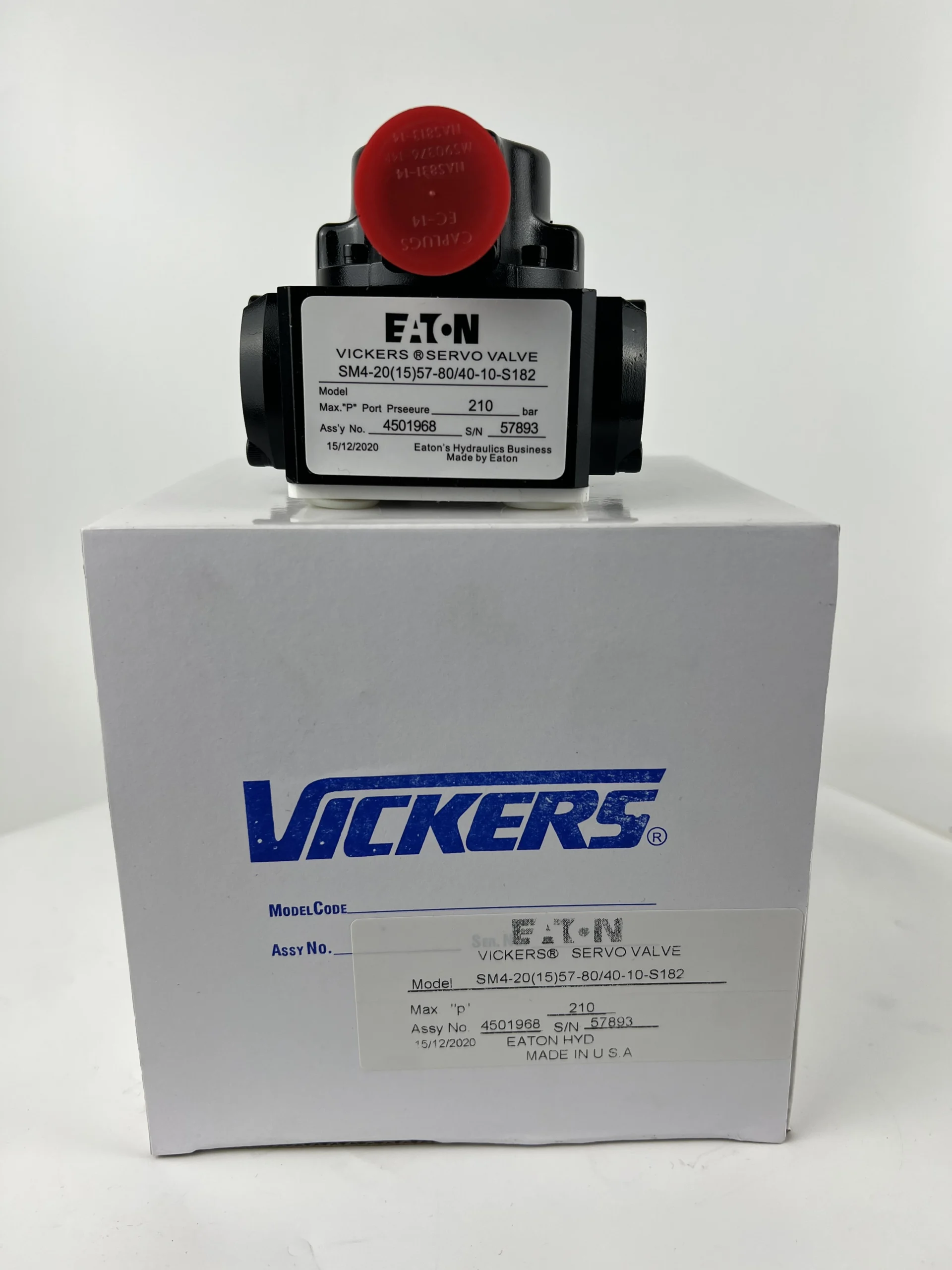

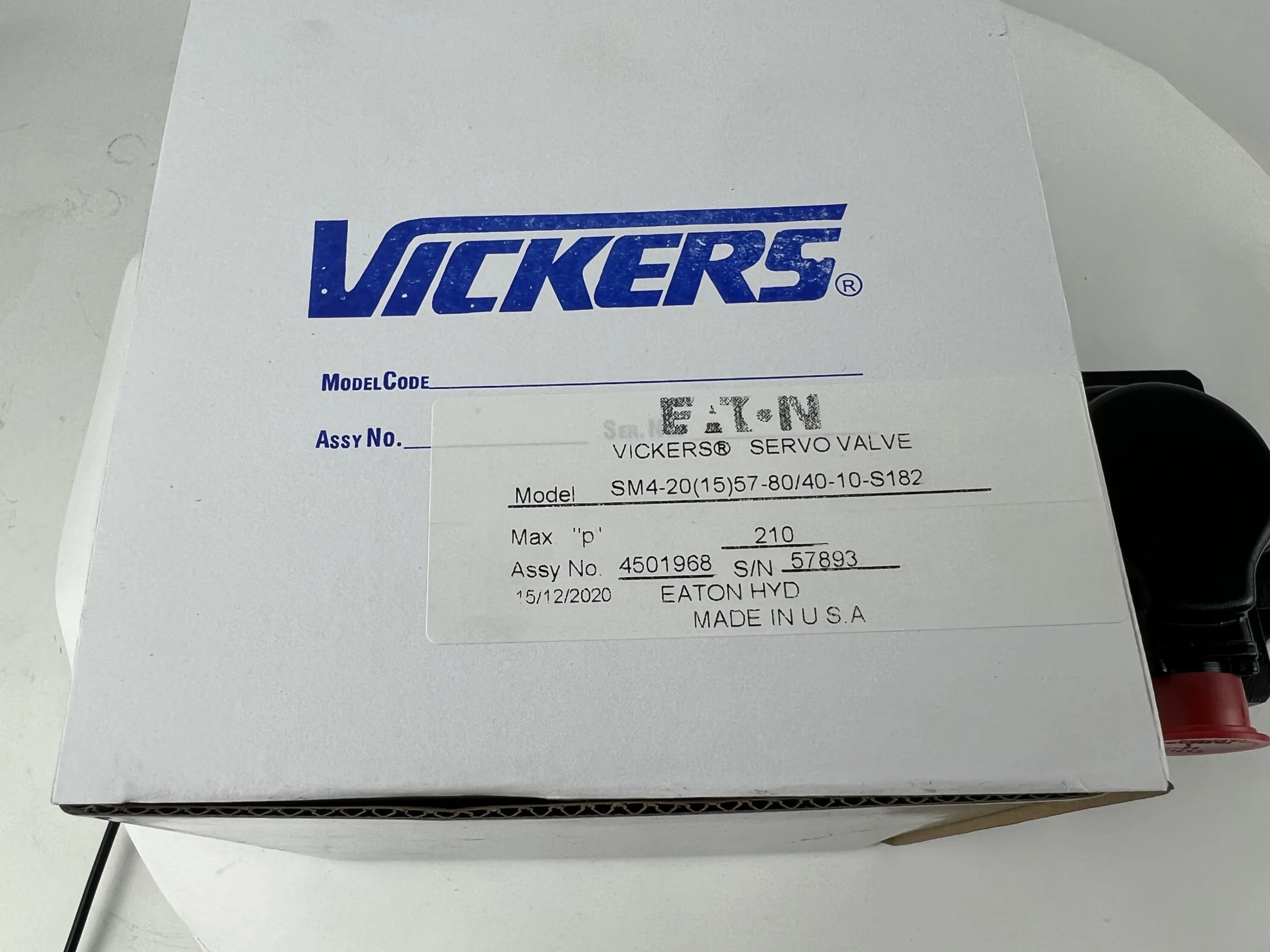

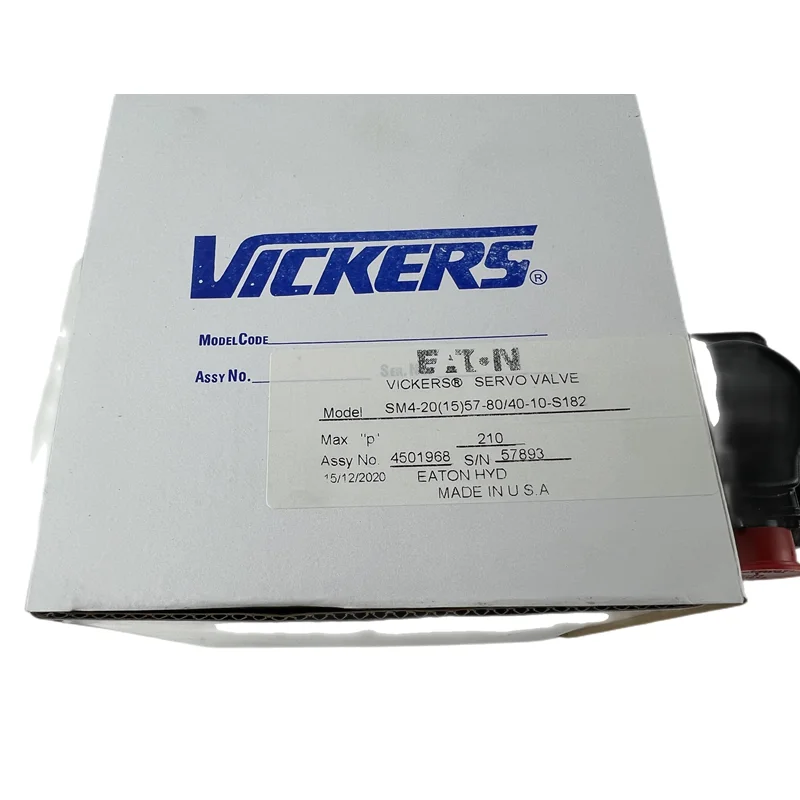

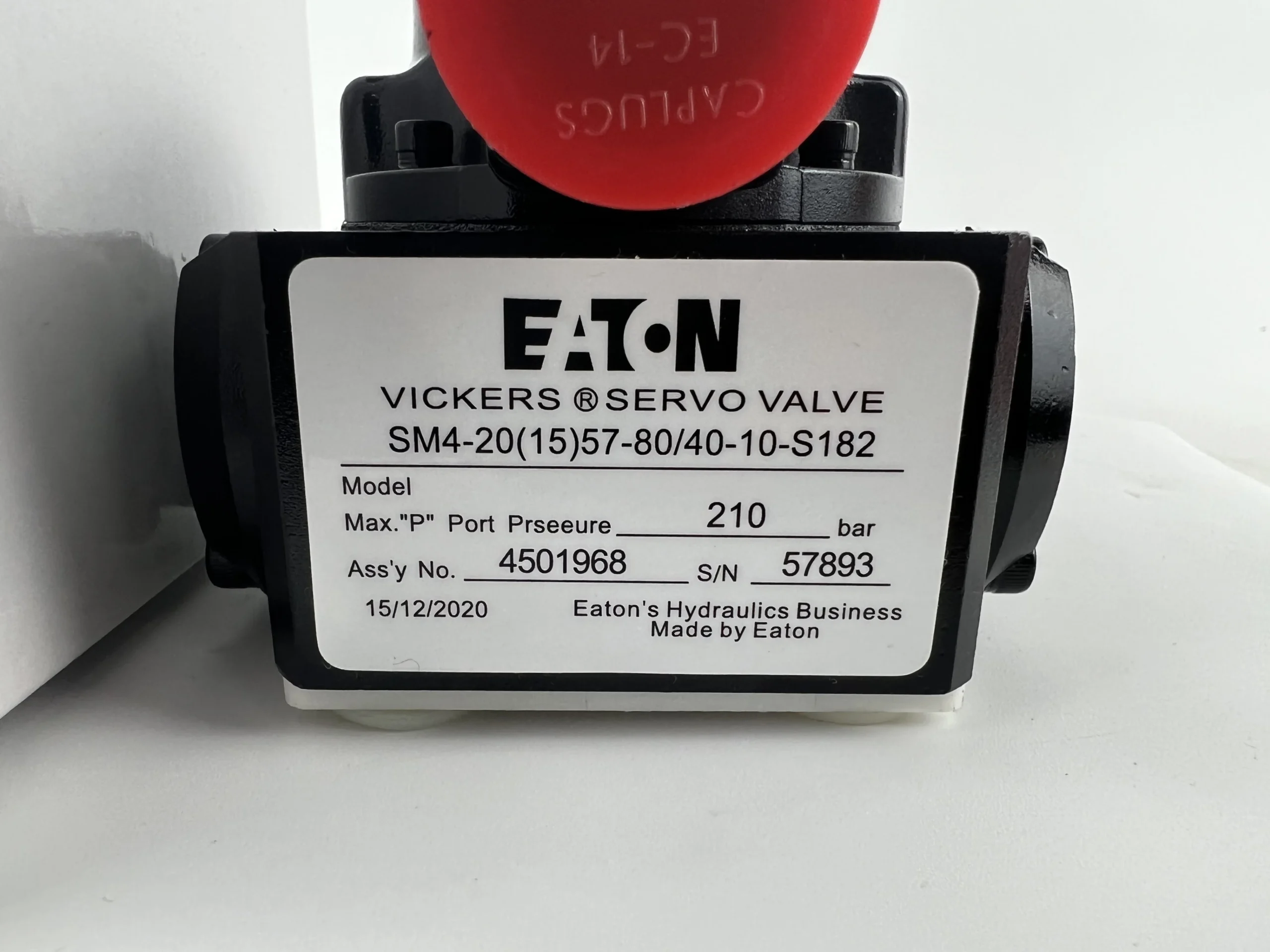

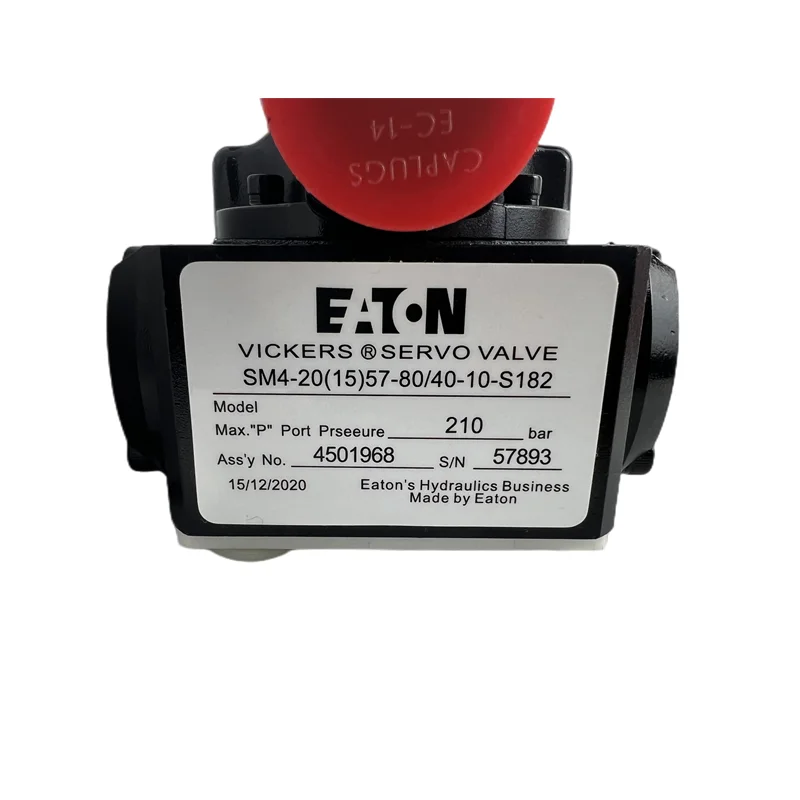

Vickers SM4-20 Servo Valve | SM4-20(15)57-80/40-10-S182 | BFP Actuator Control
| Model Number | SM4-20(15)57-80/40-10-S182 |
|---|
Product Description
Vickers Type SM4-20 Series Servo Valve for BFP Actuator Control
Product Overview: The Vickers SM4-20(15)57-80/40-10-S182 is a high-dynamic, two-stage electro-hydraulic servo valve engineered for the most demanding industrial applications. As a critical control component for BFP (Boiler Feed Pump) Actuators, this model translates micro-electrical commands into precise hydraulic force, enabling microsecond-level regulation of pump speed and flow. Featuring a precision-ground spool and sleeve assembly with a two-stage nozzle-flapper design, the SM4-20 ensures exceptional linearity, repeatability, and long-term stability in power plant and heavy industrial environments.
Key Technical Advantages:
BFP Actuator Optimization: Specifically calibrated for the dynamic requirements of boiler feed pump actuators (S182 spec), ensuring system smoothness and zero overshoot during speed regulation.
Superior Dynamic Response: The two-stage pilot architecture provides an ultra-wide bandwidth, allowing real-time tracking of control commands to maintain constant system pressure.
High Resolution & Low Hysteresis: The mechanical feedback wire design ensures precise spool positioning with minimal hysteresis, significantly enhancing closed-loop system stability.
Industrial Durability: Robust body construction withstands extreme mechanical vibration and high-temperature conditions, compatible with standard industrial mineral oils.
Detailed Specifications & Parameters:
Core Model: SM4-20(15)57-80/40-10-S182
Primary Application: BFP Actuator Control, Steam Turbine Regulation.
Core Performance Specs:
Nominal Size: Size 20 (Two-stage servo architecture).
Rated Pressure: Operating pressure up to 210 Bar (3,000 PSI), peaks up to 315 Bar.
Rated Flow Capacity: Ranging from 57 L/min to 80 L/min at specified pressure drops.
Control Signal: Low-current servo command (typically ±8mA, ±10mA, or ±40mA).
Design Sequence: 10 Series.
